Camden CM-336/42 SureWave Battery Powered Wireless Touchless Switch...
Description
Description

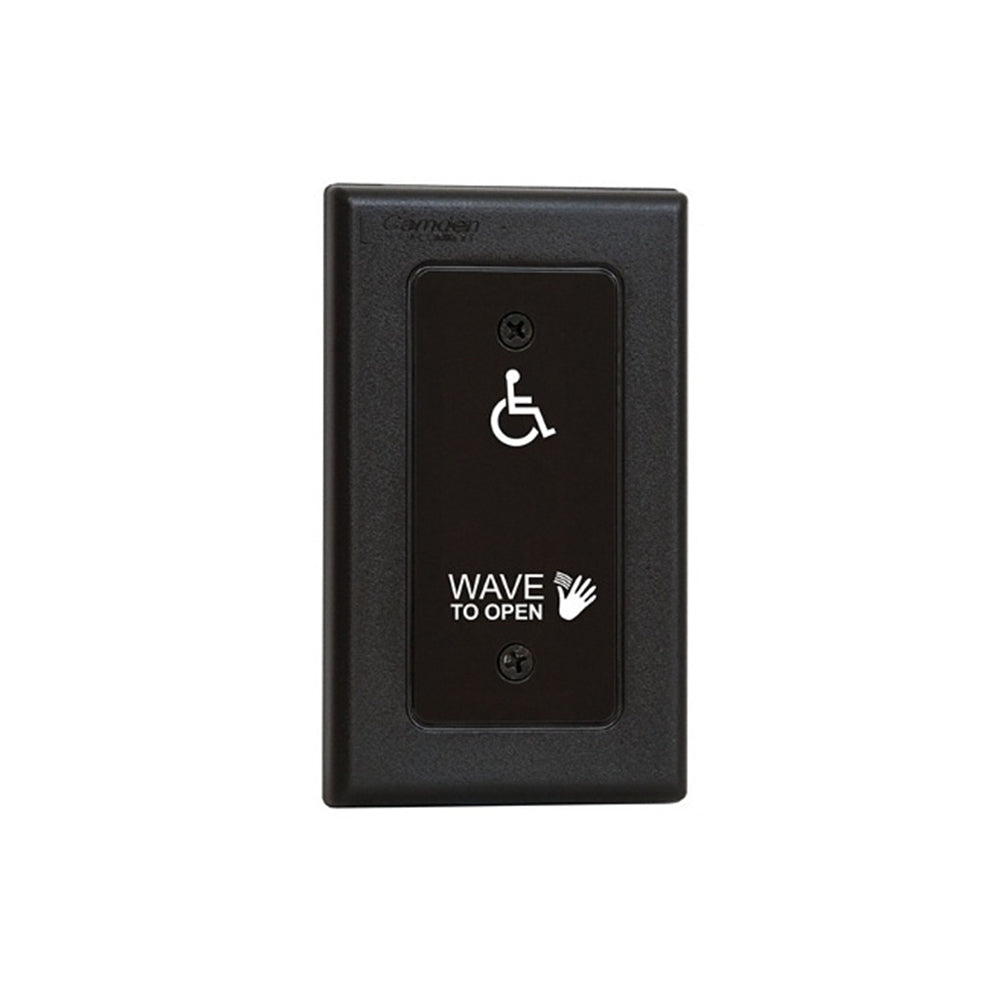

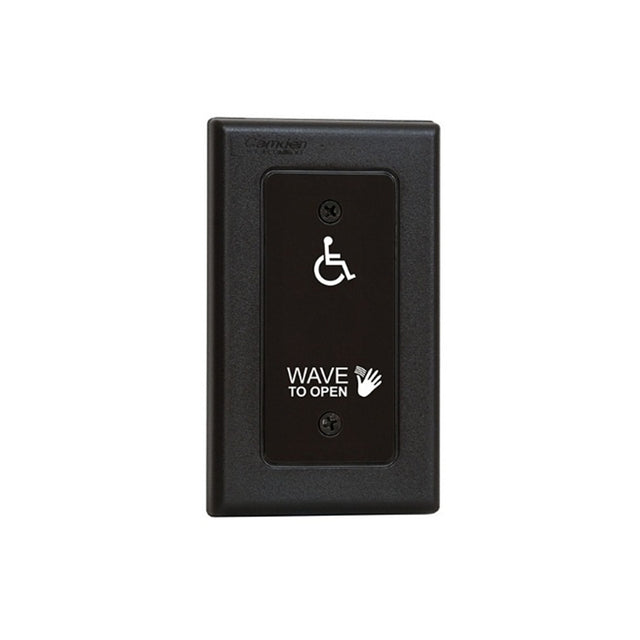

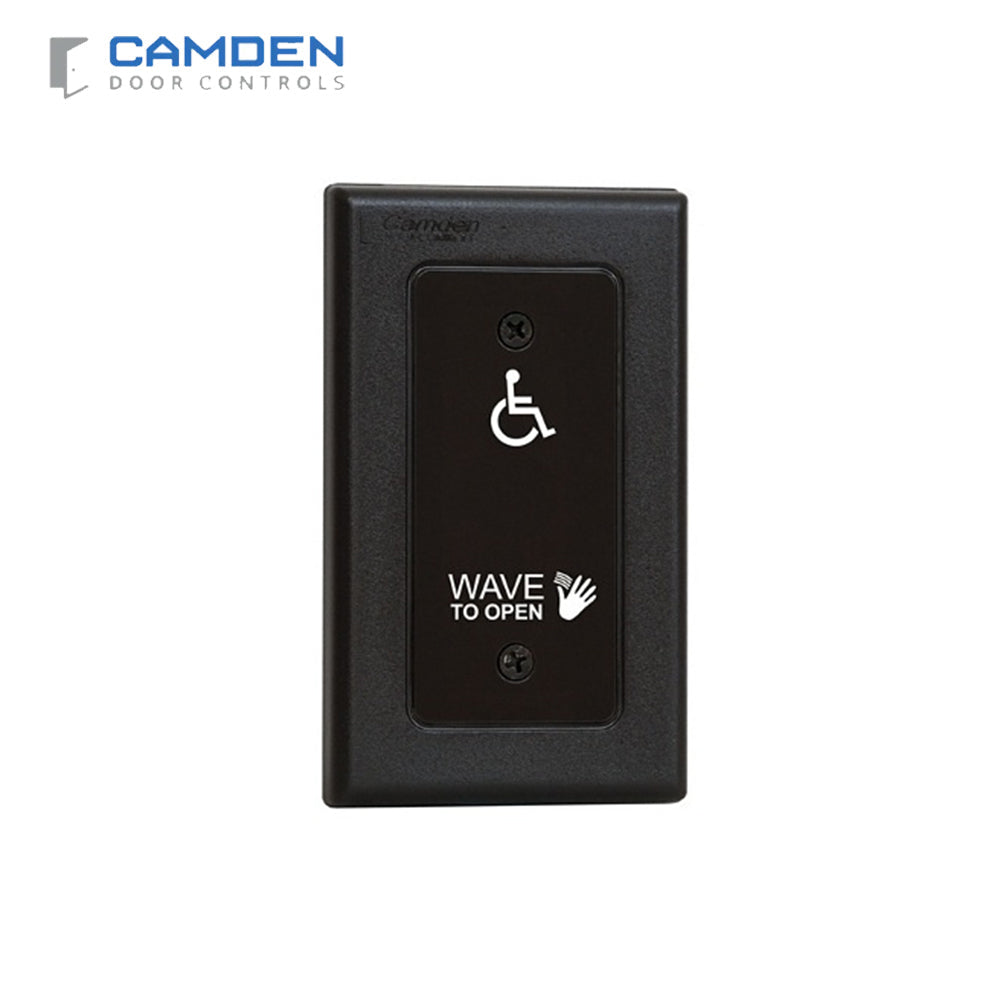

Camden - CM-336/42 - SureWave Battery Powered Wireless Touchless Switch - Wheelchair Icon - Wave to Open with Hand Icon - Black Polycarbonate Faceplate
CM-336 Series are 2nd generation hands-free wireless switches provide superior door activation in new and retrofit access control and automatic door applications. Supplied with (2) AA alkaline batteries. Camden CM-RX90 Wireless Receiver required. Lithium batteries recommended for environments below 0°C (32°F).
Features:
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
- CM-336 Series: 'Request to exit' and external door contact inputs
Specifications
| Technology | Active Infra-red, utilizing microburst sensing technology |
| Voltage | 12-24V AC/DC |
| Wireless | Built-In |
| Wireless Frequency | 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless |
| Battery | (2) 'AA' alkaline 32ºF to +122º F (0ºC to +50º C) (2) 'AA'Lithium Batteries (optional) -40ºF to +122º F (-40ºC to +50º C) |
| Battery Life |
Lithium: 4 years with 100 activations per day
Alkaline: 2 years with 100 activations per day
|
| Adjustable Operating Range | 1"-12" (25mm-304mm) |
| Time Delay | 3-30 Seconds |
| Operation | Selectable Fail Safe/Fail Secure |
| Motion Sensing Modes | Momentary, Momentary with Alarm, Maintained |
| Relay Operating Modes | CM-336 |
| Input | REX, Door Contact |
Installation Instruction:
