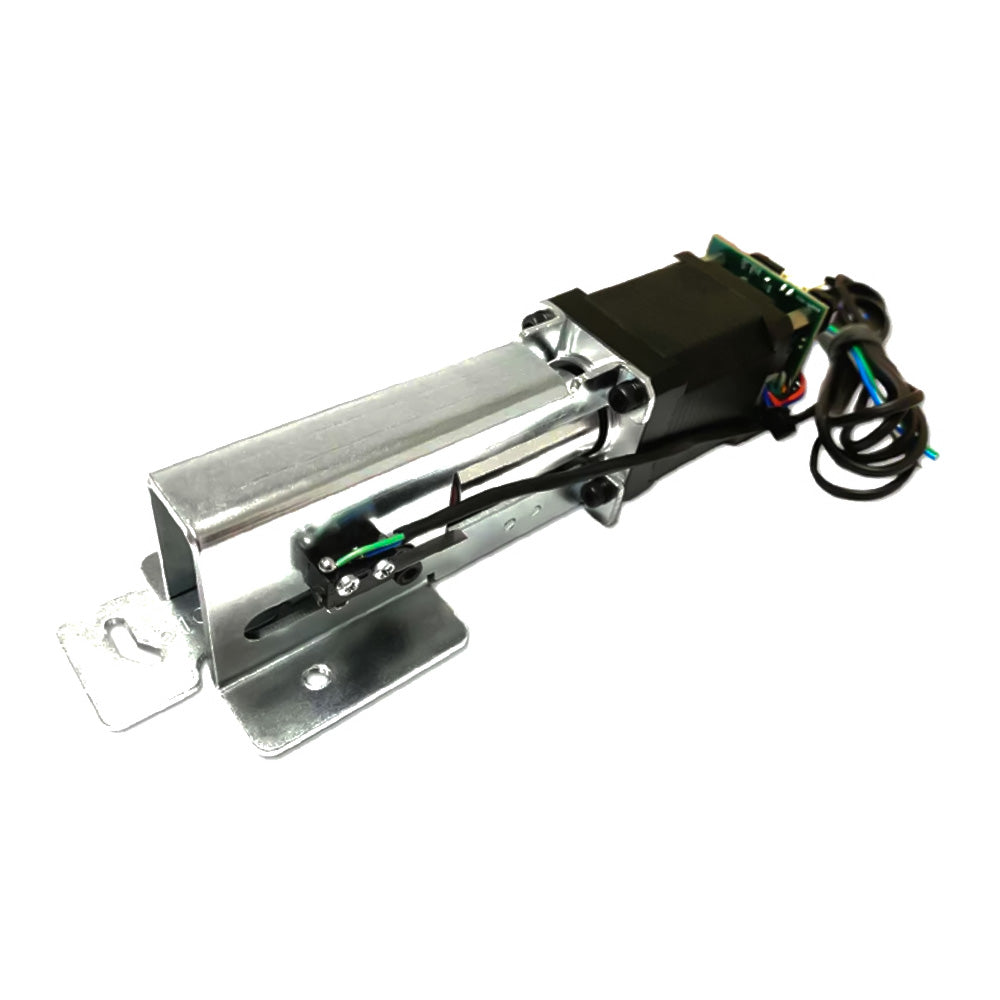

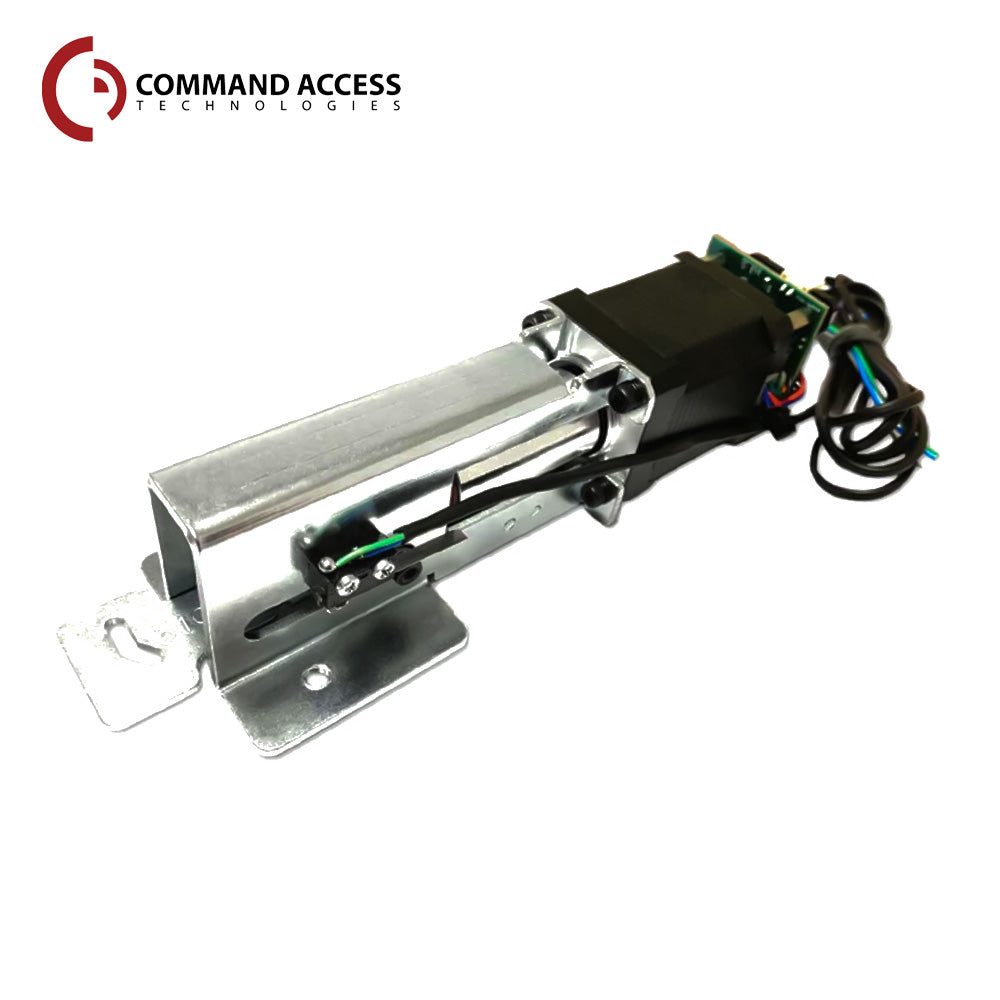

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

• Works On All Yale 6000 Series Exit Devices
• Fast, Quiet, Smooth & Strong!
• 1 & Only Motorized Latch Retraction Option Available On The Market
• Ul Listed
• Optional Built-In Request To Exit
• 3 Year No Hassle Warranty

Features:

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” cable with robust Quick Molex Connector for MM4S module to 6’ Power lead to easily connect to power supply lead.

Voltage:

• Voltage range – 24 to 25.3 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36”/ 48” - 6.5” Filler Plate Needed

Accessories:

• Request to Exit (YAL6REXKIT-ED) - Optional Built-in
