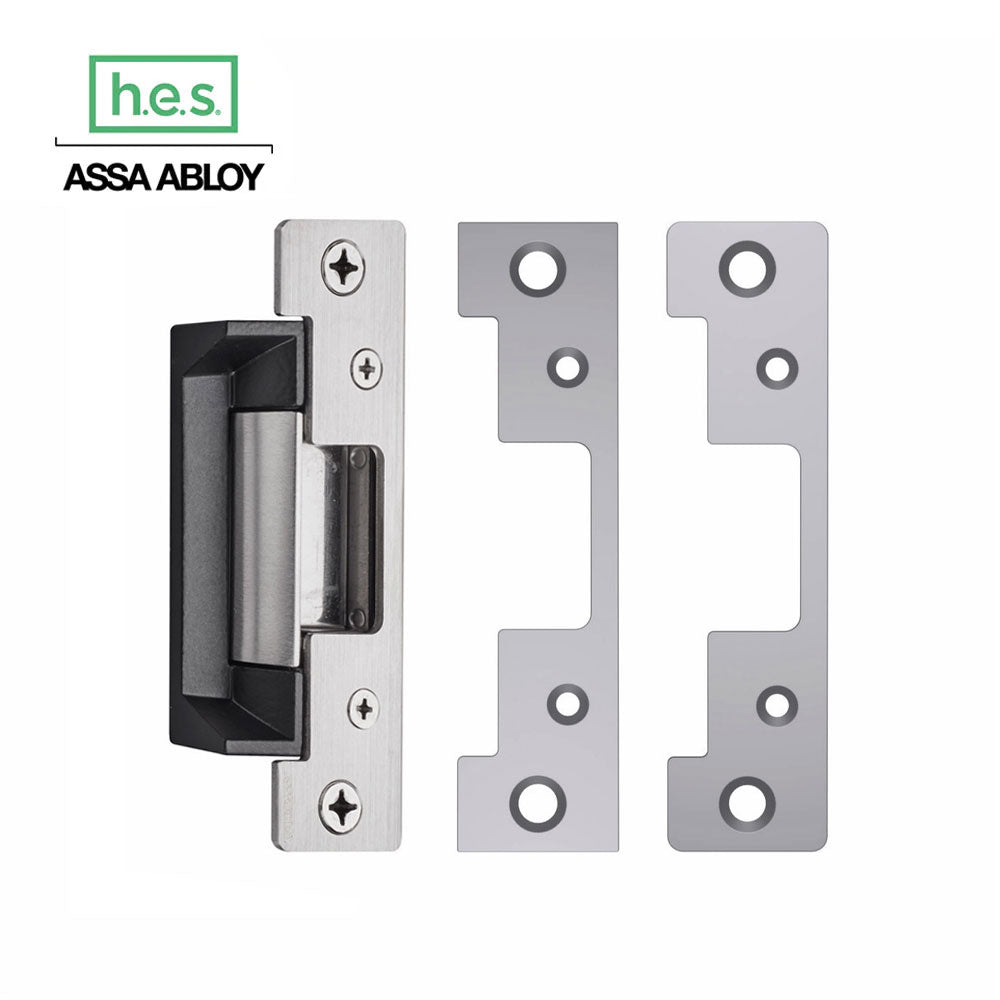

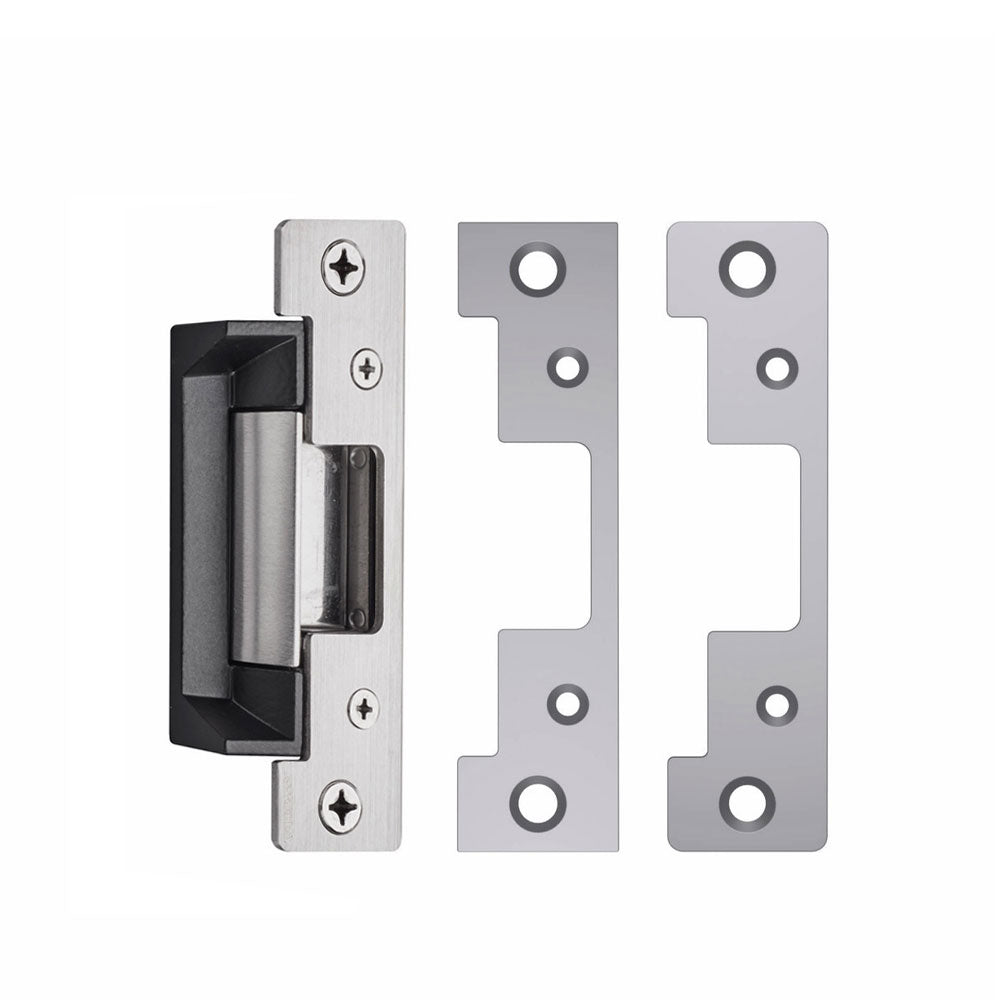

HES - 5300 Series - Electric Strike Body with 501 and 501A Faceplates - Grade 1 - Operating Voltage 12/24 VDC - Satin Stainless Steel
The 5300 Series - Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8 Inch throw.
Features:
- Tamper resistant.
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 1,000,000 cycles.
- Field selectable fail secure/ fail safe.
- Non-handed.
- Internally mounted solenoid.
- Accommodates 1/2 Inch - 5/8 Inch latchbolt (5/8 Inch with 1/8 Inch door gap)
- Strike body depth 1-1/16 Inch..
- Plug-in connector.
- Trim enhancer included.
- Dual voltage 12 or 24 VDC/VAC.
Product Specifications:
| Manufacturer | HES |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| UL Listing Type | 1034 and 294 |
| ANSI Number | A156.31 |
| Manufacturer Warranty | 5 Years |
| Fire Rated | Yes {Variable} |
| Burglar Rated | Yes |
Technical Specifications:
| Function | Fail Safe/Fail Secure |
| Operating Voltage | 12/24 VDC |
| Amp Draw | 240 mA @12V 120 mA @ 24V |
| For Use With | Cylindrical Locks |
| Faceplate Size | 4-7/8 Inch x 1-1/4 Inch |
| Fire Rated | Yes |
| Holding Force | 1500 lbs. |
| Switch Type | Latchbolt Monitor |
| Frame Application | Metal or Wood |
| Product Type | Electric Strikes |
