Ives 224XY Full Mortise Heavy Duty Continuous Hinge - Door Edge Protector Center Loaded - Non-Handed - Grade 1

Ives 224XY Full Mortise Heavy Duty Continuous Hinge - Door Edge Protector Center Loaded - Non-Handed - Grade 1

Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors.

Features:

• For 1 3⁄4" doors
• Door edge protector
• Patented center loaded, interlocking bearing design
• Non-handed for custom cut lengths
• 1⁄16" Door Inset
• 48" Maximum door width
• Beveled or square edge doors
• Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps
• For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing

Specifications:

• Standard length: 83", 85", 95", 119"
• Standard mounting hardware: 12-24 x 3⁄4" Steel self drilling/self tapping phillips head screw
• Certifications: Exceeds Grade 1 ANSI/BHMA 156.26 for 150lbs and 300lbs. UL10C listed (90 min)

Options:

• EPT: Electric power transfer
• HT: Hospital tip
• TWP CON: Electrical through-wire panel with Allegion Connect

Optional Mounting Hardware:

• SECHM: Security screws - hollow metal door and frame
• SECWDHM: Security screws - 1⁄2 wood, 1⁄2 hollow metal
• SECWDWD: Security screws - wood door and frame
• TEKWD: 1⁄2 Self drill, self tap 1⁄2 wood
• WD: Wood door and frame

Finishes:

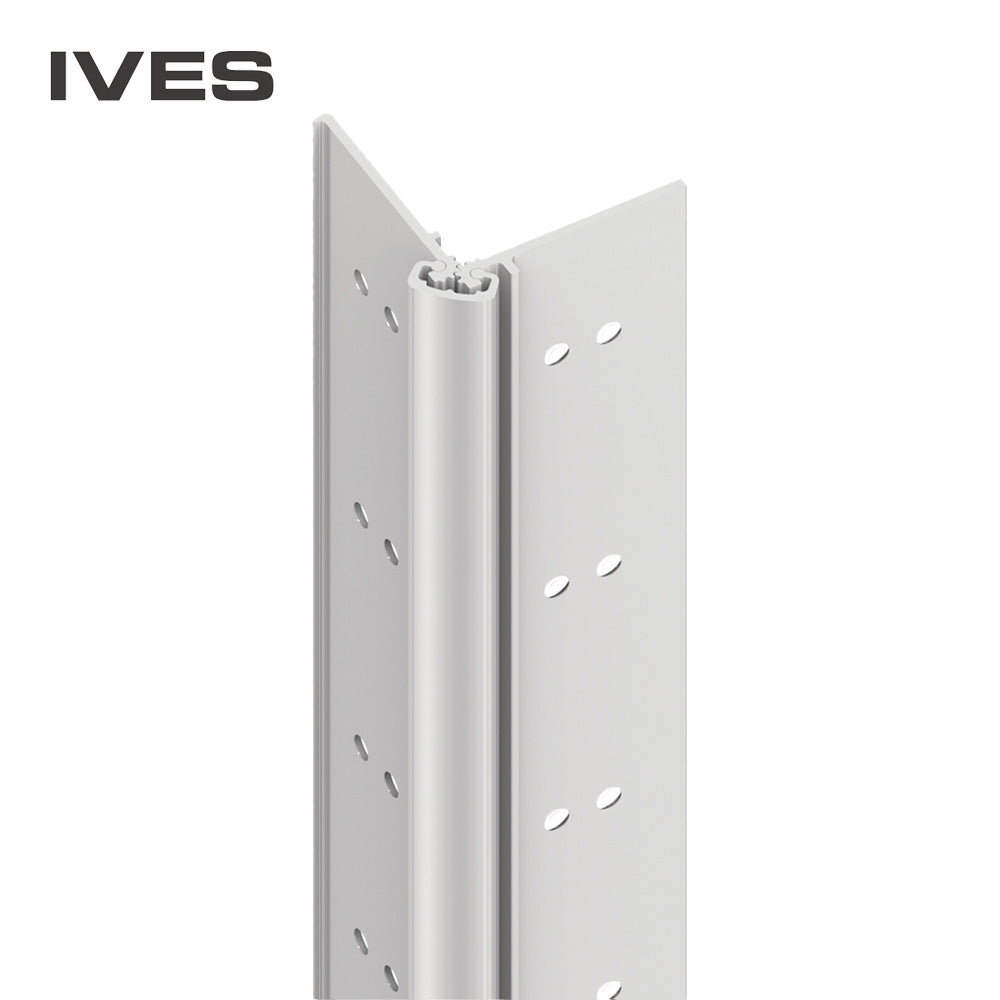

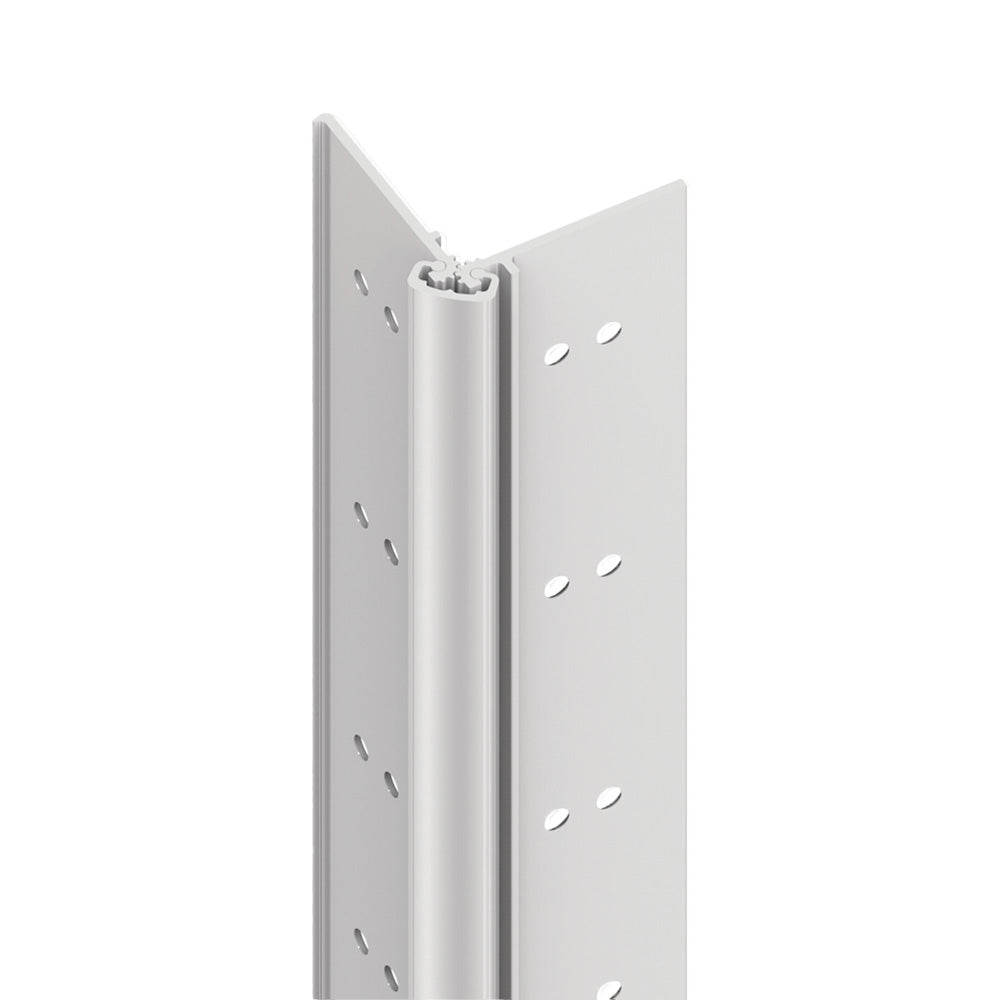

• US28/628 - Clear Aluminum Anodized

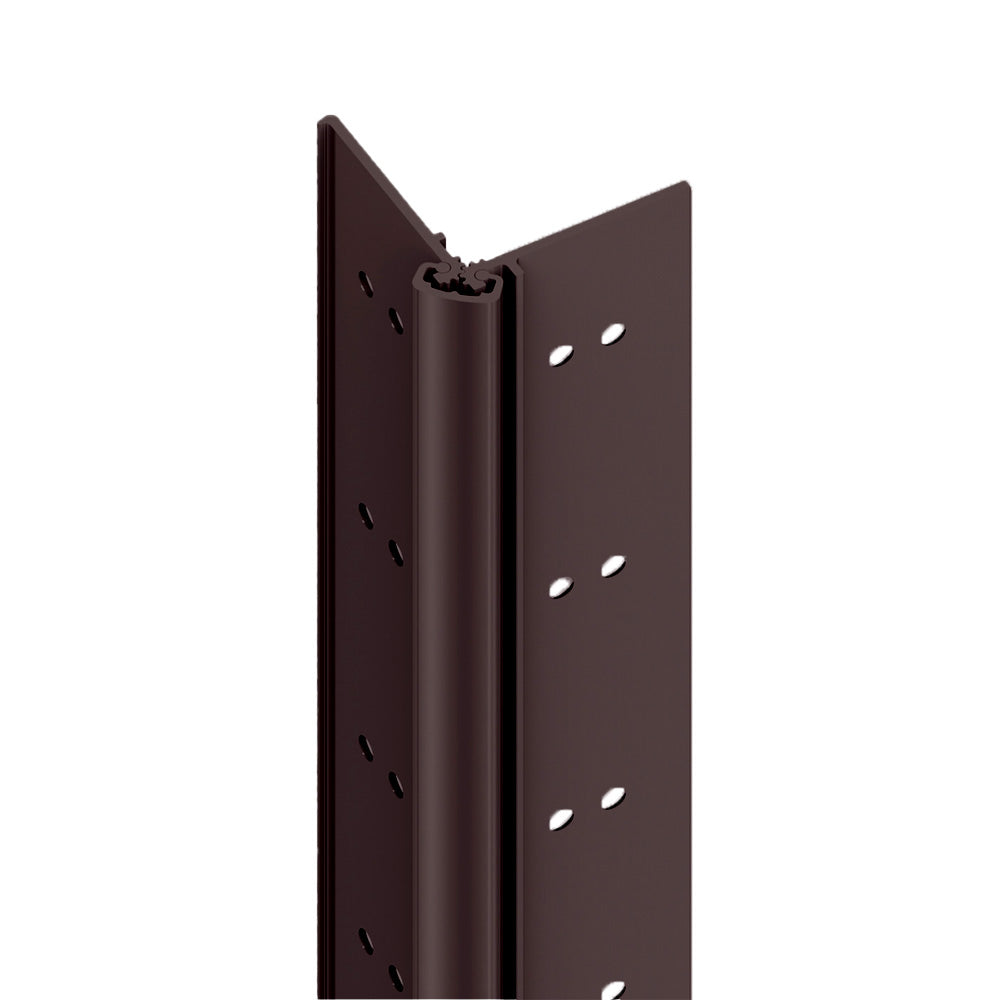

• 313AN/710 - Dark Bronze Anodized

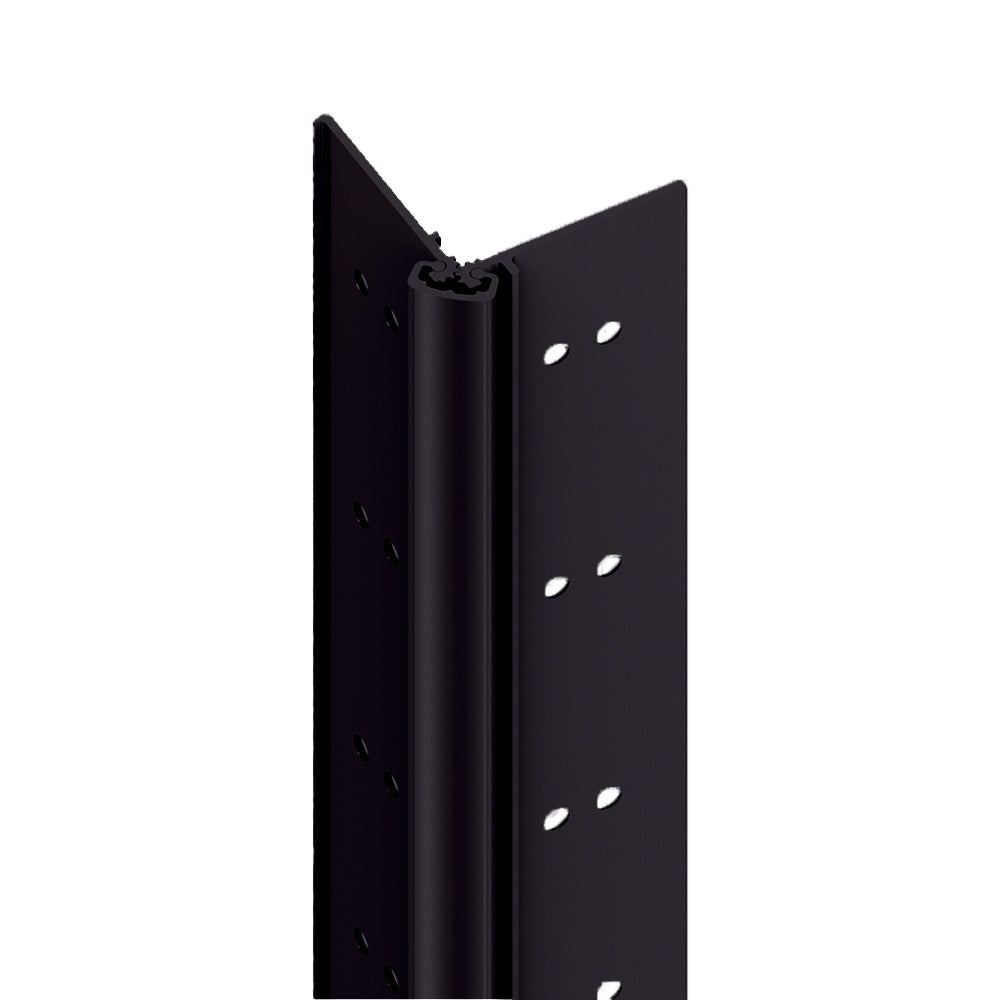

• 315AN/711 - Black Anodized
