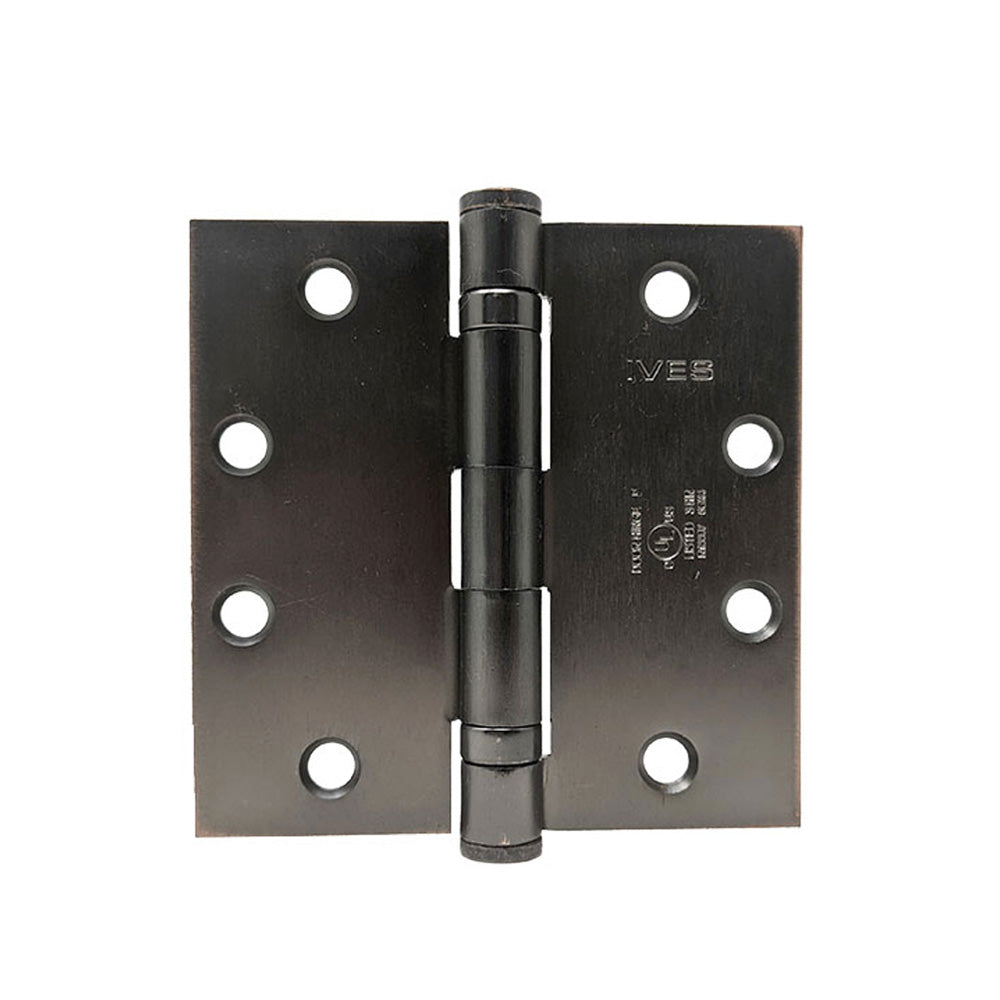

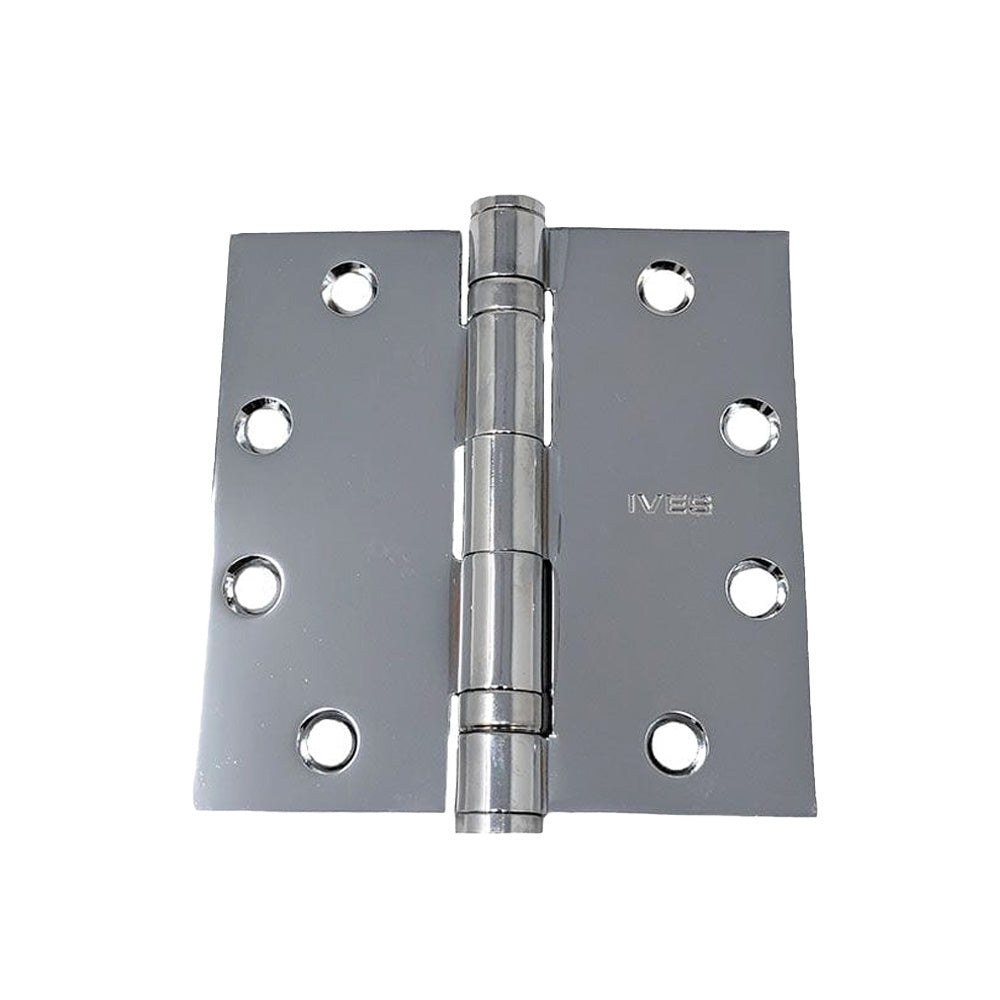

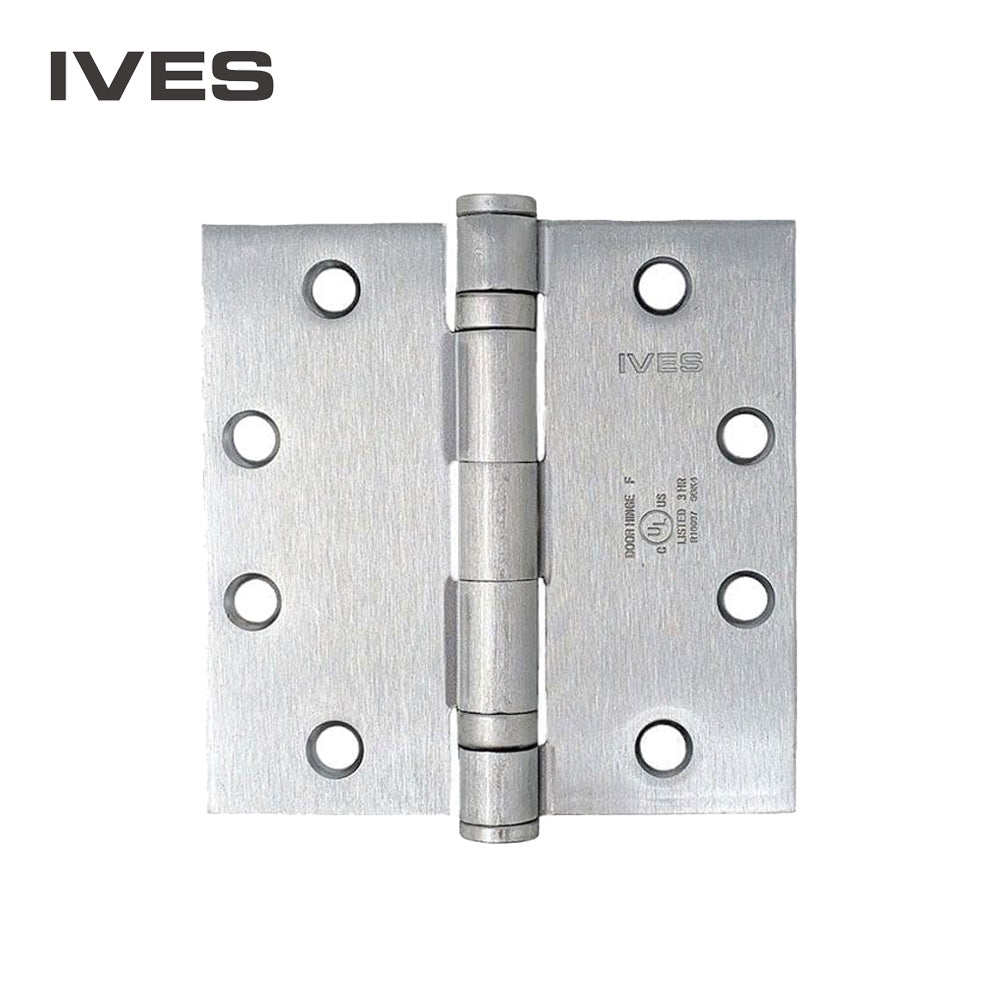

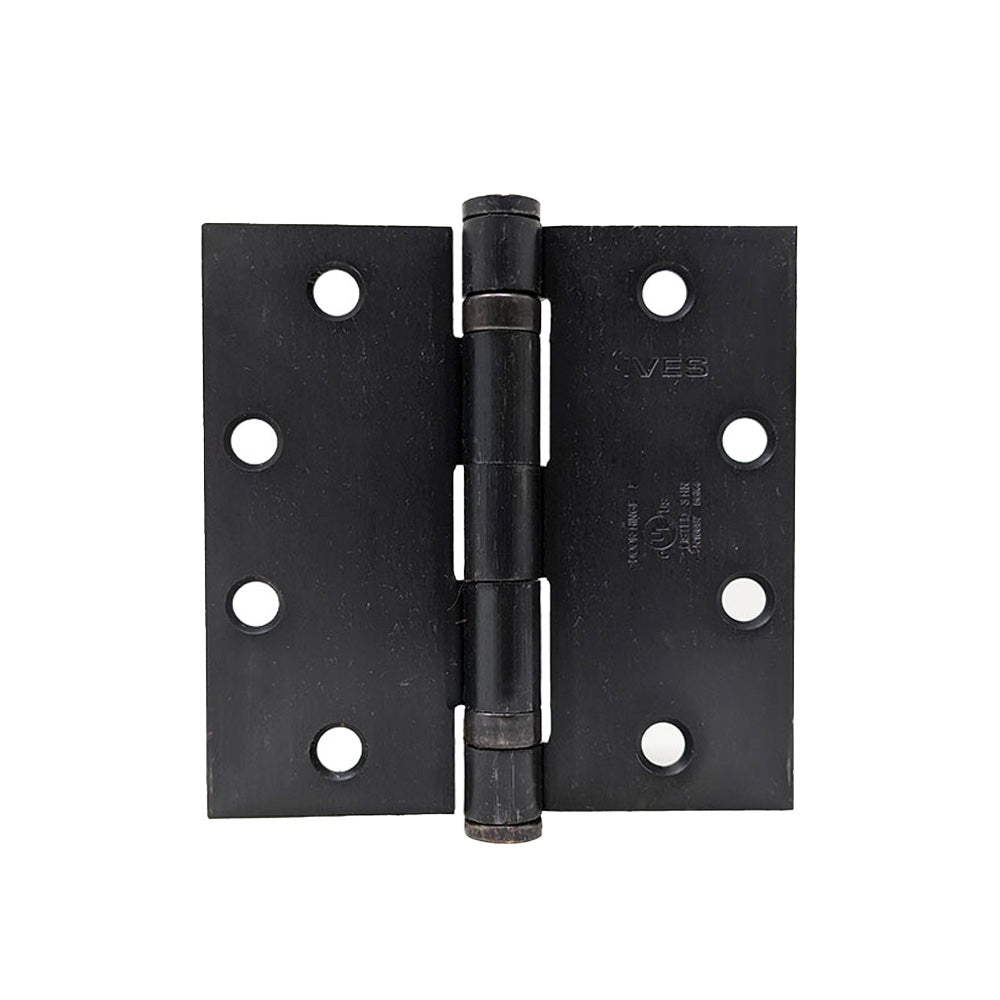

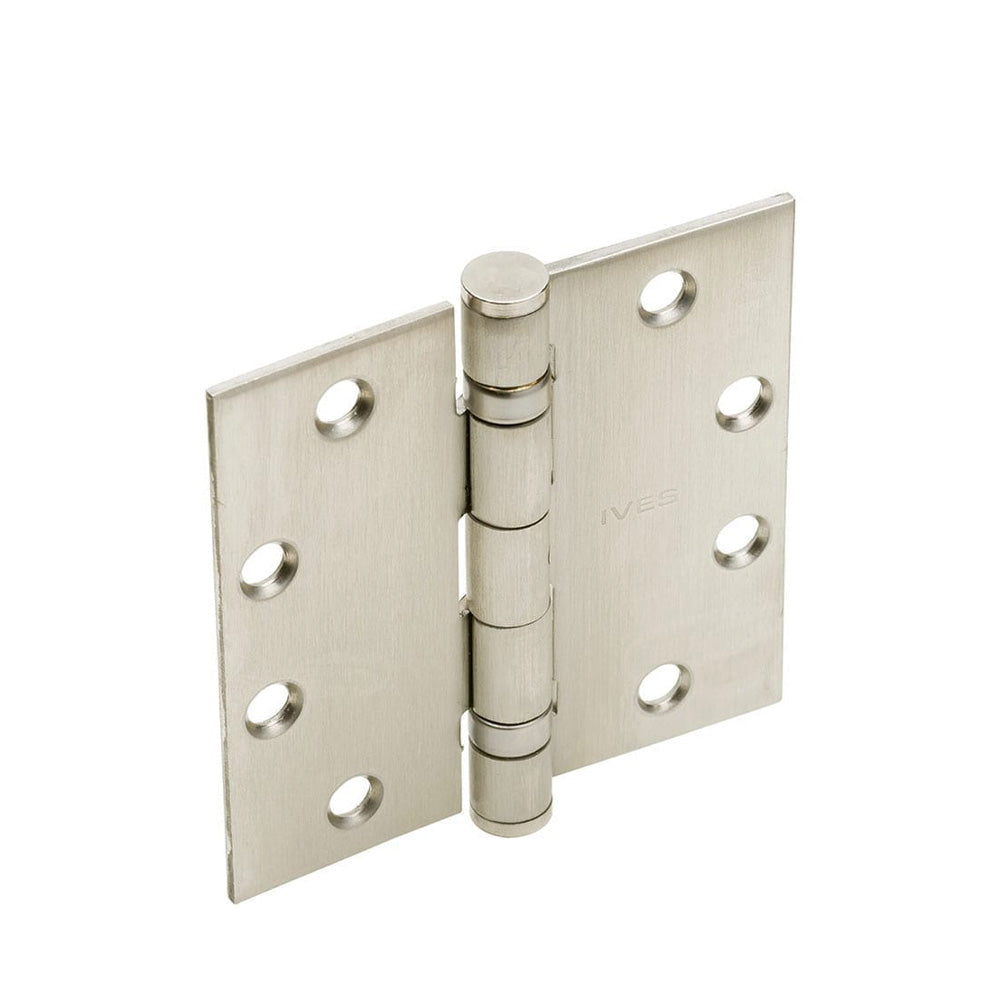

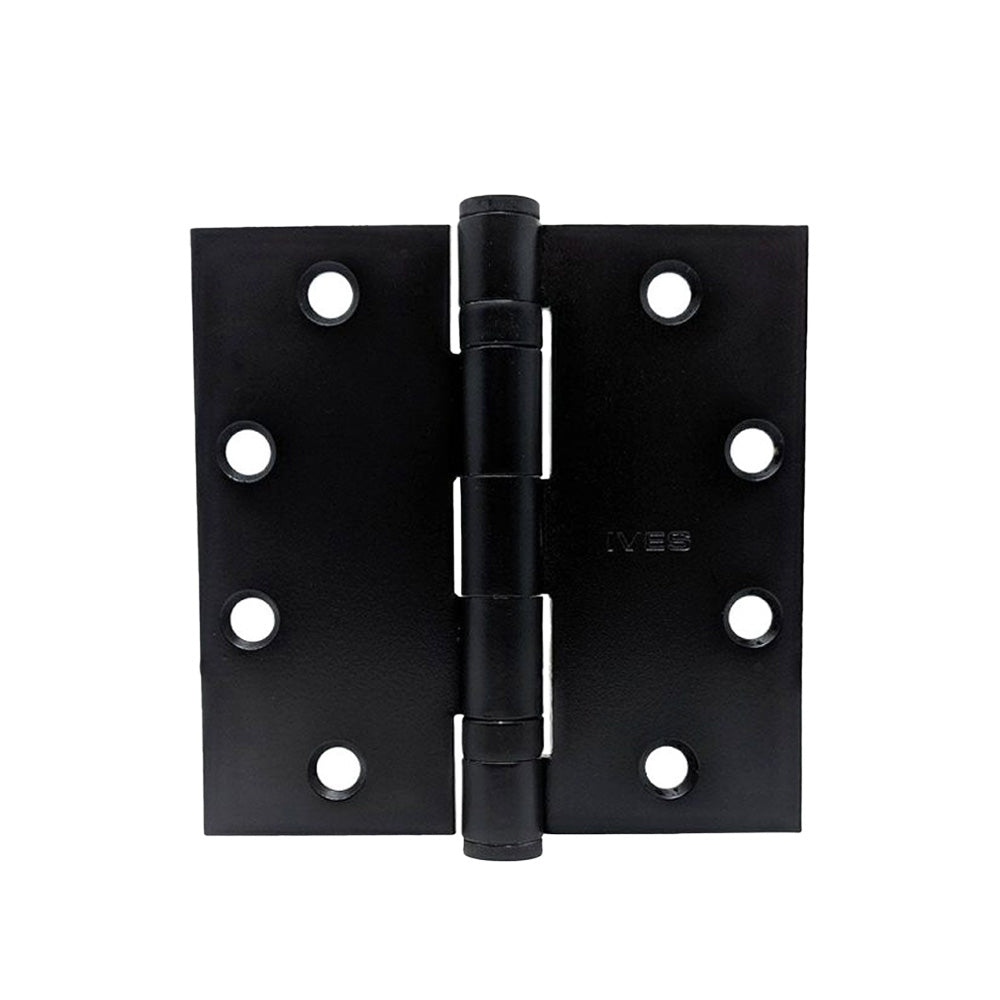

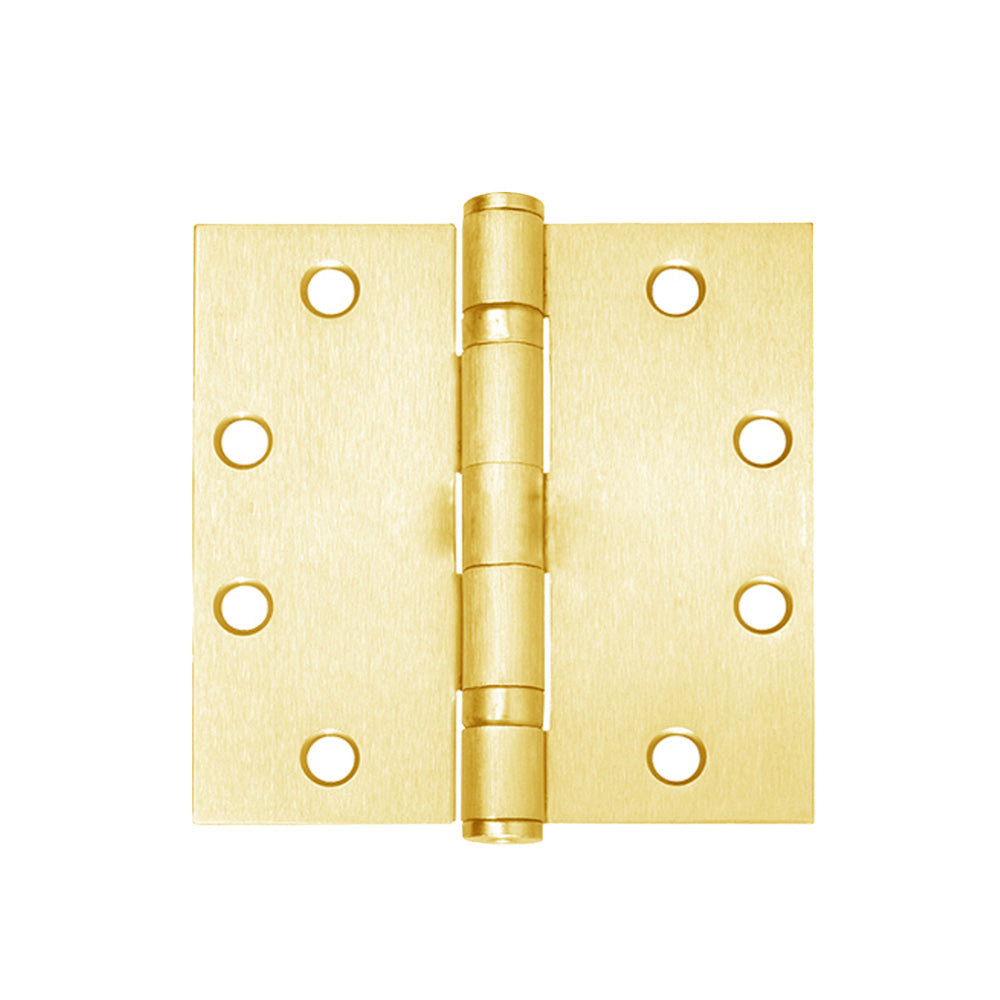

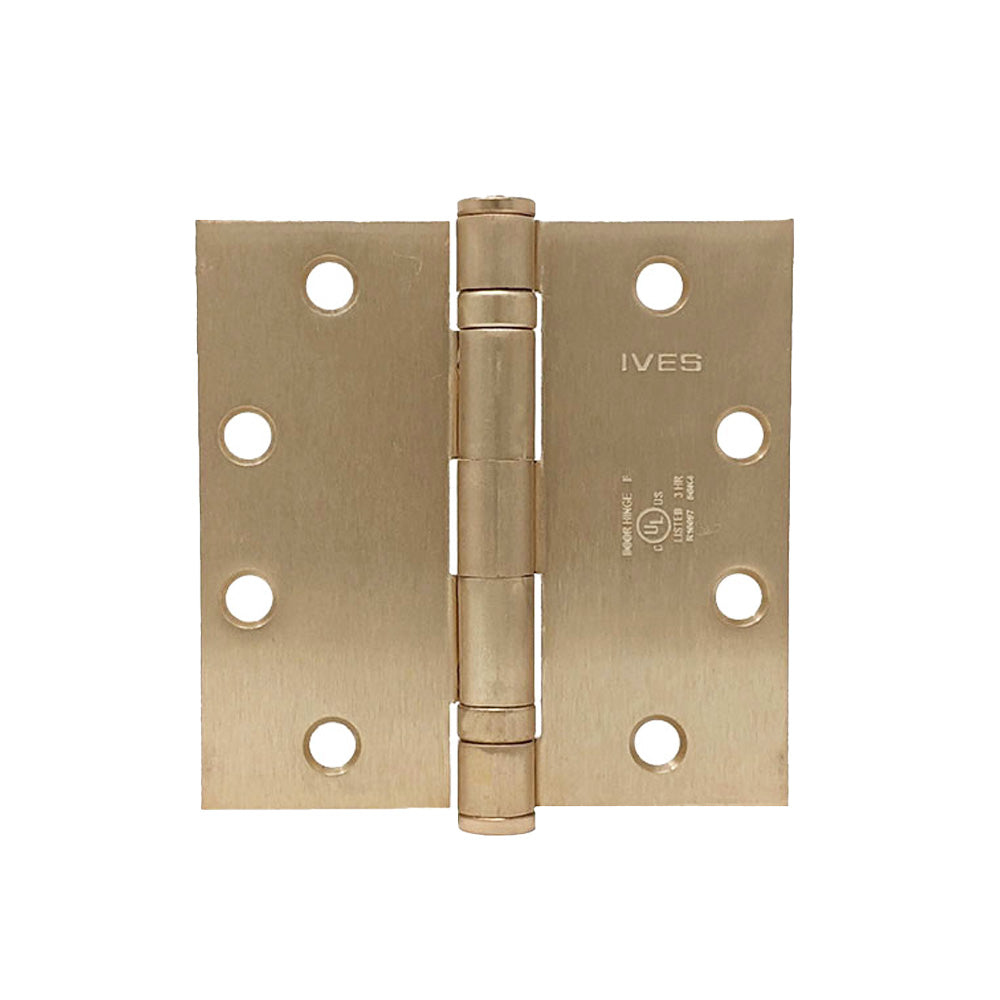

Ives 5BB1 Ball Bearing Full Mortise Hinge - 4.5X4.5 Inch - 5-Knuckle
Ives offers a variety of architectural hinges, also known as butt hinges, that will cover any need in residential and commercial applications while also exceeding code requirements. It is important to consider the door width, thickness, weight and clearance when choosing a hinge. With tested durability and consistent superior performance, Ives architectural hinges get the job done.
Features:
- Recommended for medium weight doors (<150 lbs).
- Recommended for medium frequency usage (<400 cycles per day).
- Made with two ball bearing assemblies.
- Recommended for use with a door closer.
- Packed with fasteners for hollow metal and wood doors.
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS.
- 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only).
Certifications:
- Certified to ANSI/BHMA A156.1 for performance standards.
- Meets ANSI/BHMA 156.7 for template hinge dimensions.
- UL Classified for windstorm rated assemblies - R37965.
- UL Listed, 3 hour fire doors.
Material Substrate: Made from brass, 1040 steel, or 304 series stainless steel.
Pin Type Options:
- NRP: Non-removable pin.
- HT: Hospital tip.
- SH: Security stud - comes standard with NRP.
- RC-1/4, RC-5/8: Rounded corners.
- TW4: Four wire.
- TW4M: Four wire with monitor.
- TW8: Eight wire.
- TW8M: Eight wire with monitor.
- TW12: Twelve Wire.
- MON: Monitor (Not Available On 4X4).
Dimensions:
| Height x Width | Size(mm) | Gauge |
|---|---|---|
| 3.5 x 3.5 | 89 x 89 | 0.123 |
| 4 x 4 | 102 x 102 | 0.130 |
| 4.5 x 4 | 114 x 102 | 0.134 |
| 4.5 x 4.5 | 114 x 114 | 0.134 |
| 5 x 4.5 | 127 x 114 | 0.146 |
| 5 x 5 | 127 x 127 | 0.146 |
Finishes:
- 600/USP - Primer Paint
- 605/US3 - Bright Brass
- 606/US4 - Satin Brass
- 612/US10 - Satin Bronze
- 613/US10B - Oil Rubbed Bronze
- 614/US10A - Oxidized Bronze
- 616/US11 - Blackened Bronze
- 619/US15 - Satin Nickel
- 622/B-BLK - Matte Black
- 625/US26 - Bright Chrome
- 626/US26D - Satin Chrome
- 643e/716/B-643e - Aged Bronze
- 629/US32 - Bright Stainless Steel
- 630/US32D - Satin Stainless Steel
- 631/F-BLK - Matte Black
- 632/US3 - Bright Brass

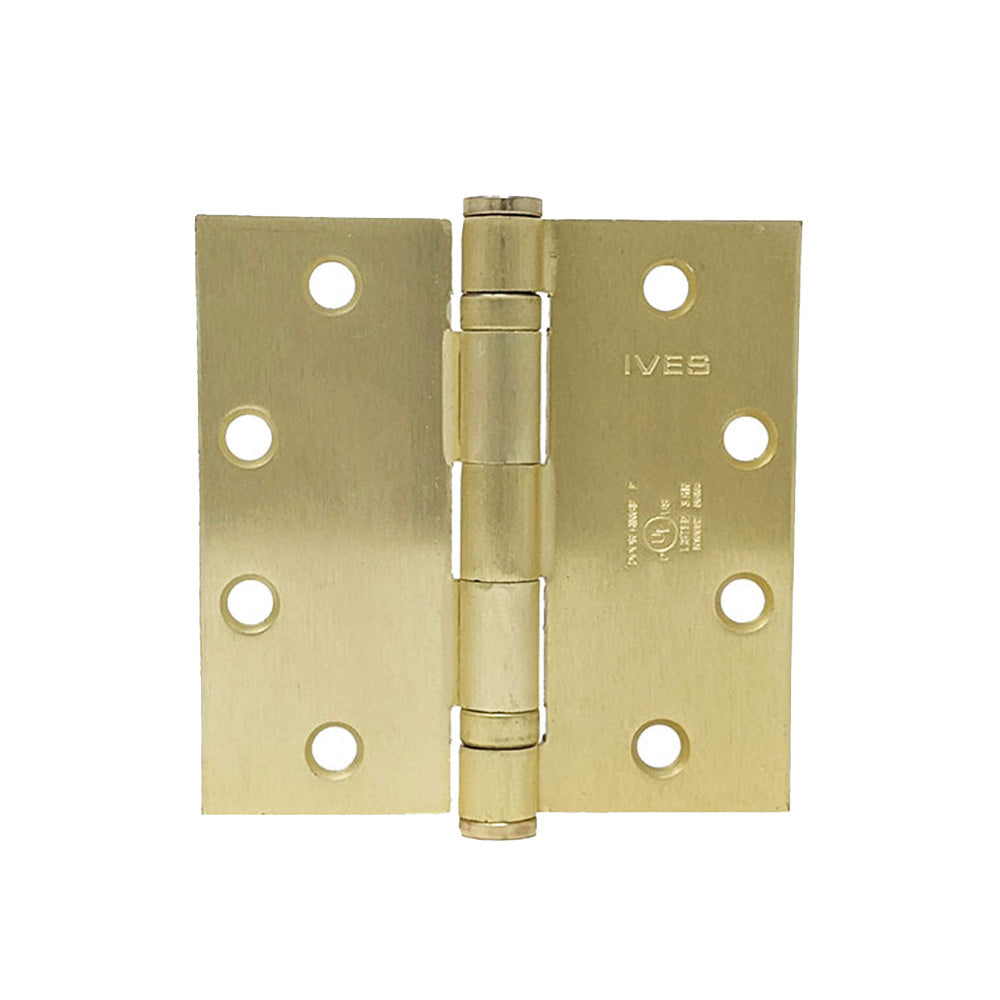

- 633/US4 - Satin Brass
- 639/US10 - Satin Bronze
- 640/US10B - Oil Rubbed Bronze

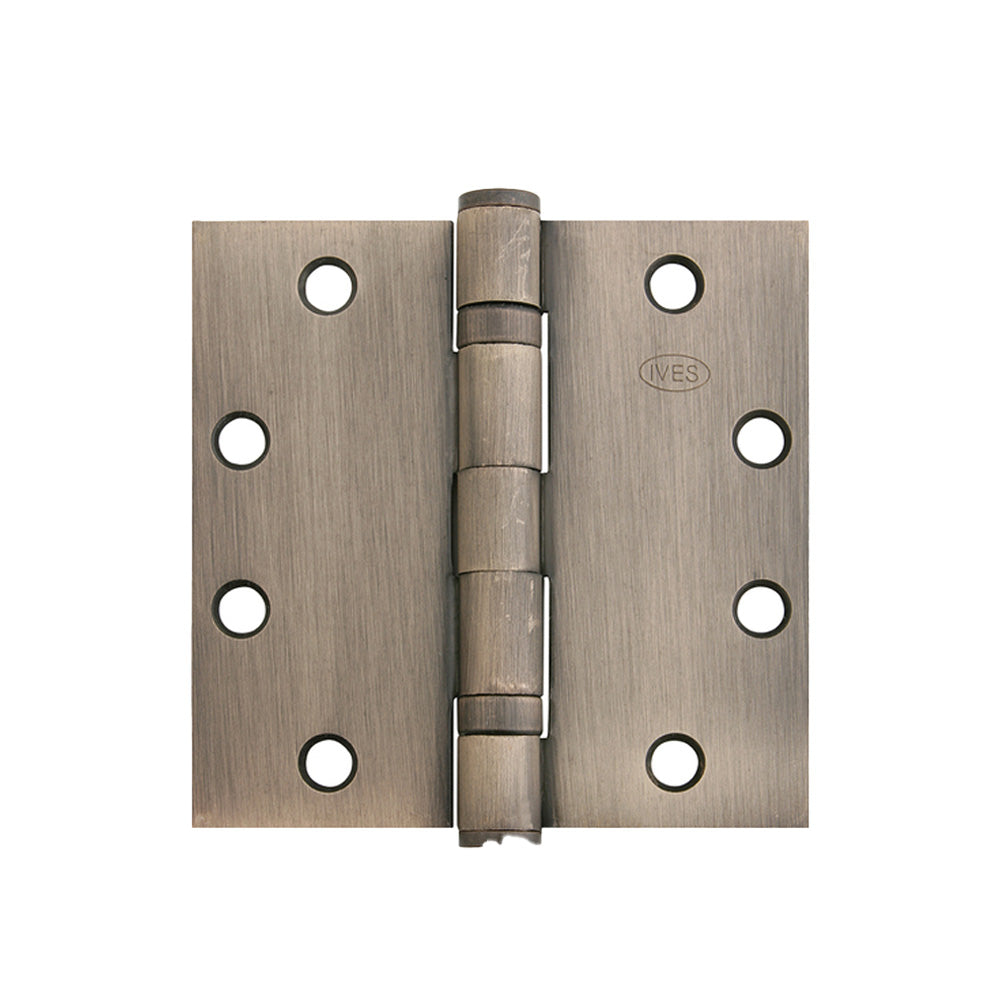

- 641/US10A - Oxidized Bronze
- 643/US11 - Blackened Bronze
- 646/US15 - Satin Nickel
- 651/US26 - Bright Chrome

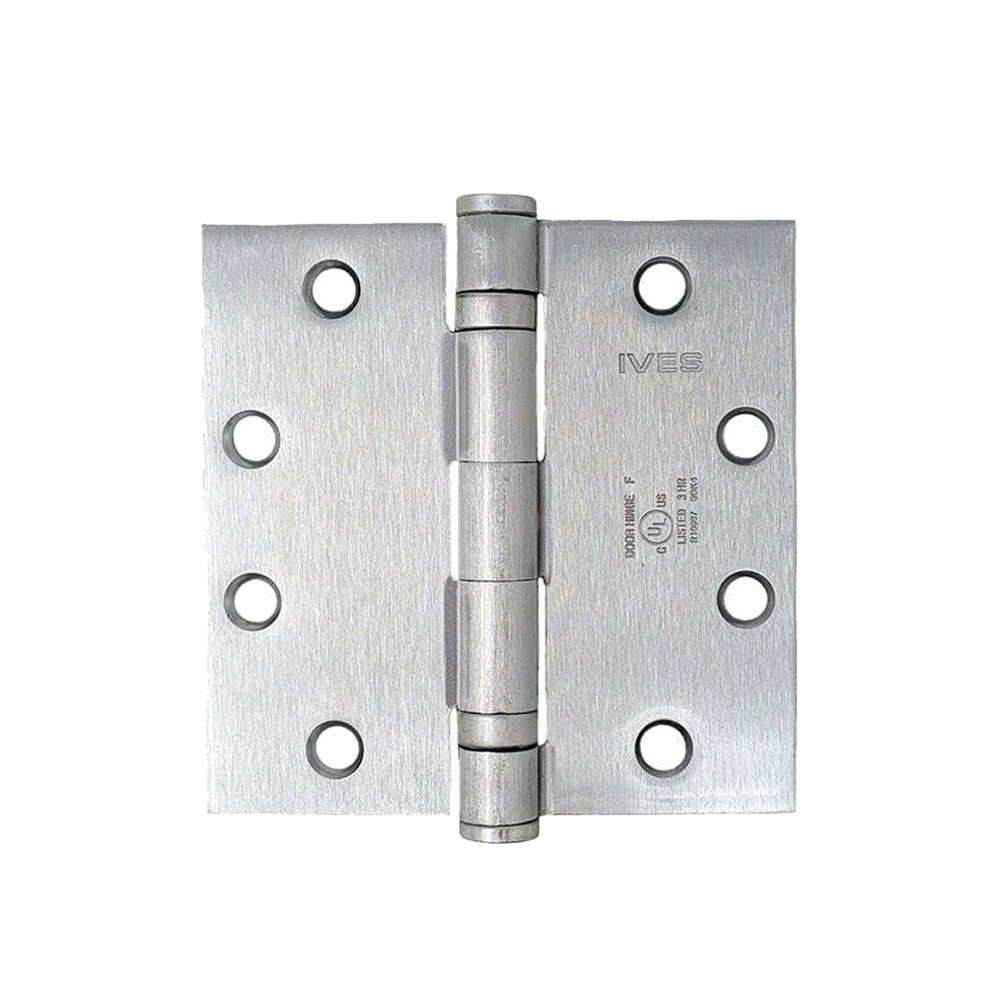

- 652/US26D - Satin Chrome
- 643e/716 - Aged Bronze
