MBE Orange5 Full Standard Programmer Set
Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro-language for writing down protocols, which gives fast and easy capability to add new types of micro-schemes, precisely meeting manufacturers' requirements to read/write algorithms. This set contains most of the popular adapters and is one of the most flexible EEPROM/ FLASH programmer, a powerful tool in your hands.
Technical Info:
- Connection and power via USB interface (USB2.0)
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions connectors compatible with Orange4 and Omega MTRK
- Protection against overcurrent
- Overload voltage protection
- Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
- Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
- Capability of functional emulation of USB CDC devices.
- Built-in 32-bit virtual machine
- Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
- plastic case.
Software
- Maximum buffer size - 32Mb;
- Users can create own HPL modules;
- Edit 8 and 16 bits HEX values, as well as ASCII.
- Read and write files in BIN, HEX, S19 formats;
- Visual compare mode with highlight values;
- Write all chip or marked area;
- Support for multiple configuration files;
- Auto-save backups;
- Extended set of operations on the buffer;
- Works under Windows XP (32 bit).

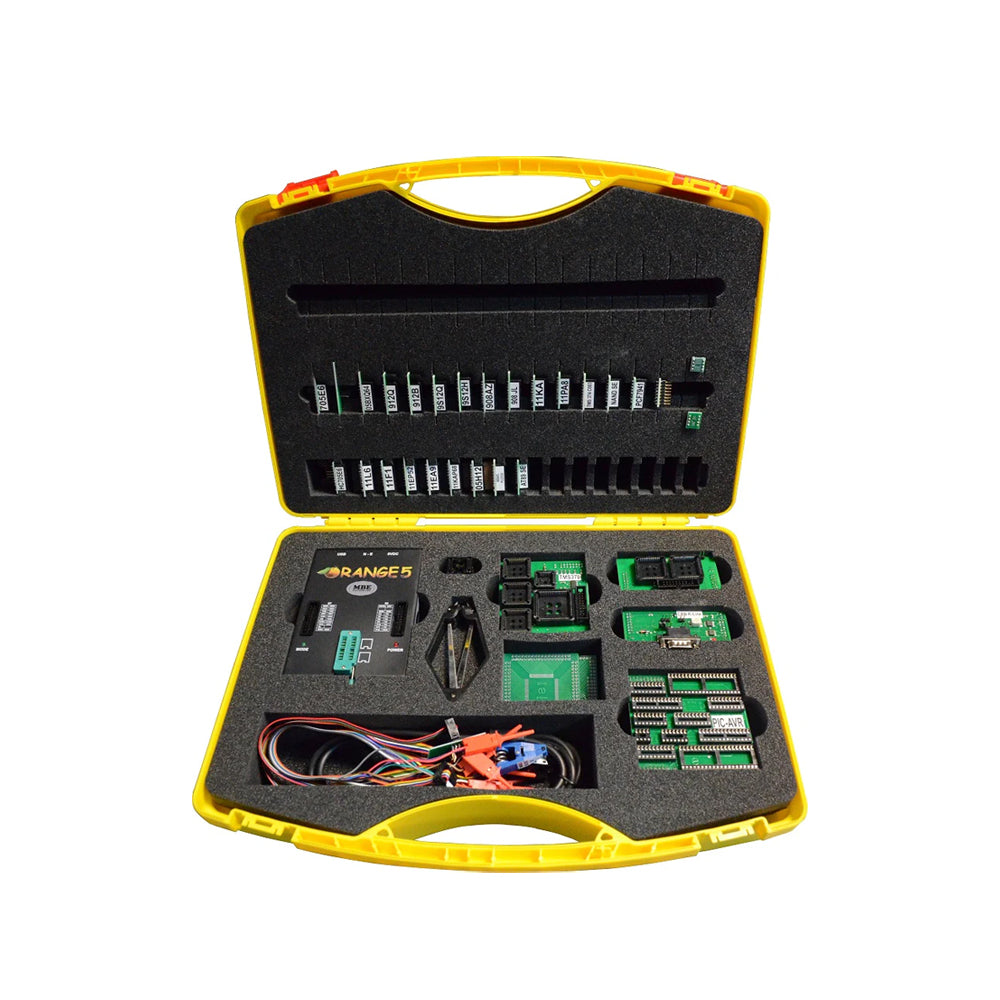

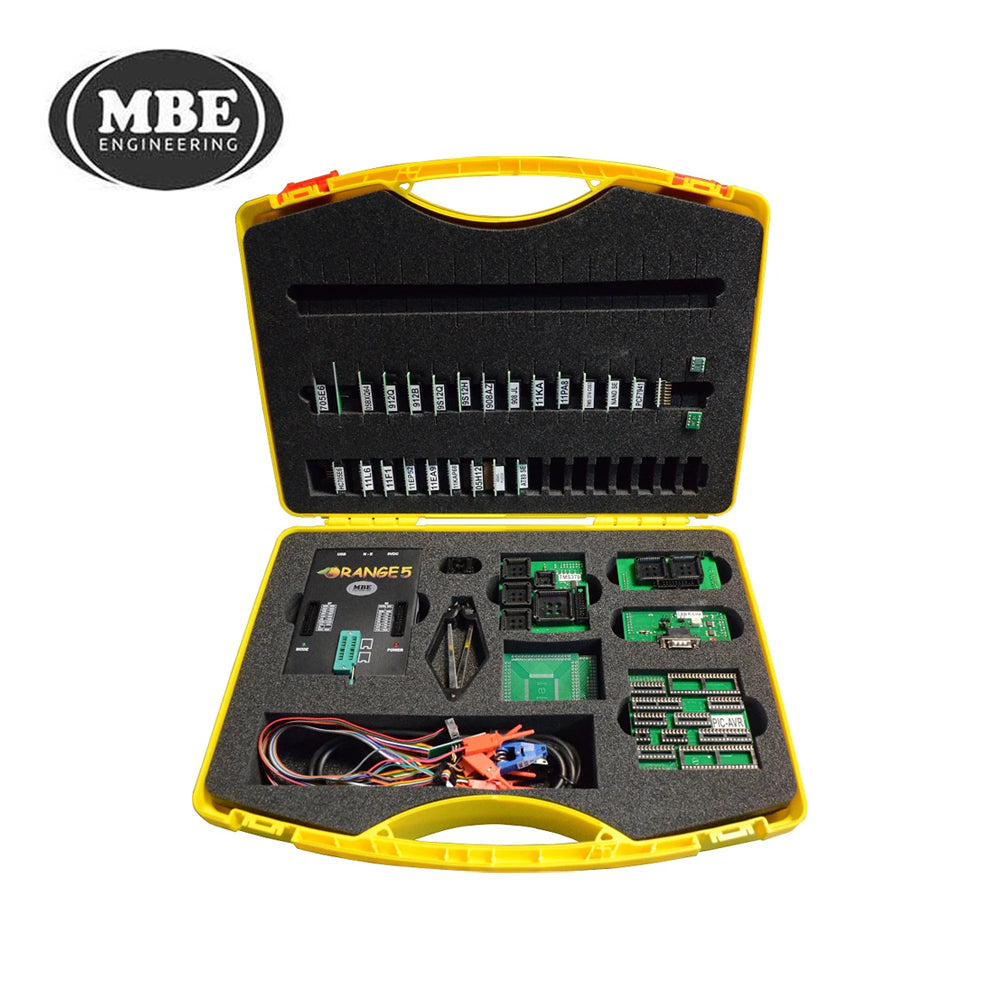

Set contains:
- Orange5 device
- Orange5 Software
- Orange5 USB base + Motorola license
- USB cable
- SOIC8 clip POMONA with leads
- PLCC extractor
Adapters in MBE FULL set
- 912Q
- ST62 SE
- 908AZ
- 9S12Q
- 908 JL
- 9S12H
- 11KA
- 11PA8
- TMS 374 C003
- NAND SE
- SOIC8-16
- SOP8 / TSSOP-8
- 11EP52
- 11KAP68
- 11L6
- 11F1
- 05H12
- 908AS
- AT89 SE
- QFP100 / 112/ 144
- QFP64 / 44
- QFP48-80
- TMS370
- 05B2
- PIC-AVR
- Test clip hook
