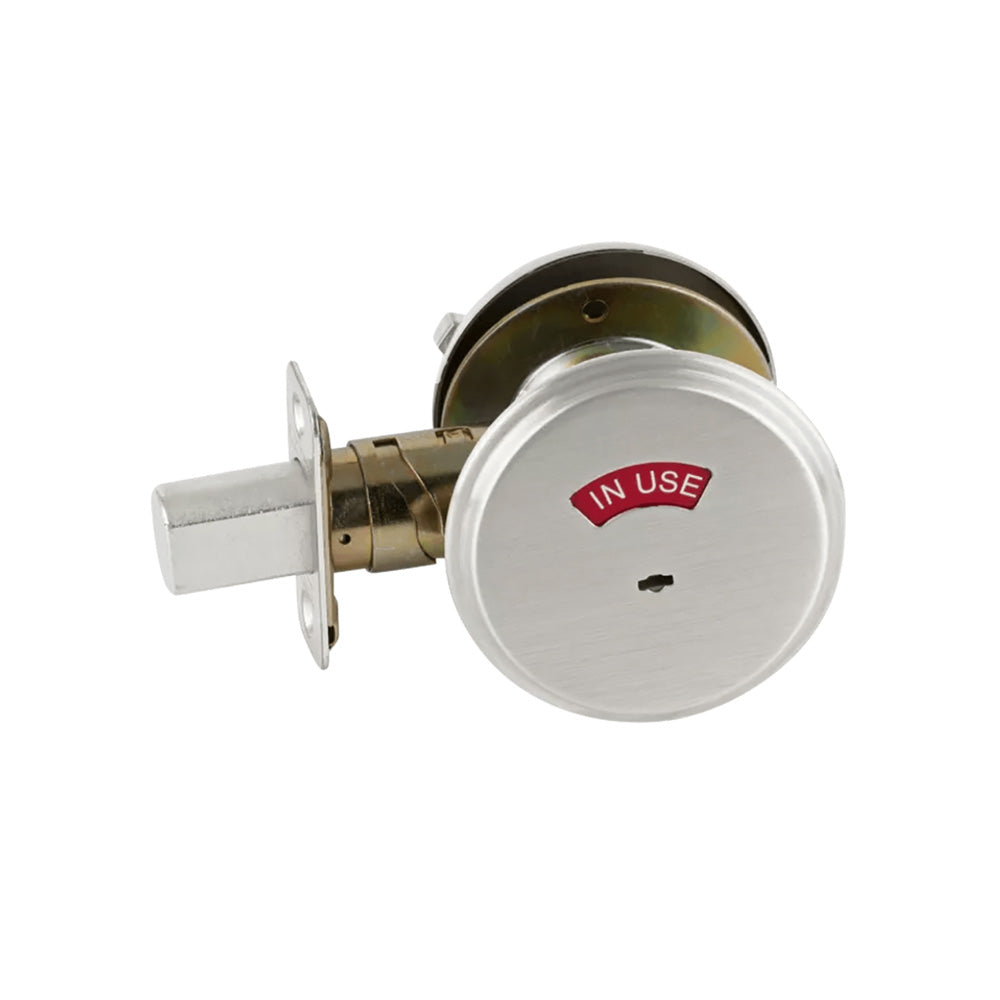

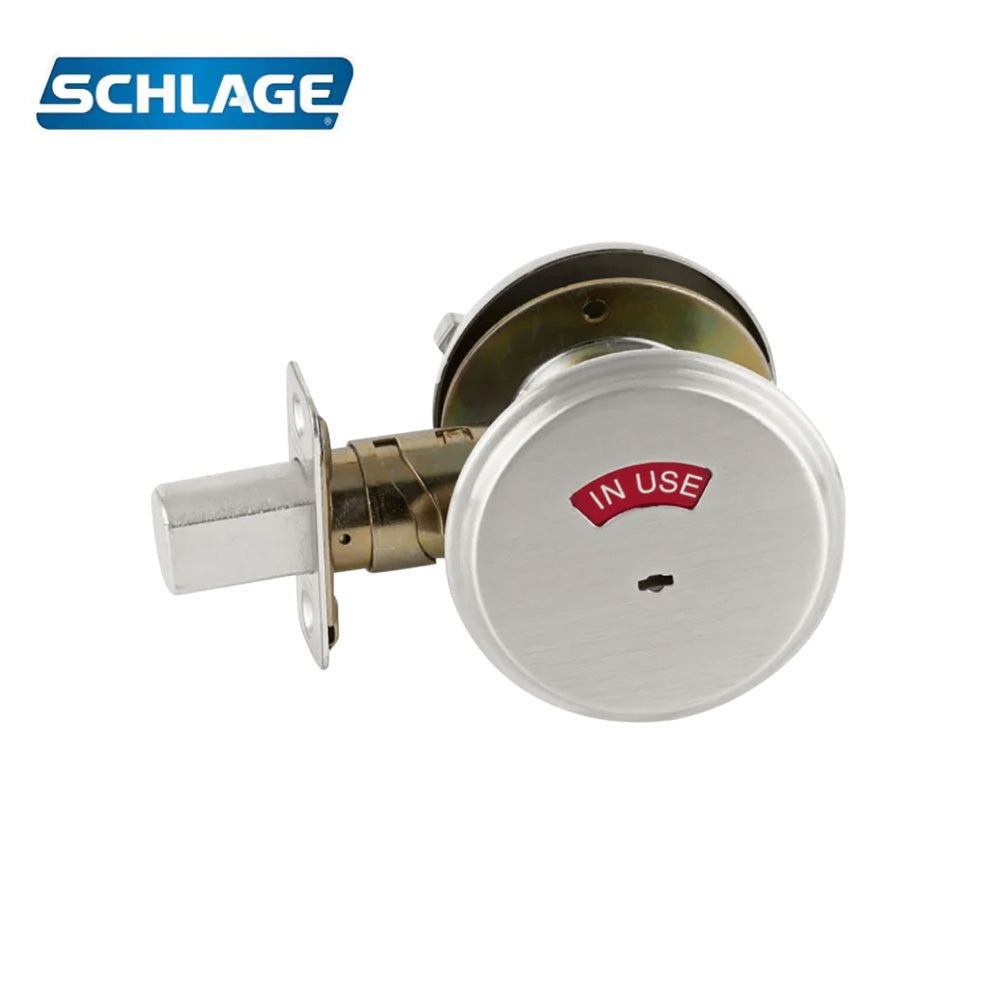

Schlage - B571 - Door Bolt Occupancy Indicator with Adjustable 2-3/8 and 2-3/4 Backset - Grade 2 - Satin Chrome
$7107
$8528
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Schlage - B571 - Door Bolt Occupancy Indicator with Adjustable 2-3/8" and 2-3/4" Backset - Grade 2 - Satin Chrome
The Schlage B571 is perfect for commercial restroom doors.
- Deadbolt thrown or retracted by thumbturn inside
- Outside indicator displays “In use” or “Vacant”
- Not UL rated
- ADA compliant thumbturn
- 61-509 Emergency key included
Features:
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Meets UL 10B andd UL 10C requirements
Certifications:
- ANSI/BHMA A156.5 Grade 2 certified with Conventional or FSIC cylinder (SFIC is Grade 3)
- UL 10B/UL 10C listing optional for B500 Series as auxiliary locks (the letter F and UL symbol on latch front indicate listing)
- ADA compliant thumbturn design
- BAA (Buy American Act) compliant product
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | B571 626 |
| UID | SCH100B571626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
Technical Specifications:
| Function | 571-Door Bolt Occupancy Indicator |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
