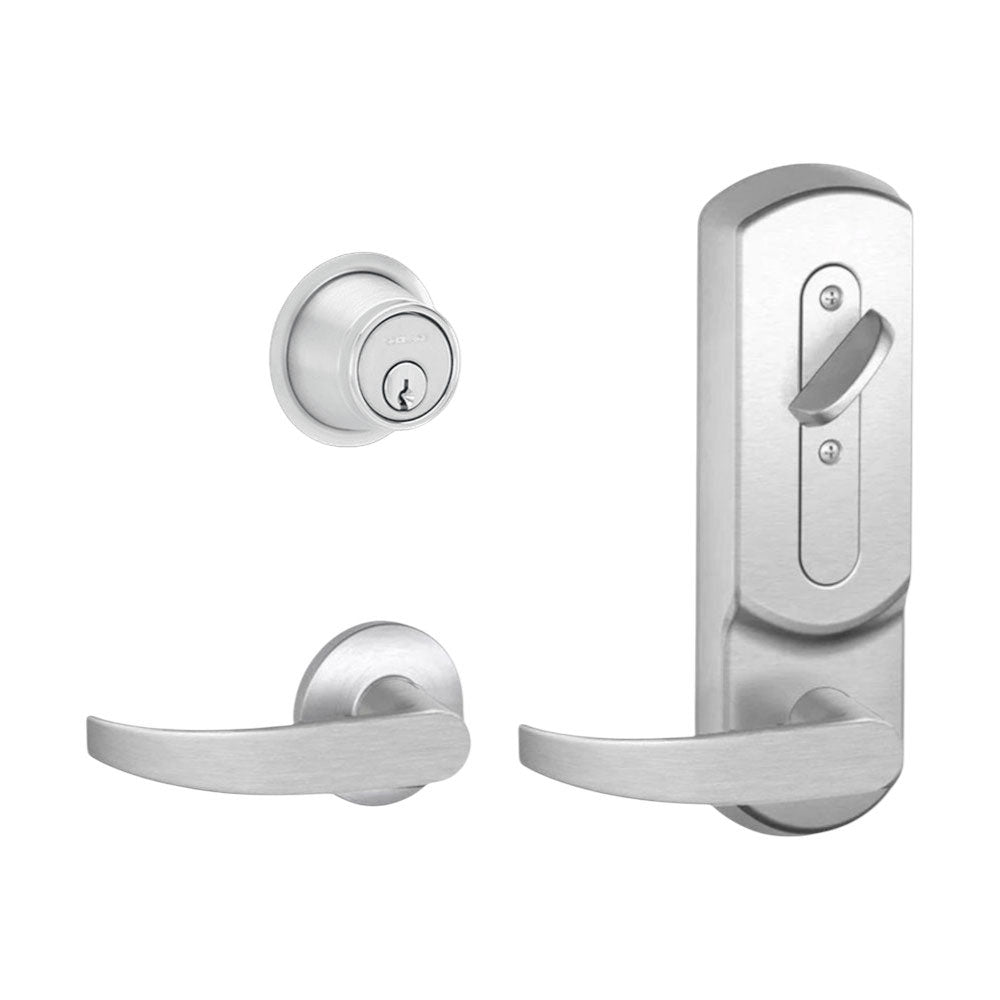

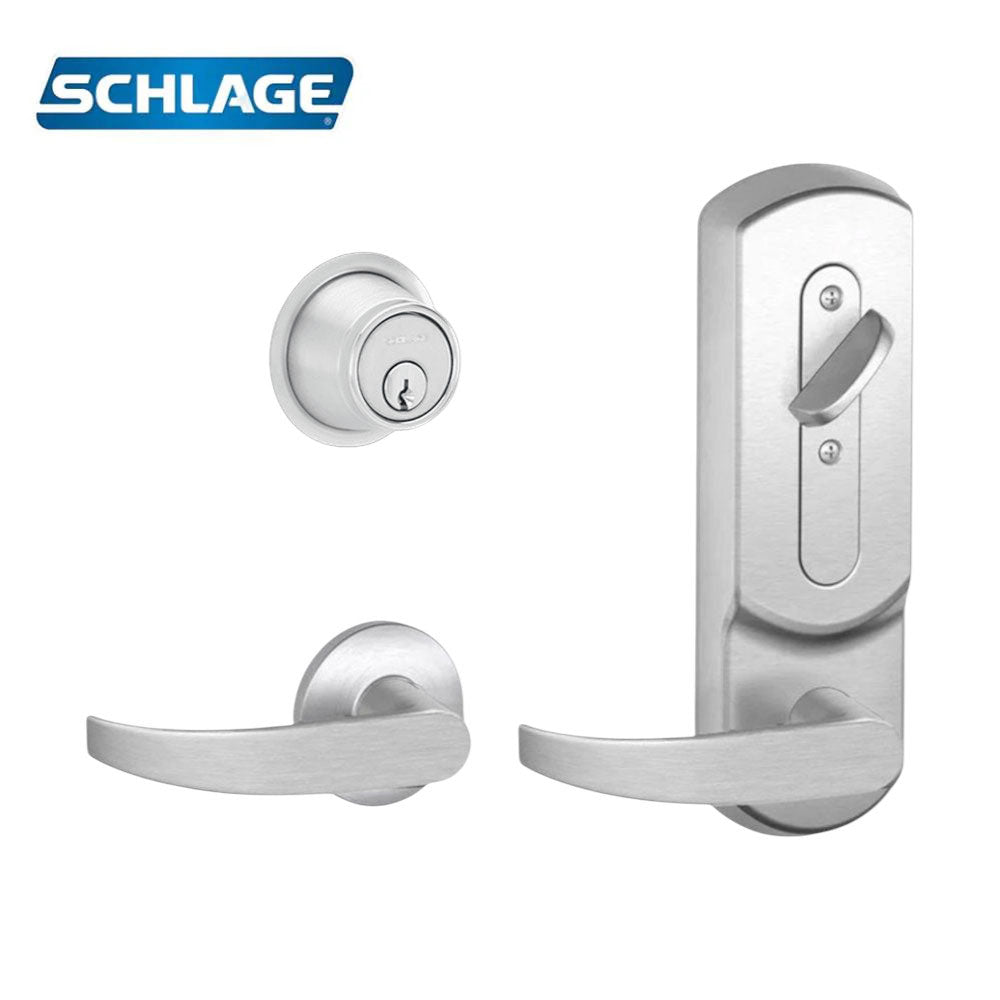

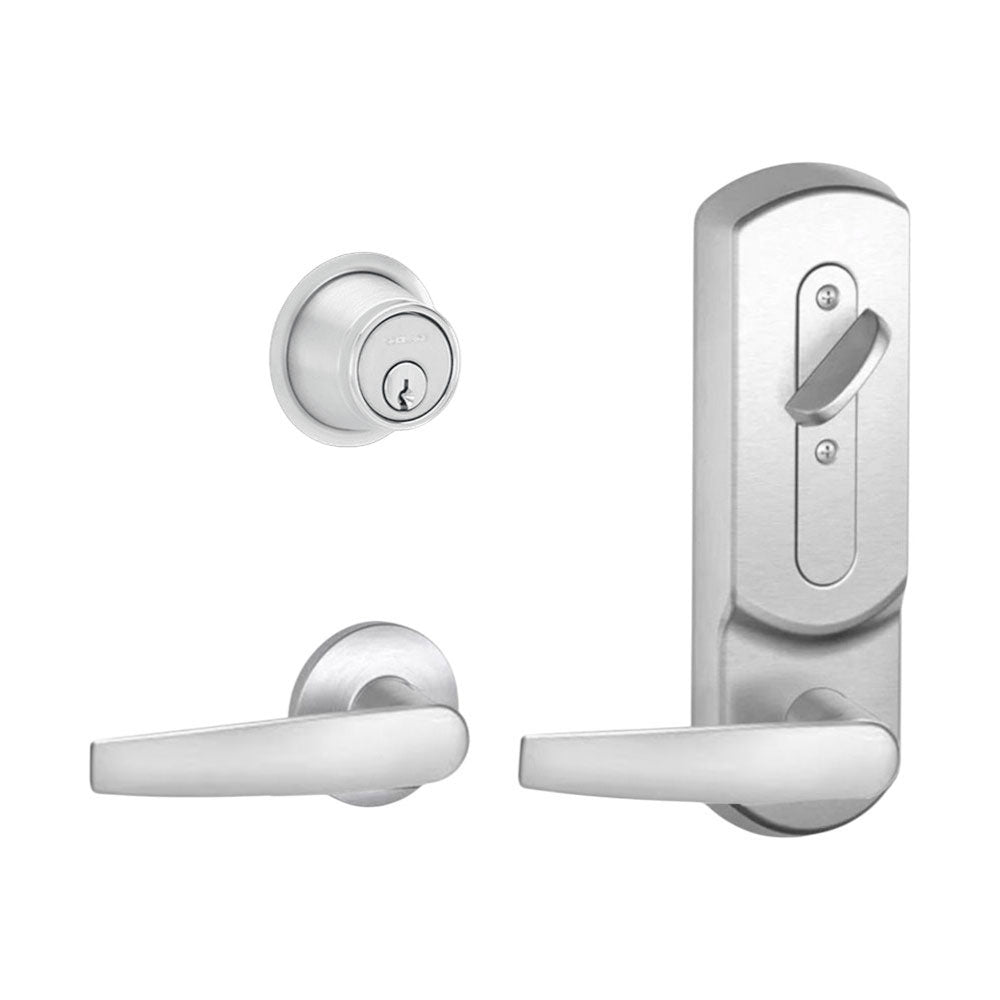

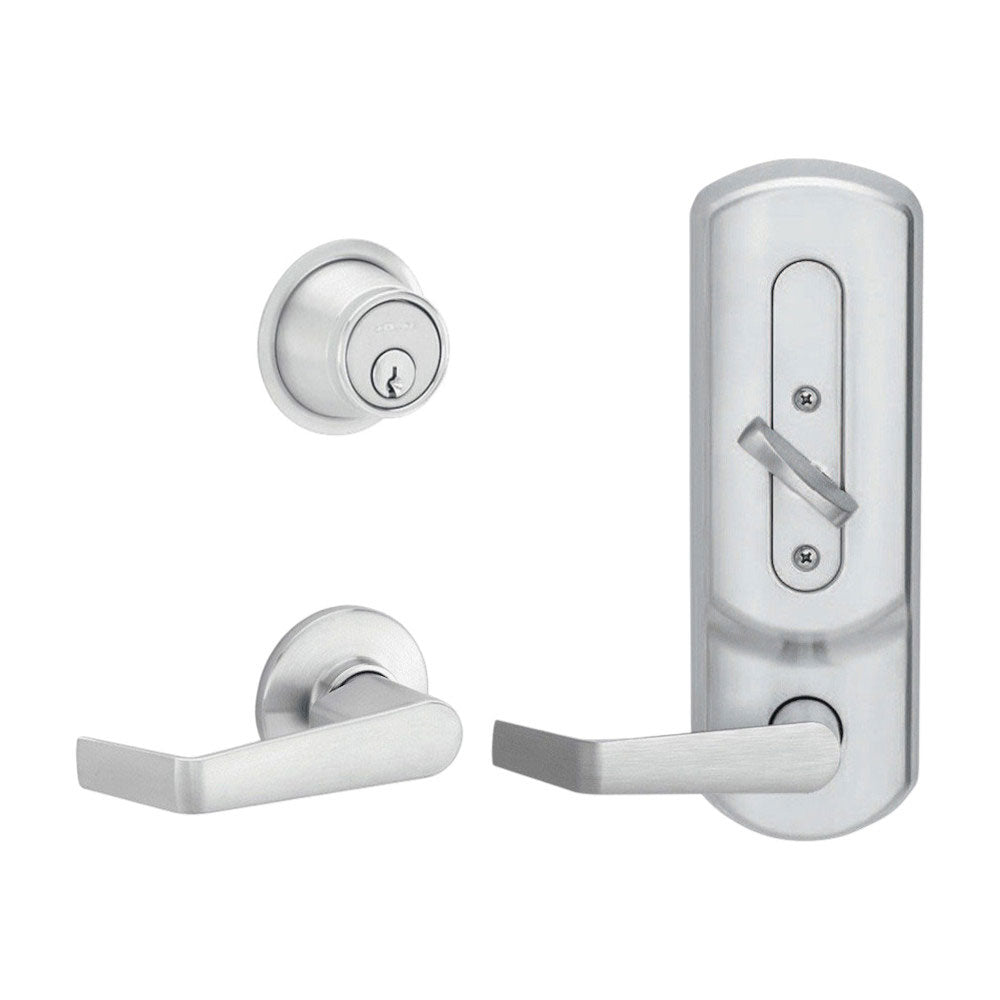

Schlage - S210 - Interconnected Entrance Single Locking with Conventional Cylinder - Keyed Alike - Grade 2
Schlage S200 interconnected locks are designed to offer easy egress and dependable security. Focusing on safety, security and long-lasting performance, this lock is tested to exceed 400,000 ANSI cycles. The S200 Series locks are designed for a wide variety of applications ranging from military housing to multi-family and small hotel/motel buildings. Easy to install, service, and maintain, this lock keeps people and property secure.
S210 - Entrance, Single Locking:
- Deadbolt operated by key from outside or by turning unit from inside.
- Bolt automatically deadlocks when fully thrown.
- Latchbolt retracted by lever from either side.
- Turn inside lever to simultaneously retract deadbolt and latchbolt for immediate exit.
Features & Benefits:
- Everest 29â„¢ patented keys are standard for commercial applications.
- Heat-treated steel locking components.
- 3" door reinforcement to protect against kick-in attacks.
- Five available functions (Entrance, Classroom, Storeroom, and Single Dummy).
- Compatible with Full Size Interchangeable Core (FSIC).
- Four lever designs.
- One matching rose and interior escutcheon.
Function:
- S210, Entrance (single locking)
- S251, Entrance (double locking)
- S270, Classroom
- S280, Storeroom
- S290, Single dummy trim
Certifications:
- Meets BAA (Buy American Act).
- UL/cUL listed for A label single doors, 4' x 8; the letter F and UL symbol on latch front indicate listing.
- UL437 listed locking cylinder optional; specify Primus 20-500 Series cylinder.
- California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply.
- Meets ADA requirements.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| ANSI Number | ANSI A156.12-2071 |
| Function | 210-Entrance Single Locking |
| ANSI Function | F95 - Interconnected Entrance Single |
| Cylinder Type | Conventional Cylinder |
| Keying | KA - Keyed Alike (For Multiple Locks) |
| Std. Keyway | S123 |
| Num Pins | 6 |
| Door Thickness | 1-3/4 in. |
| Std. Latch Number | 16-481 |
| Std. Latch Type | Combination Dead Latch and Bolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1/2 In. Latch, 1 In. Bolt |
| Std. Strike Number | 10-094 & 10-001 |
| Std. Strike Type | T-Square Corner |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | Plastic |
| Product Type | Interconnected Locks |
