SDC - 101-KDE - Wall Mount Controller with Reset and Bypass Keyswitch
Description
Description

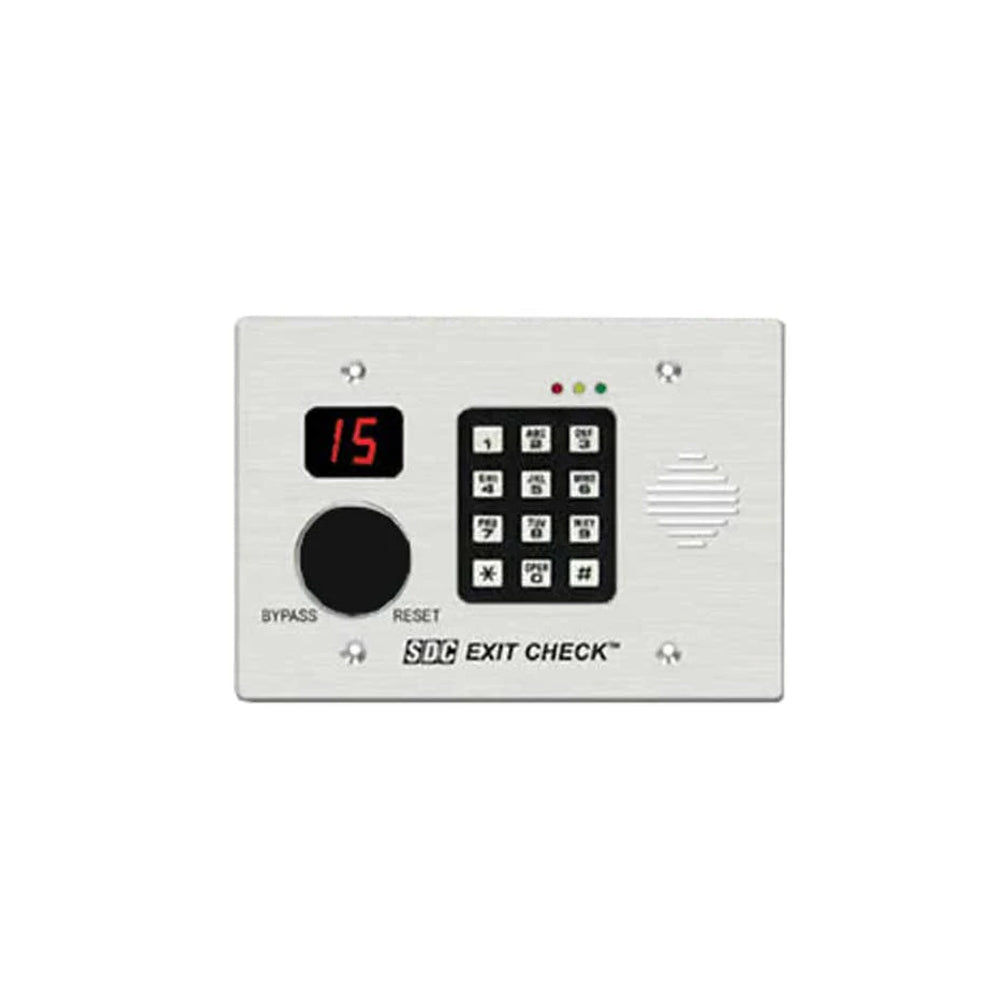

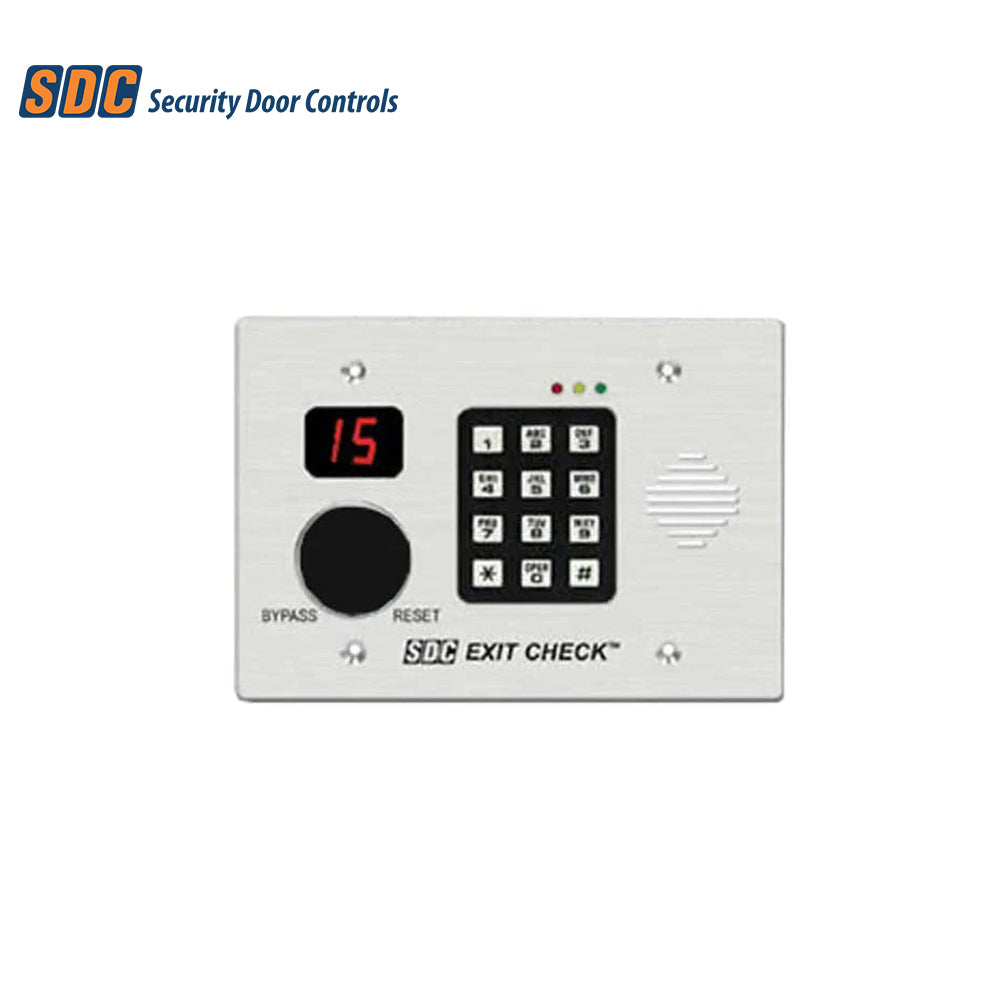

SDC - 101-KDE - Wall Mount Controller with Reset and Bypass Keyswitch
The 101-KDE is a high-performance delayed egress controller designed to enhance security while maintaining life safety compliance. Equipped with a built-in reset and bypass key-switch, this unit allows for authorized override of the delayed egress function when necessary. It provides a 15- or 30-second delay in door unlocking upon unauthorized egress attempts, deterring misuse while allowing safe and timely exit during emergencies. Ideal for use in healthcare, retail, and institutional settings, the 101-KDE integrates seamlessly with access control systems and complies with applicable life safety codes.
Features:
- Integrated reset and bypass key-switch for manual override
- Selectable 15- or 30-second egress delay
- Audible and visual alerts during delay period
- Compatible with most access control systems
- Supports fire alarm and emergency override inputs
- Compliant with NFPA 101 and IBC codes
Specify Modes:
- NA- NFPA 101, Selectable Egress Delay
- ND- NFPA 101, Fixed 15 Second Egress Delay
- NH- NFPA 101, Fixed 30 Second Egress Delay
- NC- CBC Compliant
- BD- BOCA, Fixed 15 Second Egress Delay
- BH- BOCA Fixed 30 Second Egress Delay
- BC- Chicago Compliant
Specifications:
| Type | Keypad and Key Switch Control |
| Housing | Aluminum |
| Input | 12/24 VDC ± 10% Auto-sensing |
| Current Draw | 180 mA @ 12/24 VDC (Max) |
| Alarm and Lock Secure Outputs | SPDT, 1 Amp @ 30 VDC Resistive |
| Dimensions | 4-1/2" x 6-7/16" x 2" |
Audible Instructions:
SECURITY MESSAGE (Male Voice)
- Tone...."Exit in twelve seconds, Security has been alerted"
- Tone...."Exit in five seconds"
- Tone...."Exit now", Tone...."Exit now"
SAFETY MESSAGE (Female Voice)
- Tone...."Exit in twelve seconds, Facility Staff has been notified"
- Tone...."Exit in five seconds"
- Tone...."Exit now", Tone...."Exit now"
TONE ONLY (in lieu of voice instruction)
- Activation: Short beeps
- Lock Release: Long beeps
Download:
