SECO-LARM SD-927PKC-NEVQ Wave-To-Open Sensor with Manual Override B...
Description
Description

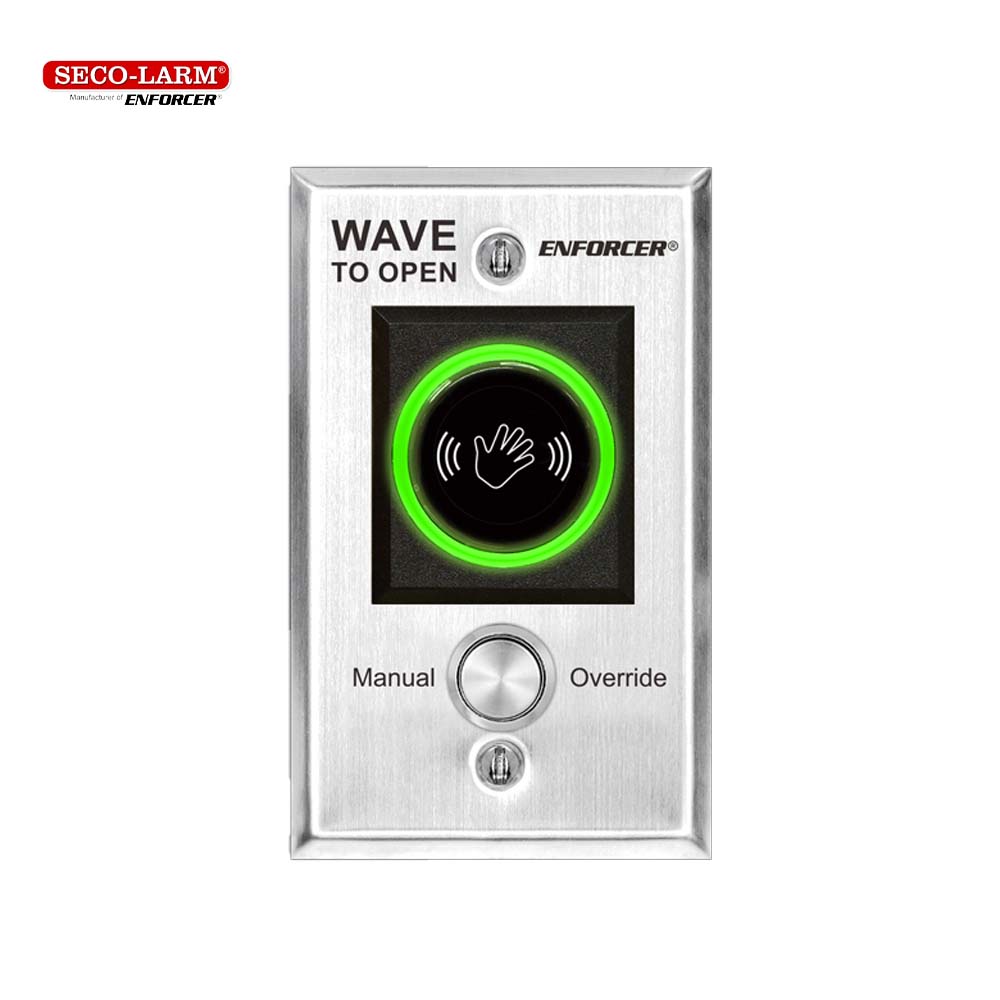

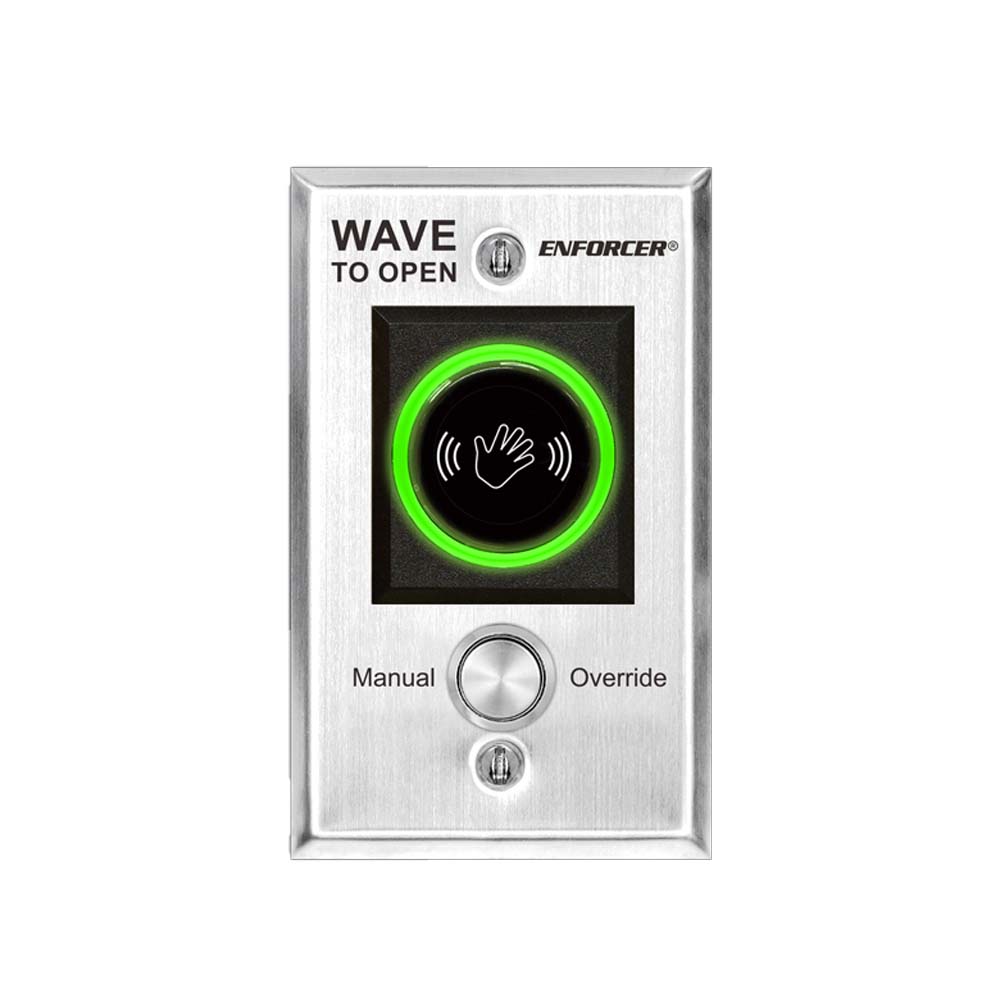

SECO-LARM SD-927PKC-NEVQ Wave-To-Open Sensor with Manual Override Button – English
The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. The SD-927PKC-NEVQ adds a manual override button. Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ)
Features:
- ETL, Conforms to UL Std. 294
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8″~8″ (6~20 cm)
- Stainless steel single-gang plate
- LED illuminated sensor area for easy identification
- Quick connect screw-less terminal block
- Selectable LED colors (turns from red to green or green to red) when activated
- Adds manual override button as a backup to the sensor
Specifications:
| Operating temperature | 12~24 VDC |
| Current draw (max. ±10%) | 120mA@12VDC |
| Relay type | Form C dry contact, 3A@24VDC |
| Override button | Switching capacity: 3A@24VDC, Mechanical life: 500,000 cycles |
| Response time | 10ms |
| LEDs | Standby: Red, Triggered: Green |
| Output duration | Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered |
| Sensing range | Adjustable, 2-3/8″~8″ (6-20 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm) |
| Weight | 3.9-oz (110g) |
