Von Duprin - 98EO-3-26D - Rim Exit Device - 36 Length - Exit Only -...
Description
Description

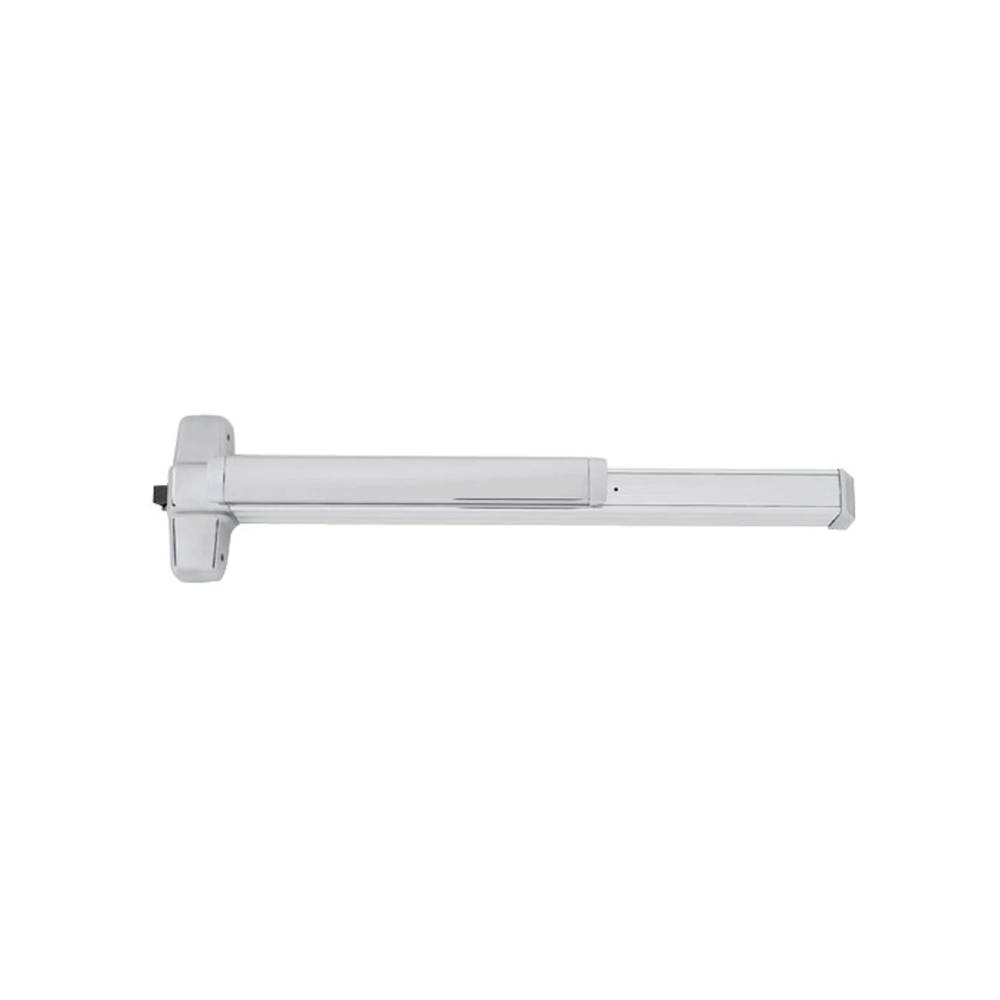

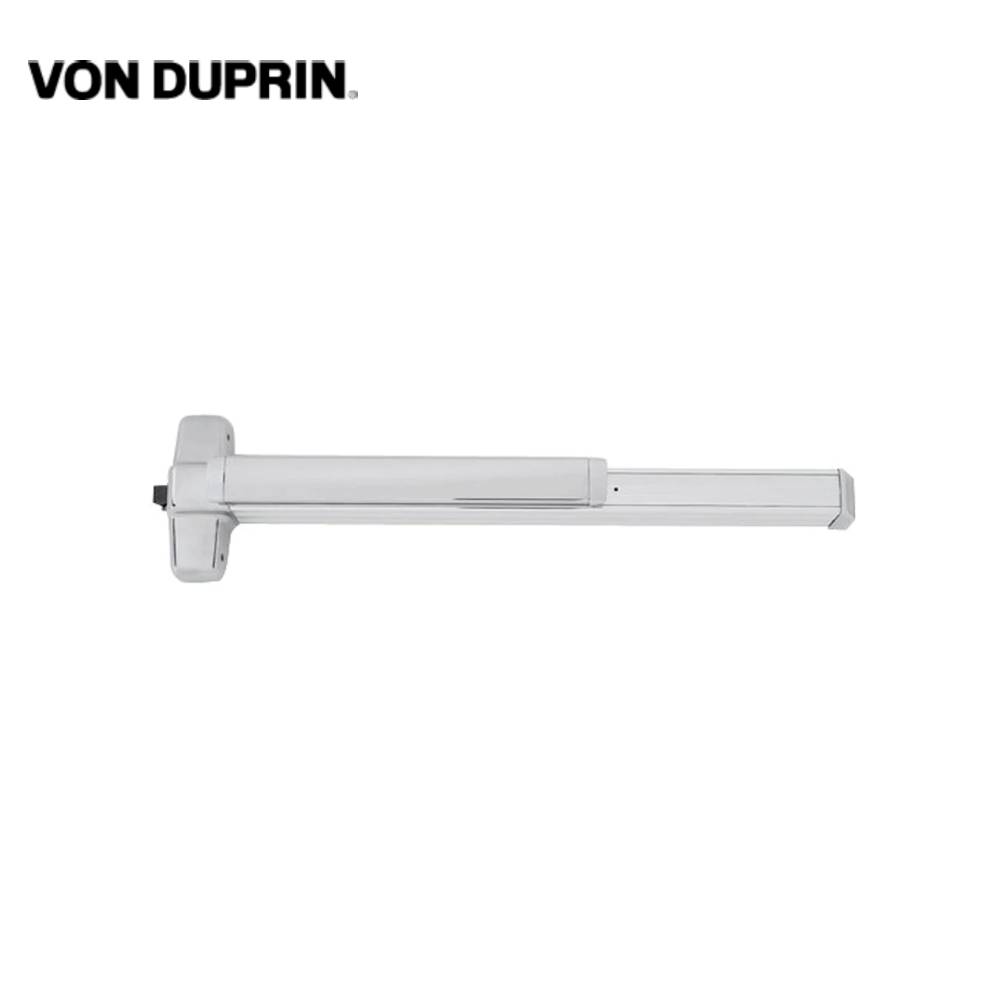

Von Duprin - 98EO-3-26D - Rim Exit Device - 36" Length - Exit Only - Satin Chrome Finish - Grade 1
98 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 Series device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 98EO 3 26D |
| UID | VON10098EO326D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.3 2014 |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Trim Type | Less Trim |
| Trim Design | Blank Plate |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4-1/2" |
| Door Material | Wood or Metal |
| Door Width | 28" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Product Type | Rim Exit Devices |
Installation Instructions:
