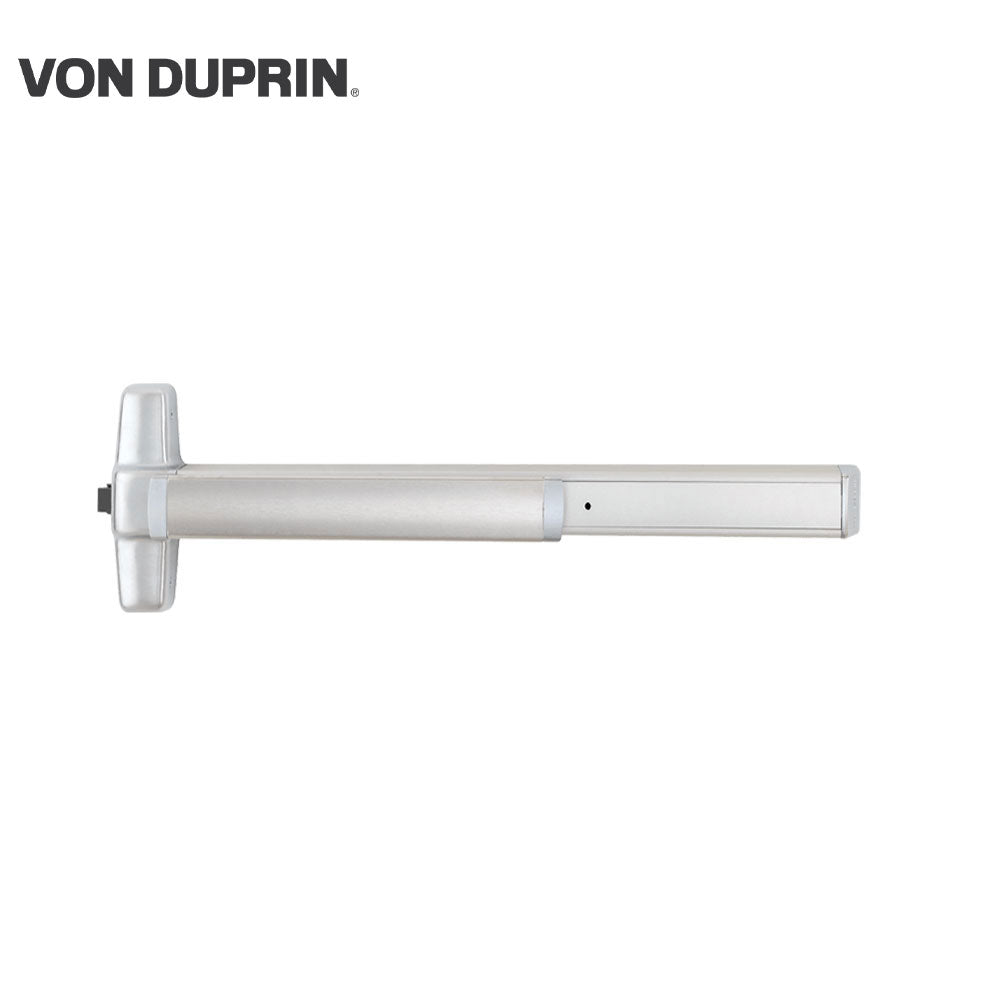

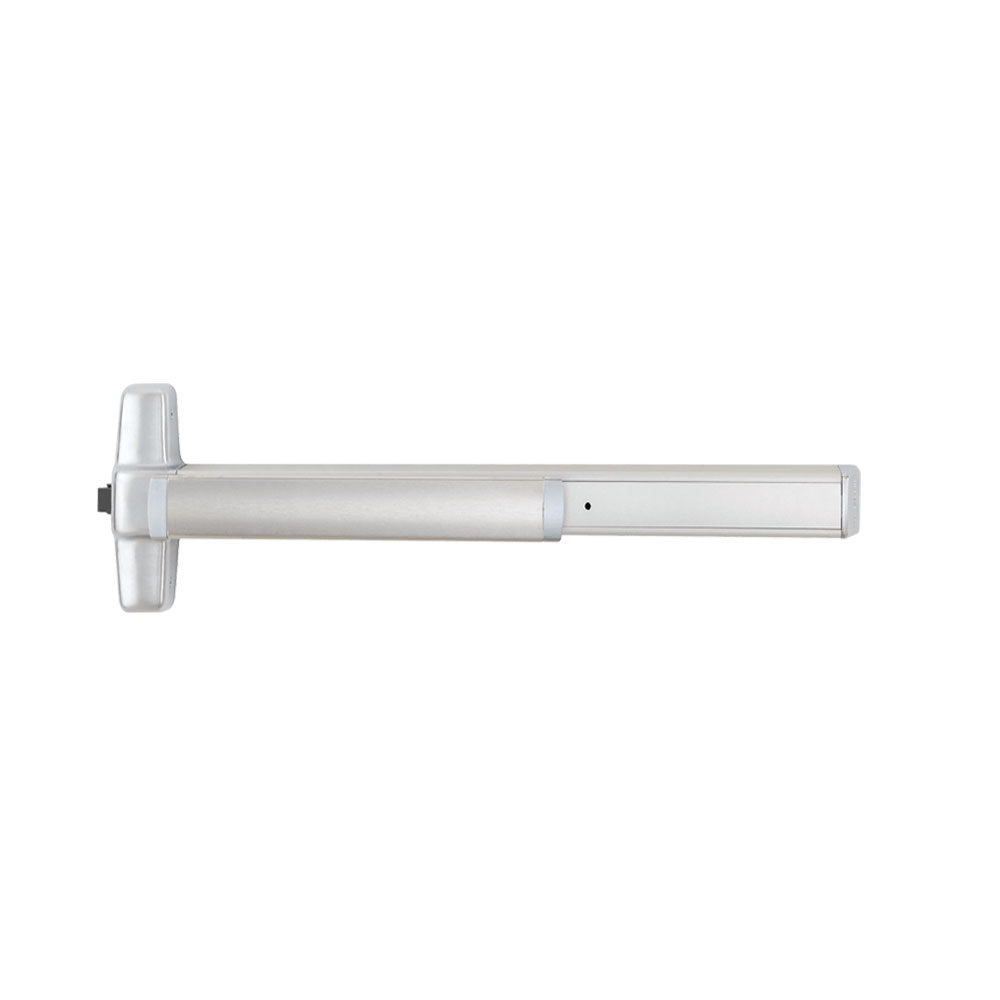

Von Duprin - 98L - Rim Exit Device - 36- Night Latch - 17 Lever -1-1/4 Mortise & Rim - Bright Chrome Finish - Left-Hand Reverse - Grade 1
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Von Duprin - 98L - Rim Exit Device - 36- Night Latch - 17 Lever -1-...
Description
Description
Von Duprin - 98L - Rim Exit Device - 36"- Night Latch - 17 Lever -1-1/4" Mortise & Rim - Bright Chrome Finish - Left-Hand Reverse - Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Features:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 98L-NL-17 3 US26 LHR |
| UID | VON10098LNL173US26LHR |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.3 2014 |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Night Latch |
| Device Length | 36" |
| Hand | Left-Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 996L-NL-17-R/V US26 LHR |
| Includes Cylinder(s) | No |
| Cylinder Type | 1-1/4" Mortise & Rim |
| Minimum Stile Size | 4-1/2" |
| Door Material | Wood or Metal |
| Door Width | 28" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
