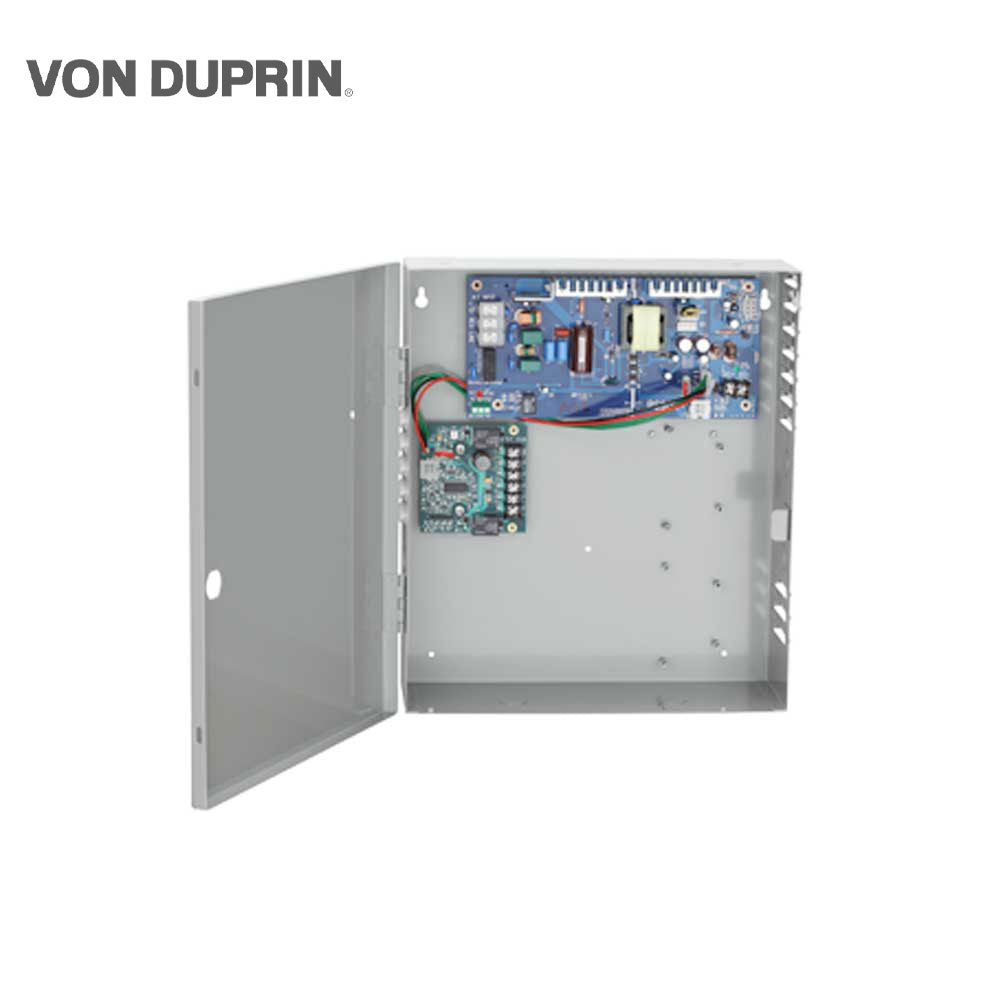

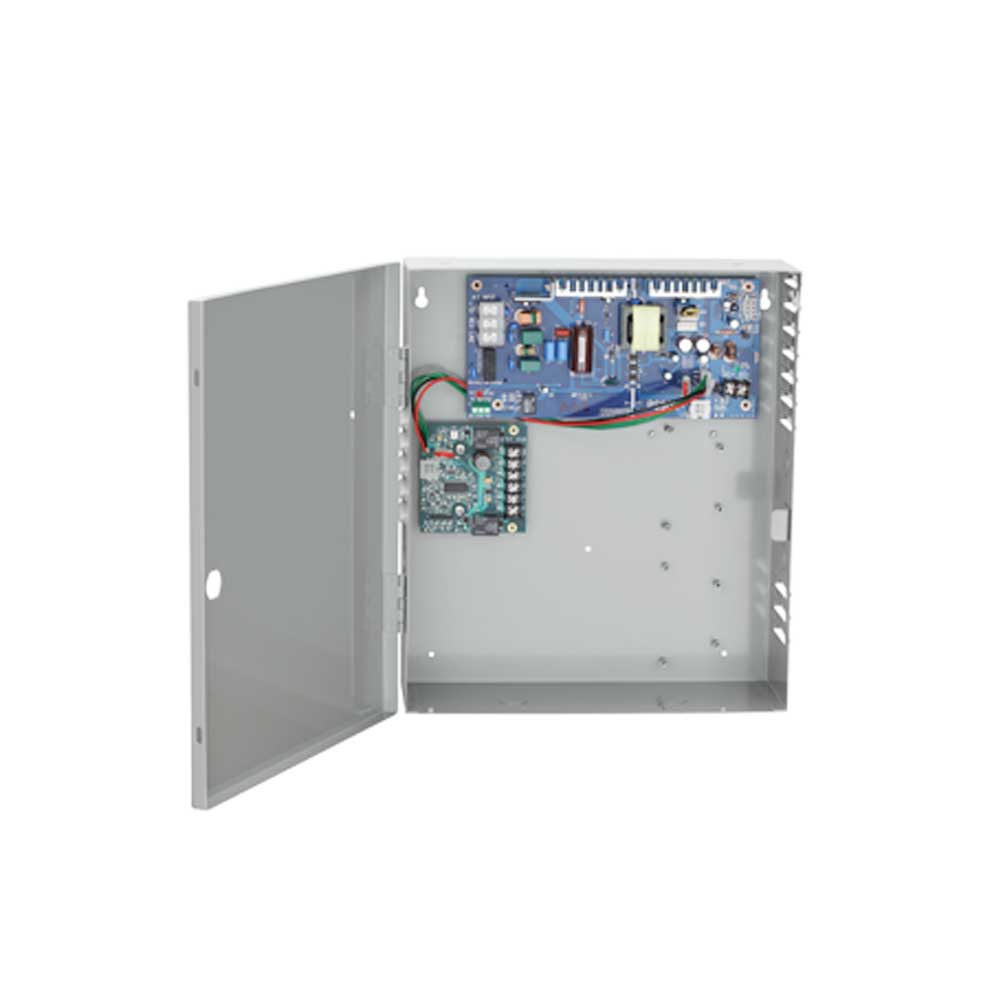

Von Duprin - PS902-2RS - Power Supply 2A 12/24VDC with 2 Relay Board and Encloser
The Schlage comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.)
Features:
- 2A @ 12/24 VDC constant output, field selectable with jumper
- Provides low-voltage, Class 2, filtered and regulated power
- Universal 120-240 VAC, fused primary input
- Single polarized option board connector
- AC input and DC output monitoring circuit with LED indicators
- Externally visible AC input indicator with isolated SPDT contacts
- High-voltage protective cover for AC circuitry (not shown)
- Battery back-up board auto-selects voltage
- Optional Fire Alarm plug-in board available
- UL 294, ULC-S318, RoHS, and FCC Part 15 certified
Product Specifications:
| Product Type | Access Control Part/Accessory |
| Function | Power Supply |
| Grade | Grade 1 |
| Output Volts | 12/24 VDC |
| Output Amps | 2 AMPS |
| Modular Options | Yes |
| Operating Temperature | 32 to 120°F |
| Product Dimensions | 14" x 12" x 4" |
| Battery Backup | No |
| Fuse Size | 3.15A |
| Input Voltage | 120/240VAC |
