ABRITES ECU Hardware and Software Master Pack

ABRITES ECU Hardware and Software Master Pack

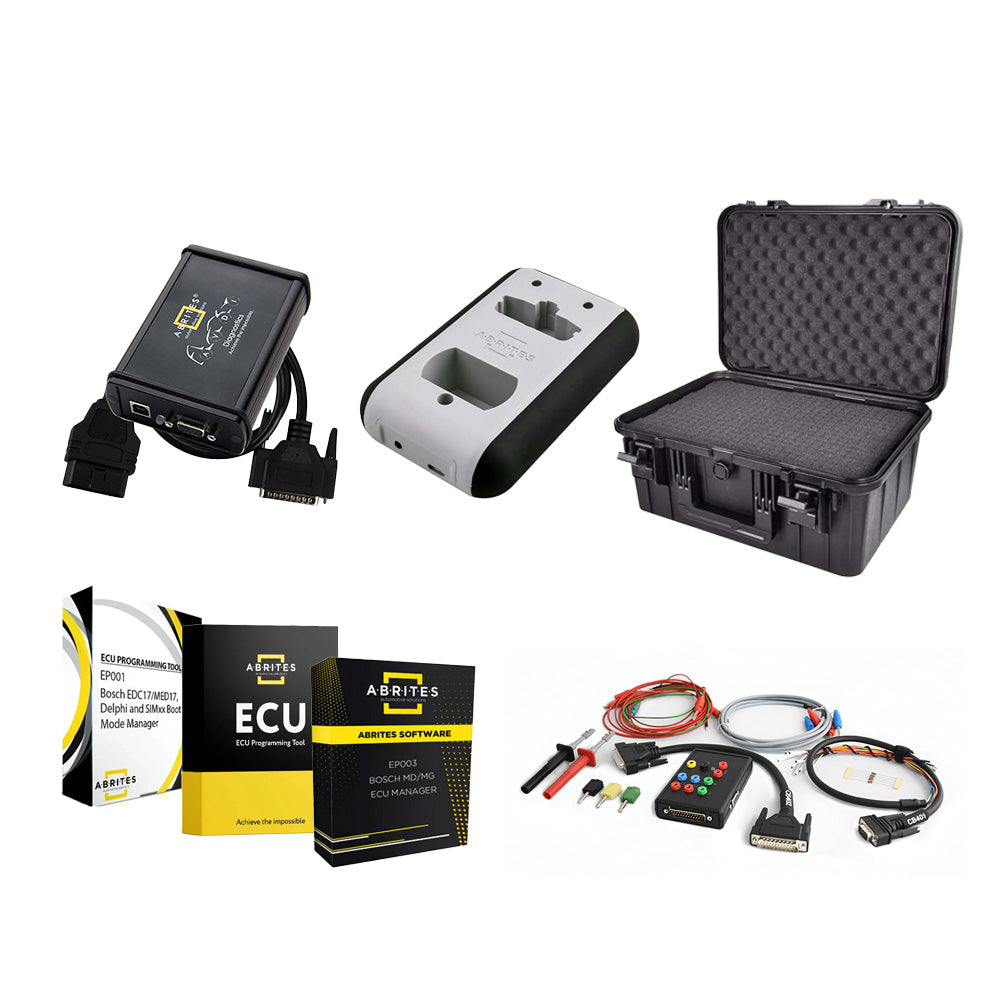

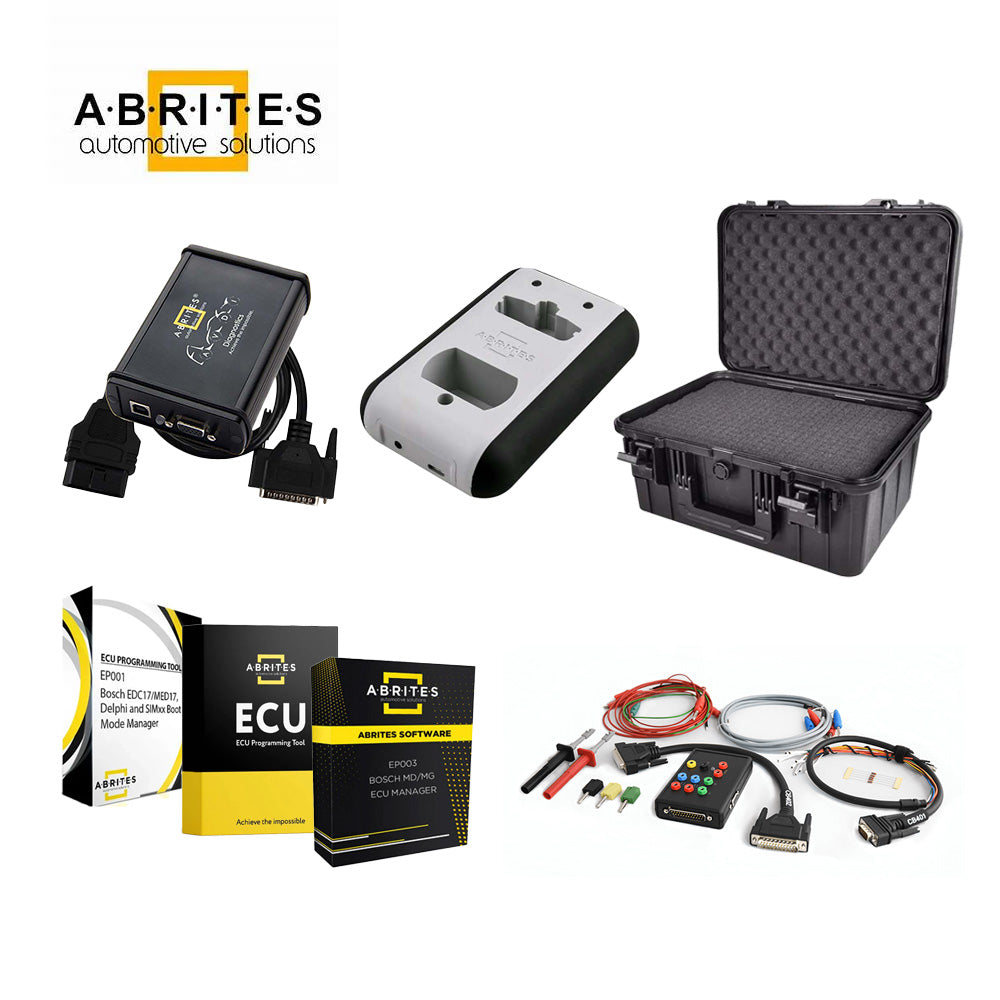

Includes:

• ZN103 PROTAG V2 Programmer with TA31 and Activation
• EP005 Bike Boat and Industrial ECU Manager
• EP003 BOSCH MD/MG ECU Manager Software
• EP001 BOSCH EDC17/MED17 DELPHI and SIMXX Boot Mode Manager Software
• ZN051 Distribution Box
• ATC07 Small-sized Tough Case

ABRITES - ZN103 - PROTAG V2 Programmer with TA31 and Activation

The ZN103 contains the full functionality of the ZN002 and expands its capabilities. With the PROTAG you can perform operations with keys and transponders, used in the latest authentication systems and immobilizers.

The ZN103 is durable and ergonomically shaped to provide additional ease of usage, equipped with 3 slots for different type of transponders. One of the slots is specially developed for the Mercedes-Benz truck keys. The design is optimised to eliminate transponder positioning error and maximise efficiency. PROTAG is ready to program all keys and transponders produced by Abrites, as well as a vast variety of OEM ones. It is the ultimate key programming tool for the professional locksmith.

PROTAG is user-friendly, efficient and reliant! The ZN103 is equipped with a USB Type C cable and battery so that you can always count on it. Also, a future extension for bluetooth connection and usage with iOS and Android devices is available.

Features:

• Key programming of Porsche, Mercedes, BMW, VAG
• Support for Mercedes-Benz infrared keys support
• Support for Mercedes-Benz truck keys
• Transponder/key cloning utility for multiple brands
• Transponder and key low-level operation functions
• Reset used OEM keys to virgin state ready for new programming
• Programming key/transponder by dump of immobilizer system (included support of Mercedes Infrared keys FBS3)
• Production of transponders and keys ready for programming to different immobilizer system (brand new empty transponders preparation for usage with different cars)
• Remote control frequency scanning

Key/Transponder cloning support:

• All types Toyota/Lexus/Scion DST-AES/Hitag AES keys (H Type keys)
• All types Toyota/Lexus/Scion Tiris DST+ (G type keys)
• All types Hyundai/Kia Tiris DST+
• All types HITAG-2 (example Mercedes/Dodge Sprinter, Iveco, Porsche, ...)
• All types Megamos 13 (example Volkswagen, Hyundai, Kia, ...)
• Megamos 48 (example Chevrolet)
• All types Temic 11/12 (example Mercedes Sprinter, Mercedes Actros, ...)
• Ford/Mazda Temic 8C
• ID33 types (example OPEL, Peugeot, Renault, ...)
• All types Tiris 4C (example Ford, Honda, Acura, Toyota, ...)
• All types Toyota/Lexus/Scion ID67, ID68, ID70
• All types Tiris 4D/4E (example Subaru, Ford, Mazda)

Transponders low level operations:

• Read/write user data
• Read/write remote control data
• Operation mode configuration
• Authentification
• Secret key programming
• NVR (eeprom) memory access
• Automatic transponder detection

List of supported transponders/keys:

• Mercedes-Benz IR keys (FBS3)
• Mercedes-Benz trucks keys
• All types Philips PIT type - 7930, 7931, 7935,...
• All types HITAG-2 including internal NVR memory (eeprom) and remote control memory. Operating modes password mode, cipher mode, manchester encoding, biphase encoding
• All types HITAG-Pro
• All types HITAG-AES
• All types HITAG-Extended
• All types HITAG-3
• Audi BCM2 based keys
• Sokymat 8E including internal NVR (eeprom) memory of Audi keys
• Megamos 13 and its emulation over T5/Nova, TK5551, PIT
• Megamos 48 compatible
• Megamos AES
• Tiris 4C and cloning over TPX1 compatible
• Tiris 4D/4E and cloning over TPX2/EH2/CN1/CN2/TA7/TA36 compatible
• Tiris DST+ and cloning over TA68
• Tiris AES and cloning over TA64
• Temic 11/12 and cloning over T5/Nova or TK5551
• Temic 8C and cloning over TK5551

Reset used OEM keys to virgin state:

• Chrysler, Dodge Jeep Hitag-2 keys
• Hyundai/Kia Hitag-2 keys
• Audi A6/Q7 keys
• All types of Toyota/Lexus/Scion smart keys

Remote control operation scanning:

• 315 MHz
• 433 MHz
• 868 MHz
• 915 MHz

Radio Transceiver/Receiver/Analyser, as well as Infrared Transmitter/Receiver/Analyser. Designed for Infra-Red keys produced from Mercedes-Benz.
TA31 Abrites extractor is included in the box. An AVDI Interface or active AMS is required to purchase this product.

ABRITES - EP005 - Bike Boat and Industrial ECU manager

The EP005 license allows performing procedures on Engine Control Units and AdBlue modules in trucks, motorbikes, boats and industrial vehicles (heavy-duty, tractors, agricultural machines) by diagnostics (OBDII).

Supported brands (full list in Compatibility tab):

• Mercedes-Benz Trucks
• Mercedes-Benz Buses
• Akia Busses
• Artec
• Atlas
• Bell Equipment
• Berthoud
• Claas
• DAF
• Daewoo
• Detroit
• Deutz
• Dong Feng
• Doosan
• Ducati
• Fendt
• Ford
• Freightliner
• Hino
• Hurlimann
• Hyundai
• Iveco
• JCB
• Claas
• Kenworth
• Kramer
• Kubota
• Krone
• Magni
• MAN
• Manitou
• Maxforce
• Mitsubishi
• Morelo Buses
• New Holand
• Peterbuilt
• Ponsse
• Sterling
• Storti
• Temsa
• Tetra
• Tigercat
• Western StarAnd many more!

Supported ECUs (full list in Compatibility tab):

• Bosch
• Delphi
• Continental/Siemens

An AVDI interface with an active annual subscription is required.

ABRITES - EP003 BOSCH MD/MG ECU Manager Software

Allows reading of the latest generation Bosch MD/MG ECUs on bench.

List of supported ECUs:

• Real Read:
• Allows full reading of the current memory of the ECU
• Displays all modifications of the ECU
• Extracts security data of the ECU (e.g., BMW ISN, VAG CS)
• Virtual Read:
• Only gives original file for the ECU from a database
• All modifications of the ECU are LOST
• Security data of the ECU CANNOT be extracted

N.B. Please note that you will require an AVDI interface with an active AMS and active software EP001 in order to use this special function.

ECU READING BY DIAGNOSTICS

Complete reading and writing of ECUs by OBDII. This includes real and virtual reading of ProgramFlash, DataFlash, MAP Tables and BootLoader. This process does not require any dismantling of parts from the vehicle and makes the life of the user easy, especially in cases when the ECU is difficult to access.

ECU READING ON BENCH

In cases when the ECU is already out of the vehicle, this method allows the user to connect directly to the ECU connector without having to open the ECU or solder any wires. This is done using the ZN051 Distribution Box and user-friendly diagrams are provided for all supported ECU types.

ECU READING BY BOOT MODE

In very rare cases, some ECUs cannot be read by diagnostics or on bench. In those cases, the ABRITES ECU Programming tool also supports reading by boot mode. User-friendly diagrams/photos are provided so that the user can easily figure out the correct spot where to solder the boot pin. The software supports all ECUs with TC17xx processors.

ABRITES - EP001 - BOSCH EDC17/MED17 DELPHI and SIMXX Boot Mode Manager Software

Programming tool dedicated to reading/writing/updating of the Configuration Data (EEPROM), Internal and External Flash of Bosch EDC17/MED17, Delphi and SIMxx by boot mode.
The function is not limited to VAG vehicles and can be used on other brands utilizing the Bosch MED/EDC 17, Continental, Delphi, Kefico Motor Electronics.

• Full access to the memory through boot-mode (CAN bus)
• Read/Update EDC17/MED17 eeprom/flash memory
• Read/Update mileage in VAG Engine Control Units.
• Clone VAG Engine Control Units.
• Fix flash checksums
• Read/Update ISN in BMW DME/DDE control units
• Read/Update 8HP EGS ISN in BMW DME/DDE control units (F-series)
• Reset working hours counter in BMW DME/DDE control units.
• All functions of VN004 are also included.
• Free for owners of VN004 and a valid AMS.

The new ECU Programming Tool Includes ECUs from the following Brands:

• BMW - BOSCH
• ISUZU - BOSCH
• KIA/ HYUNDAI - BOSCH, CONTINENTAL, DELPHI, KEFICO
• MERCEDES - BOSCH, CONTINENTAL, DELPHI
• MINI - BOSCH
• PORSCHE - BOSCH
• PEUGEOT/ CITROEN - BOSCH
• RENAULT - BOSCH
• VAG - BOSCH

Please note: This function requires activation. Please provide AVDI serial number.

Requirements:

• Active AMS is required in order to use this special function
• ZN051-ABRITES - Distribution Box is required
• Activation takes 1-3 business days. You must have active AMS subscription

ABRITES - ZN051 - Distribution Box

The Abrites Distribution Box is a proprietary set of cables and pins, allowing the AVDI to connect to different vehicles and modules, with CAN and K-Line protocols. It provides in-vehicle connection options, as well as bench and boot mode. It is very useful in reading/writing/updating numerous modules, together with the corresponding Abrites software. Very helpful with Mercedes, VAG, ECU Programming, and other software options. Automatically updated with all new functions and features immediately after launching.

The ZN051 Includes:

• CB401 cable set for bench connection to ECUs
• CB402 extension cable for connection to AVDI
• Built-in fuse relay
• Built-in LED indicator
• Set of cables for different connections

An AVDI Interface and active AMS are required to purchase this product.

Dimensions:

• 18x16x8 cm

ABRITES - ATC07 - Small-sized Tough Case

The Abrites ATC07 protective cases are the ultimate solution for safely storing and transporting your diagnostic tools. Built from extremely durable materials, these IP67-certified cases are waterproof, dustproof, and corrosion-resistant. With features like full-length hinges, double-throw latches, padlockable holes, and a soft-grip handle, they ensure maximum protection and comfort. Medium and large cases include foam lining and shoulder straps for added convenience, making them ideal for mobile professionals.
