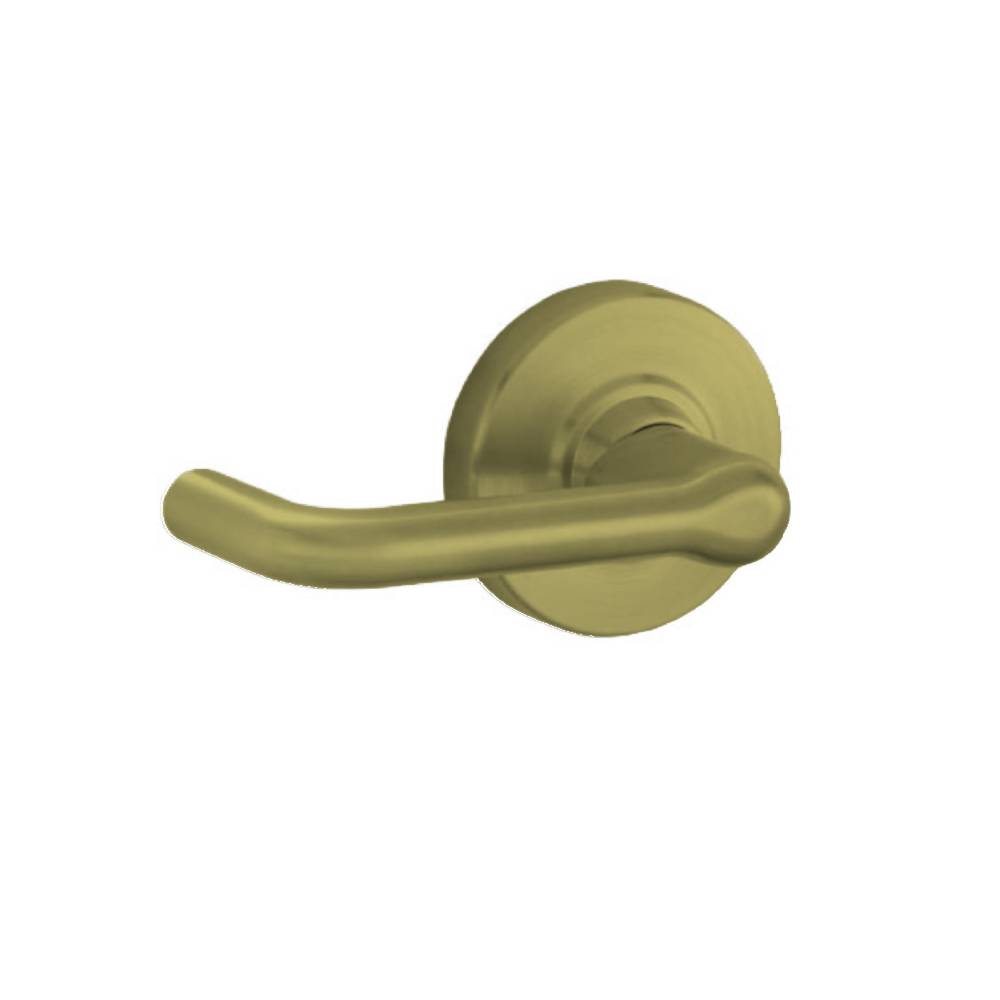

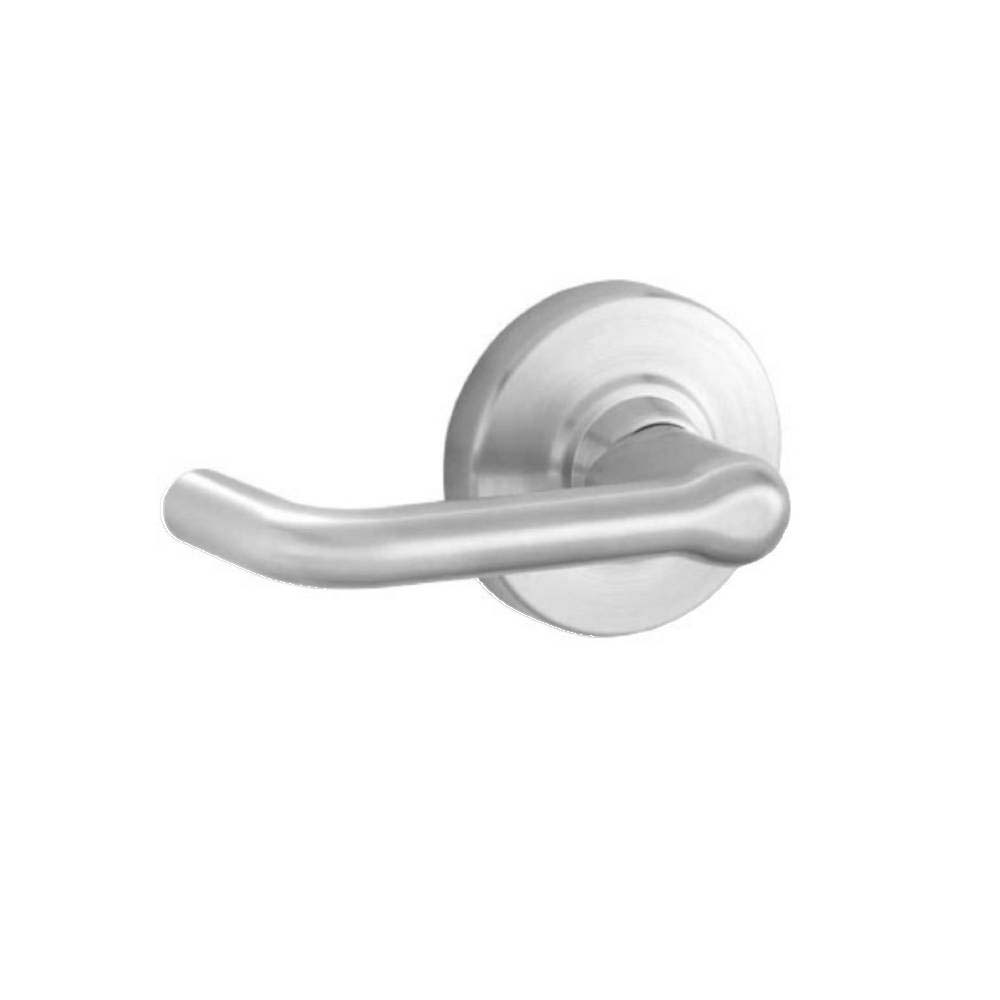

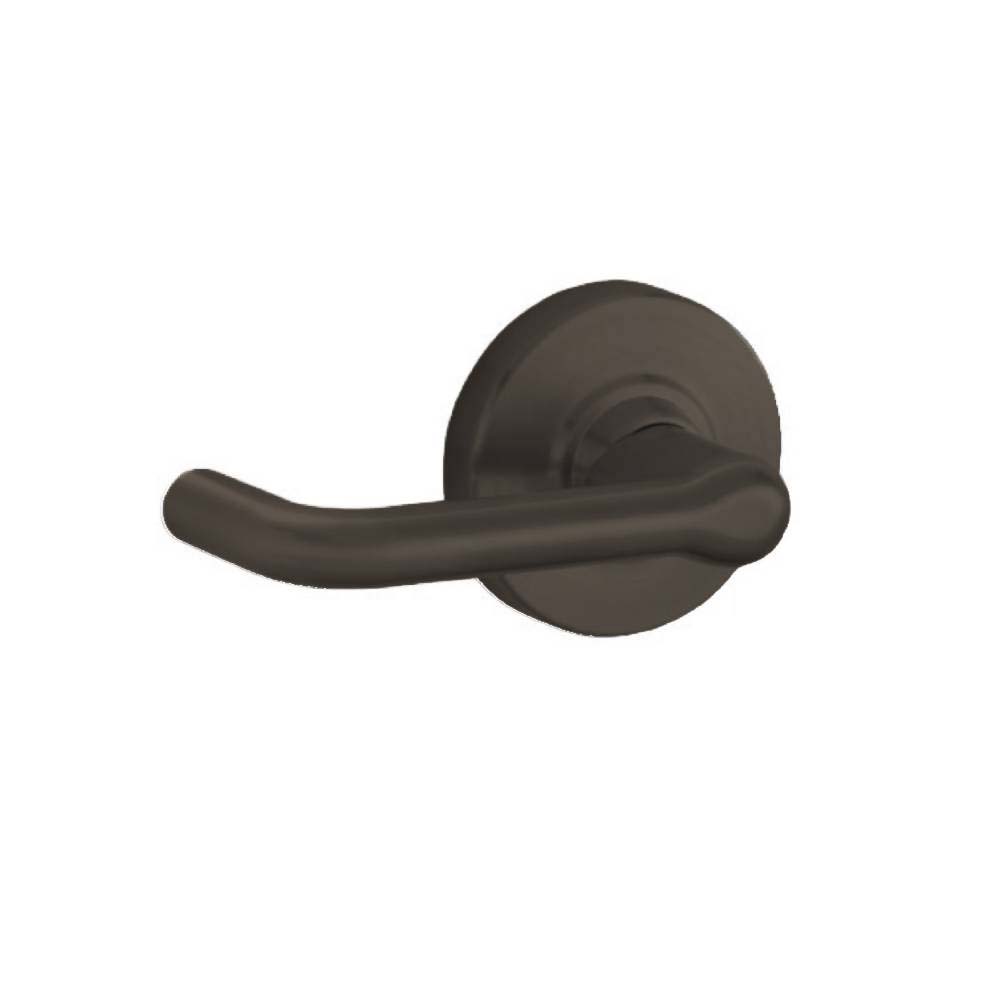

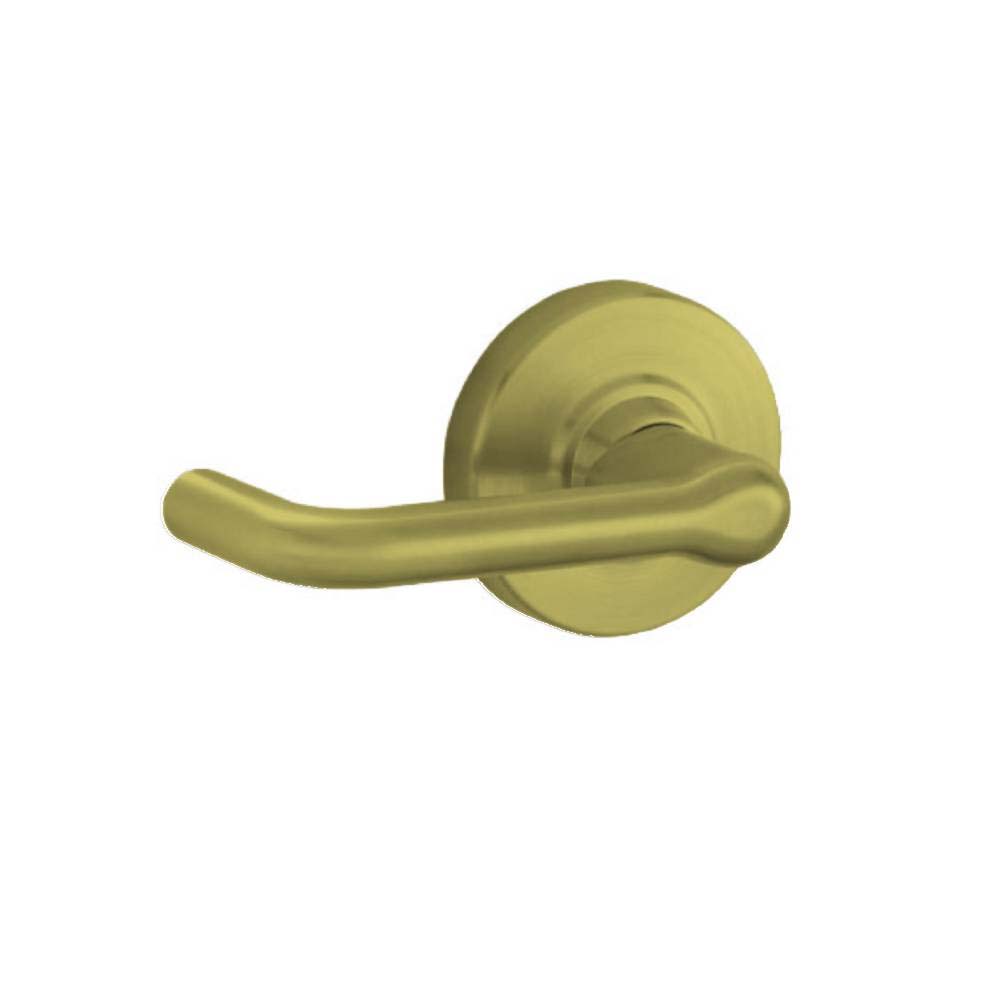

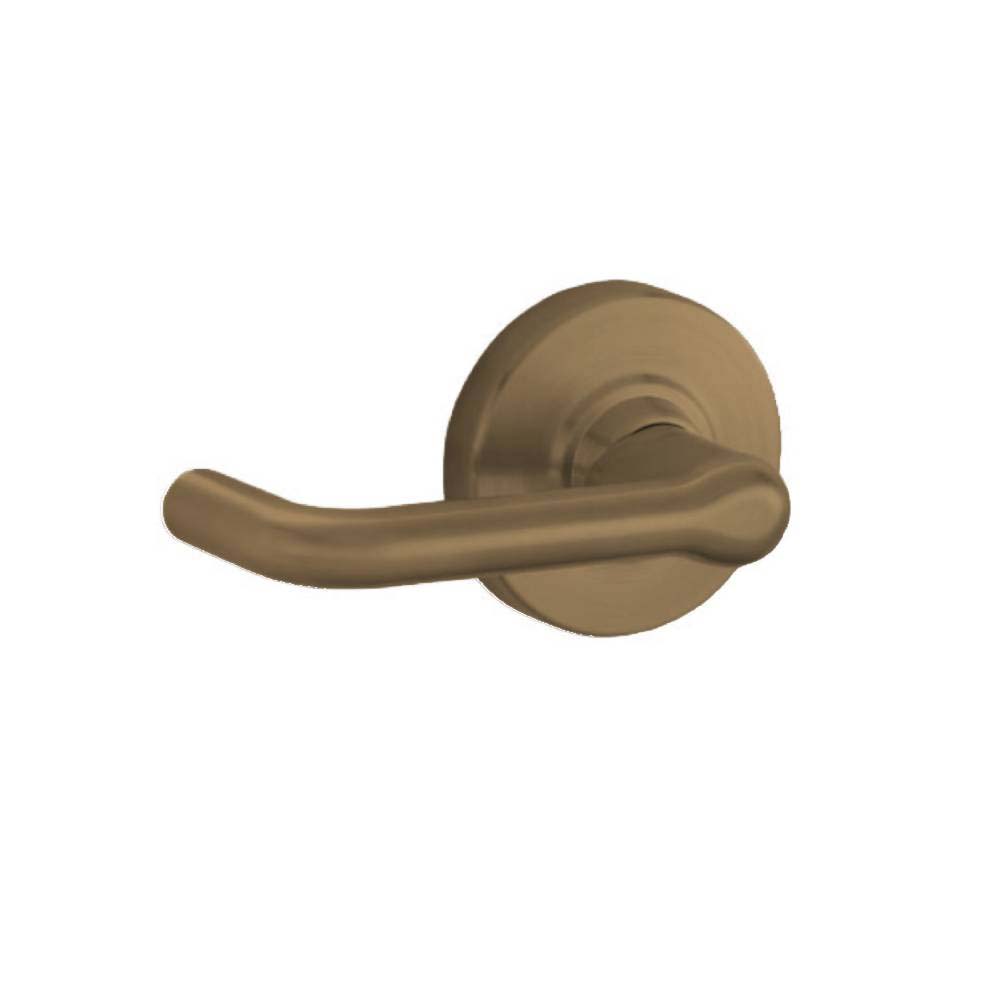

ACSI - ACND12DEL-TLR - Electric Cylindrical Reversible Lock with Tubular Lever and Fail Safe Exit Only - Grade 1

ACSI - ACND12DEL-TLR - Electric Cylindrical Reversible Lock with Tubular Lever and Fail Safe Exit Only - Grade 1

ACSI supplies high quality UL Listed modifications to a wide range of manufacturers’ locksets. Series 1500 electric locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The Series 1500 locks allow remote electric locking or unlocking while conforming to life-safety codes. Series 1500 locks are available in motor-controlled or solenoid-controlled in both mortise and cylindrical locks.

ACSI Stocks Electric Mortise Lock Bodies available in Schlage, Corbin Russwin, Sargent, Yale, Best and Falcon. The locks are available as motor-controlled or solenoid-controlled. Motor-controlled locks are field selectable for fail safe or fail secure and have automatic 12V or 24V, AC or DC operation. Solenoid-controlled locks must be specified as fail safe or fail secure and 12VAC/DC or 24VAC/DC. A variety of monitoring options are available.

Buy the ACSI ACND12DEL Grade 1 Electric Cylindrical Lock Reversible Lever Exit Only Electrical Fail Safe 12VAC/DC for easy installation and dependable door hardware solution.

Features:

• UL Listed.
• Fail Safe (Power Lock) - Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset will unlock in event of power failure (passage function).
• Fail Secure (Power Unlock) - Outside trim is unlocked when power is applied and locked when Power is removed. Lockset will lock in event of power failure.
• When key cylinders are provided in the locks, the latchbolt may be momentarily retracted with key even though electrically locked.
• Security Monitoring available.
• Authorized Egress (Request to Exit) available.
• Interface with Life-Safety Systems.
• Voltage: 12V, 24V.
• Switch Type: NONE, RX.
• Finish: 605, 606, 612, 613, 619, 625, 626, 643E
