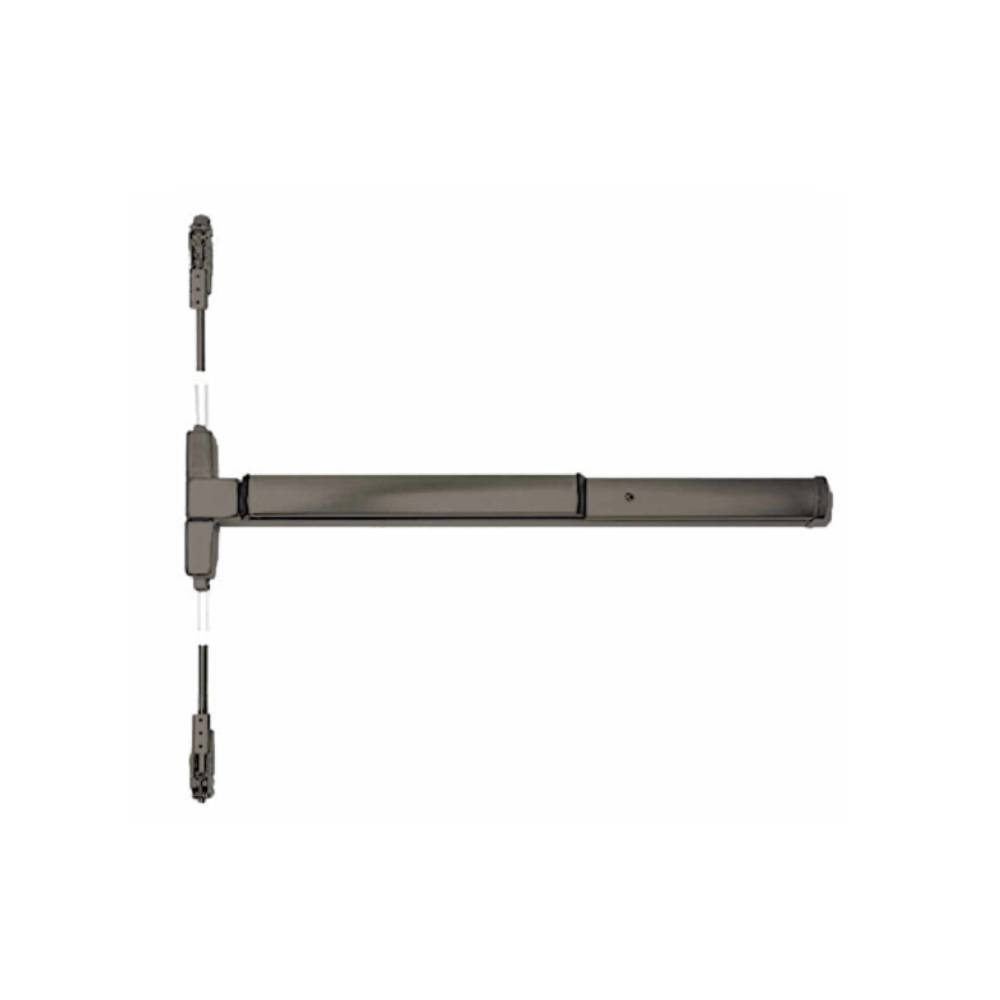

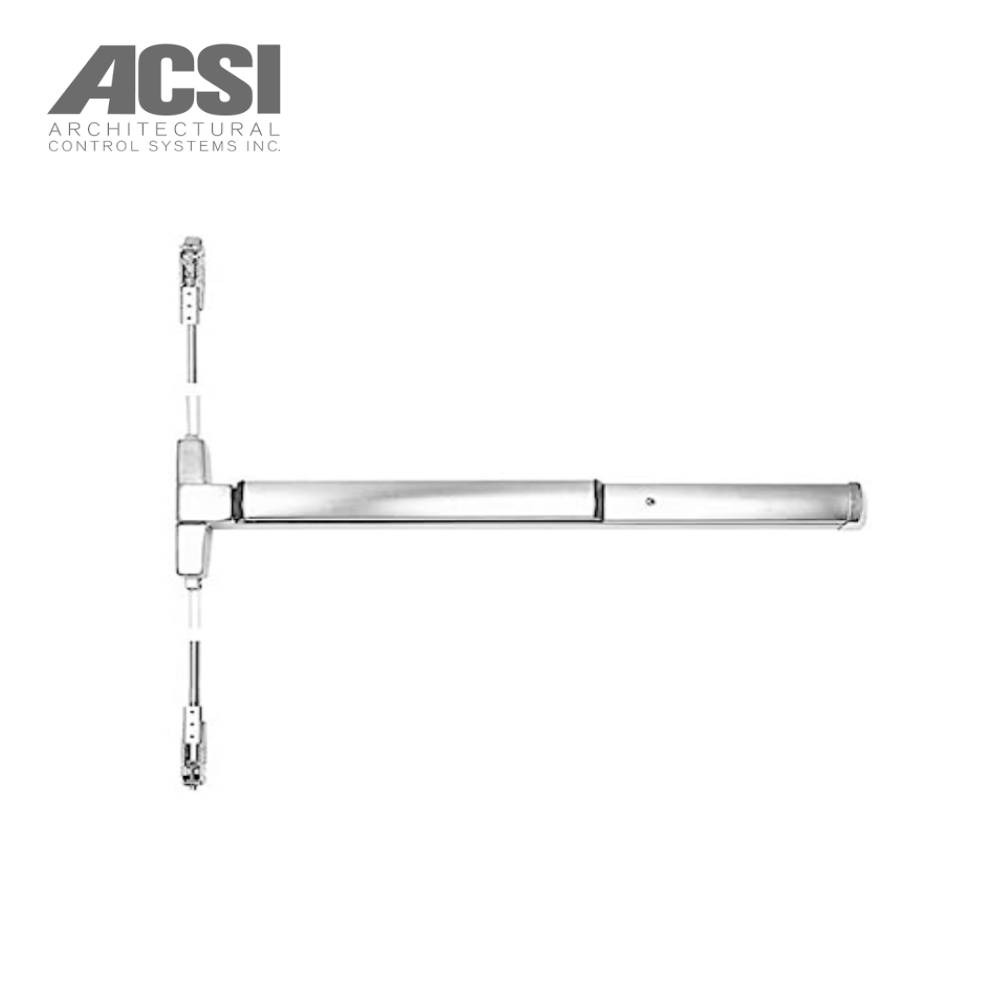

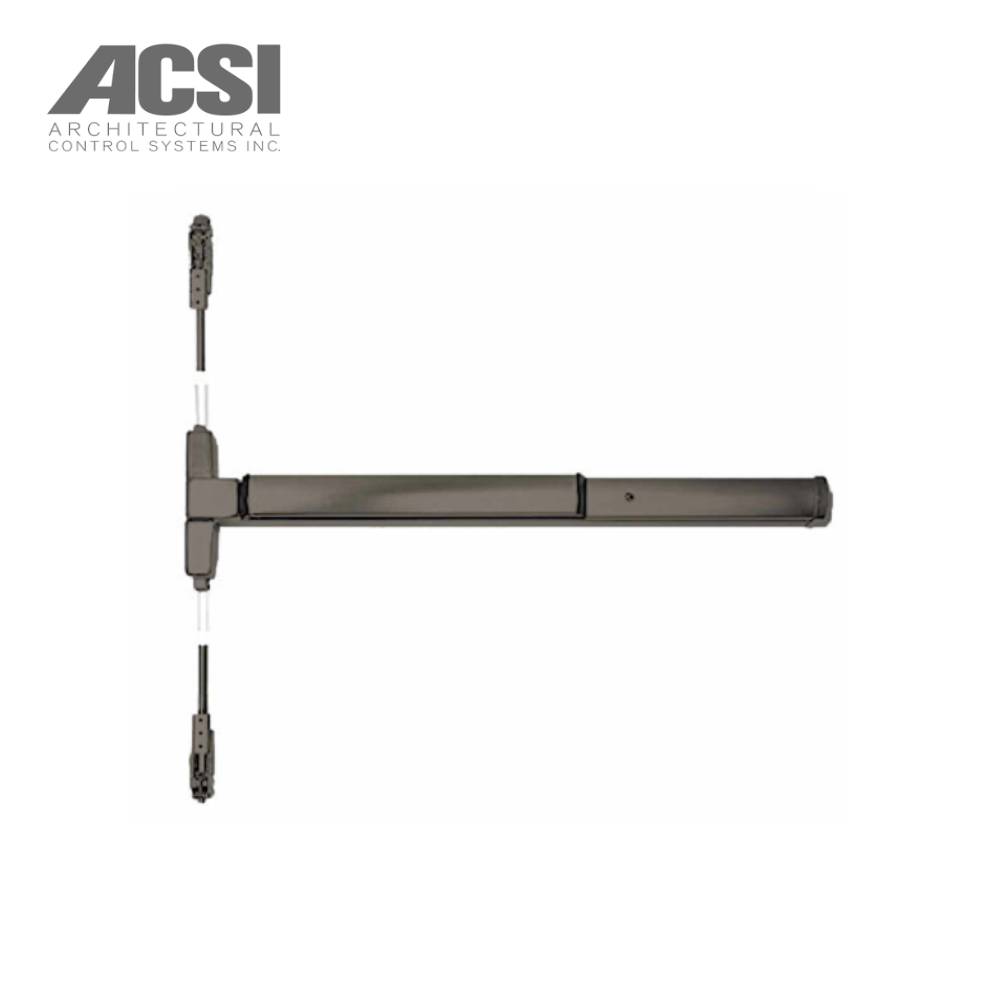

ACSI - ED4800-W036 - Rod Exit Device - ED4000 Series - Concealed Vertical - Electric Latch Retraction 24 Volt AC/DC
ED4800-W036 Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction 24 Volt AC/DC. Corbin Russwin ED4000 Narrow Stile Pushpad Series Concealed Vertical Rod Exit Device with Electric Latch Retraction, 24 Volt AC/DC, 36"" Door Width, Left Hand Reverse.
Introducing the Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction: an Electronic Exit Device/Trim with Hex Key Dogging. It features Heavy Duty Construction, Low Projection for barrier-free code compliance, and Quiet Operation. Certified to meet ANSI and UL/cUL standards. Suitable for various applications, it accommodates door widths of 30" to 36" and is compatible with glass, aluminum, and metal doors. With electrified features and a 5-year warranty, our device ensures security and convenience. For doors measuring 7 feet in height.
Buy the ACSI ED4800-W036 Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction 24 Volt AC/DC for easy installation and dependable door hardware solution.
Specifications:
| Device Type | Concealed Vertical Rod Device |
| Product Type | Electronic Exit Device/Trim |
| Dogging Options | Hex Key Dogging |
| Features | Heavy Duty Construction; Low Projection for Barrier-Free Code Compliance; Quiet Operation; Closed on All Sides No Projecting Parts to Inhibit Egress |
| Standards | ANSI A156.3, Type 6, Grade 1; ANSI A117.1; UL/cUL Listed; California State Fire Marshal pursuant to section 13144.1; NFPA 101 Life Safety Code |
| ADA Compliant | No |
| Function Family | Exit Only Device |
| Device Rating | Panic Exit Hardware |
| Bolt Throw | Top: 3/4"; Bottom: 5/8" |
| Latch Type | Deadlocking |
| Application | Single Door; Schools and Universities; Government and Municipal Buildings; Factories and Warehouses; Office and Retail Complexes; Transportation Facilities; Hotels and Conference Centers; Health Care, Religious Facilities; Theaters and Auditoriums. |
| Stile Width | 2 Inch |
| Handed | Right Hand Reverse Left Hand Reverse |
| Finish | 613 - Oil Rubbed Bronze 630 - Satin Stainless Steel |
| Door Width | 30" to 36" |
| Door Thickness | 1-3/4" |
| Door Height | 7 Foot to 8 Foot |
| Strike Type | Adjustable Roller Strike With Positive Locking Plate and Shims; Bottom: Flush Mounted |
| Voltage | 24 Volt |
| Power Input | 24VDC-28VDC at 0.35A |
| Door Material | Glass; Aluminum; Metal |
| Electrified Features | Electric Latch Retraction |
| Included Components | Machine Screws |
| Series | ED4800 Pushpad |
| Stile | Narrow Stile |
| Device Length | 36 Inch (3 Foot) |
| Manufacturer Parent | ACSI |
