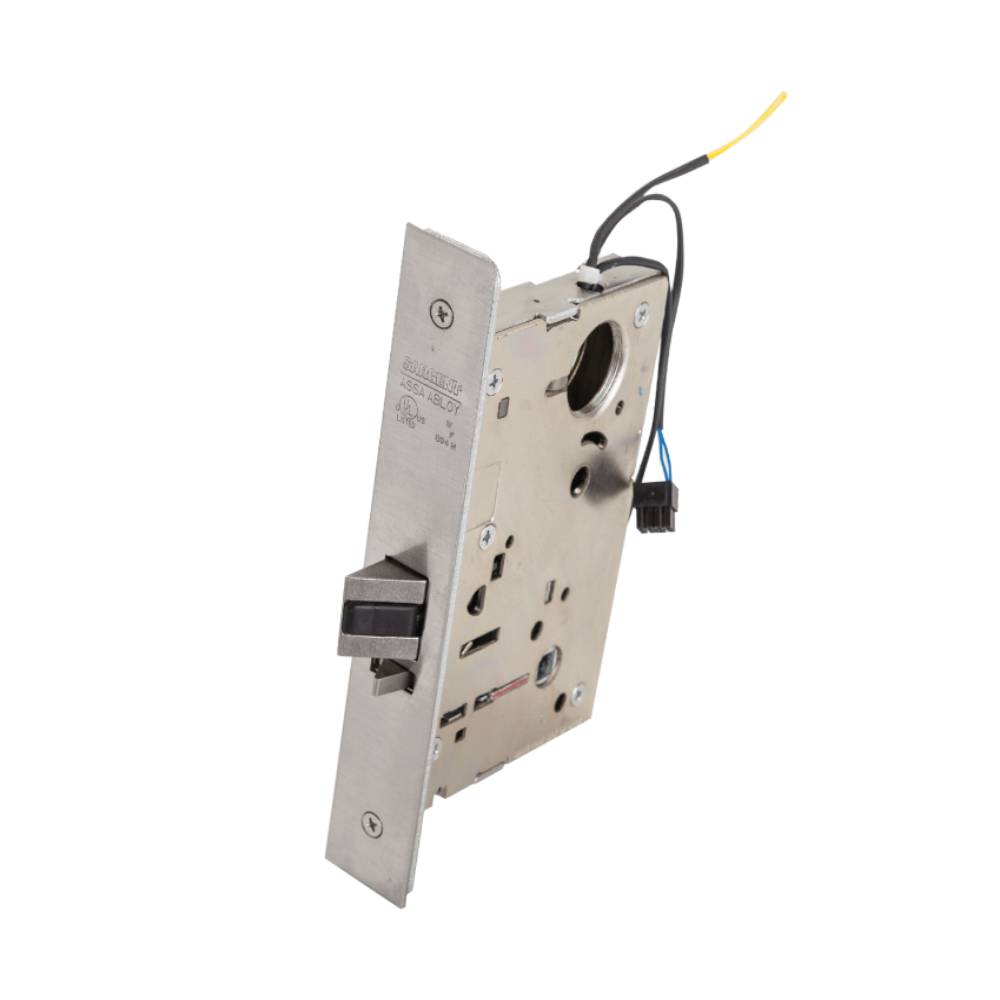

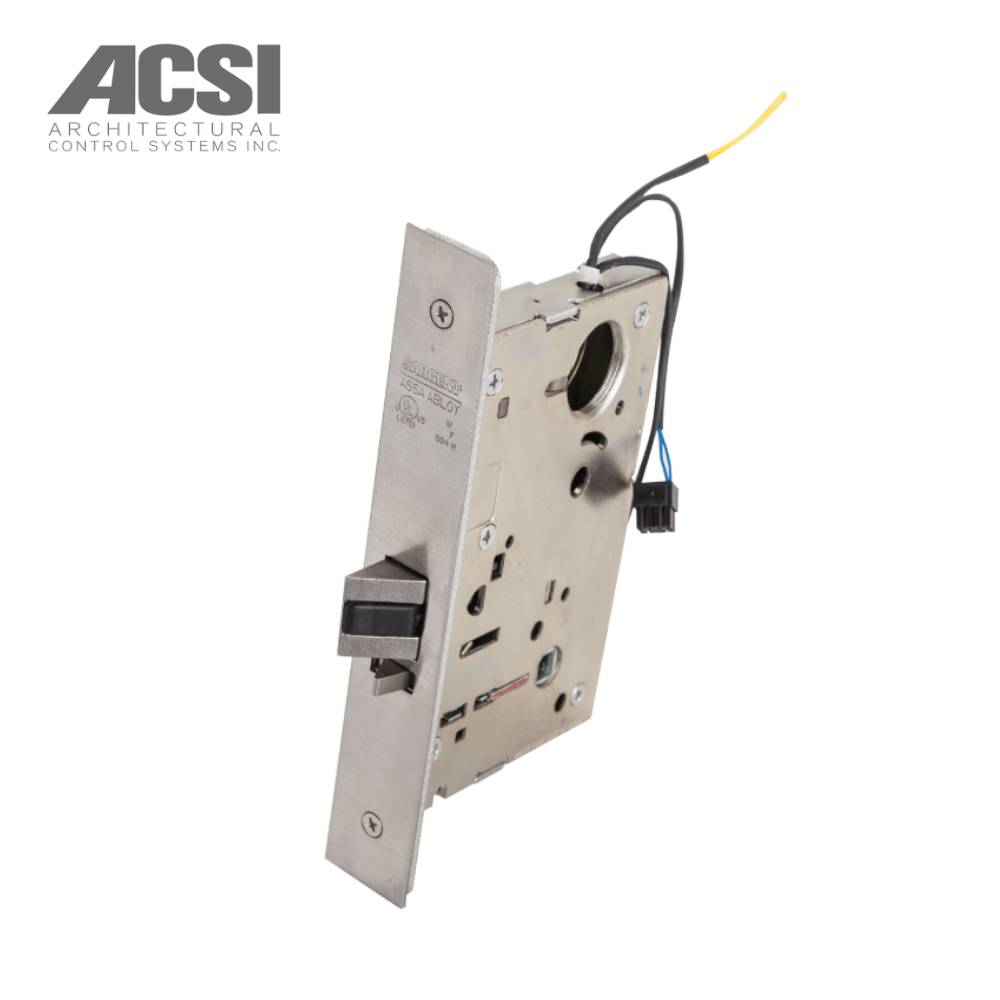

ACSI - M1510M-1-8205 - Entry Mortise Lock Body - Fail Safe with L Rose Design - Less Cylinder and Sargent 8200 Series Office - 26D (Satin Chrome)
M1510M-1-8205 Sargent 8200 Series Office, Entry Mortise Lock Body Fail Safe L Rose Design. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-8205 Sargent 8200 Series Office, Entry Mortise Lock Body Fail Safe L Rose Design for easy installation and dependable door hardware solution.
Design:
- L Rose Design, B Lever Design
- L Rose Design, L Lever Design
Specifications:
| Function | 1510M-Fail Safe Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Lock |
| Electric Options | Latchbolt Monitor |
| Strike Type | Curved Lip |
| Hub Material | Cold Forged Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Fire Doors; Windstorm |
| Authorized Egress | Standard Authorized Egress (AE) |
| Strike Size | 4-7/8" x 3/32" |
| Lever Size | 5 Inch |
| Finish | 26D - Satin Chrome |
| Front Size | 8" x 1-1/4" |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Rose/Escutcheon Thickness | 5/16 Inch |
| Latchbolt Type | One Piece Anti-Friction Reversible Latch |
| Manufacturer Parent | ACSI |
