ACSI - M1510M-1-8808-LC - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Less Cylinder and Yale 8800 Series Office
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
ACSI - M1510M-1-8808-LC - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Less Cylinder and Yale 8800 Series Office

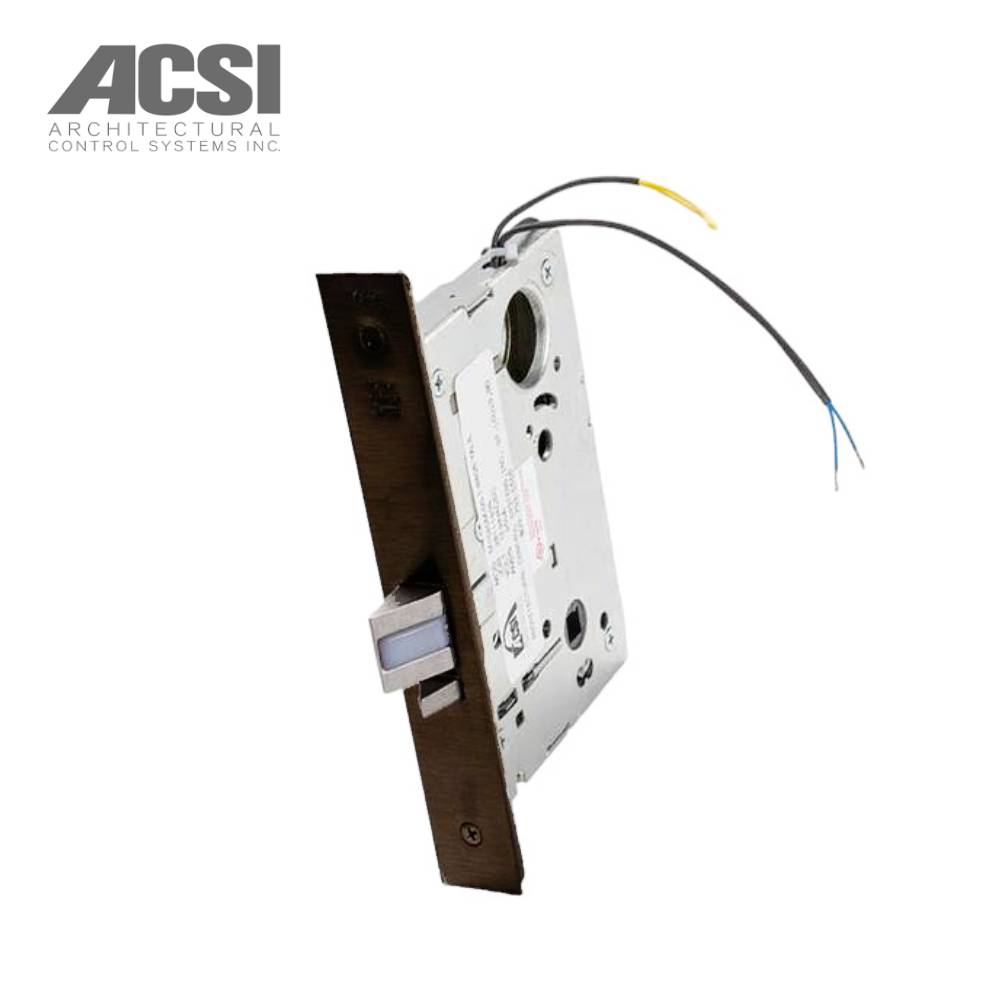

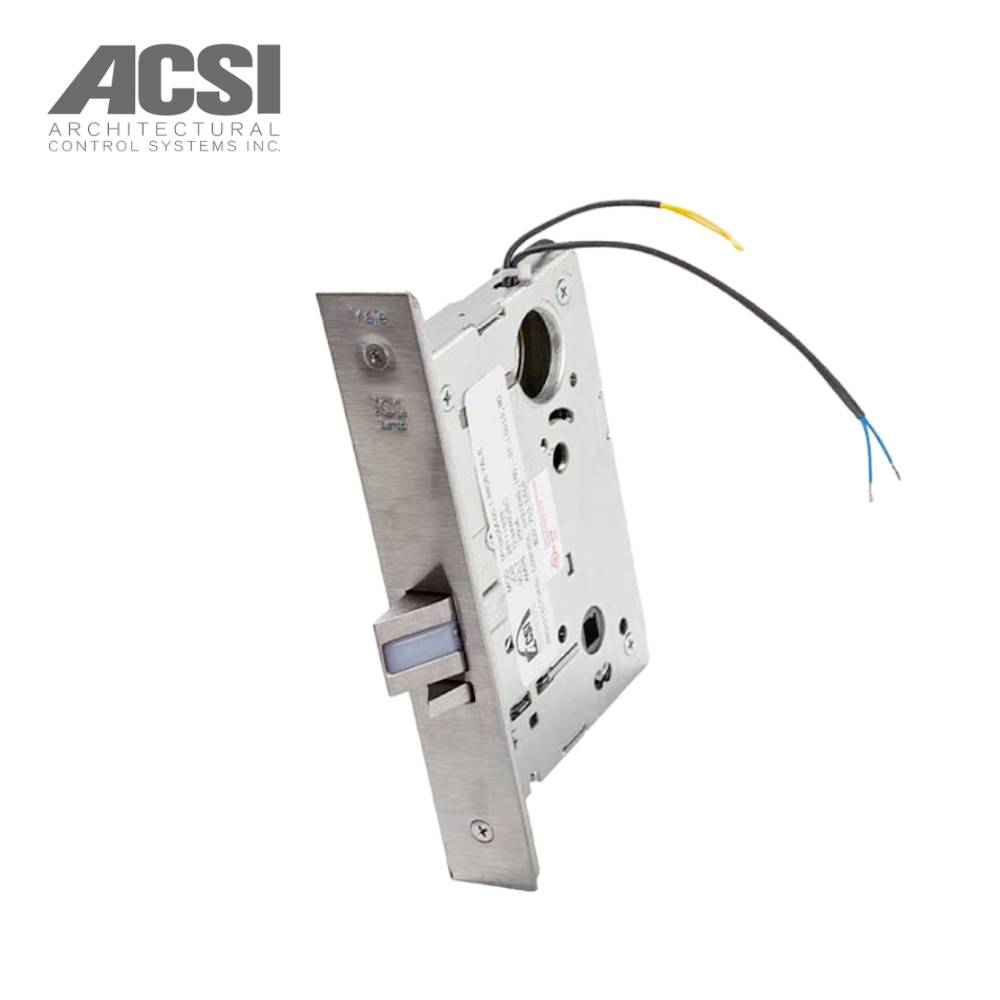

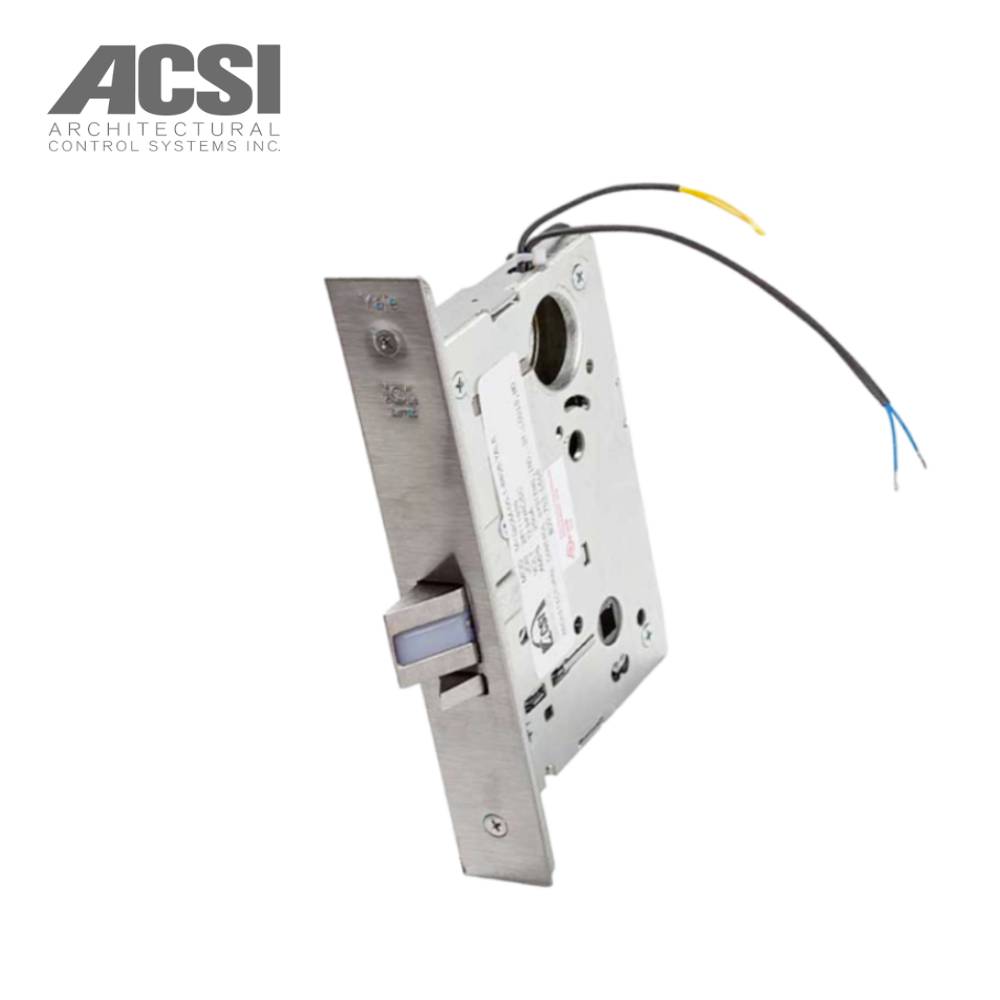

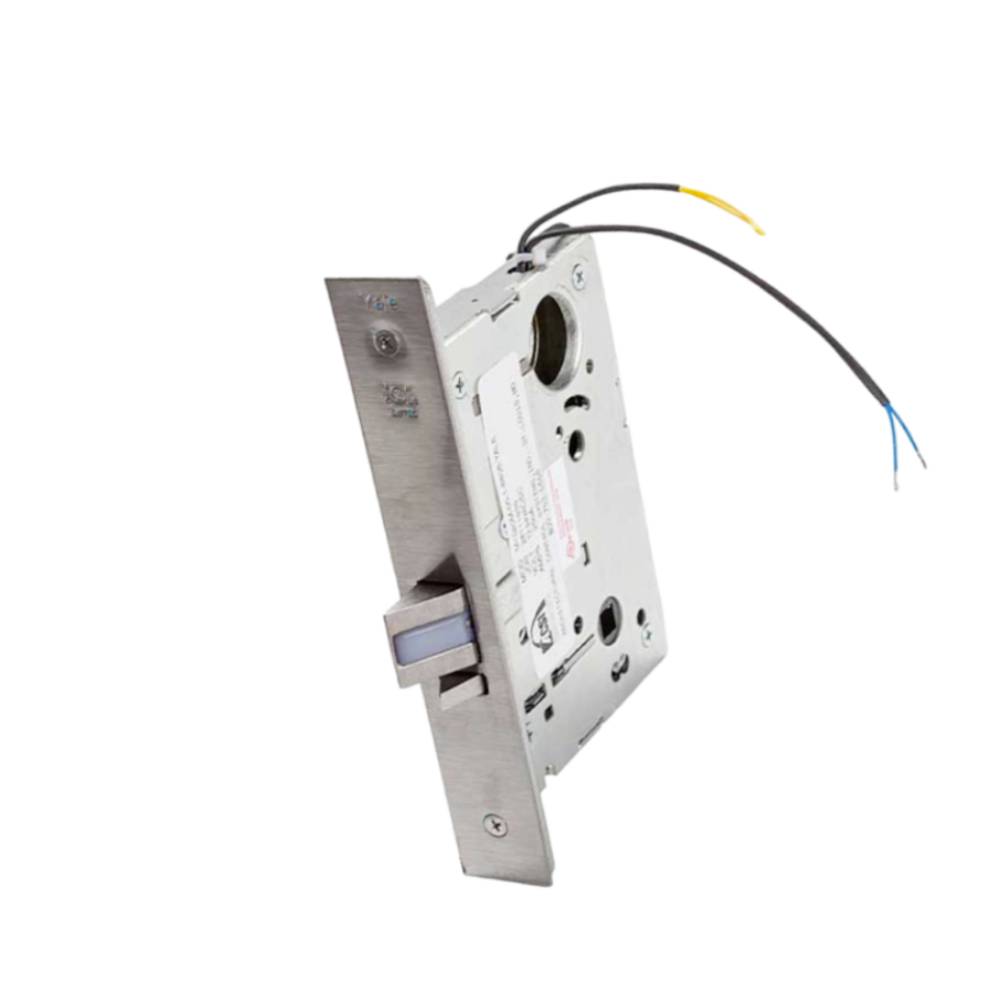

M1510M-1-8808-LC Yale 8800 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Less Cylinder. Yale 8800 Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-8808-LC Yale 8800 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Less Cylinder for easy installation and dependable door hardware solution.
Design:
- MO Lever (Monroe) Design, CN Escutcheon (Camden) Design
- MO Lever (Monroe) Design, R Escutcheon (Copenhagen) Design
- PB Lever (Pacific Beach) Design, CN Escutcheon (Camden) Design
- PB Lever (Pacific Beach) Design, R Escutcheon (Copenhagen) Design
- PN Lever (Pinehurst) Design, CN Escutcheon (Camden) Design
- PN Lever (Pinehurst) Design, R Escutcheon (Copenhagen) Design
- VI Lever (Virginia) Design, CN Escutcheon (Camden) Design
- VI Lever (Virginia) Design, R Escutcheon (Copenhagen) Design
Specifications:
Function | 1510M-Fail Safe Control |
Cylinder Type | Less Cylinder |
Product Type | Electronic Mortise Lock |
Electric Options | Latchbolt Monitor |
Strike Type | Straight Lip |
ADA Compliant | YES |
Finish | 26D - Satin Chrome 625 - Bright Polished Chrome 613E - Dark Oxidized Satin Bronze - Equivalent |
Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000; Operational and Security Grade 1; A117.1 Accessibility Code |
Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
Application | Offices; Schools; Hospitals; Hotels |
Handing | Reversible |
Front Size | 8" x 1-1/4" x 3/32" |
Strike Size | 4-7/8" x 1-1/4" |
Hub Size | 5/16 Inch |
Lever Size | 4-5/8 Inch |
Hub Material | Steel |
Voltage | 12 to 24VAC/VDC |
Grade | ANSI/BHMA Grade 1 |
Backset | 2-3/4 Inch |
Door Thickness | 1-3/4 inch |
Latch Throw | 3/4 Inch |
Latchbolt Type | Stainless Steel One-Piece Anti-Friction |
Manufacturer Parent | ACSI |
