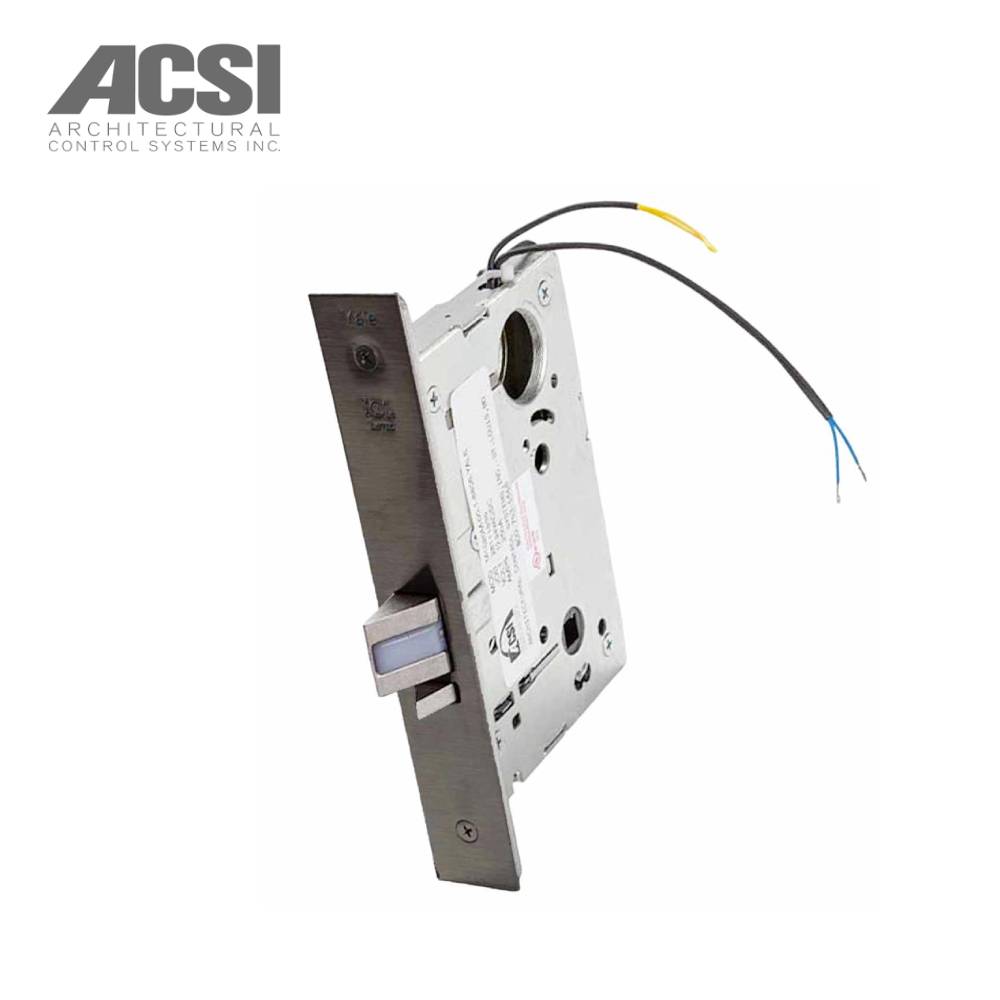

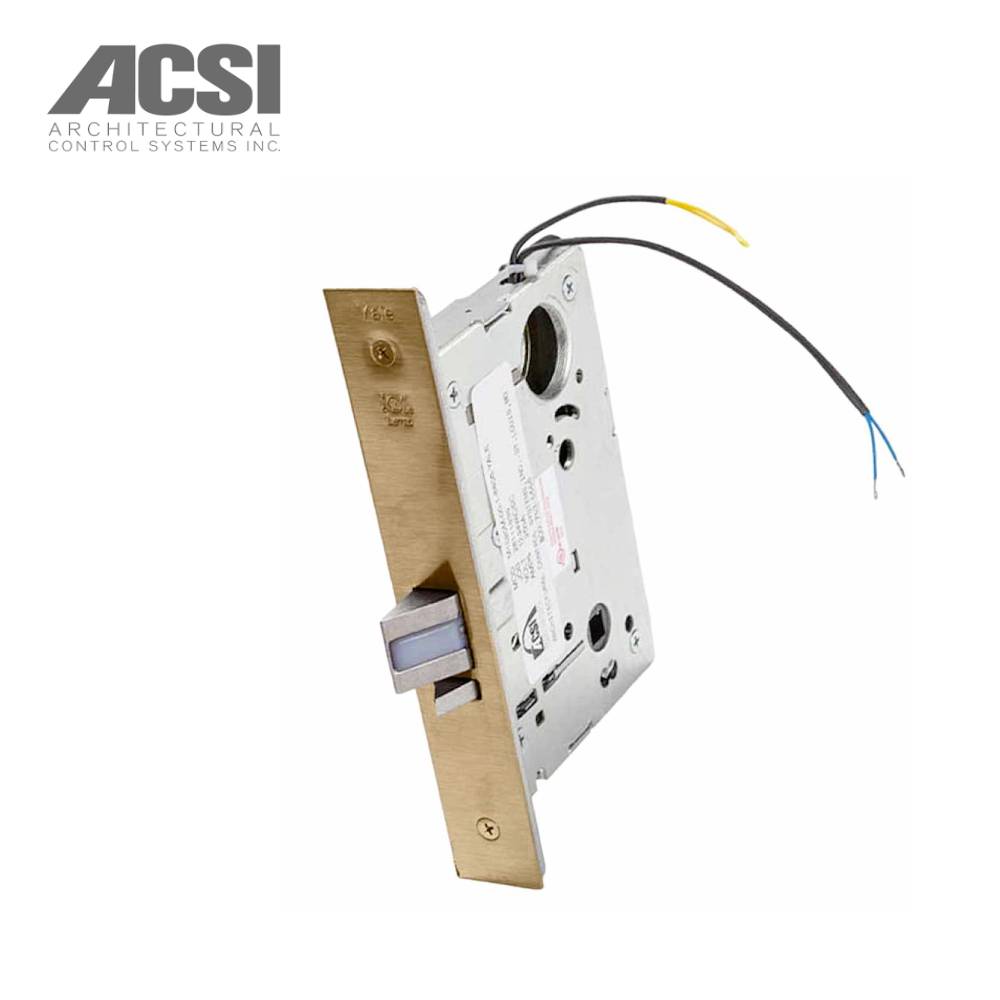

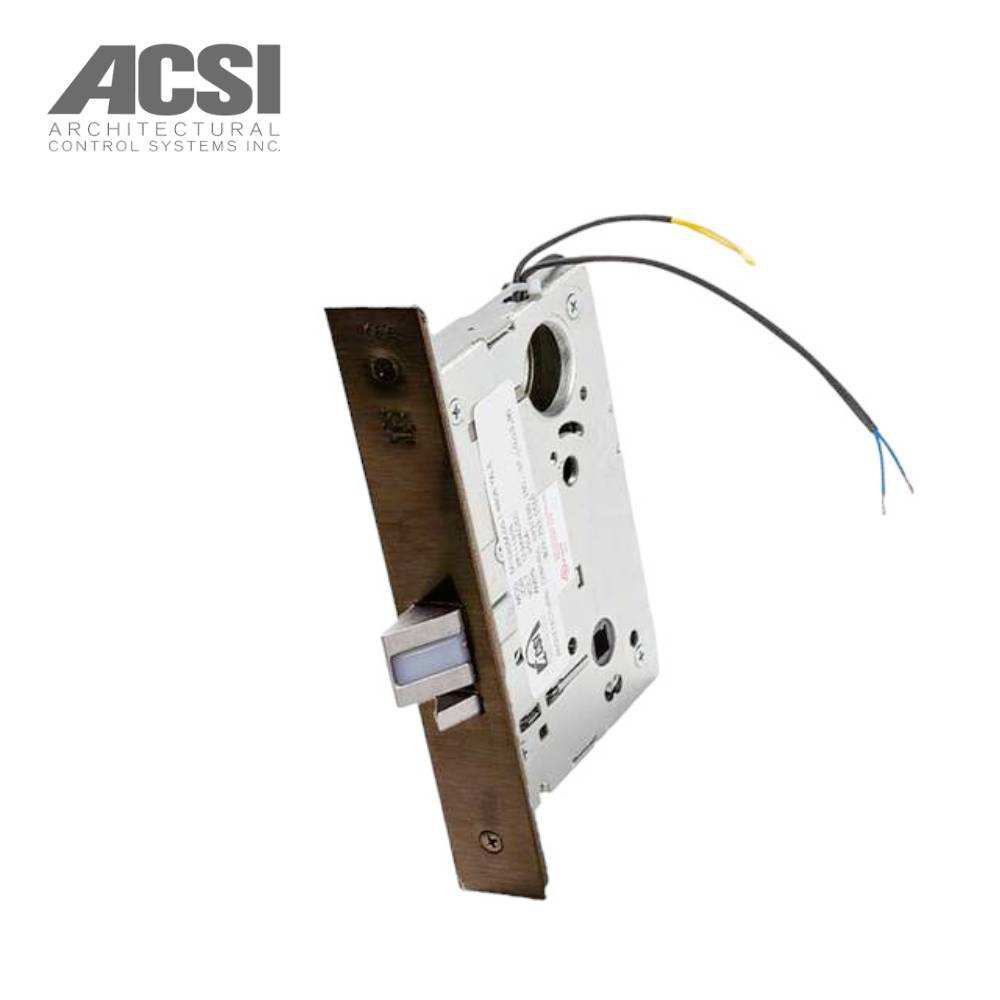

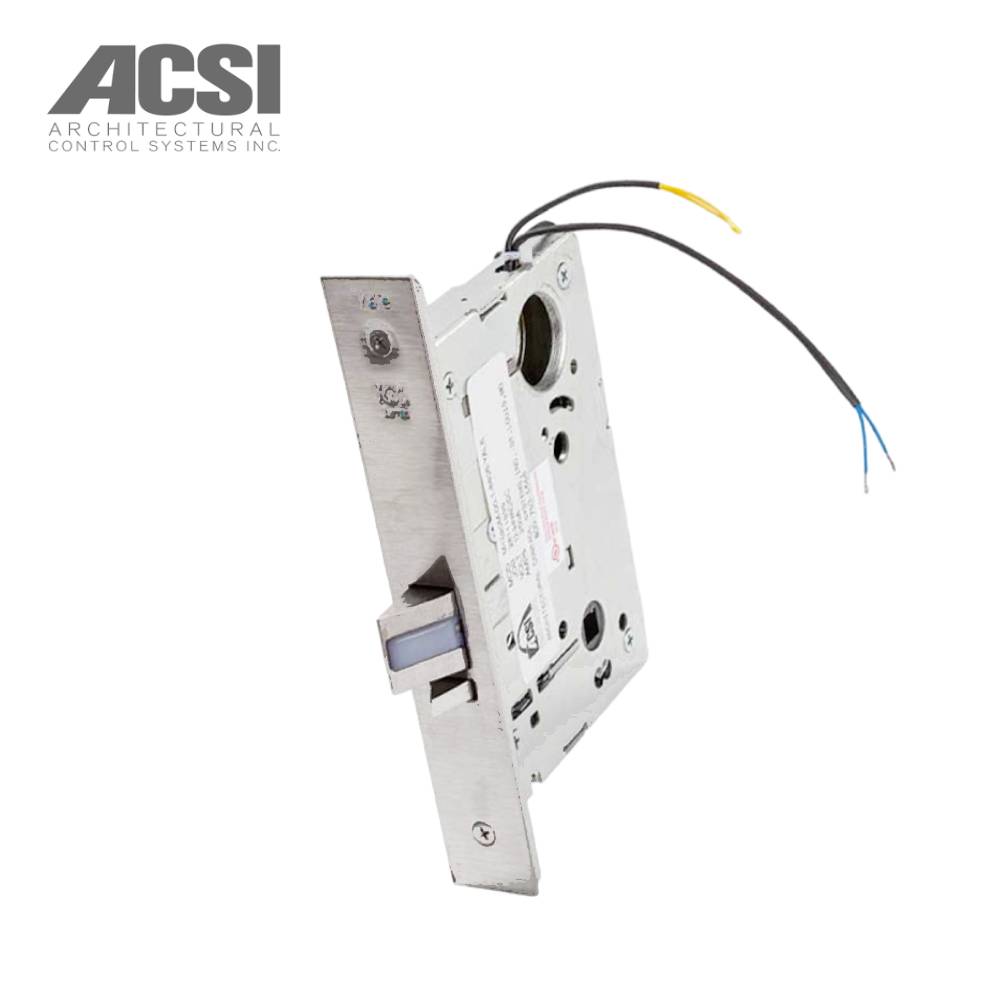

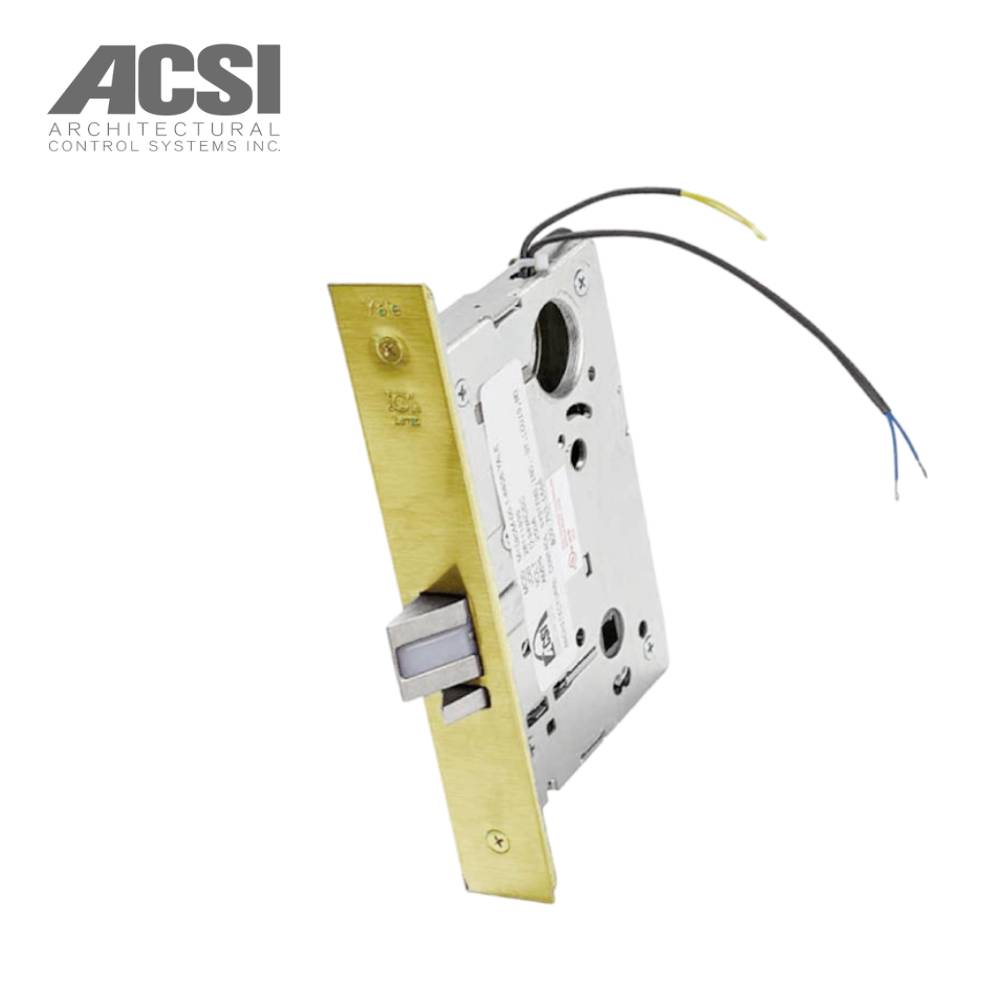

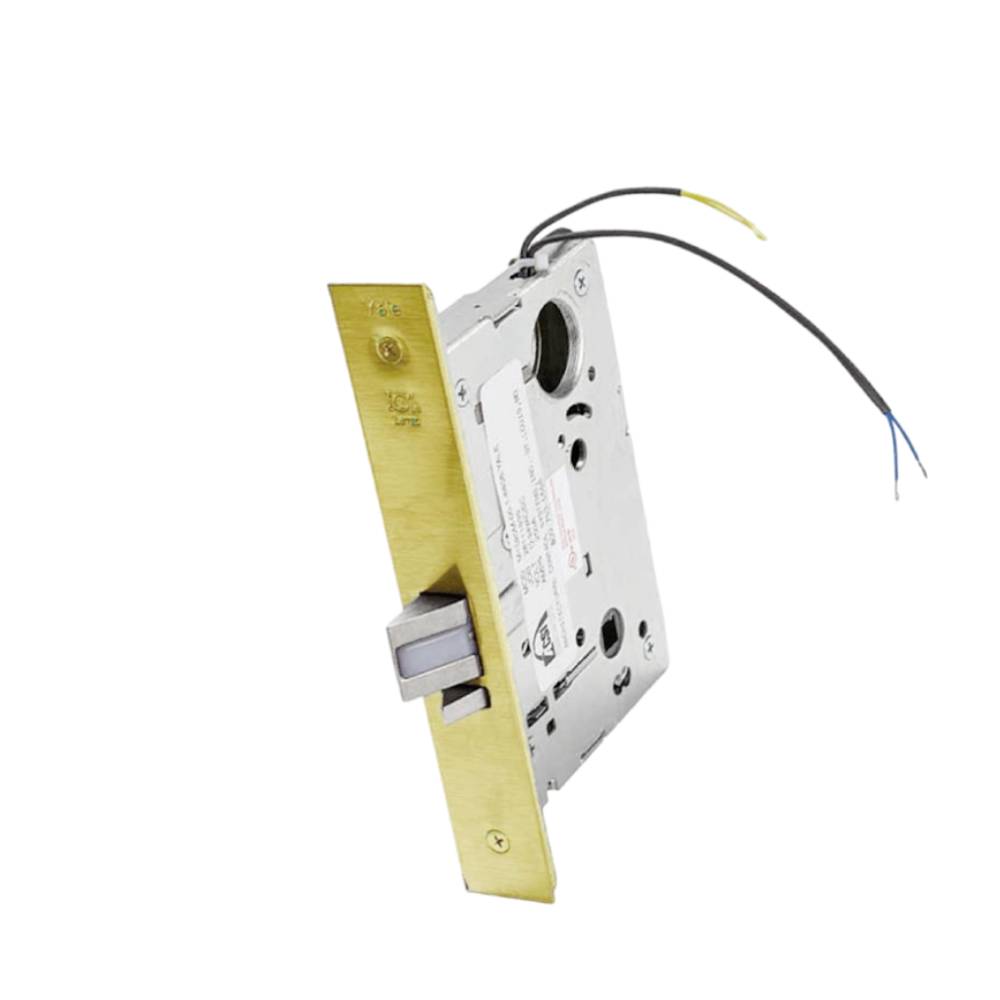

ACSI - M1510M-1-8808FL - Entry Mortise Lever Lock - Fail Safe with Motor Controlled and Yale 8800 Series Office
M1510M-1-8808FL Yale 8800 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled. Yale 8800 Series Classroom Mortise Lever Lock Body Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-8808FL Yale 8800 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled for easy installation and dependable door hardware solution.
Specifications:
| Function | 1510M-Fail Safe Control |
| Product Type | Electronic Mortise Lock |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Electric Options | Request to Exit |
| Finish | 605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 613E - Dark Oxidized Satin Bronze - Equivalent 629 - Bright Stainless Steel 630 - Satin Stainless |
| Strike Type | Curved Lip |
| ADA Compliant | YES |
| Keying Type | Keyed Random |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13, Series 1000, Operational Grade 1; ANSI/BHMA A156.115; UL/cUL Fire Rated up to 3 Hours |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Shopping Centers; Industrial Buildings; Commercial Facilities |
| Handing | Reversible |
| Hub Material | Solid Steel |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Front Size | 8" x 1-1/4" |
| Strike Size | 4-7/8" x 1-1/4" |
| Cylinder Material | Brass |
| Hub Size | 3/8 Inch |
| Backset | 2-3/4 Inch |
| Latchbolt Type | Stainless Steel One-Piece Anti-Friction |
| Manufacturer Parent | ACSI |
