Description
Description

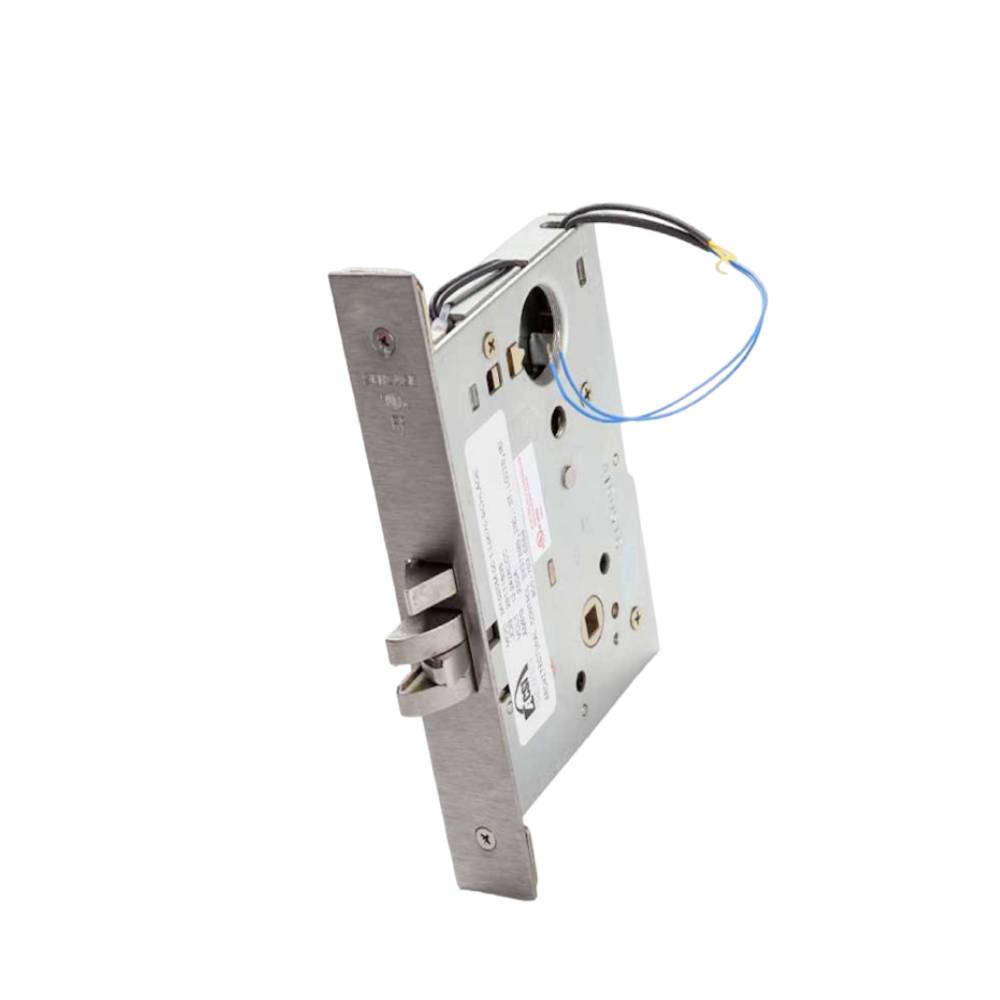

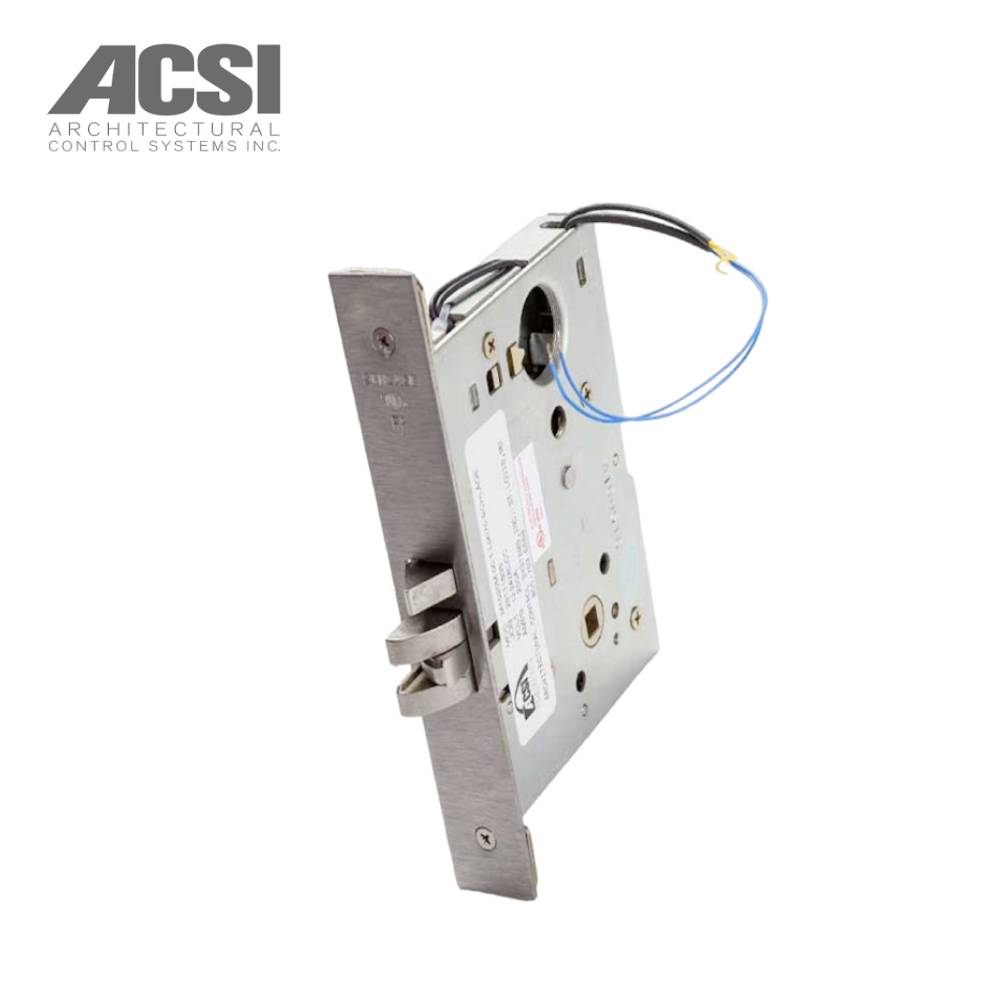

ACSI - M1510M-1-L9070L - Entry Mortise Lever Lock - Fail Safe with Motor Controlled and Schlage L Series Office - 26D (Satin Chrome)
M1510M-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled. Schlage L Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. Buy the ACSI M1510M-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled for easy installation and dependable door hardware solution.
Design:
- 03 Lever Design, A Rose Design
- 03 Lever Design, L Rose Design
- 06 Lever Design, A Rose Design
- 06 Lever Design, L Rose Design
- 07 Lever Design, A Rose Design
- 07 Lever Design, L Rose Design
- 17 Lever Design, A Rose Design
- 17 Lever Design, L Rose Design
Specifications:
| Function | 1510M-Fail Safe Control |
| Cylinder Type | Less Conventional Cylinder |
| Product Type | Electronic Mortise Lock |
| Strike Size | 4-7/8" x 1-1/4" |
| Latch Throw | 3/4 Inch |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104 |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Grade | ANSI/BHMA Grade 1 |
| Finish | 26D - Satin Chrome |
| ADA Compliant | YES |
| Front Size: | 1-1/4" x 8" x 7/32" |
| Latchbolt Type | Stainless Steel Latch With Anti-Friction Tongue |
| Door Thickness | 1-3/4 inch |
| Voltage | 12 to 24VAC/VDC |
| Strike Type | Curved Lip |
| Backset | 2-3/4 Inch |
| Rose/Escutcheon Width | 2-1/8 Inch |
| Rose/Escutcheon Length | 2-1/8 Inch |
| Lever Size | 4-3/4 Inch |
| Strike Lip | 1-3/16 Inch |
| Manufacturer Parent | ACSI |
