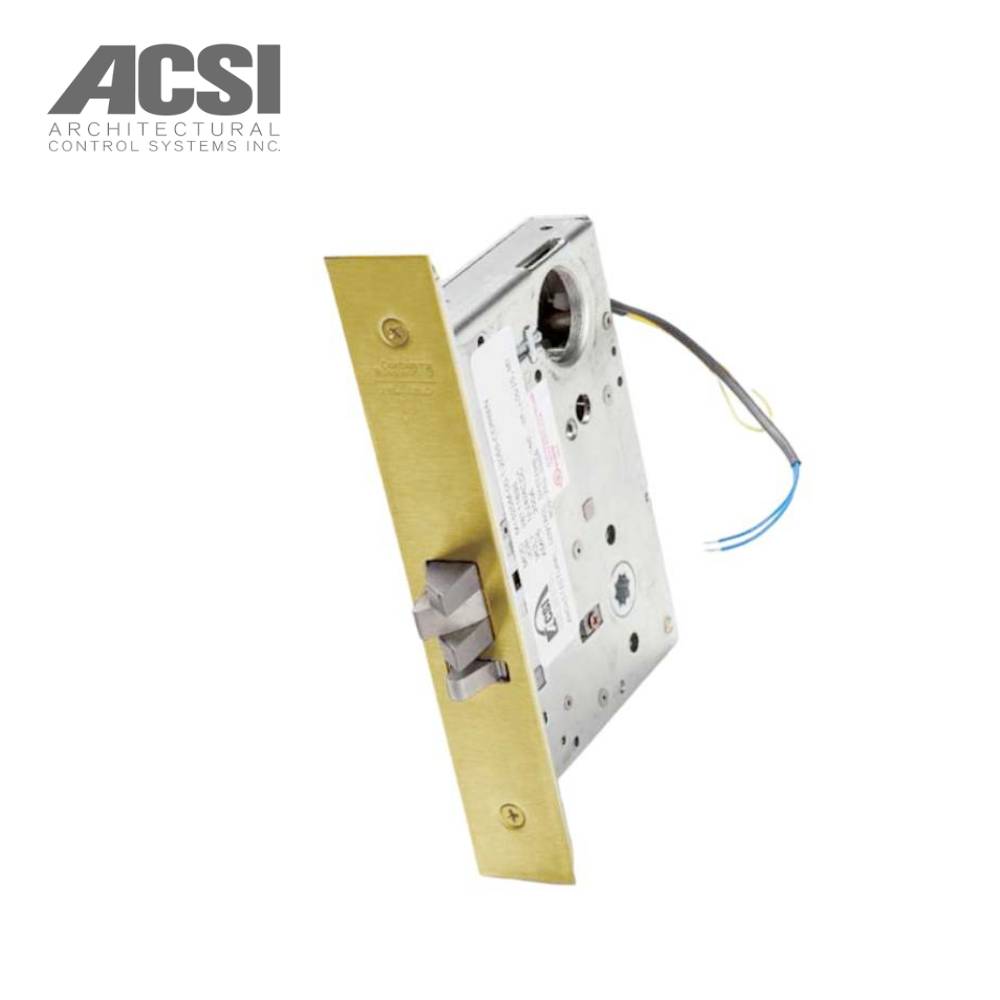

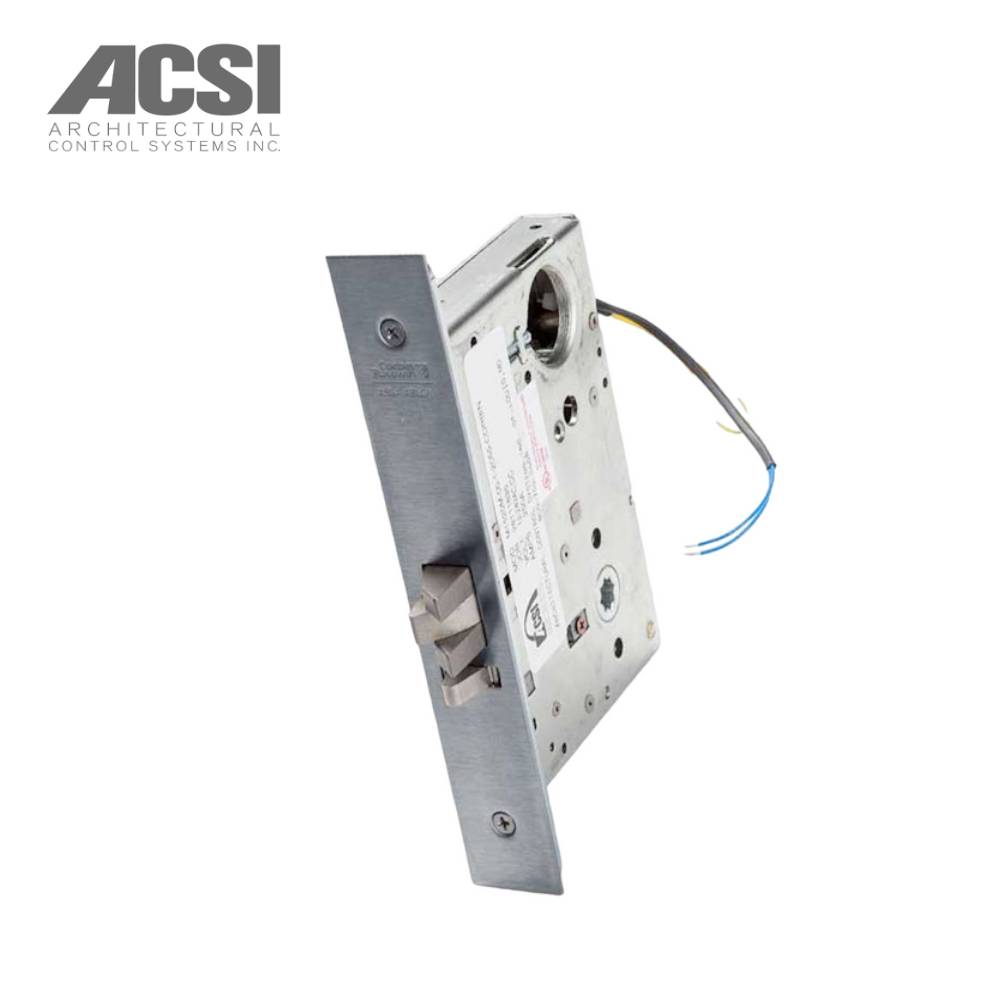

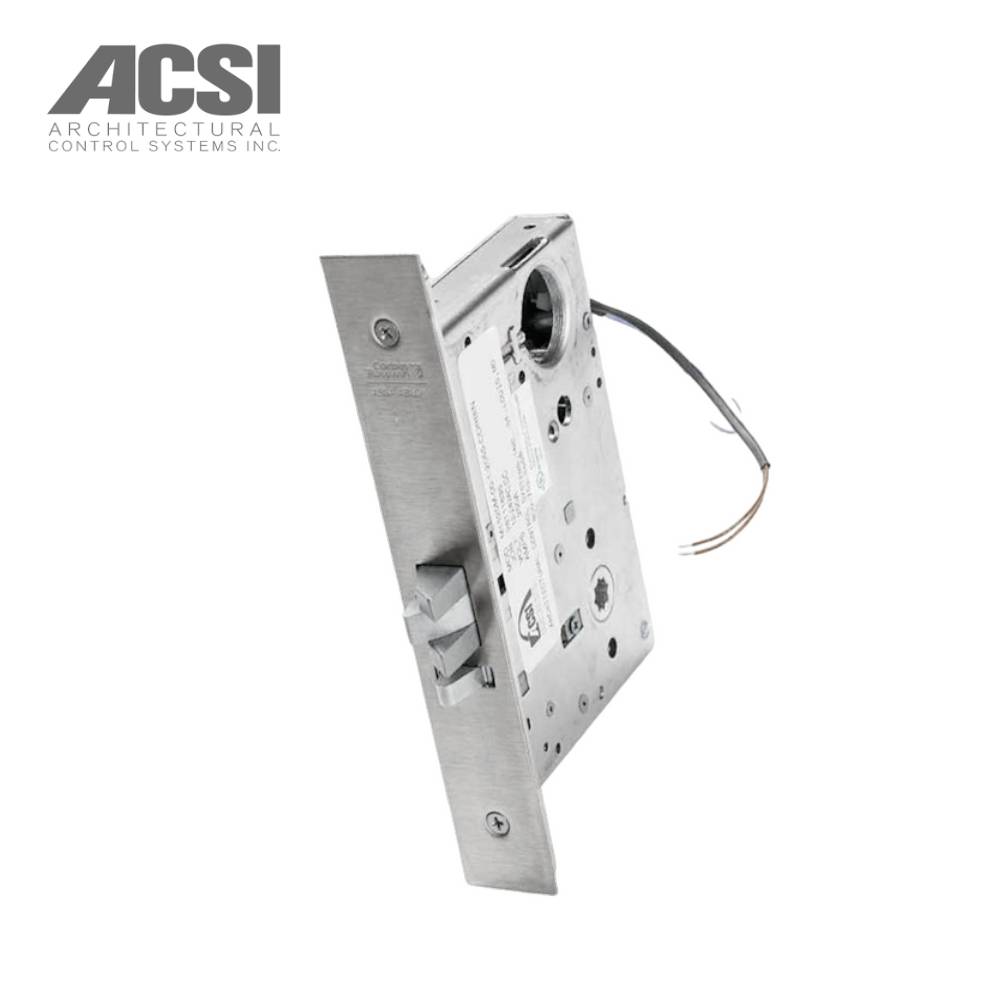

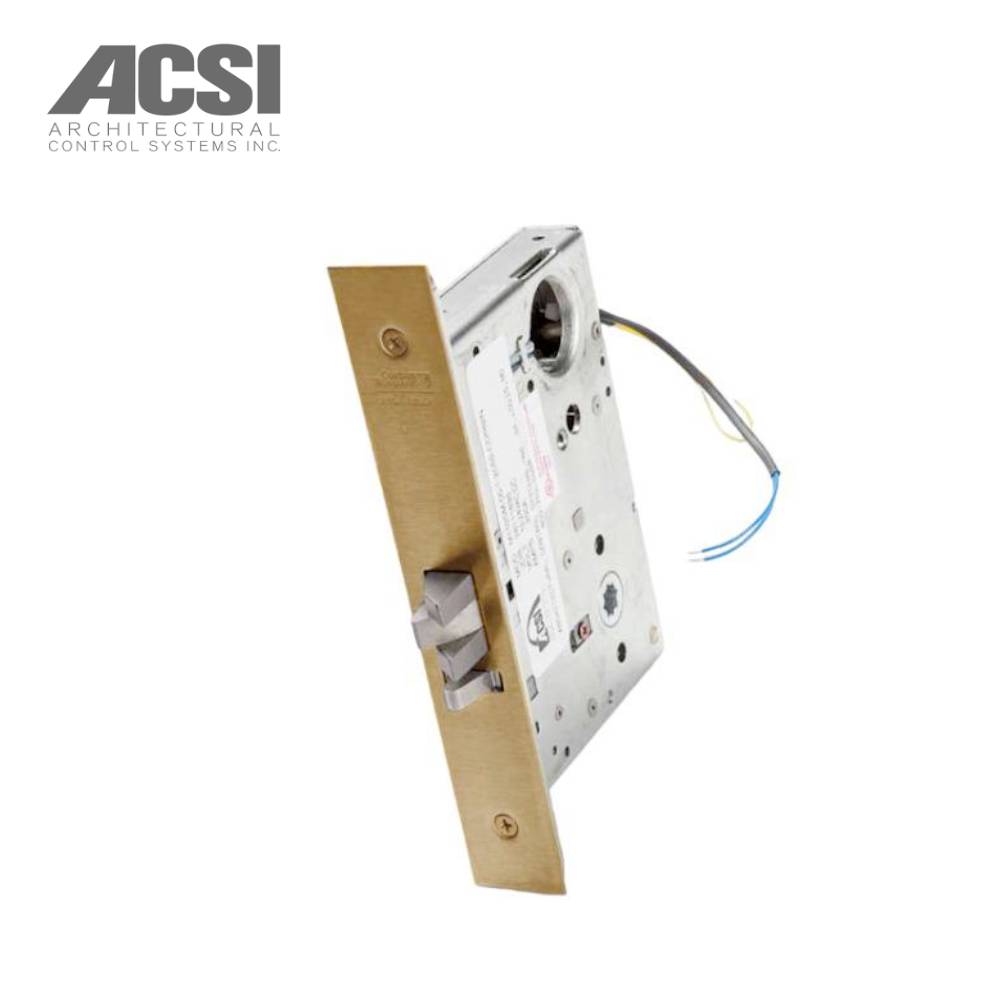

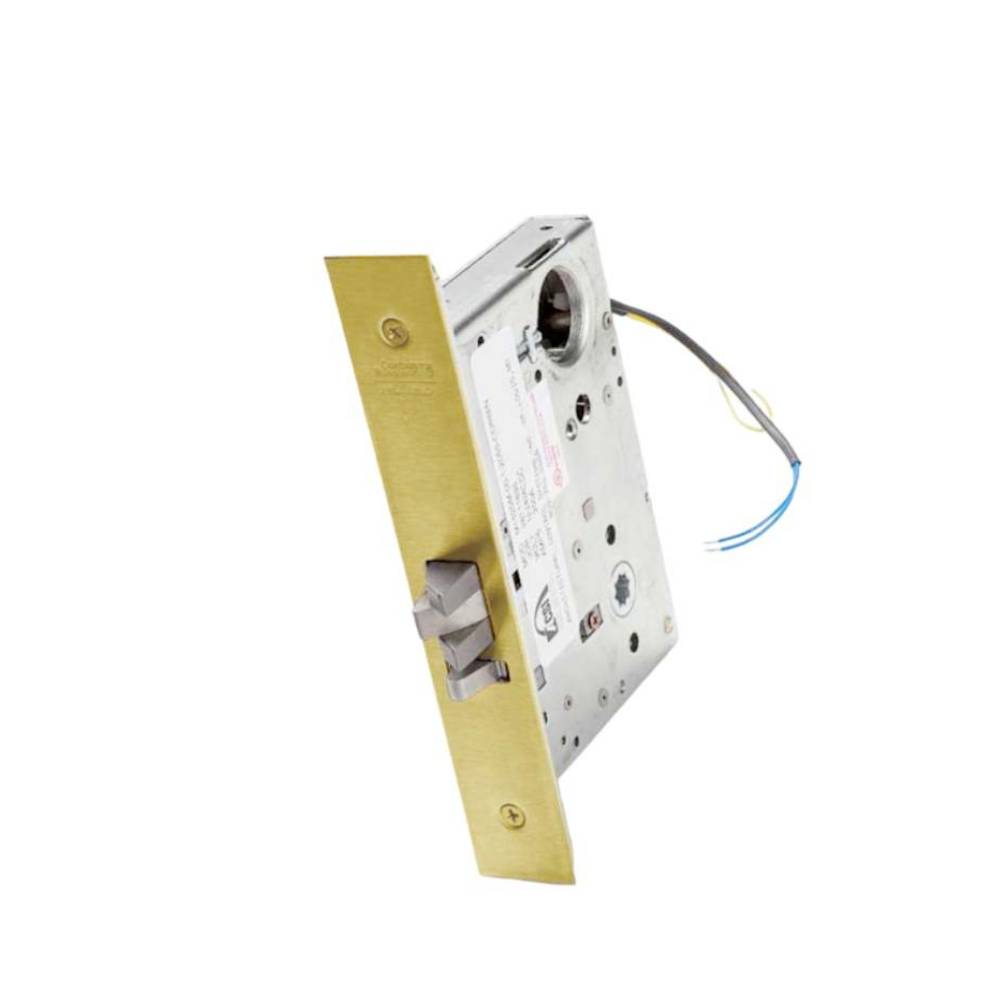

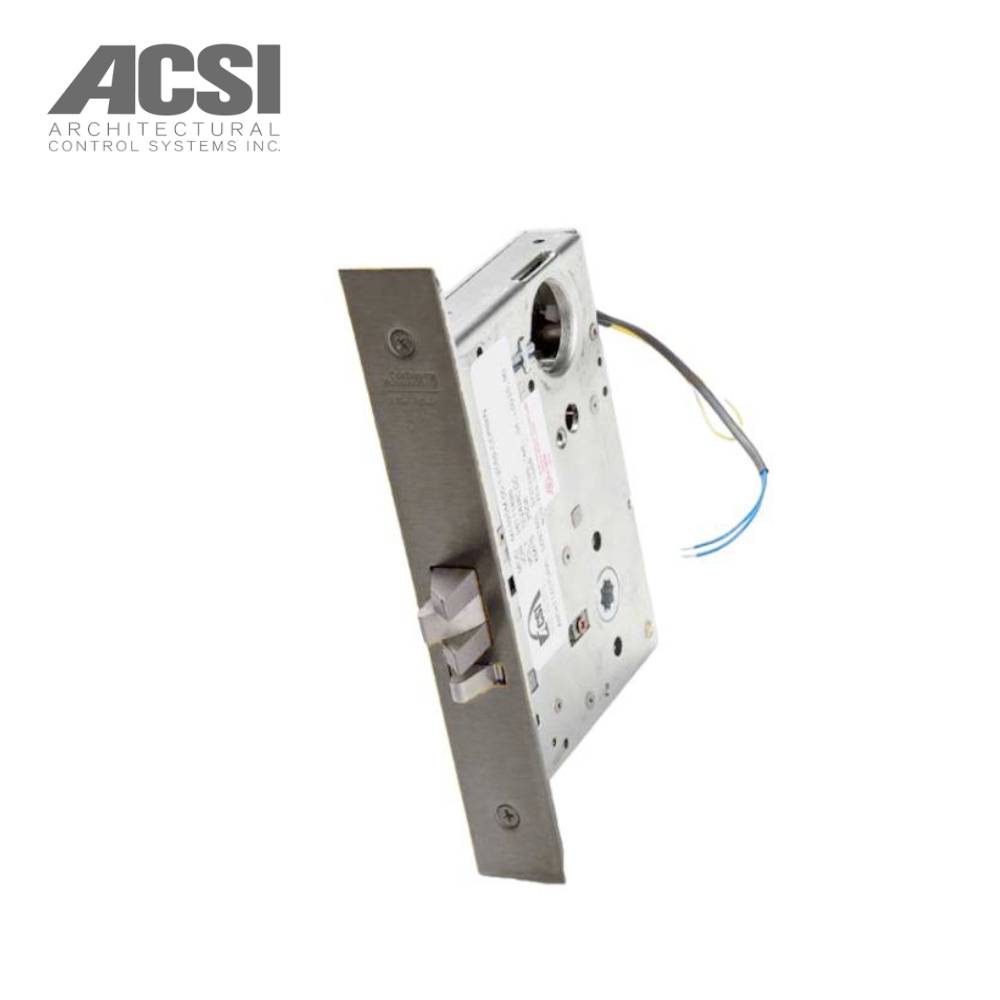

ACSI - M1510M-1-ML2055 - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office
M1510M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled,, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled for easy installation and dependable door hardware solution.
Design:
- AS Lever Design, A Rose Design
- AS Lever Design, M Rose Design
- CS Lever Design, A Rose Design
- CS Lever Design, M Rose Design
Specifications:
| Function | 1510M-Fail Safe Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Lock |
| Electric Options | Latchbolt Monitor |
| Strike Type | ANSI Straight Lip |
| ADA Compliant | YES |
| Finish | 605 - Bright Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Polished Chrome 26D - Satin Chrome 630 - Satin Stainless |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Schools; Hospitals; Hotels |
| Handing | Reversible |
| Strike Size | 4-7/8" x 1-1/4" |
| Hub Size | 5/16 Inch |
| Lever Size | 4-1/2 Inch |
| Hub Material | Steel |
| Front Size | 8" x 1-1/4" x 3/32" |
| Strike Lip | 1-1/8 Inch |
| Handing | Field Reversible |
| Std. Strike Type | ASA |
| Voltage | 12 to 24VAC/VDC |
| Backset | 2-3/4 Inch |
| Grade | ANSI/BHMA Grade 1 |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Auxiliary Latch Throw | 9/16 Inch |
| Latchbolt Type | 2-Piece Mechanical With Anti-Friction Insert |
| Manufacturer Parent | ACSI |
