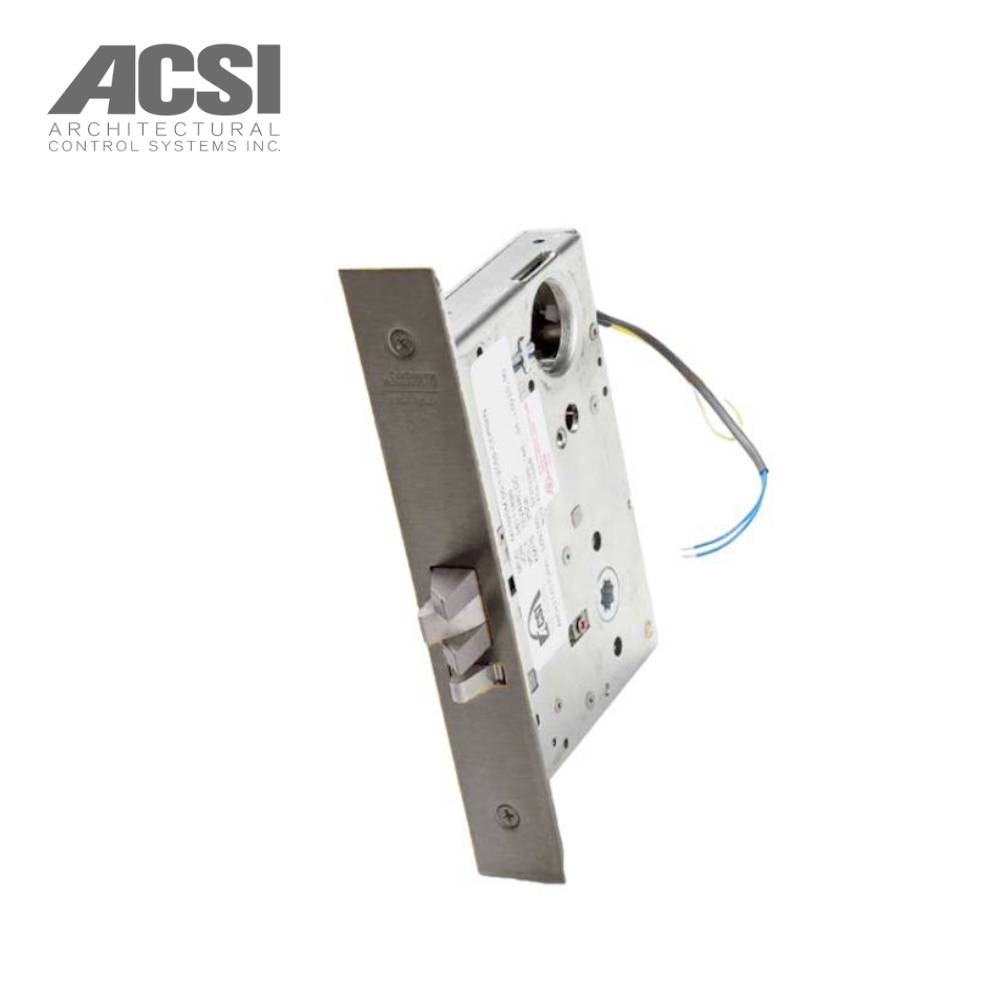

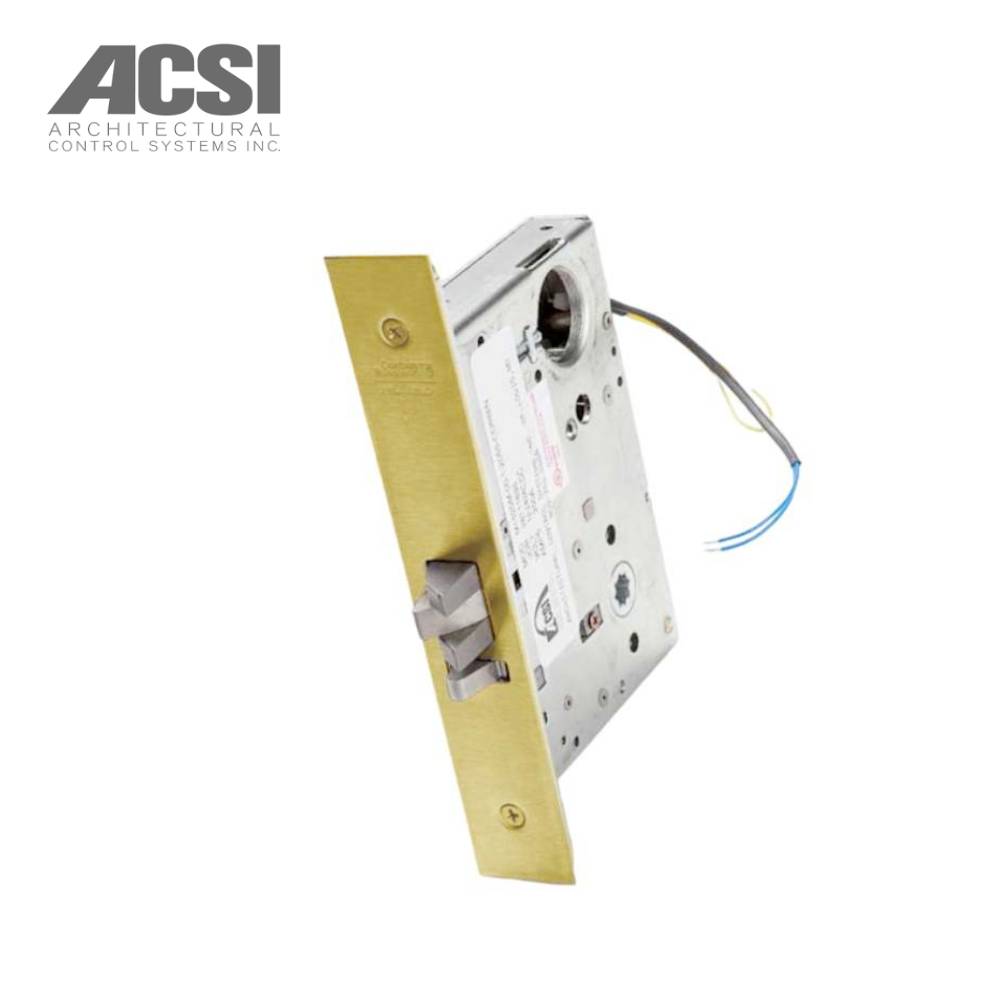

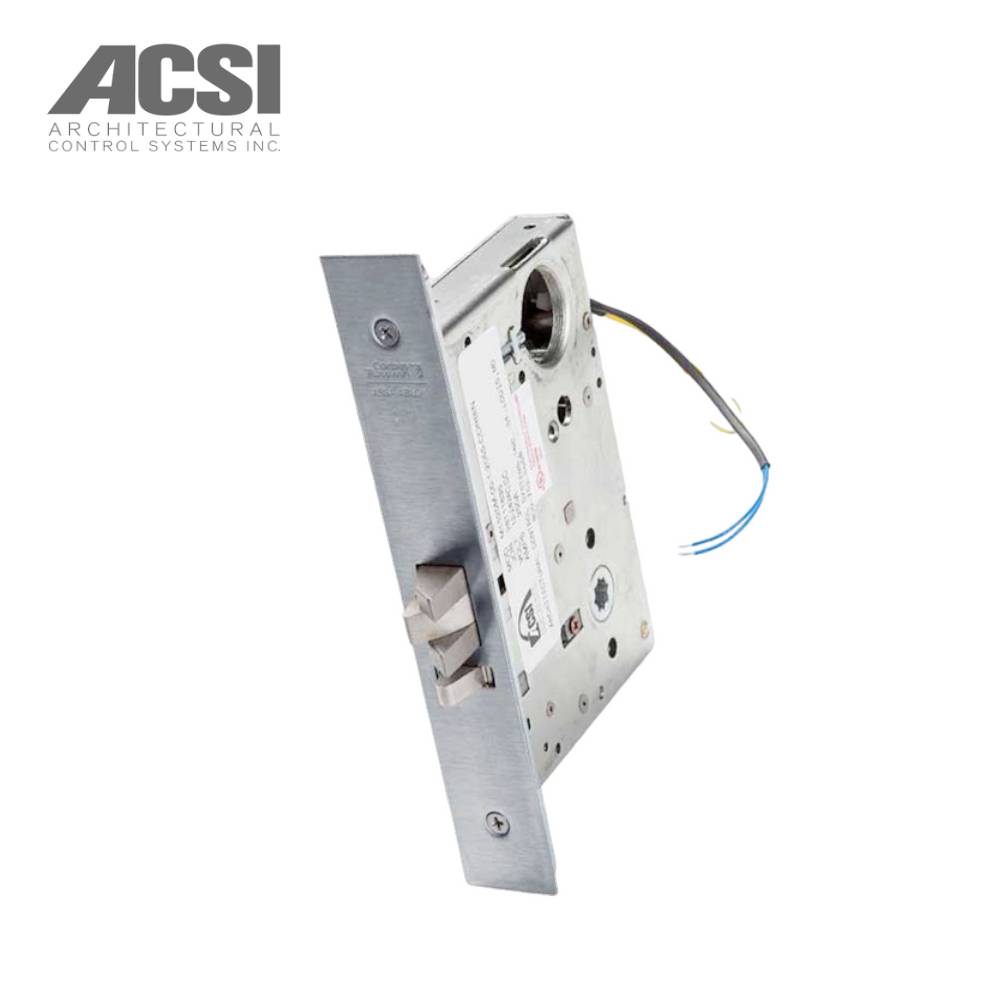

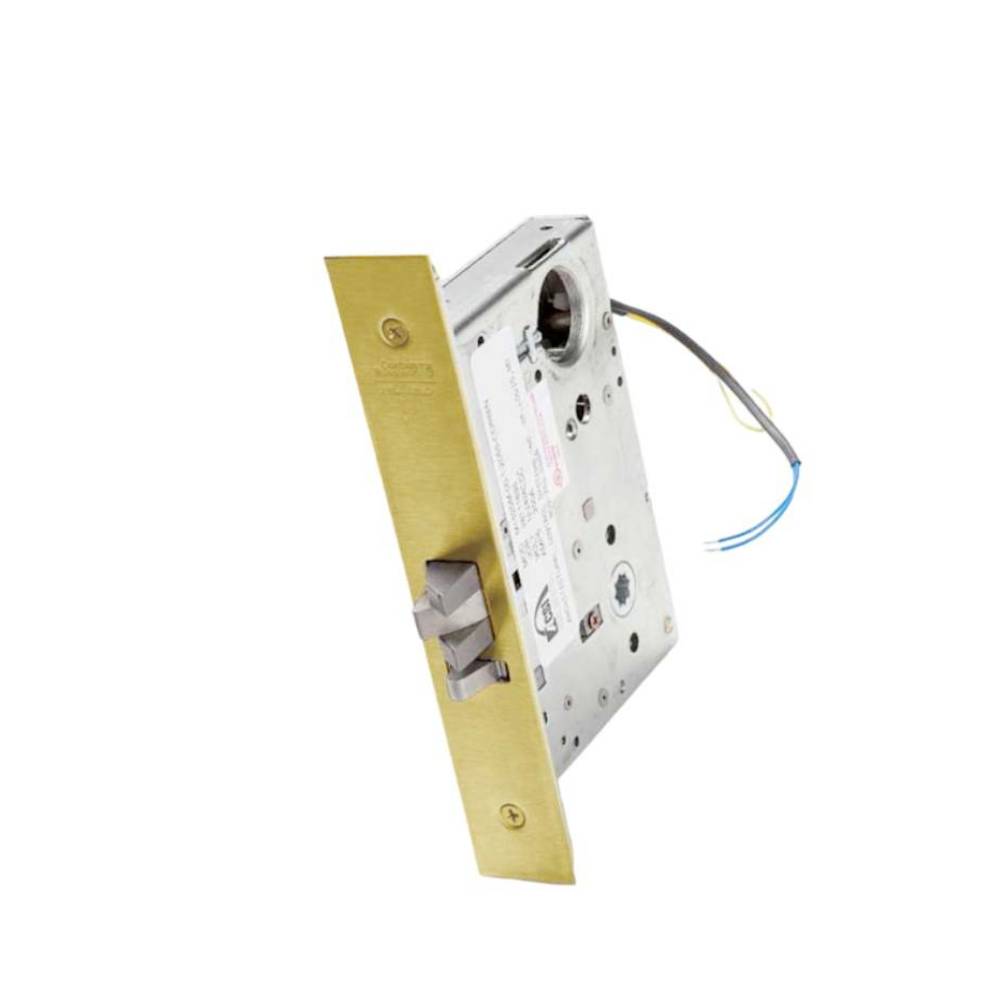

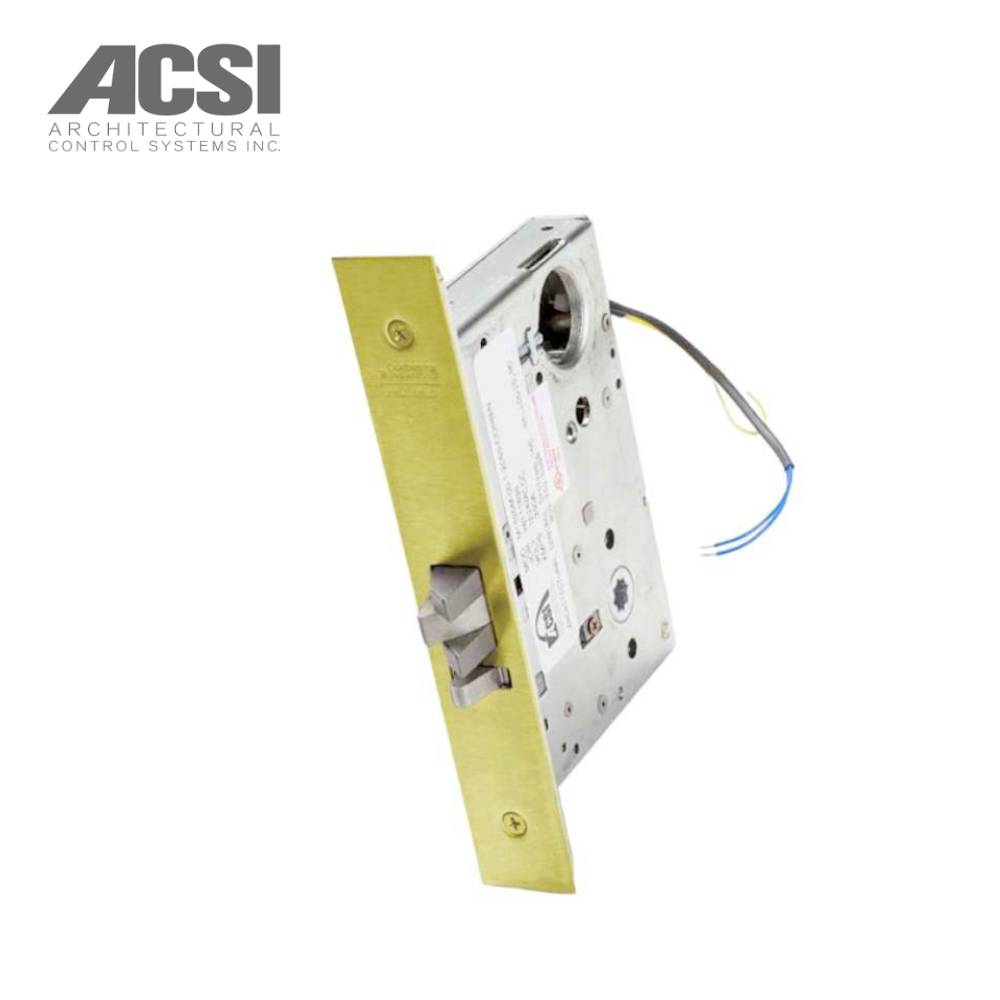

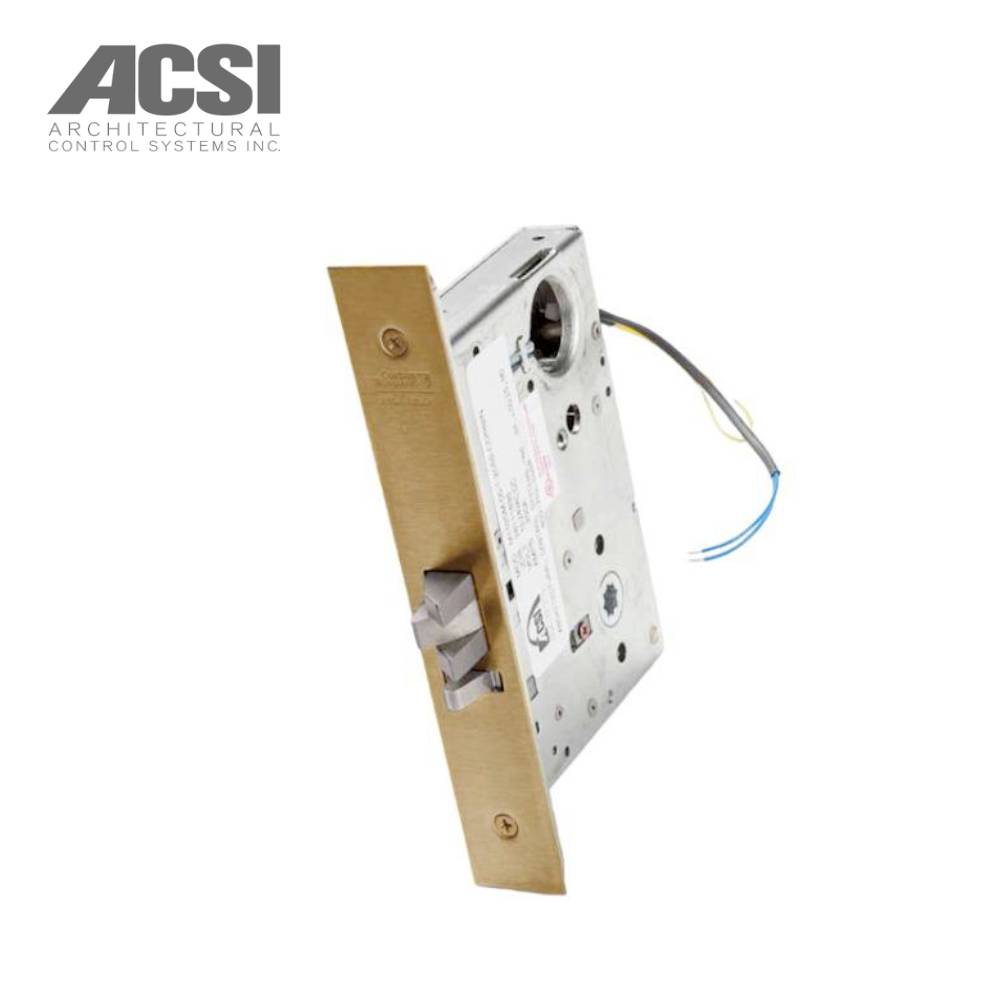

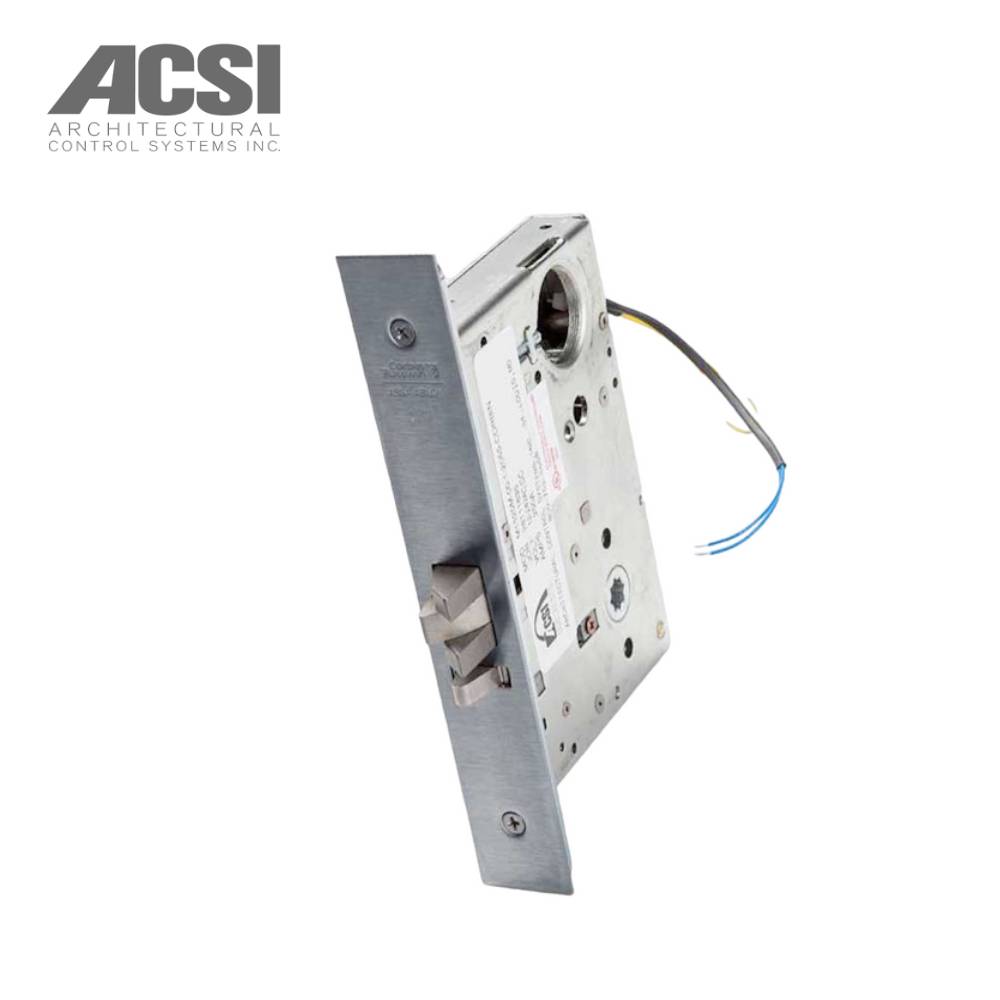

ACSI - M1510M-1-ML2055-LC - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
ACSI - M1510M-1-ML2055-LC - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office
M1510M-1-ML2055-LC Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Less Cylinder. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-ML2055-LC Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Less Cylinder for easy installation and dependable door hardware solution.
Design:
- LW Lever Design, A Rose Design
- LW Lever Design, M Rose Design
- LW Lever Design, N Rose Design
- NS Lever Design, A Rose Design
- NS Lever Design, M Rose Design
- PS Lever Design, A Rose Design
- PS Lever Design, M Rose Design
- RW Lever Design, A Rose Design
- RW Lever Design, M Rose Design
Specifications:
Function | 1510M-Fail Safe Control |
Cylinder Type | Less Cylinder |
Product Type | Electronic Mortise Lock |
Electric Options | Latchbolt Monitor |
Strike Type | ANSI Straight Lip |
ADA Compliant | YES |
Finish | 605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Polished Chrome 26D - Satin Chrome 630 - Satin Stainless |
Standards | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
Function Description | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
Application | Offices; Schools; Hospitals; Hotels |
Strike Size | 4-7/8" x 1-1/4" |
Hub Size | 5/16 Inch |
Lever Size | 5-1/8 Inch |
Hub Material | Steel |
Front Size | 8" x 1-1/4" x 3/32" |
Strike Lip | 1-1/8 Inch |
Handing | Reversible |
Voltage | 12 to 24VAC/VDC |
Backset | 2-3/4 Inch |
Grade | ANSI/BHMA Grade 1 |
Door Thickness | 1-3/4 inch |
Latch Throw | 3/4 Inch |
Latchbolt Size | 5/8" x 1" |
Auxiliary Latch Throw | 9/16 Inch |
Latchbolt Type | 2-Piece Mechanical With Anti-Friction Insert |
Manufacturer Parent | ACSI |
