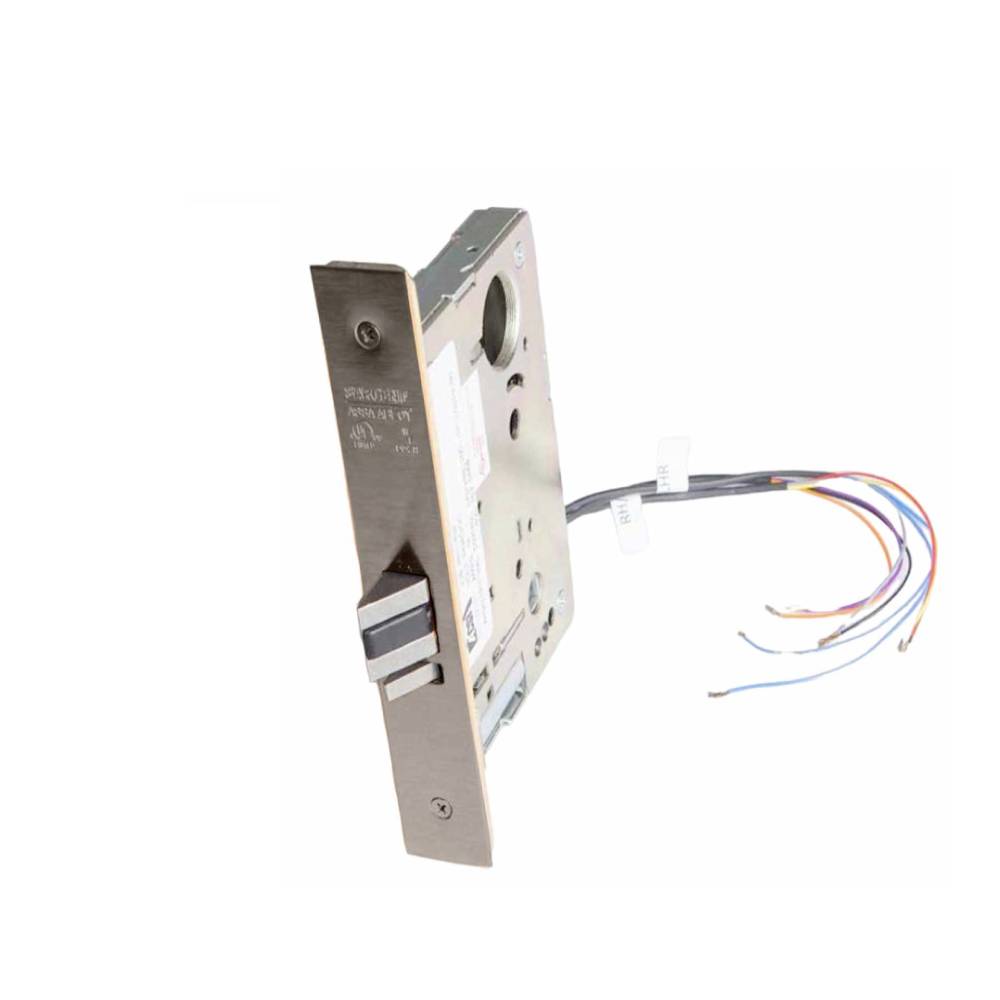

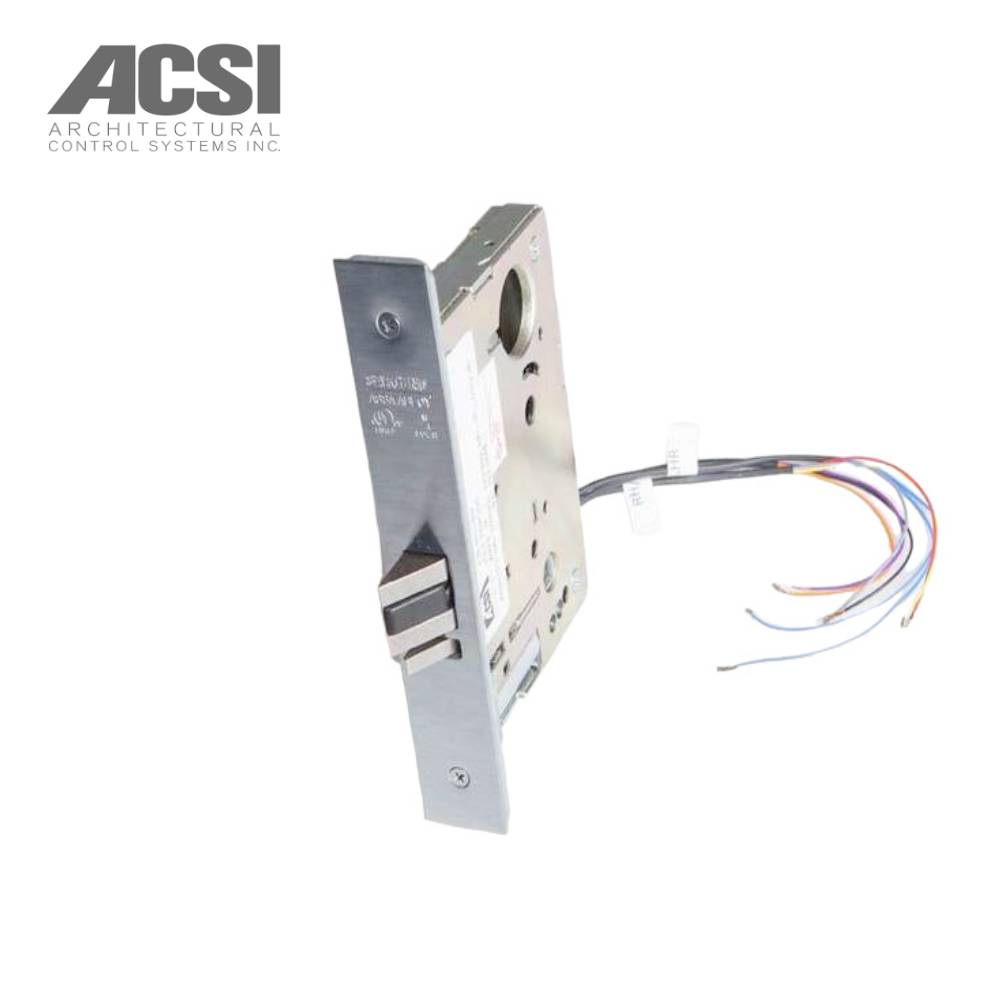

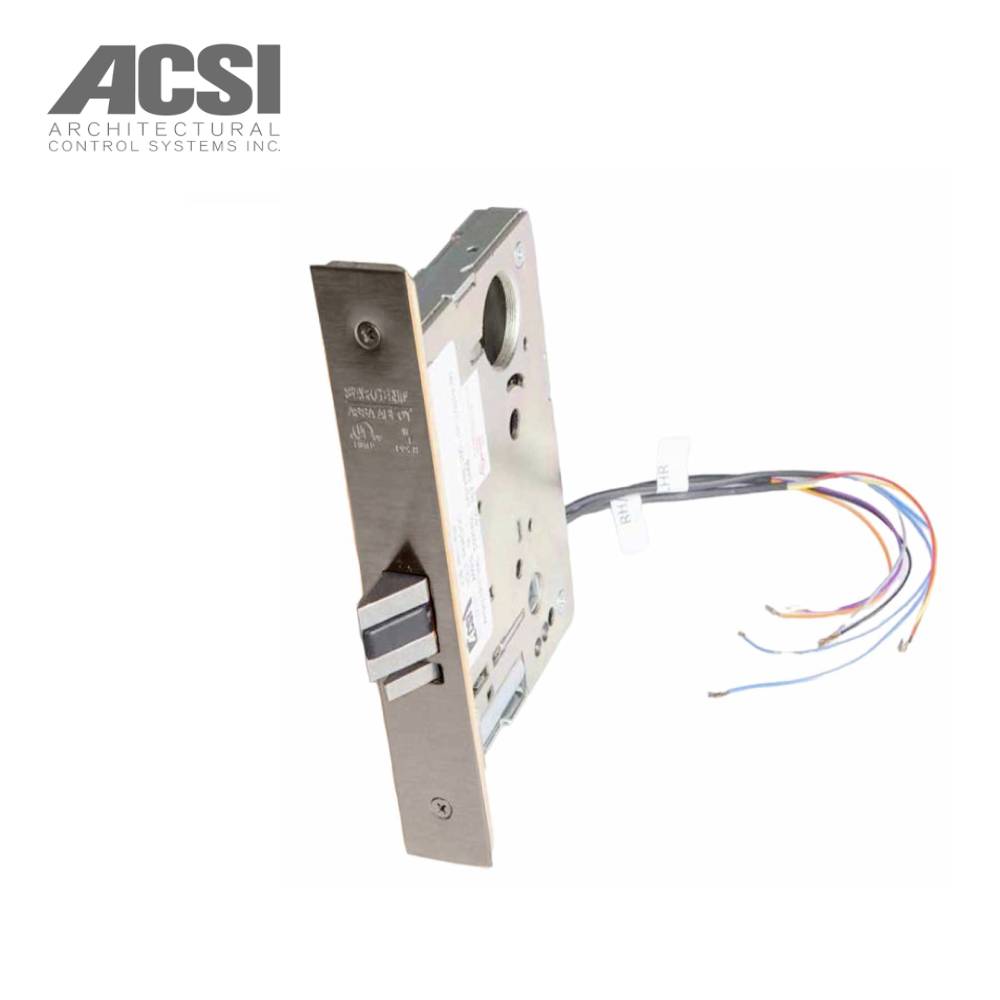

ACSI - M1510M-AE-1-8205 - Entry Mortise Lever Lock - Fail Safe with LN Rose Design A Lever Design - Authorized Egress - Less Cylinder and Sargent 8200 Series Office
M1510M-AE-1-8205 Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Authorized Egress (Request to Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-AE-1-8205 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Safe LN Rose Design, A Lever Design, Authorized Egress, Handed for easy installation and dependable door hardware solution.
Specifications:
| Function | 1510M AE-Fail Safe w/Authorized Egress |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Lock |
| Electric Options | Request to Exit |
| Strike Type | Curved Lip |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Fire Doors; Windstorm |
| Strike Size | 4-7/8" x 3/32" |
| Lever Size | 5 Inch |
| Hub Material | Cold Forged Steel |
| Finish | 10B - Oil Rubbed Dark Bronze 26D - Satin Chrome |
| Handed | Right Hand Left Hand |
| Front Size | 8" x 1-1/4" |
| Function Family | Fail Safe |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Rose/Escutcheon Thickness | 5/16 Inch |
| Latchbolt Type | One Piece Anti-Friction Reversible Latch |
| Manufacturer Parent | ACSI |
