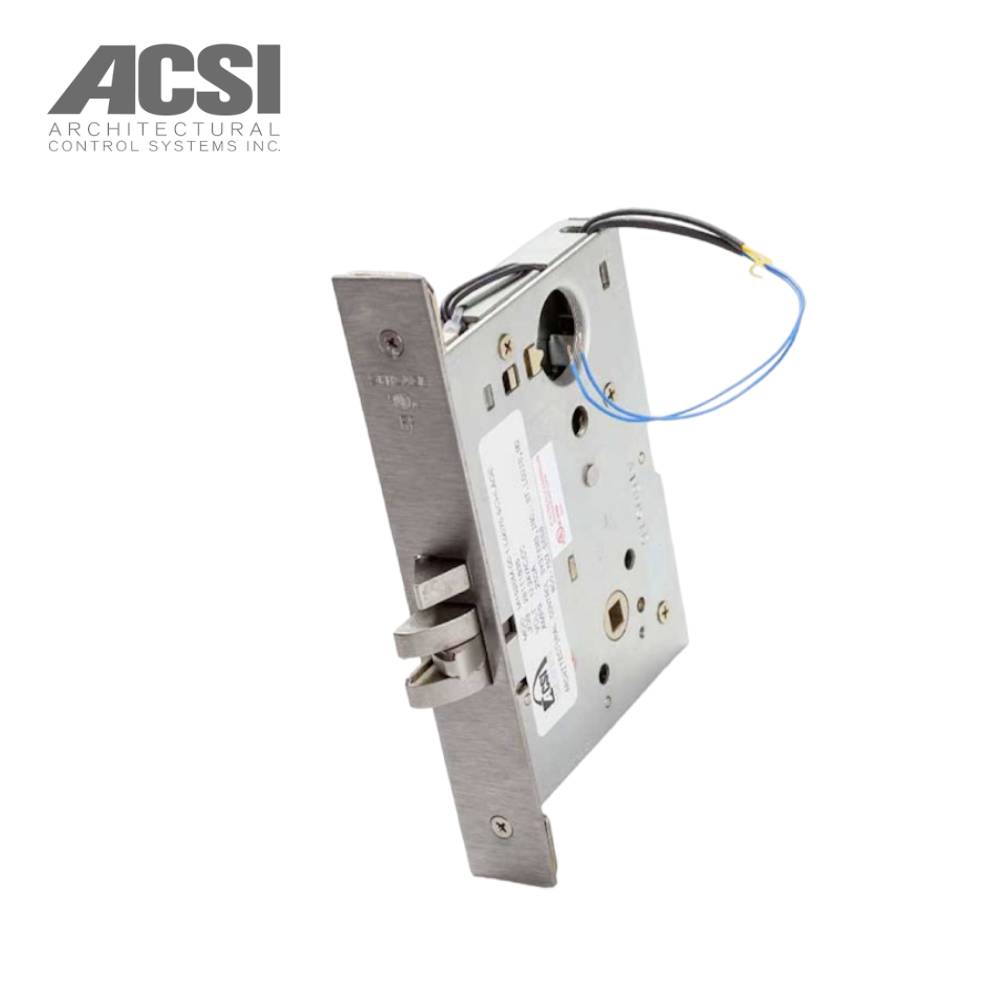

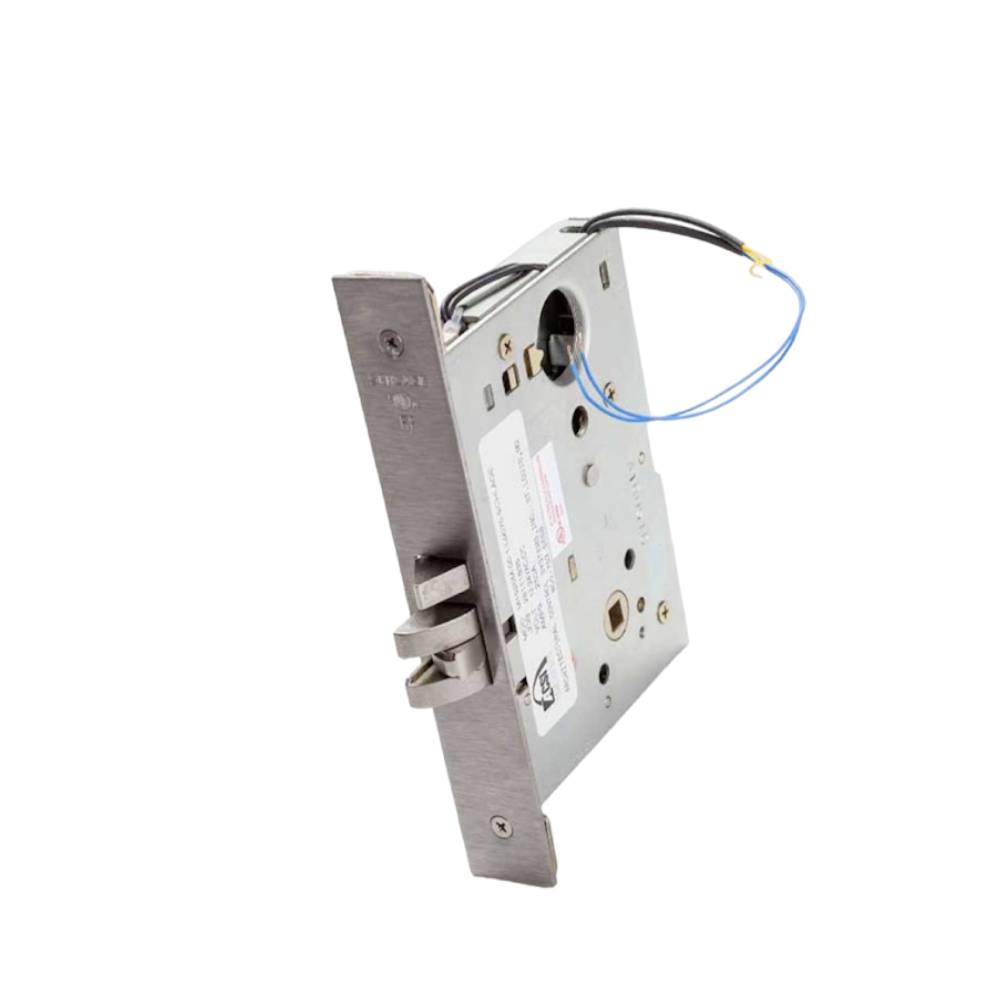

ACSI - M1510M-AE-1-L9070L - Entry Mortise Lever Lock - Fail Safe with Motor Controlled - Authorized Egress and Schlage L Series Office - 26D (Satin Chrome)
M1510M-AE-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Authorized Egress. Schlage L Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Authorized Egress (Request To Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder.
Buy the ACSI M1510M-AE-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled Authorized Egress for easy installation and dependable door hardware solution.
Design:
- 03 Lever Design, A Rose Design
- 03 Lever Design, L Rose Design
- 06 Lever Design, A Rose Design
- 06 Lever Design, L Rose Design
- 07 Lever Design, A Rose Design
- 07 Lever Design, L Rose Design
- 17 Lever Design, A Rose Design
- 17 Lever Design, L Rose Design
Specifications:
| Function | 1510M AE-Fail Safe w/Authorized Egress |
| Cylinder Type | Less Conventional Cylinder |
| Product Type | Electronic Mortise Lock |
| Strike Type | Curved Lip |
| Electric Options | Latchbolt Monitor |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104 |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Handing | Reversible |
| Strike Size | 4-7/8" x 1-1/4" |
| Finish | 26D - Satin Chrome |
| Front Size | 1-1/4" x 8" x 7/32" |
| Strike Lip | 1-3/16 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Lever Size | 4-3/4 Inch |
| Latchbolt Type | Stainless Steel Latch With Anti-Friction Tongue |
| Manufacturer Parent | ACSI |
