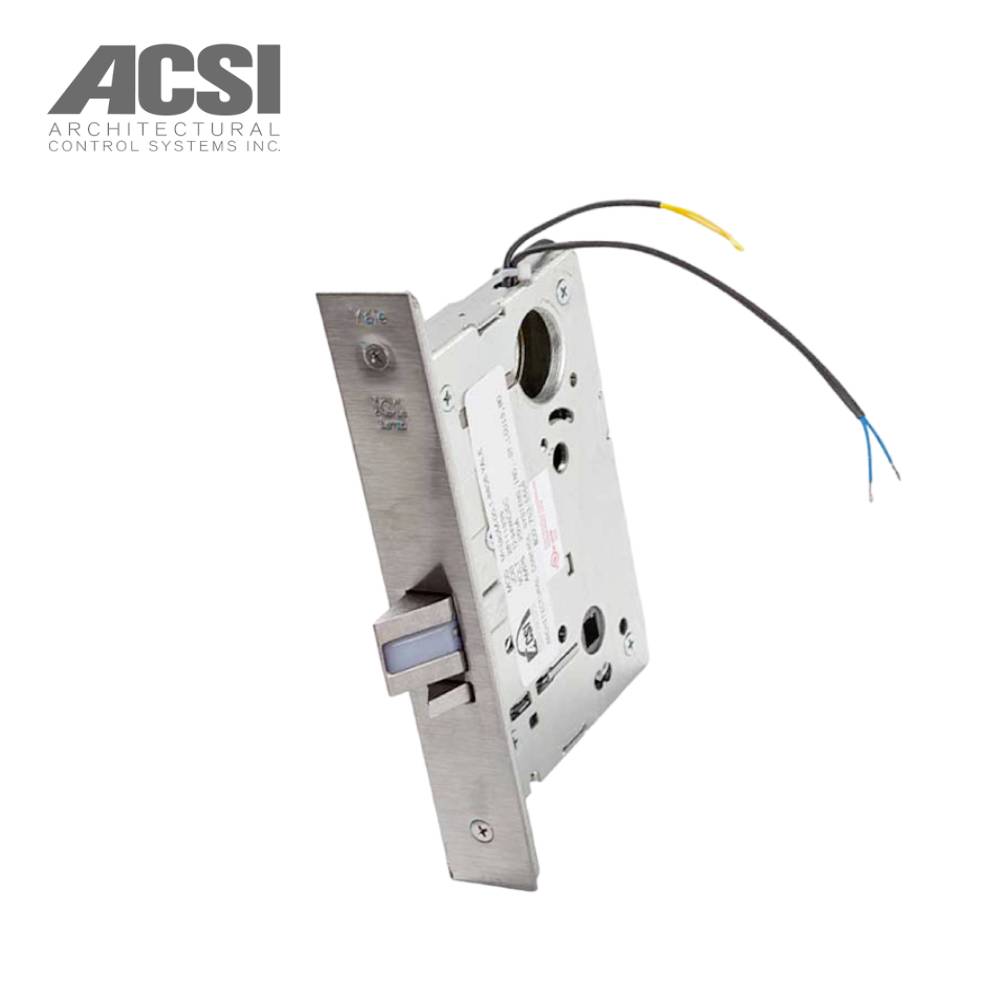

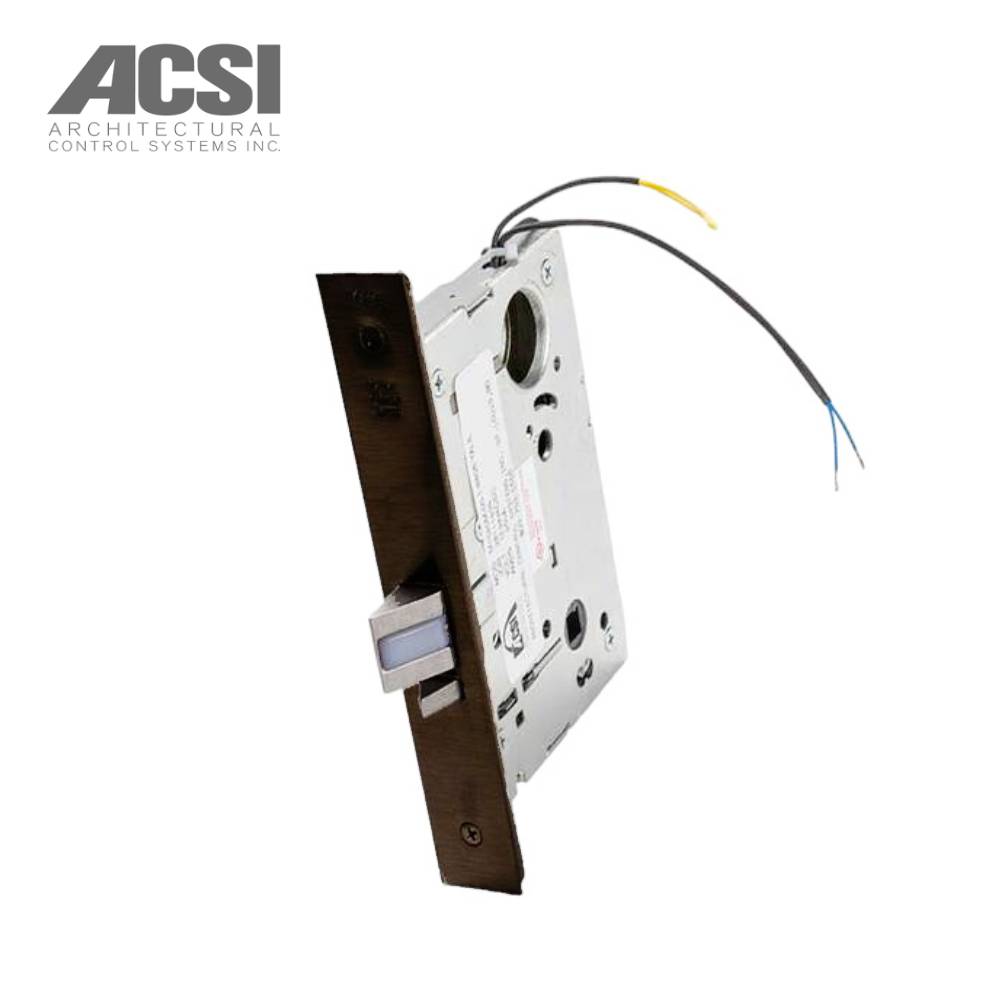

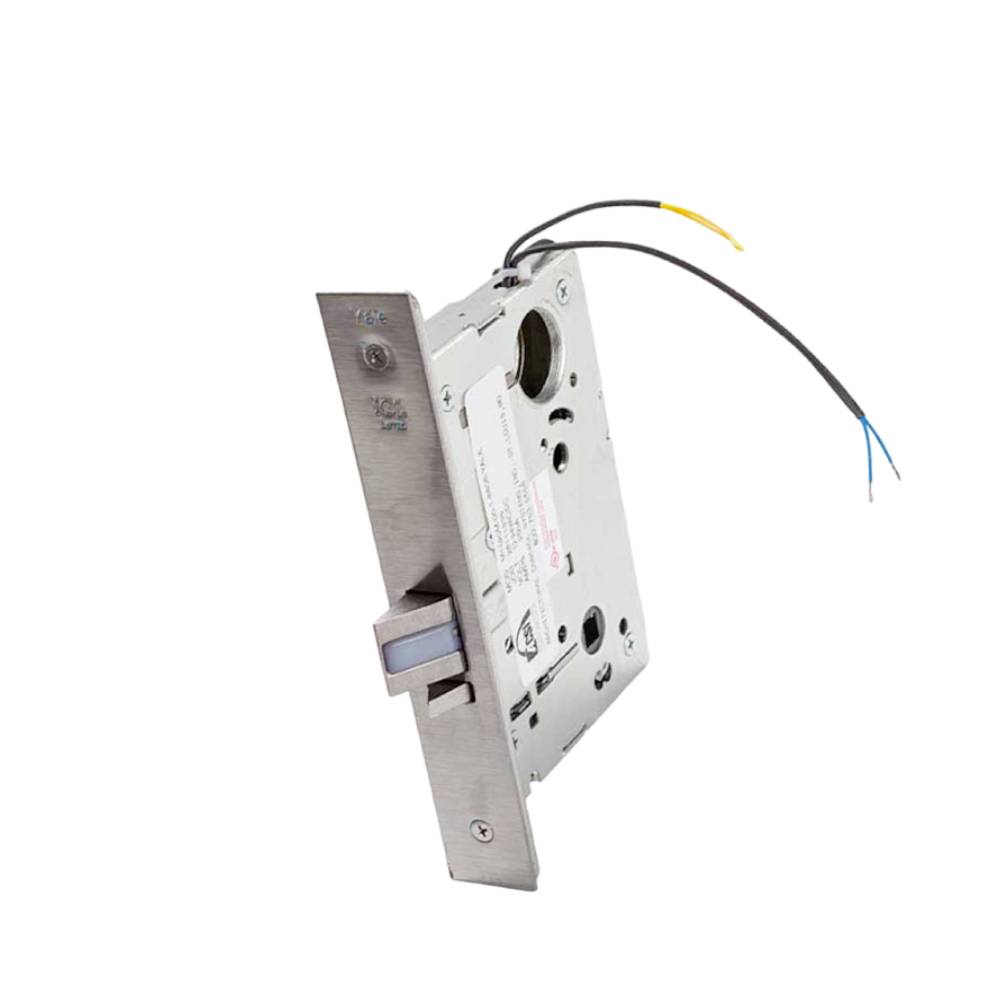

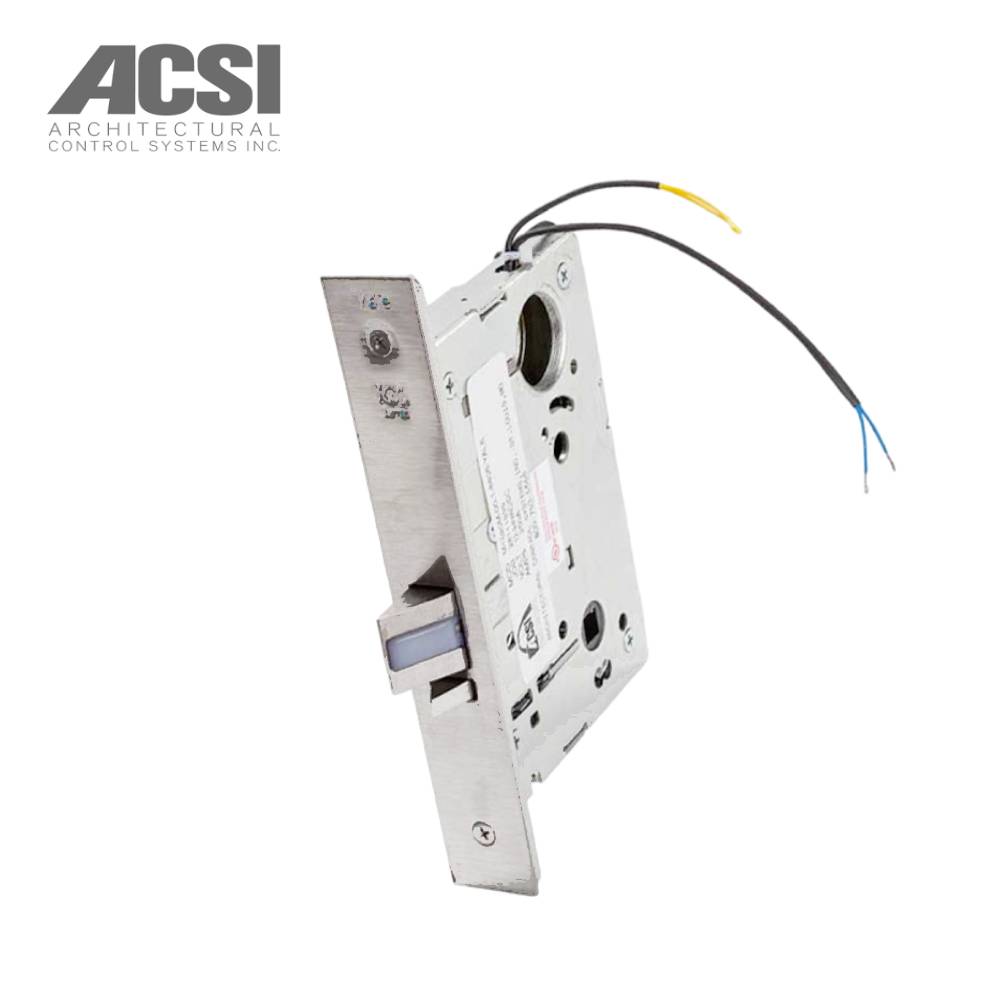

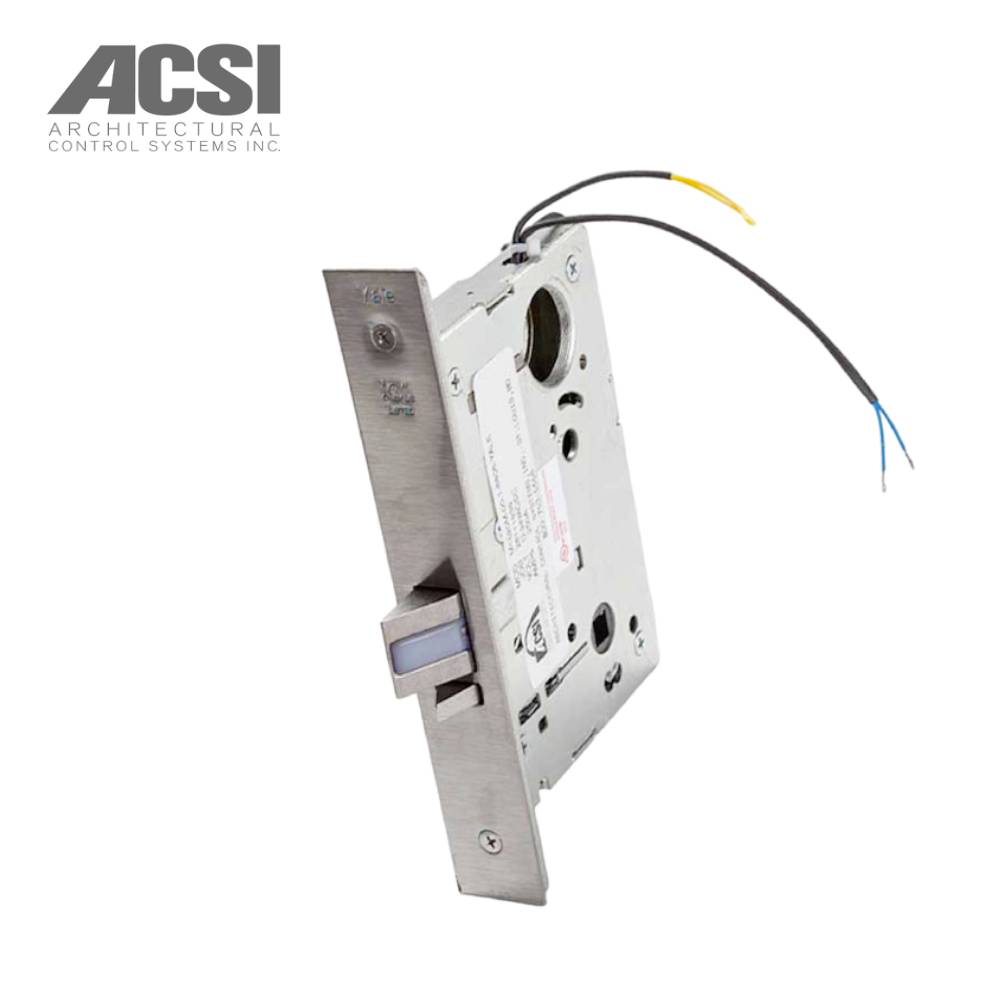

ACSI - M1520M-1-8808 - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Less Cylinder and Yale 8800 Series Office
M1520M-1-8808 Yale 8800 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled. Yale 8800 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-1-8808 Yale 8800 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled for easy installation and dependable door hardware solution.
Design:
- AU Lever (Augusta) Design, CN Escutcheon (Camden) Design
- AR Lever (Arcadia) Design, R Escutcheon (Copenhagen) Design
- CR Lever (Carmel) Design, CN Escutcheon (Camden) Design
- CR Lever (Carmel) Design, R Escutcheon (Copenhagen) Design
- JN Lever (Jefferson) Design, CN Escutcheon (Camden) Design
- JN Lever (Jefferson) Design, R Escutcheon (Copenhagen) Design
Specifications:
| Function | 1520M-Fail Secure Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Lock |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Electric Options | Latchbolt Monitor |
| Strike Type | Curved Lip |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13, Series 1000, Operational Grade 1; ANSI/BHMA A156.115; UL/cUL Fire Rated up to 3 Hours |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Classroom; Office; Utility Room Doors |
| Hub Material | Solid Steel |
| Finish | 26D - Satin Chrome 613E - Dark Oxidized Satin Bronze - Equivalent 625 - Bright Polished Chrome 630 - Satin Stainless |
| Function Family | Fail Secure |
| Handed | Reversible |
| Strike Size | 4-7/8" x 1-1/4" |
| Hub Size | 3/8 Inch |
| Lever Size | 4-1/2 Inch |
| Front Size | 8" x 1-1/4" |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Rose/Escutcheon Thickness | 1/2 Inch |
| Latchbolt Type | Stainless Steel One-Piece Anti-Friction |
| Manufacturer Parent | ACSI |
