Description
Description

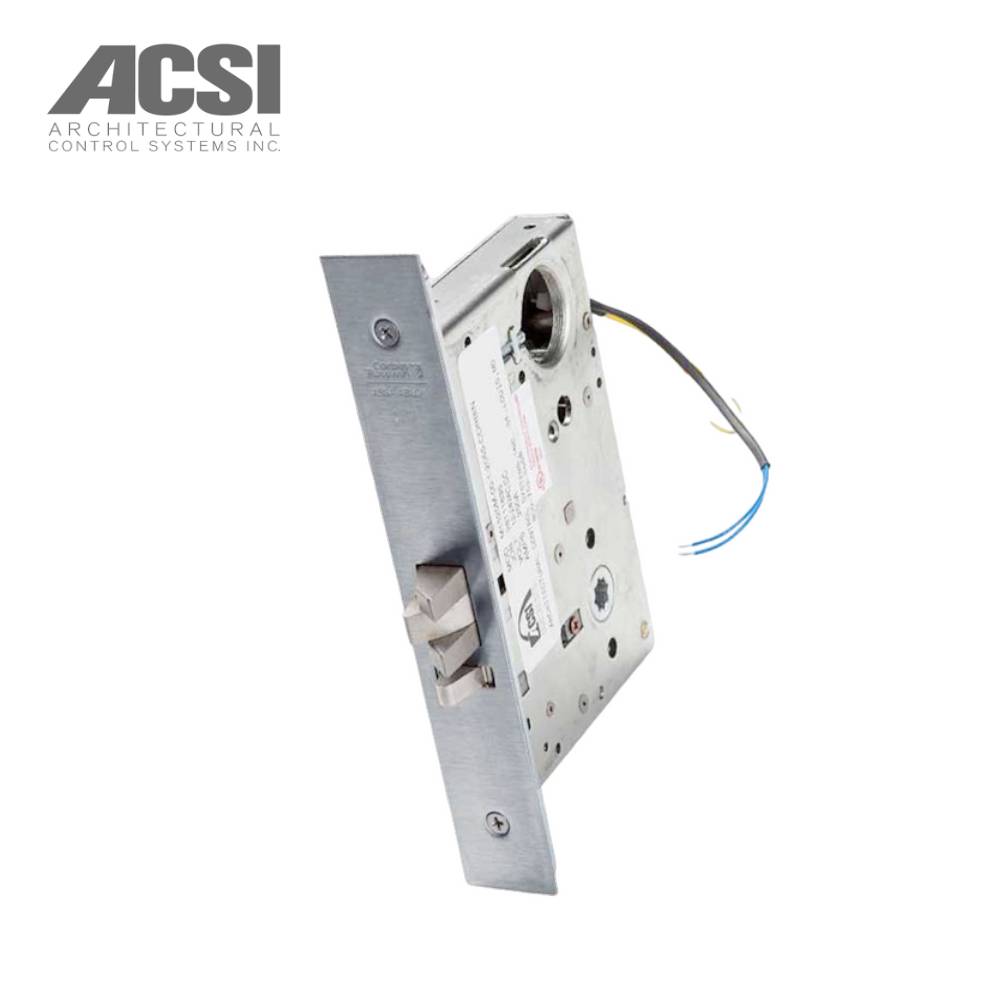

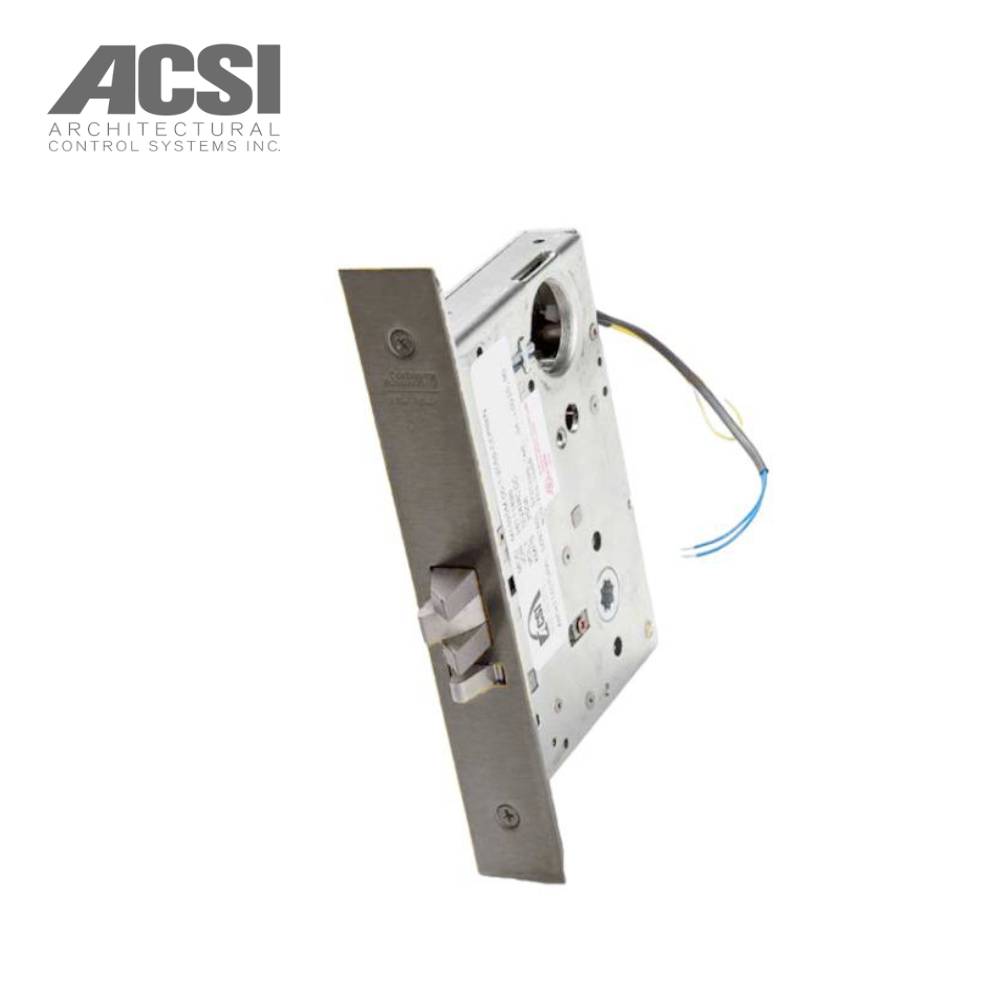

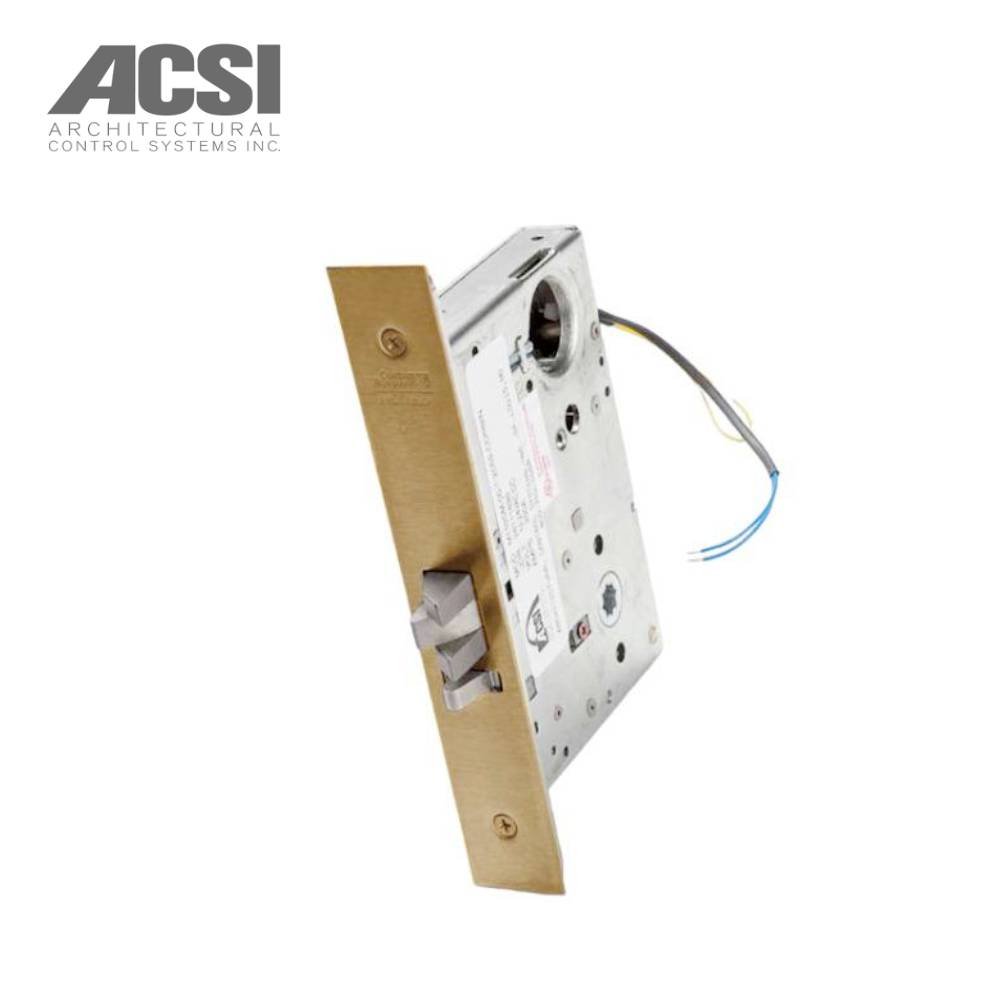

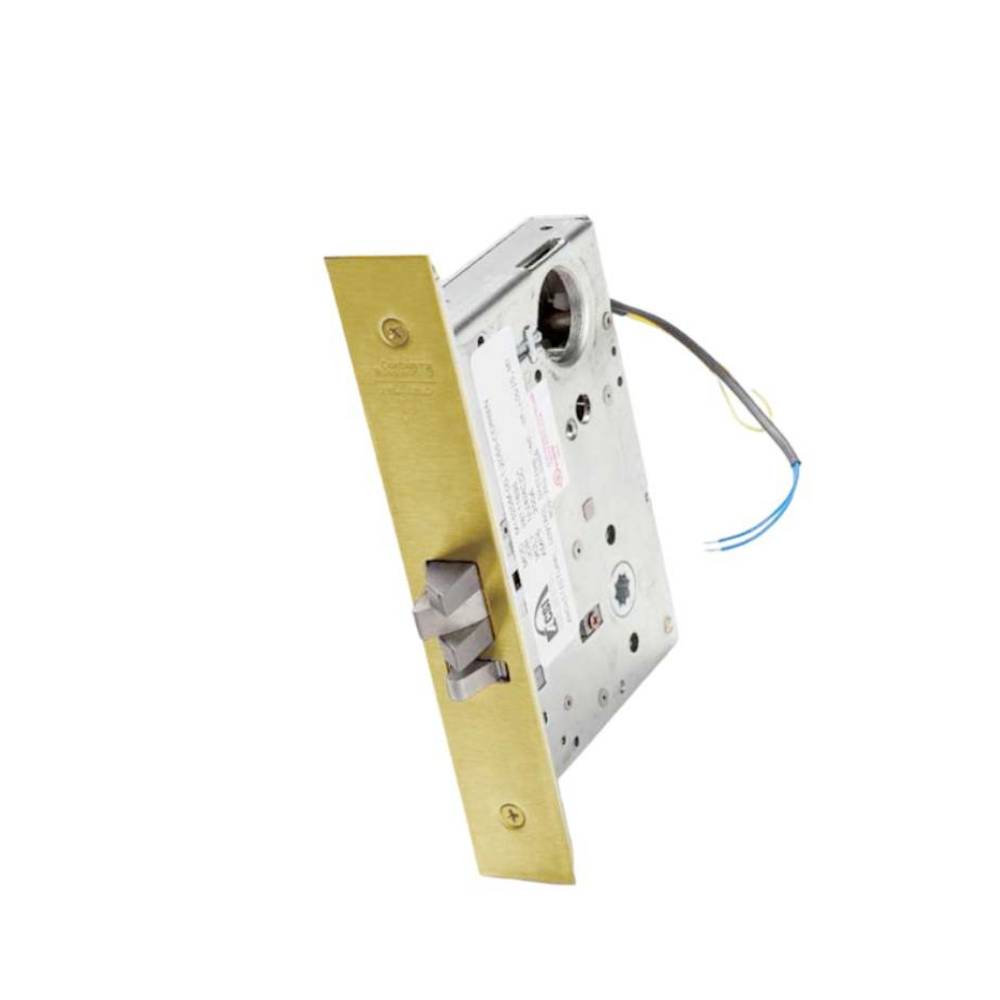

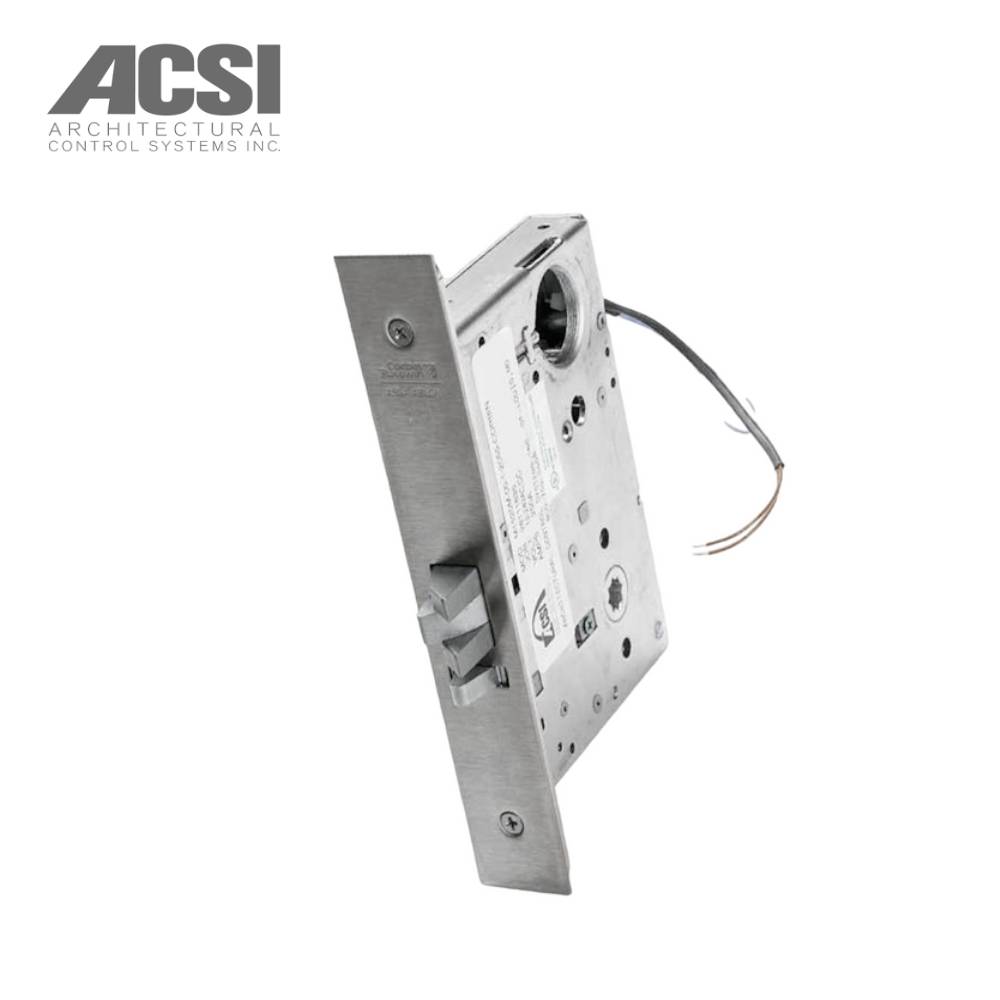

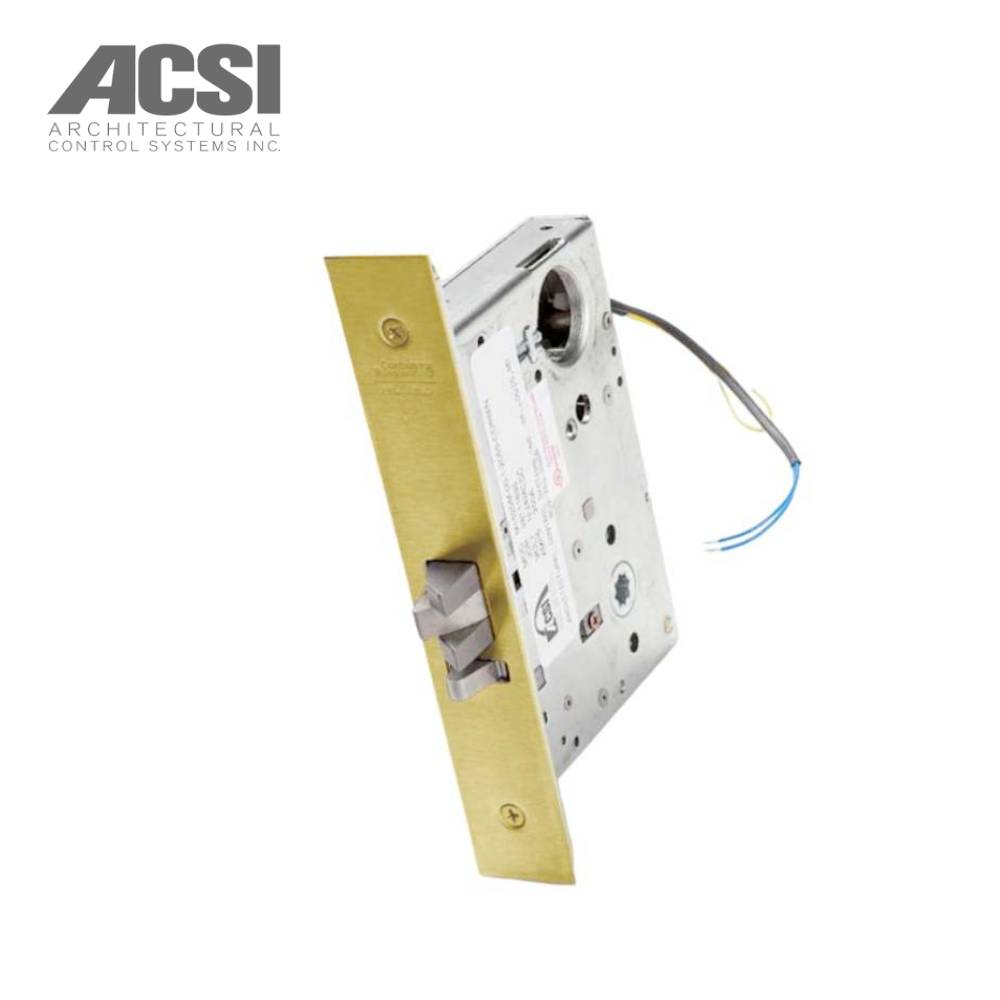

ACSI - M1520M-1-ML2055 - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office
M1520M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled for easy installation and dependable door hardware solution.
Design:
- AS Lever Design, A Rose Design
- AS Lever Design, M Rose Design
- CS Lever Design, A Rose Design
- CS Lever Design, M Rose Design
Specifications:
| Function | 1520M-Fail Secure Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Locks |
| Electric Options | Latchbolt Monitor |
| Strike Type | Straight Lip |
| Strike Size | 4-7/8" x 1-1/4" |
| Hub Size | 5/16 Inch |
| Lever Size | 4-1/2 Inch |
| Hub Material | Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000; Operational and Security Grade 1; A117.1 Accessibility Code |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Schools; Hospitals; Hotels |
| Finish | 605 - Bright Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Polished Chrome 26D - Satin Chrome 630 - Satin Stainless |
| Handing | Reversible |
| Front Size | 8" x 1-1/4" x 3/32" |
| Strike Lip | 1-1/8 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Manufacturer Parent | ACSI |
