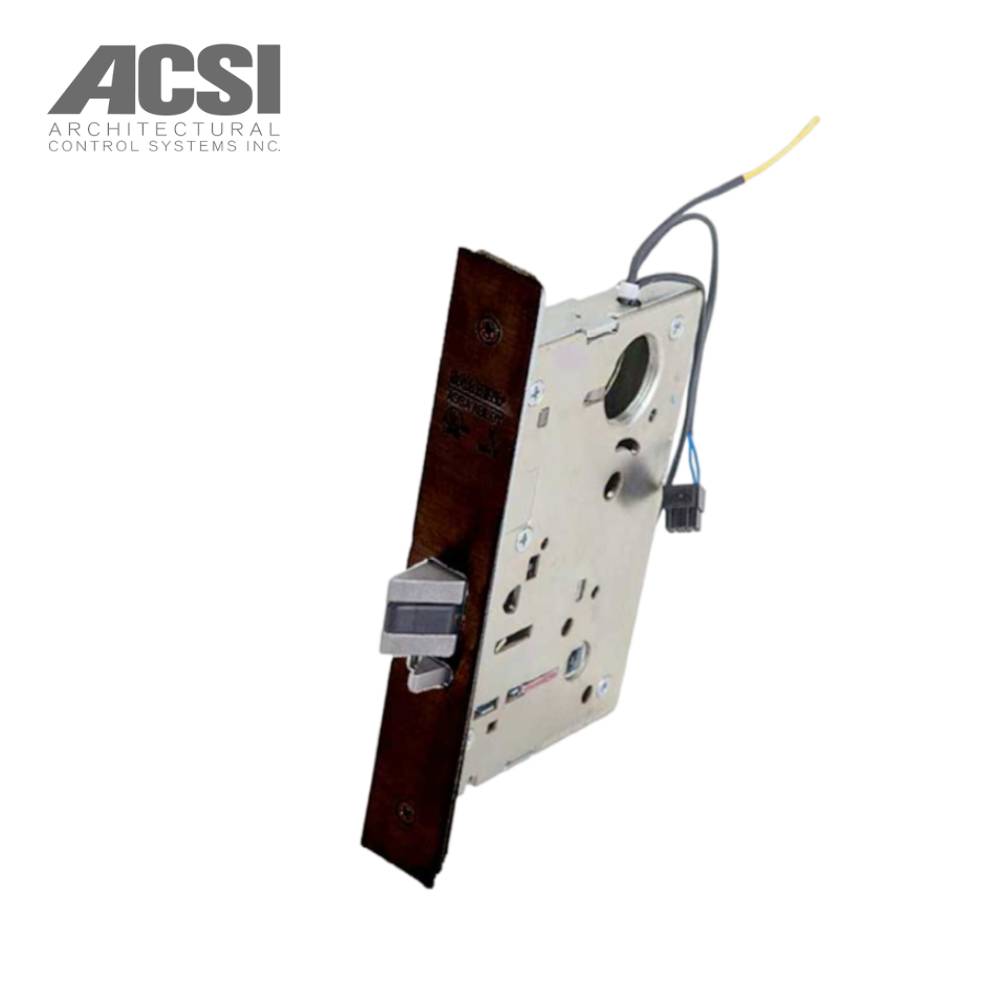

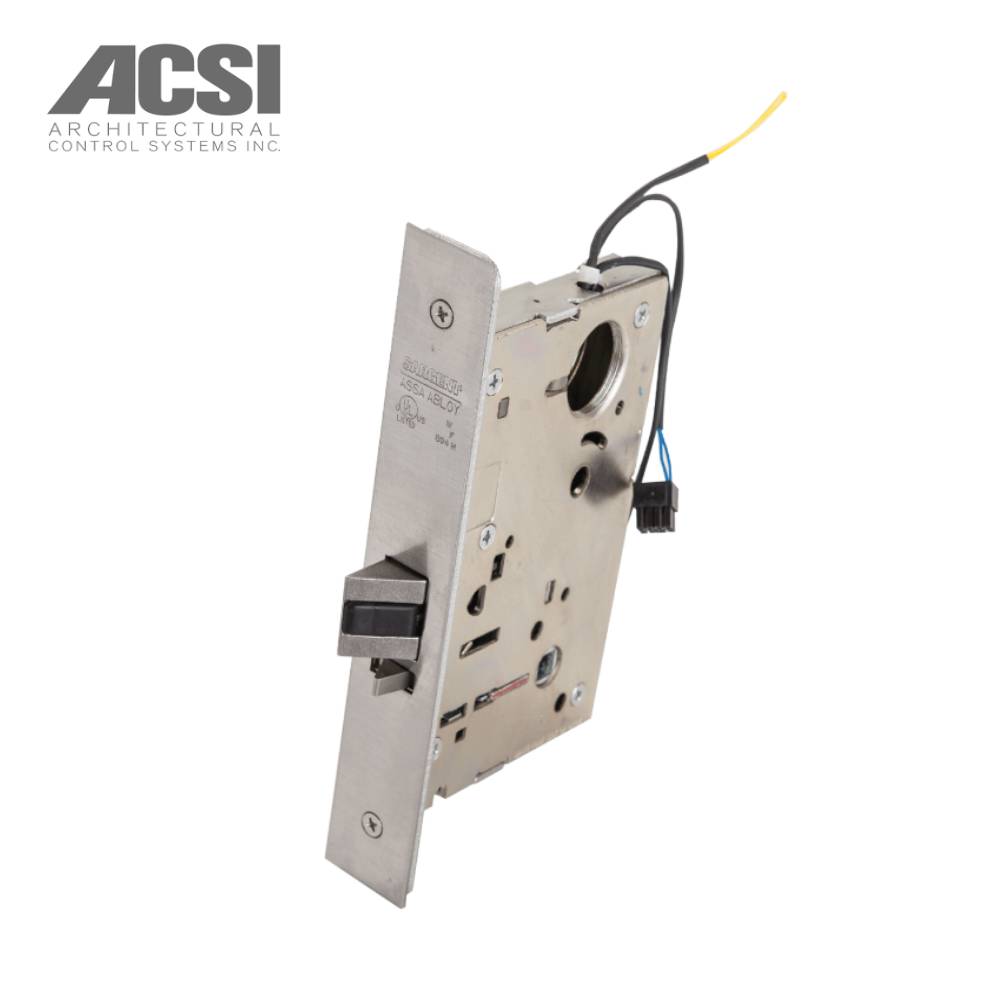

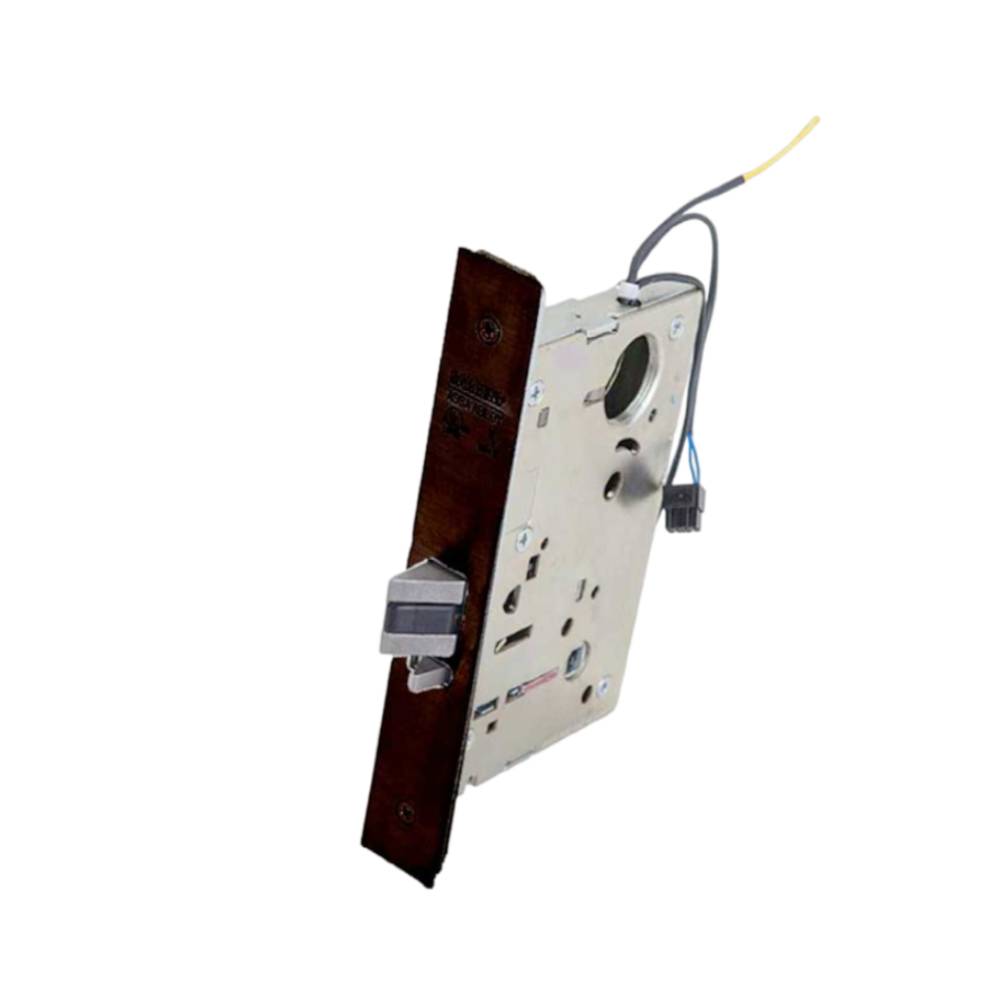

ACSI - M1520M-AE-1-8205-LW1 - Entry Mortise Lever Lock - Fail Secure with LW1 Escutcheon Design - Authorized Egress - Less Cylinder and Sargent 8200 Series Office
M1520M-AE-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LW1 Escutcheon Design Authorized Egress, Handed. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-AE-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LW1 Escutcheon Design Authorized Egress, Handed for easy installation and dependable door hardware solution.
Specifications:
| Function | 1520M-Fail Secure Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Locks |
| Electric Options | Latchbolt Monitor |
| Strike Type | Curved Lip |
| Strike Size | 4-7/8" x 1-1/4" |
| Lever Size | 5 Inch |
| Hub Material | Cold Forged Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Fire Doors |
| Handed | Right Hand Left Hand |
| Finish | 10B - Oil Rubbed Dark Bronze 26D - Satin Chrome |
| Front Size | 8" x 1-1/4" |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Latchbolt Type | One Piece Anti-Friction Reversible Latch |
| Manufacturer Parent | ACSI |
