ACSI  |  SKU: ACSI-M1520M-AE-1-MOCN-8808-26D-LC

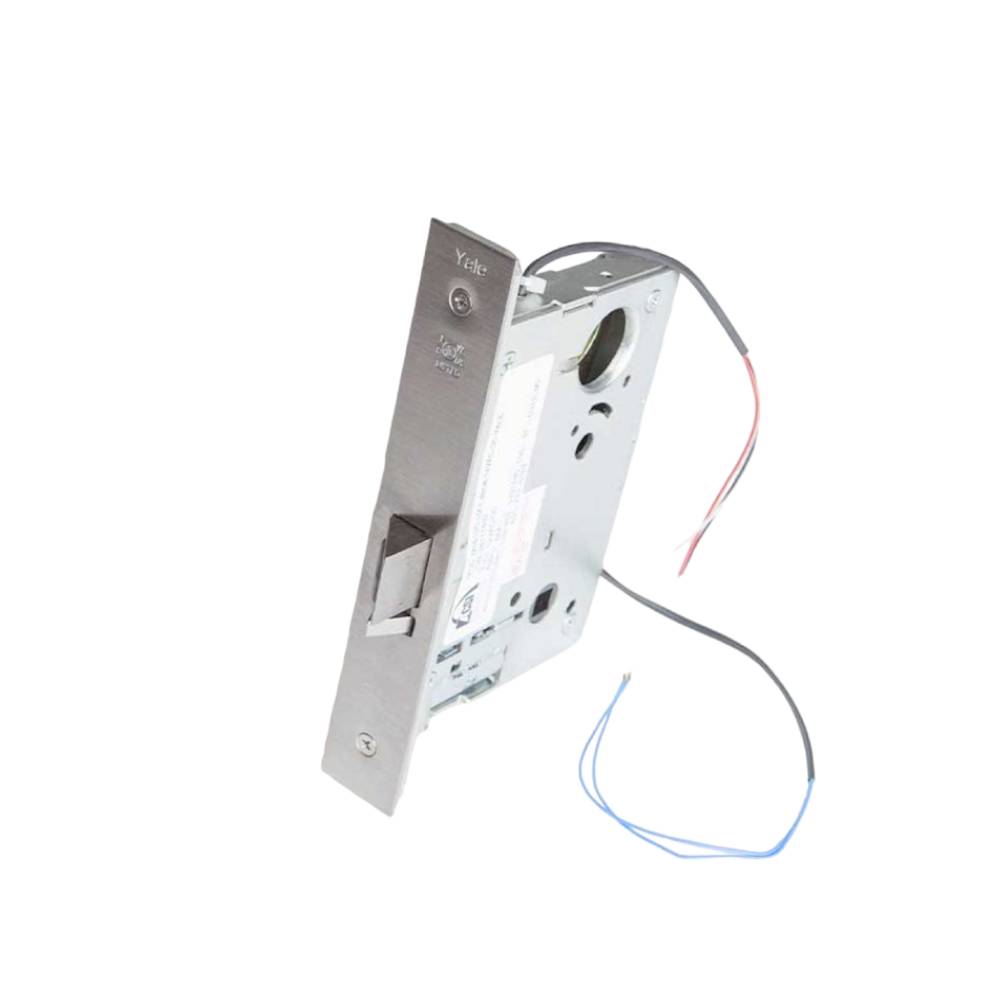

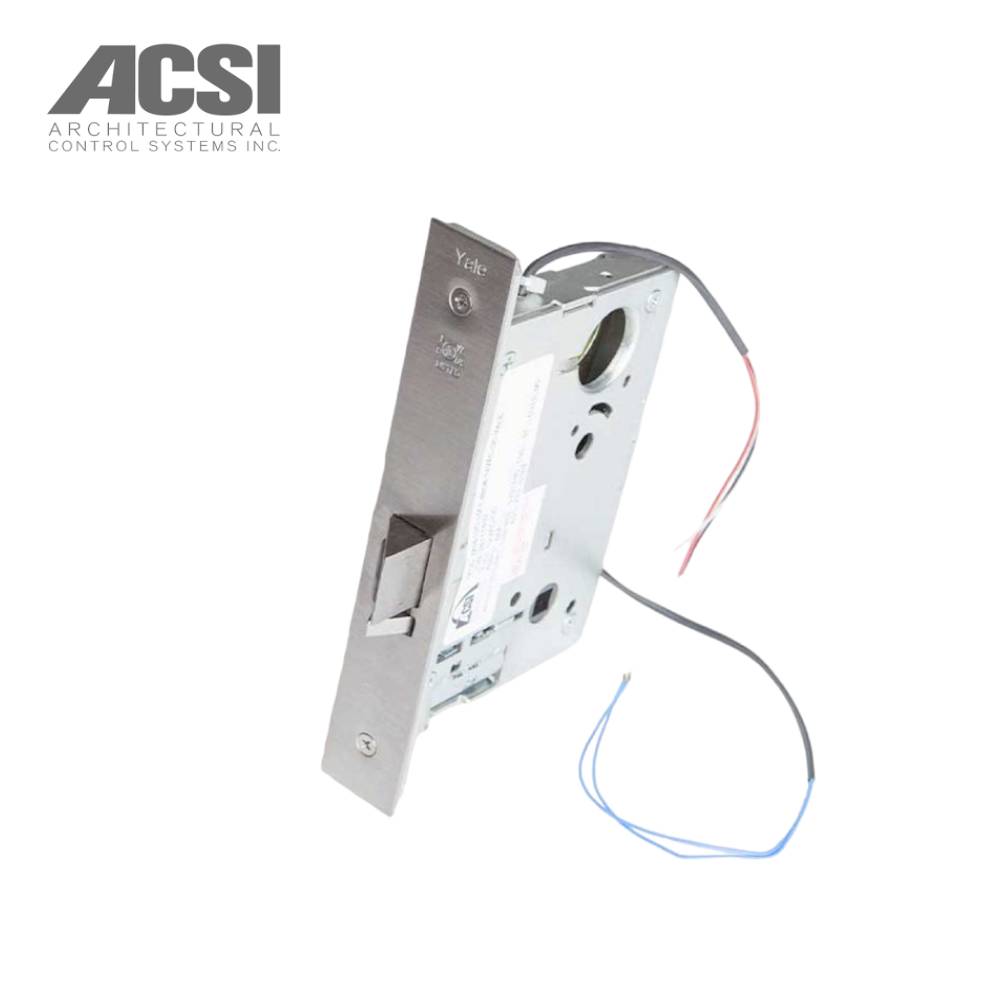

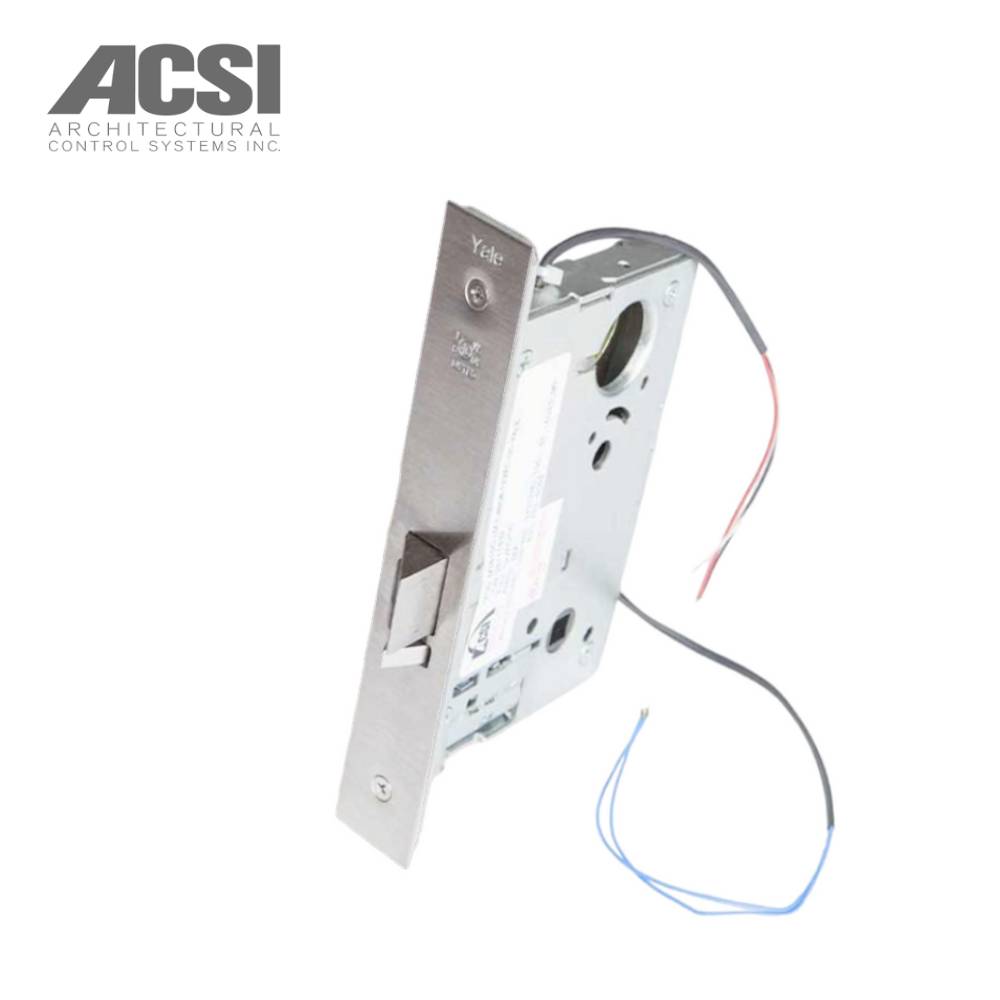

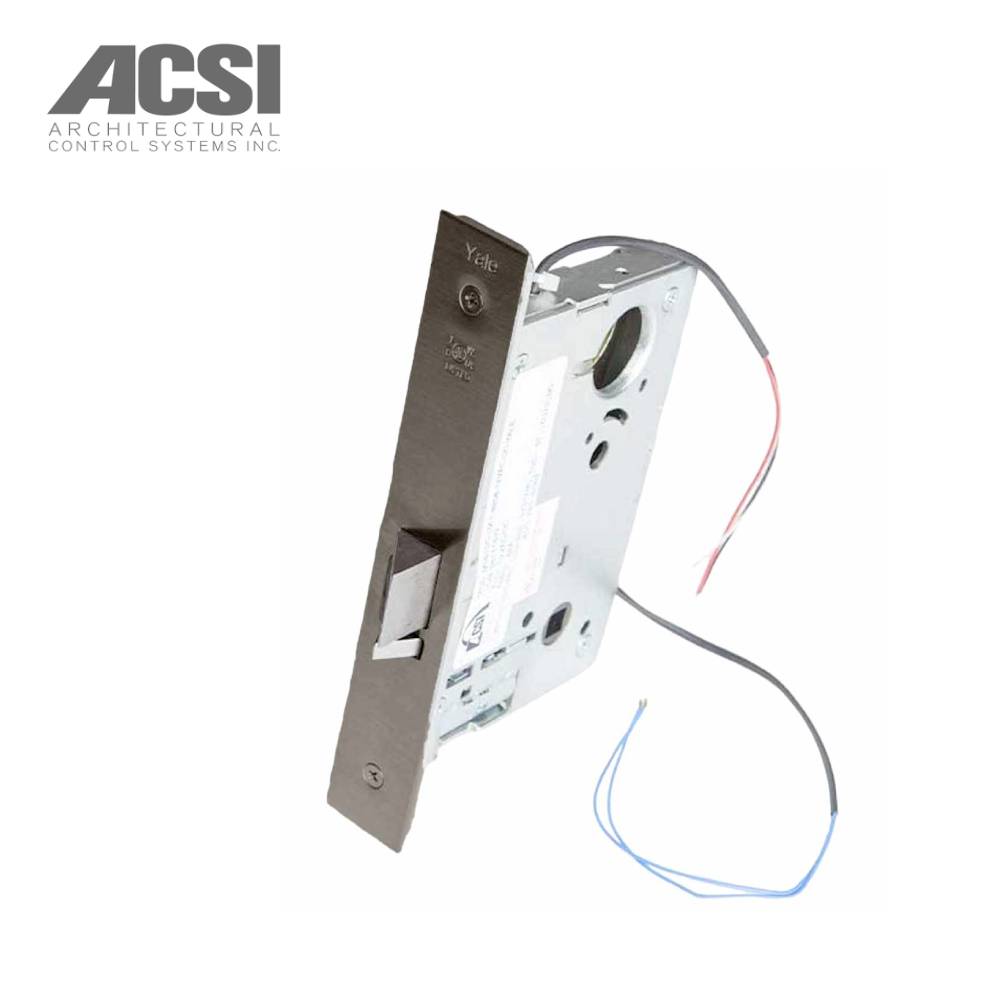

ACSI - M1520M-AE-1-8808-LC - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Authorized Egress - Less Cylinder and Yale 8800 Series Office

$64777 $77732
Shipping calculated at checkout.
Color: Satin Chrome-26D
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

ACSI - M1520M-AE-1-8808-LC - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Authorized Egress - Less Cylinder and Yale 8800 Series Office

M1520M-AE-1-8808-LC Yale 8800 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Less Cylinder Authorized Egress. Yale 8800 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Authorized Egress (Request to Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.

Buy the ACSI M1520M-AE-1-8808-LC Yale 8800 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Less Cylinder Authorized Egress for easy installation and dependable door hardware solution.

Design:
  • MO Lever (Monroe) Design, CN Escutcheon (Camden) Design
  • MO Lever (Monroe) Design, R Escutcheon (Copenhagen) Design
  • PB Lever (Pacific Beach) Design, CN Escutcheon (Camden) Design
  • PB Lever (Pacific Beach) Design, R Escutcheon (Copenhagen) Design
  • PN Lever (Pinehurst) Design, CN Escutcheon (Camden) Design
  • PN Lever (Pinehurst) Design, R Escutcheon (Copenhagen) Design
  • VI Lever (Virginia) Design, CN Escutcheon (Camden) Design
  • VI Lever (Virginia) Design, R Escutcheon (Copenhagen) Design
Specifications:
Function 1520M AE-Fail Secure w/Authorized Egress
Cylinder Type Less Cylinder
Product Type Electronic Mortise Locks
Strike Size 4-7/8" x 1-1/4"
Lever Size 4-1/2 Inch
Hub Material Solid Steel
Hub Size 3/8 Inch
Strike Type Curved Lip
Electric Options Request to Exit
ADA Compliant YES
Standards UL Listed: California State Fire Marshall Approved: ANSI/BHMA A156.13, Series 1000, Operational Grade 1: ANSI/BHMA A156.115: UL/cUL Fire Rated up to 3 Hours
Function Description Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized): Lockset will Unlock in the Event of a Power Failure (Passage Function)
Features Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks: Continuous Duty Rated: Low Power Consumption: Interface With Life Safety Systems
Application Offices: Shopping Centers: Industrial Buildings: Commercial Facilities
Finish 26D - Satin Chrome
625 - Bright Polished Chrome
613E - Dark Oxidized Satin Bronze - Equivalent
Handing Reversible
Front Size 8" x 1-1/4"
Strike Lip 1-1/4 Inch
Voltage 12 to 24VAC/VDC
Grade ANSI/BHMA Grade 1
Backset 2-3/4 Inch
Door Thickness 1-3/4 inch
Latch Throw 3/4 Inch
Latchbolt Type Stainless Steel One-Piece Anti-Friction
Rose/Escutcheon Thickness 1/2 Inch
Manufacturer Parent ACSI
