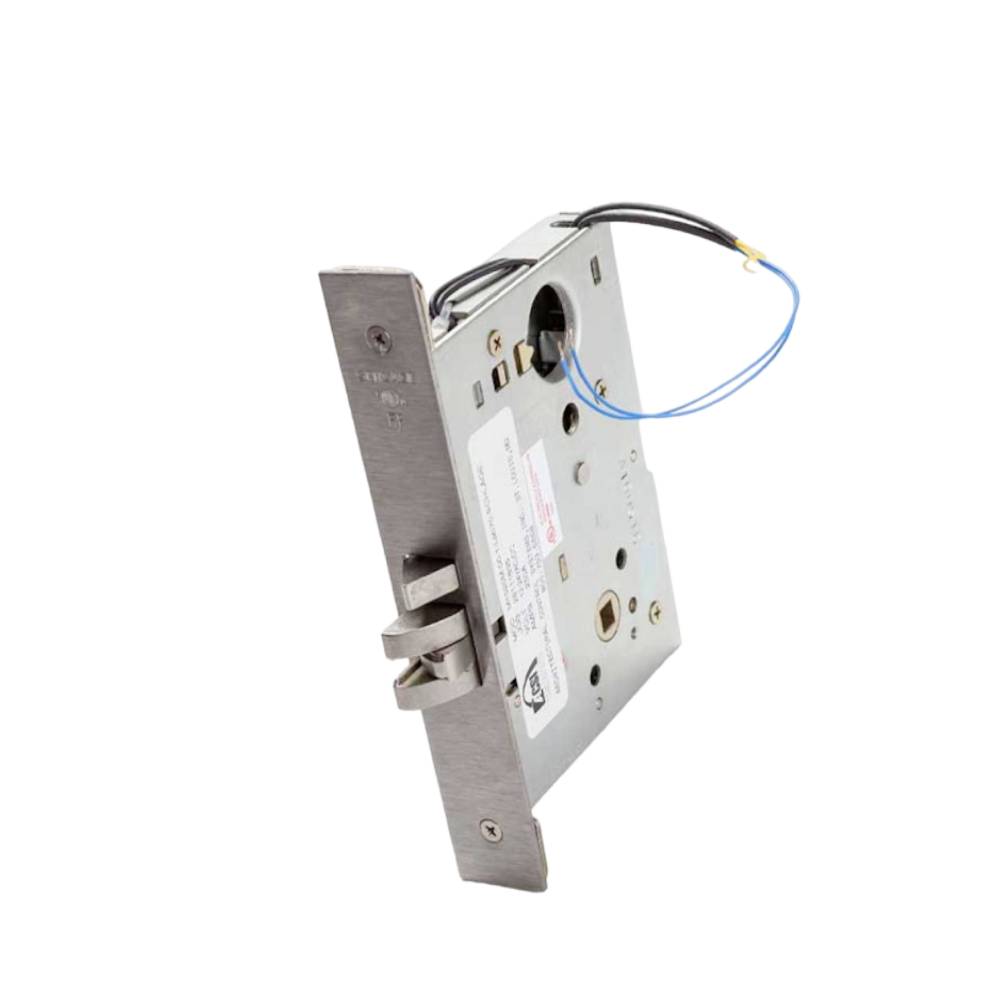

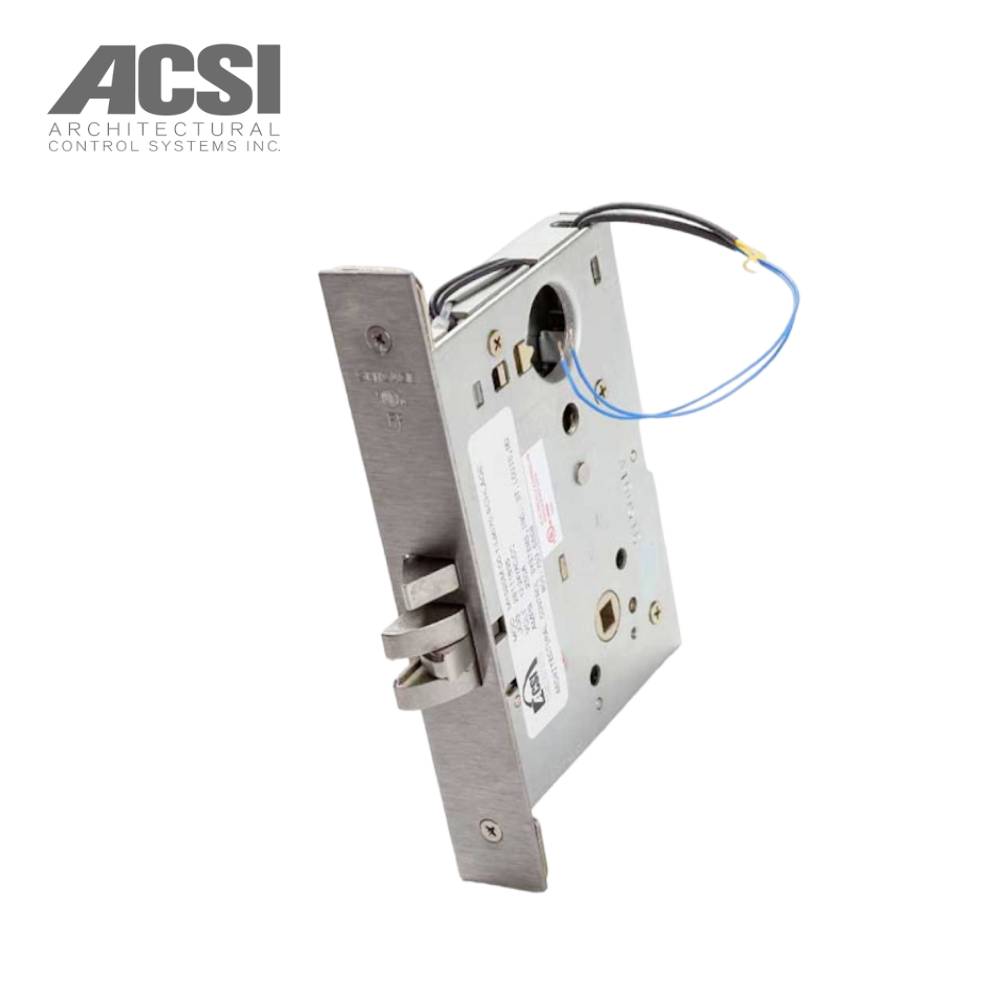

ACSI - M1520M-AE-1-L9070L - Entry Mortise Lever Lock - Fail Secure with Motor Controlled Authorized Egress - Schlage L Series Office - 26D (Satin Chrome)
M1520M-AE-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Authorized Egress. Schlage L Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Authorized Egress (Request To Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder.
Buy the ACSI M1520M-AE-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Authorized Egress for easy installation and dependable door hardware solution.
Design:
- 03 Lever Design, A Rose Design
- 03 Lever Design, L Rose Design
- 06 Lever Design, A Rose Design
- 06 Lever Design, L Rose Design
- 07 Lever Design, A Rose Design
- 07 Lever Design, L Rose Design
- 17 Lever Design, A Rose Design
- 17 Lever Design, L Rose Design
Specifications:
| Function | 1520M AE-Fail Secure w/Authorized Egress |
| Cylinder Type | Less Conventional Cylinder |
| Product Type | Electronic Mortise Locks |
| Electric Options | Request to Exit |
| Strike Size | 4-7/8" x 1-1/4" |
| Lever Size | 4-3/4 Inch |
| Strike Type | Curved Lip |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104 |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Handing | Reversible |
| Front Size | 1-1/4" x 8" x 7/32" |
| Strike Lip | 1-3/16 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Finish | 26D - Satin Chrome |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Type | Stainless Steel Latch With Anti-Friction Tongue |
| Manufacturer Parent | ACSI |
