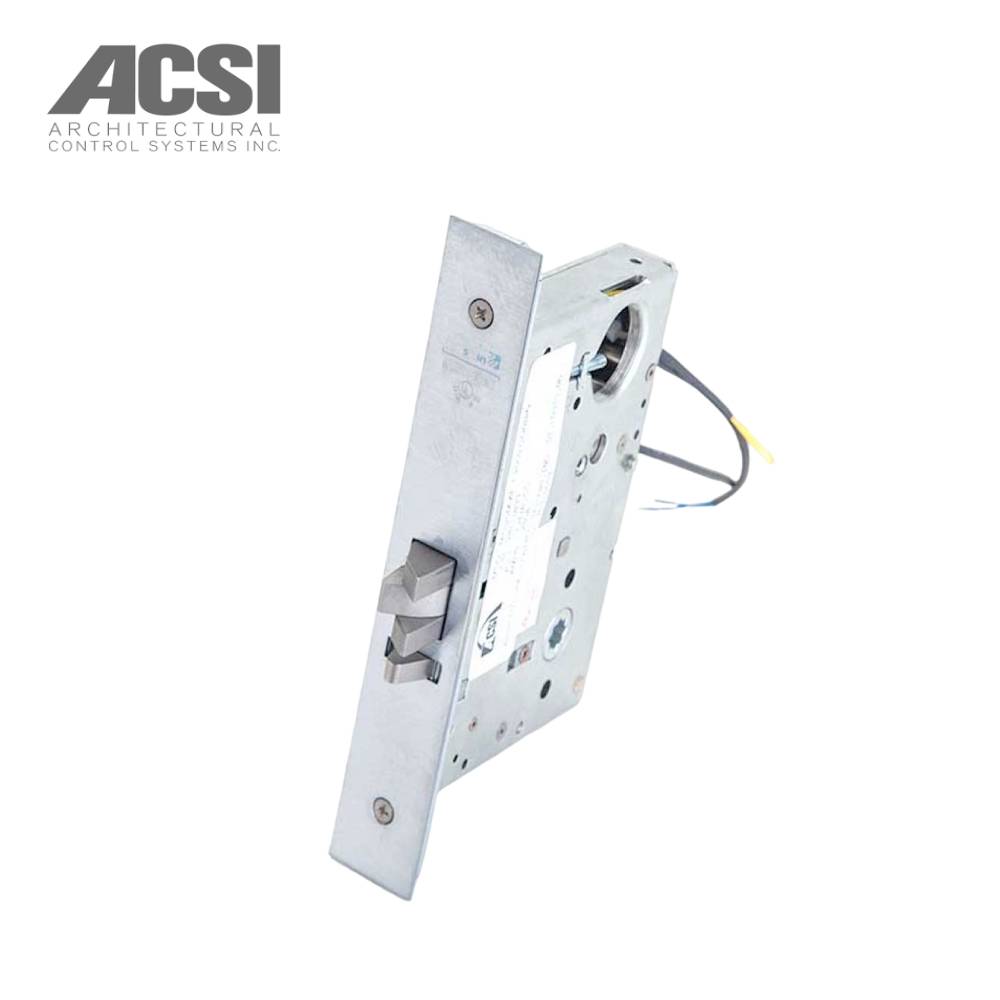

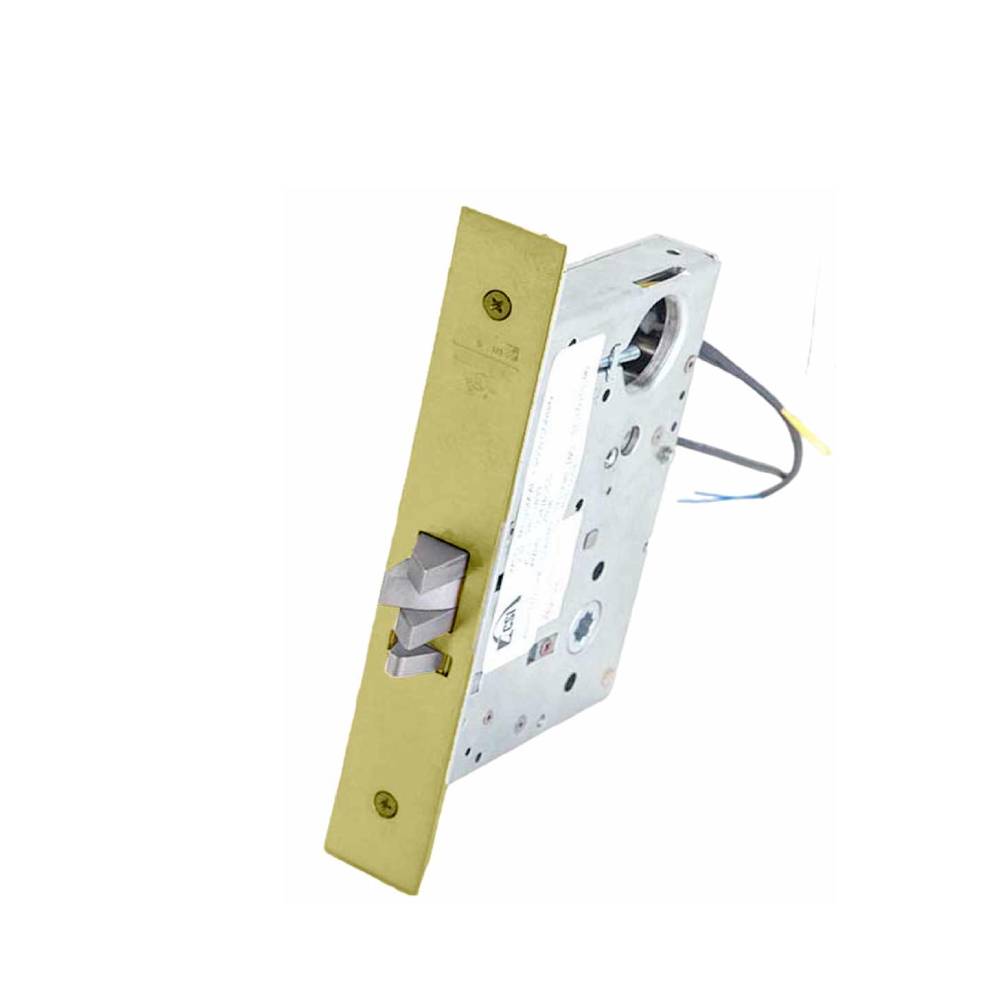

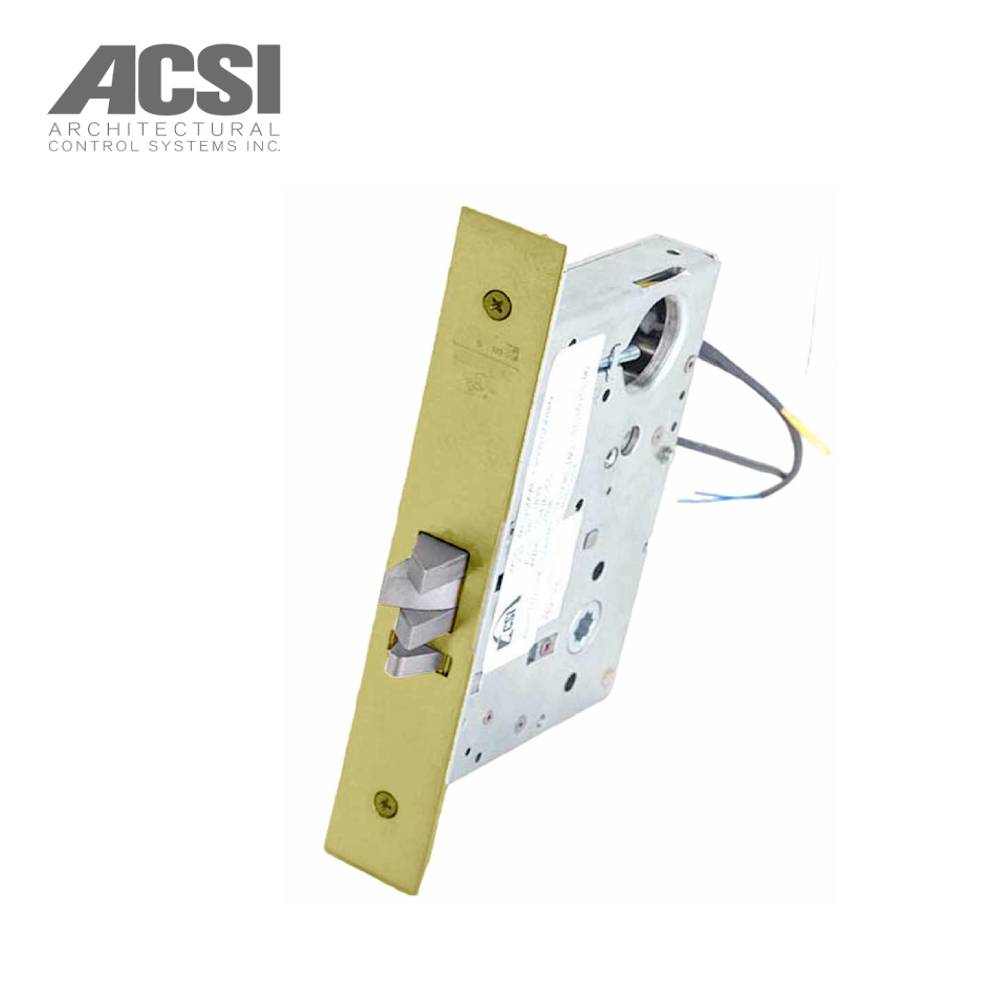

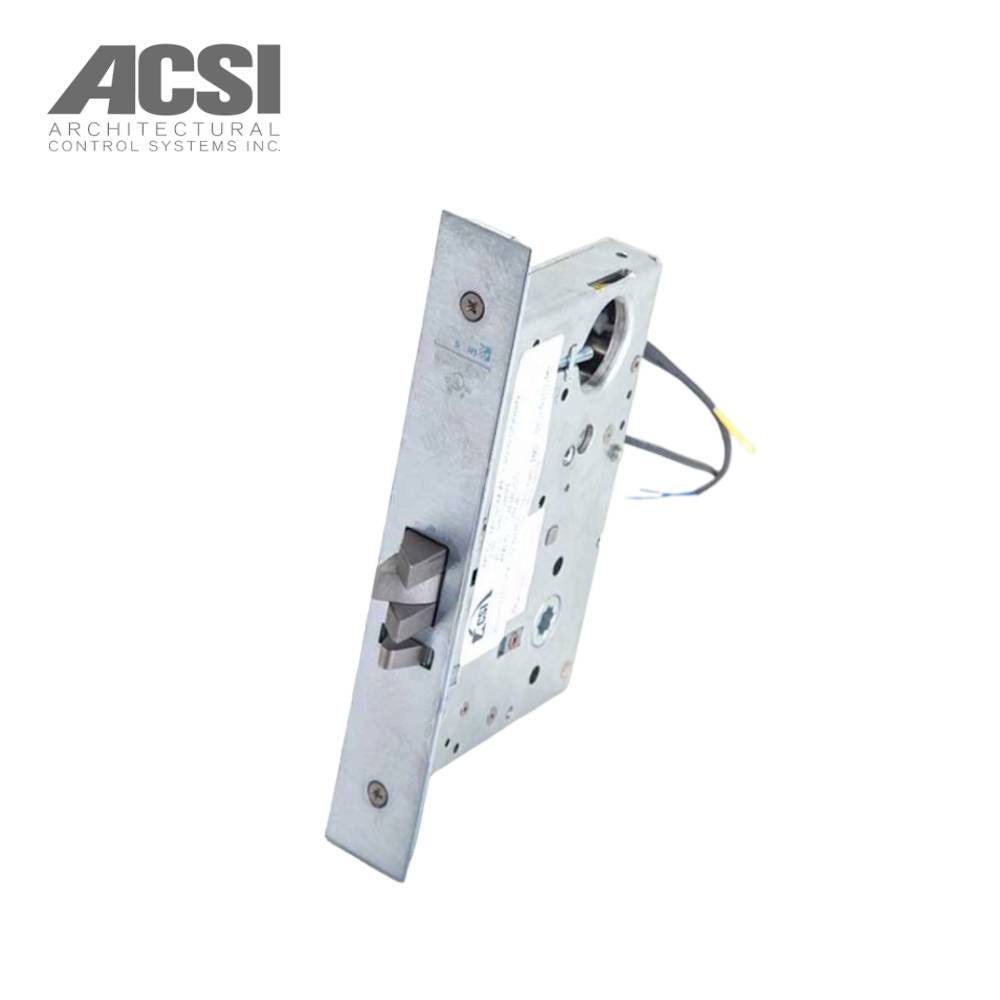

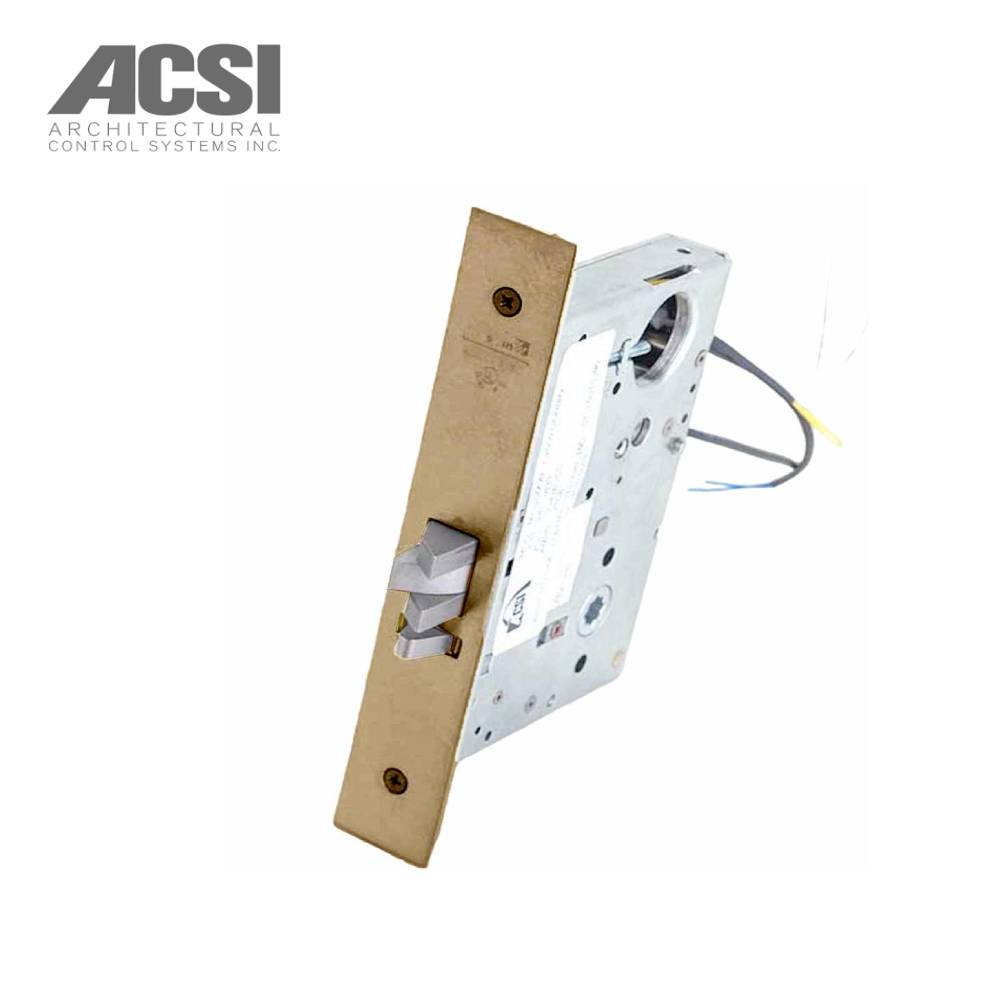

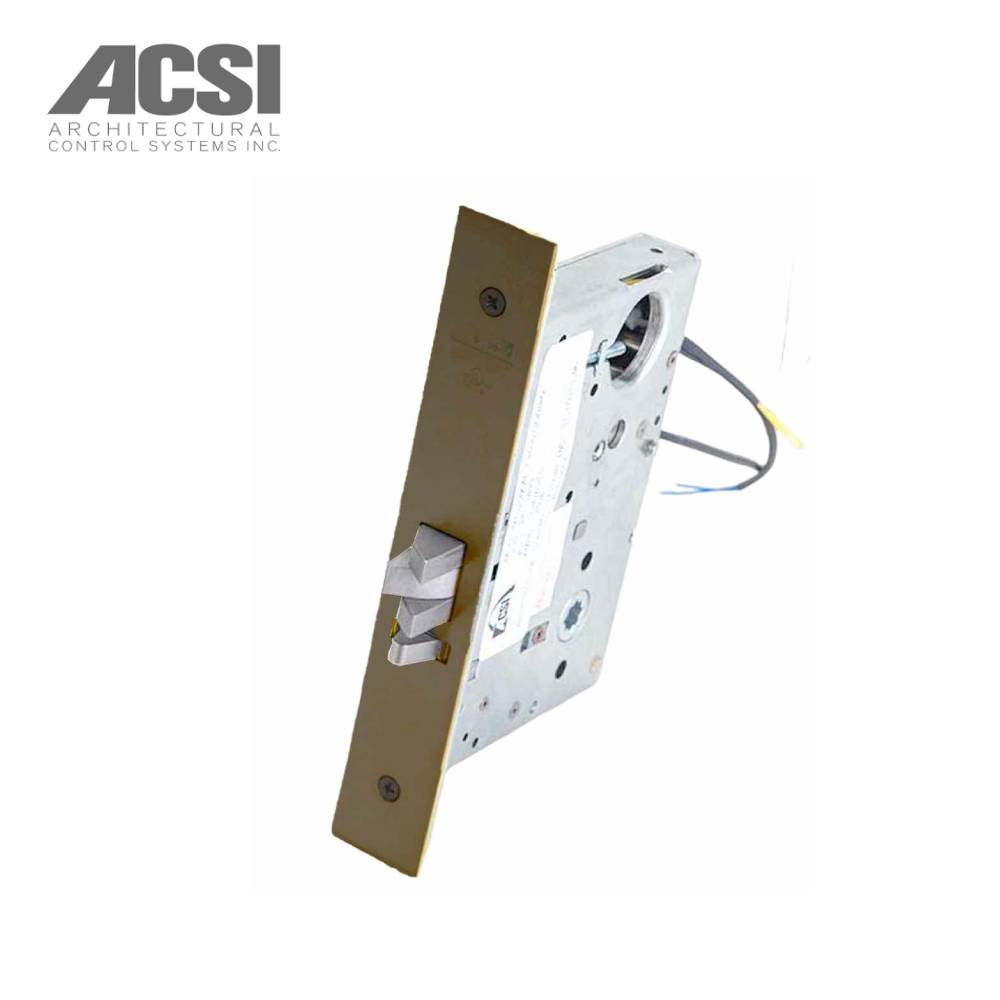

ACSI - M1520M-AE-1-ML2055-LC - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Authorized Egress - Less Cylinder and Corbin Russwin 2000 Series Office
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
ACSI - M1520M-AE-1-ML2055-LC - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Authorized Egress - Less Cylinder and Corbin Russwin 2000 Series Office
M1520M-AE-1-ML2055-LC Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Less Cylinder Authorized Egress. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Authorized Egress (Request to Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-AE-1-ML2055-LC Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Less Cylinder Authorized Egress for easy installation and dependable door hardware solution.
Design:
- LW Lever Design, A Rose Design
- LW Lever Design, M Rose Design
- LW Lever Design, N Rose Design
- NS Lever Design, A Rose Design
- NS Lever Design, M Rose Design
- PS Lever Design, A Rose Design
- PS Lever Design, M Rose Design
- RW Lever Design, A Rose Design
- RW Lever Design, M Rose Design
Specifications:
| Function | 1520M AE-Fail Secure w/Authorized Egress |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Locks |
| Strike Type | Straight Lip |
| Electric Options | Request to Exit |
| Strike Size | 4-7/8" x 1-1/4" |
| Lever Size | 5-1/8 Inch |
| Hub Size | 5/16 Inch |
| Hub Material | Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 100; Operational and Security Grade 1; A117.1 Accessibility Code |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Schools; Hospitals; Hotels |
| Finish | 605 - Bright Brass 606 - Satin Brass 612 - Satin Bronze 613 - Oil Rubbed Bronze 625 - Bright Polished Chrome 26D - Satin Chrome 630 - Satin Stainless |
| Handing | Reversible |
| Front Size | 8" x 1-1/4" x 3/32" |
| Strike Lip | 1-1/8 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Rose/Escutcheon Width | 2-1/4 Inch |
| Rose/Escutcheon Length | 2-1/4 Inch |
| Latchbolt Type | 2-Piece Mechanical With Anti-Friction Insert |
| Manufacturer Parent | ACSI |
