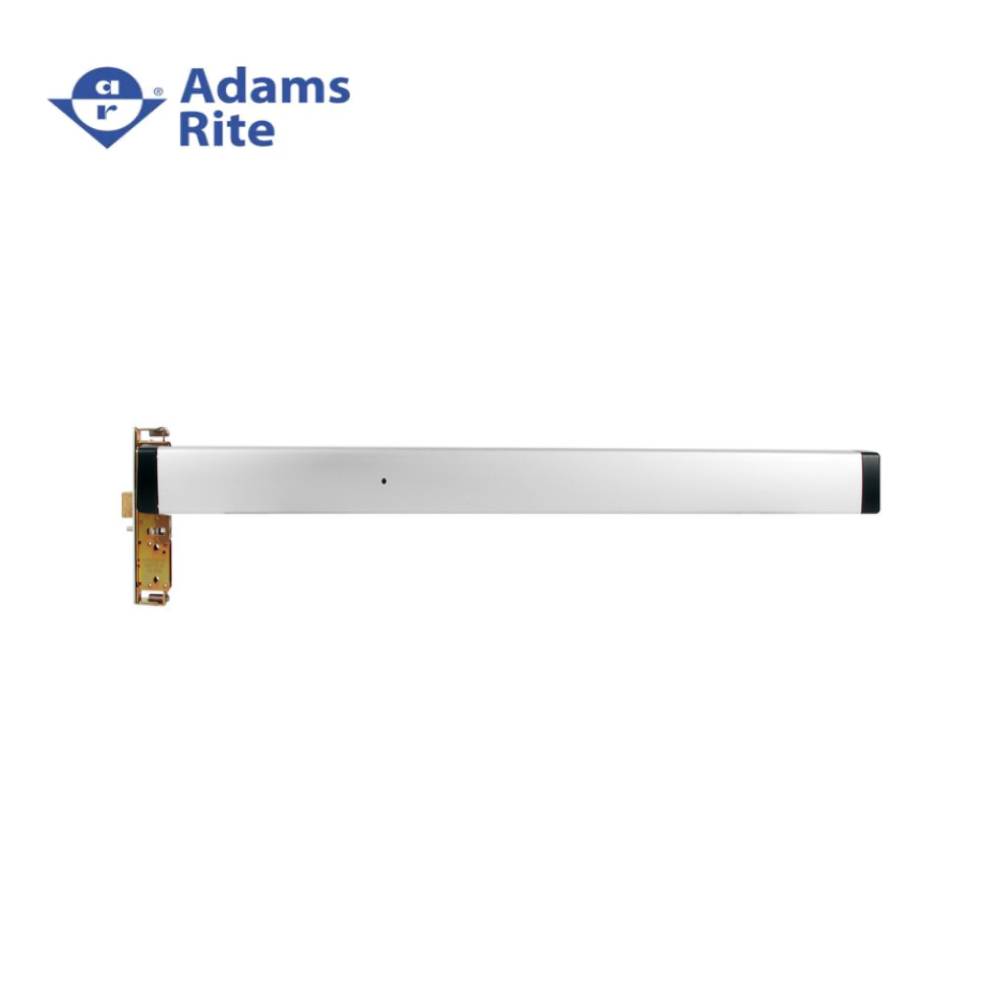

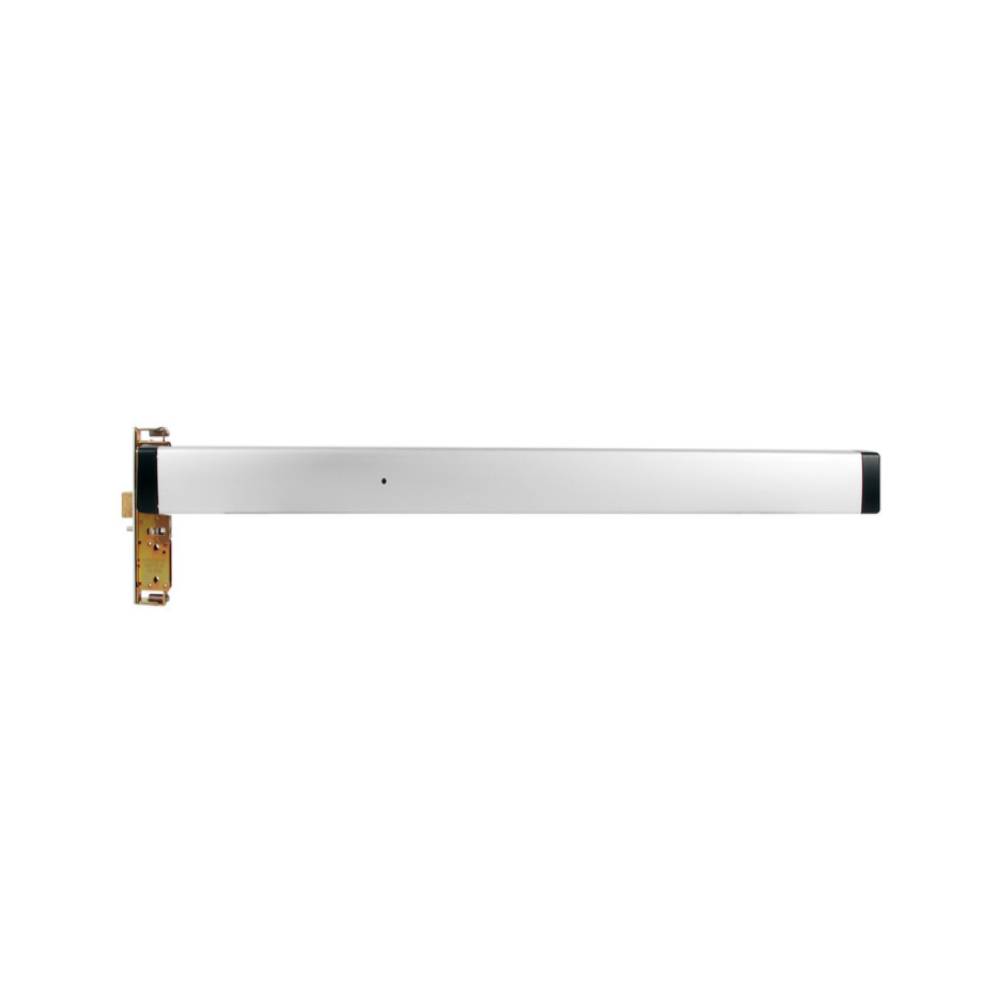

Adams Rite - 4510 - Life Safety Narrow Stile Mortise Exit Device For Aluminum Applications - 36" - Optional Handed - 628 (Satin Aluminum Clear Anodized Finish)

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30โ€, 36โ€, 42โ€, and 48โ€ openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30โ€ to 44โ€.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40โ€โ€“ 44โ€. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4โ€ standard, up to 2-1/4โ€.
  • Stile Width: 3100 โ€“ Minimum 3-3/4โ€. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 โ€“ Minimum 3-3/4โ€.
  • Projection: 2-15/16โ€ when fully projected, 1-15/16โ€when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1โ€ to 1-1/4โ€. (Available separately)
Product Specifications:
Vendor Assa Abloy
Manufacturer Adams Rite
SKU 8410-48136
UID ADA100841048136
Finish 628
Installation Commercial
Unit of Measure Each
Technical Specifications:
Physical Appearance Narrow Stile Pushpad
Device Type Mortise
Mechanical Function Universal
Device Length 36"
Hand LHR
Minimum Stile Size 2 In.
Door Thickness 1-3/4 In.
Reversible Yes
Product Type Mortise Exit Devices
