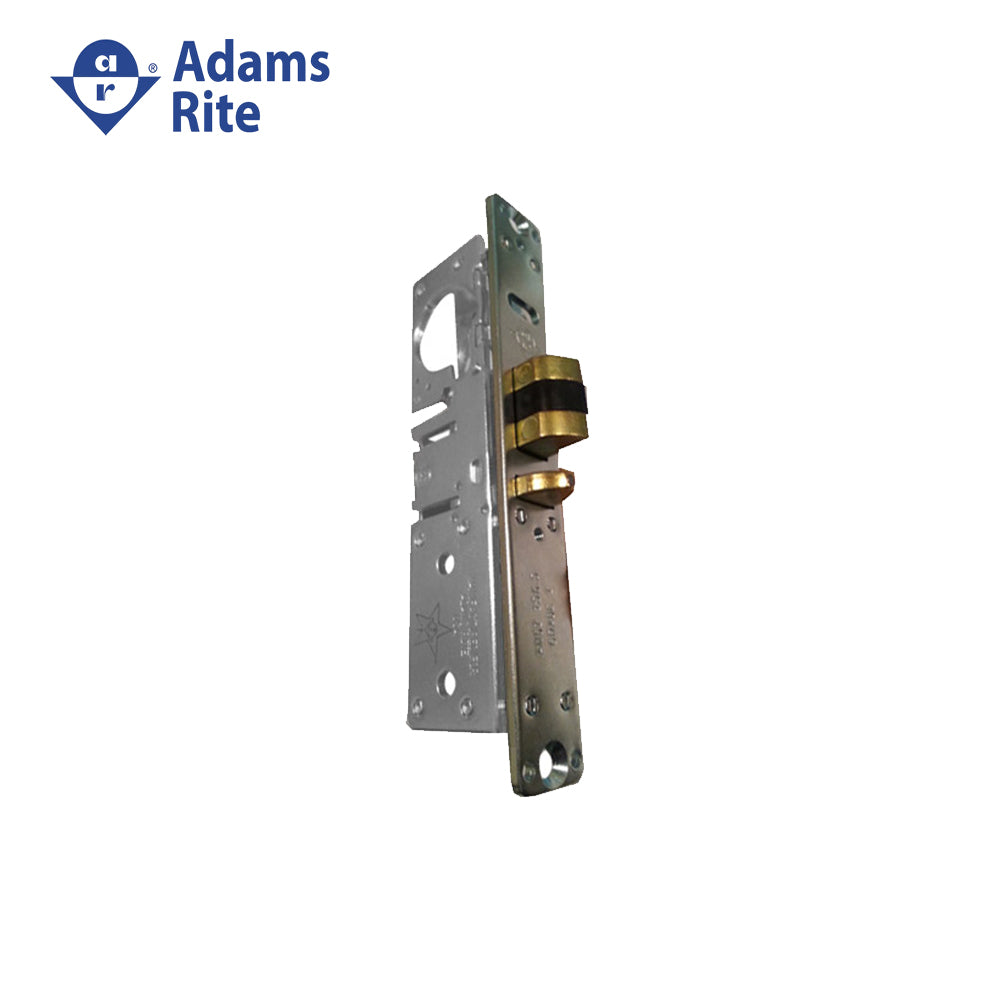

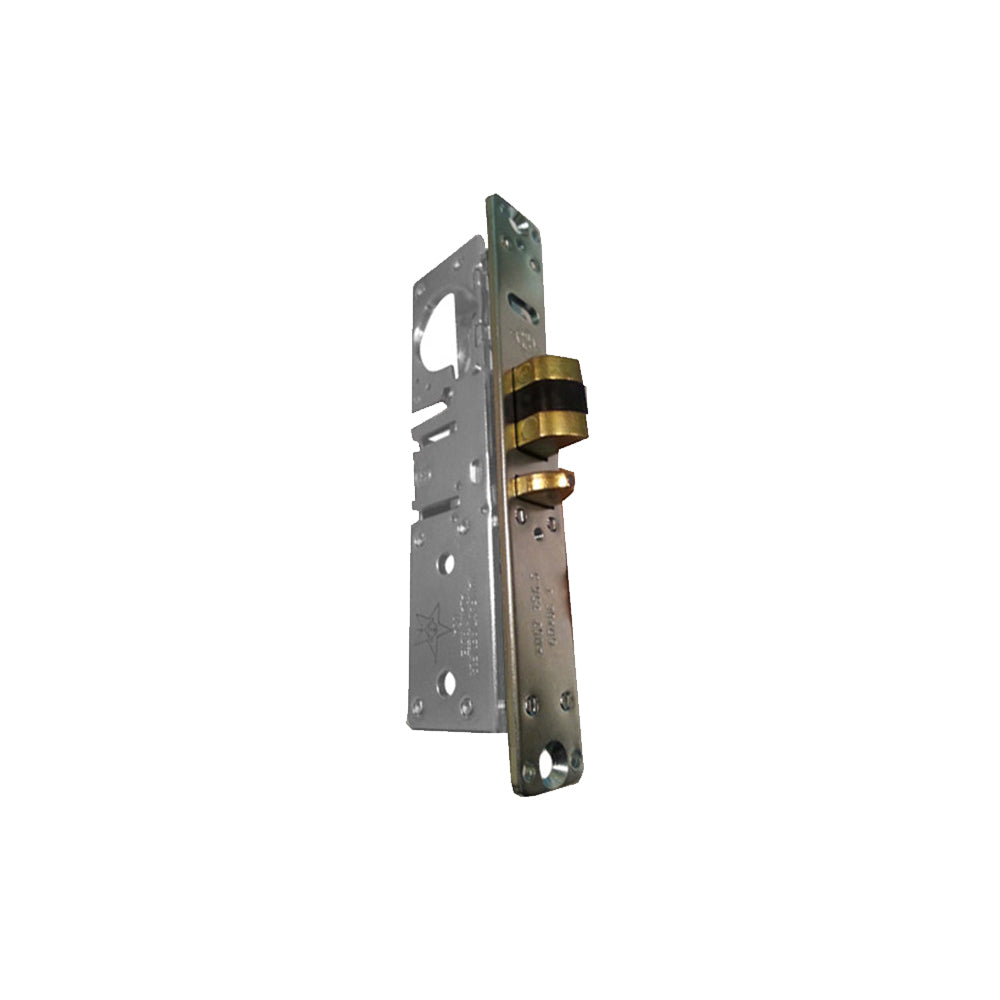

Adams Rite - 4511-35 - Standard Duty Deadlatch Radius Faceplate with 1-1/8" Backset - 2-5/8" Mortise Strike and Left-Handed or Right Hand - 628 (Satin Aluminum Clear Anodized Finish)
- Product SKU: ADMR-4511-35-201-628
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
Adams Rite - 4511-35 - Standard Duty Deadlatch Radius Faceplate with 1-1/8" Backset - 2-5/8" Mortise Strike and Left-Handed or Right Hand - 628 (Satin Aluminum Clear Anodized Finish)
4511 Standard Duty Deadlatches provide flexible traffic control during and after business hours. The 4510 Series has includes a reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of same backset and faceplate shape.
Features:
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
- Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
- Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Adams Rite |
| SKU | 4511-35-201-628 |
| UID | ADA100451135201628 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Aluminum |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
Technical Specifications:
| Function | Narrow Stile Latch Lock |
| Cylinder Type | Less Cylinder |
| Handing | LH or RHR |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Type | Guarded Latch |
| Std. Latch Backset Dim | 1-1/8" |
| Lock Face Size | 6-7/8" x 1" |
| Bolt Projection | 1/2" |
| Std. Strike Number | 4902-01 |
| Std. Strike Type | Mortise |
| Std. Strike Height | 2-5/8" |
| Std. Strike Width | 1-9/16" |
| Dust Box | Plastic |
| Screws | Machine |
| Product Type | Mortise Lock |
