Alarm Lock - DL4100IC-26D - Trilogy Digital Keypad Lever Set with High Capacity Audit Trail and SFIC Core - Grade 1 - Satin Chrome Finish

  • Product SKU: ARL-DL4100IC-26D
  • Order within

    and choose FedEx 2Day® Shipping

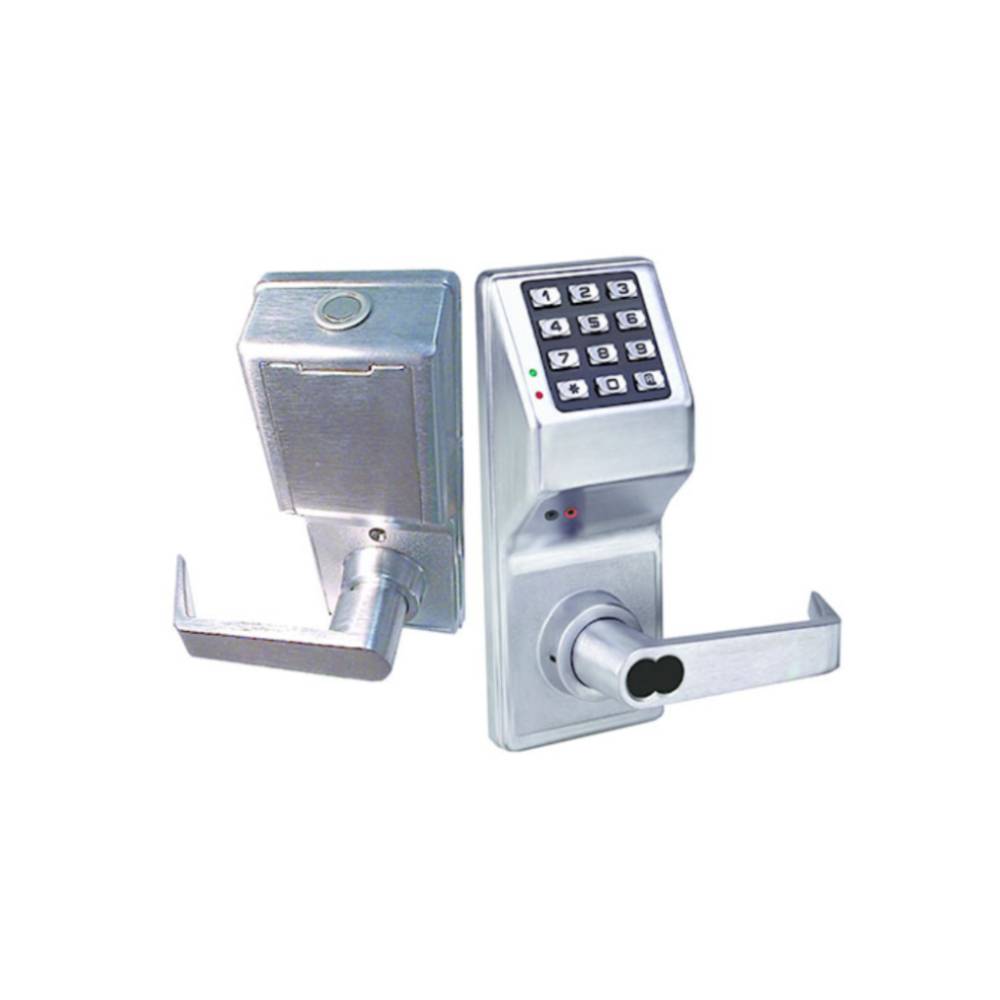

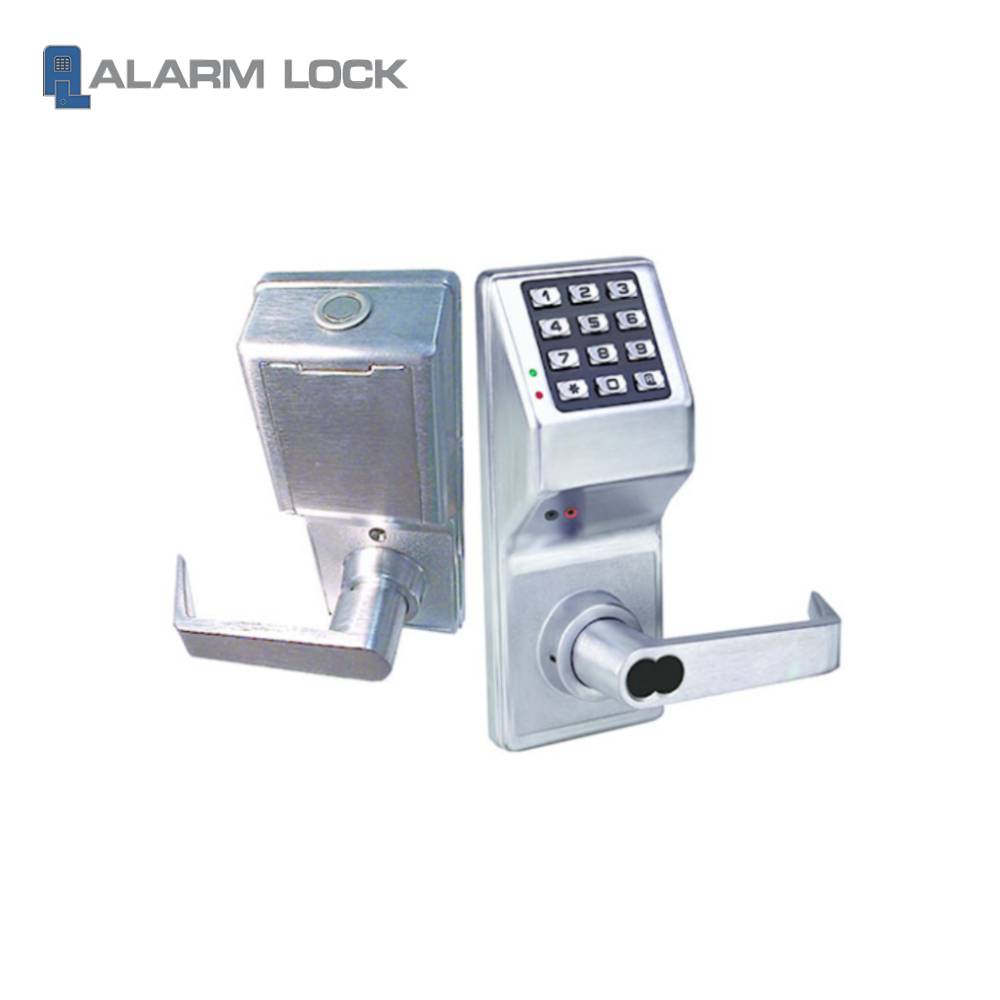

Alarm Lock - DL4100IC-26D - Trilogy Digital Keypad Lever Set with High Capacity Audit Trail and SFIC Core - Grade 1 - Satin Chrome Finish

Standalone Trilogy® locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models).

The DL4100 Series is similar to the DL3200 features plus many other additional features.

  • Interior LED on the inside housing indicates when the privacy session is active
  • Rest assured knowing that you are safe within the room, while locking out unauthorized users.
  • 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
  • Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
  • Occupied and multi-status LED indicator, flashes when privacy session is active
  • Self-stick instructional signage, supplied (bilingual)
  • Keypad or PC programming/reporting
  • Right- or left-hand, classroom or deadbolt function models
  • 1-3/8” mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
  • 5AA battery-pak operated; 60,000 cycles, typical
  • 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Product Specifications:
Vendor Napco Security Technnologies
Manufacturer Alarm Lock
Grade Grade 1
Installation Commercial
Unit of Measure Each
Base Material Brass or Bronze
Technical Specifications:
Series Name Trilogy
Lock Platform Cylindrical Lock
Reader Technology Keypad Only
Keypad Type Electronic
# Users 2000
Cylinder Type SFIC Prep Less Core
Door Thickness 1-5/8 In. to 1-7/8 In.
Latch Backset Dimension 2-3/4 In.
Strike Type T-Standard and ASA
Power Battery Pack
Programmer Optional
Software Optional
Product Type Cylindrical Locks with Keypad Trim
