Alarm Lock - DL5300-US26D - Double Sided Trilogy Push Button Cylind...
Description
Description

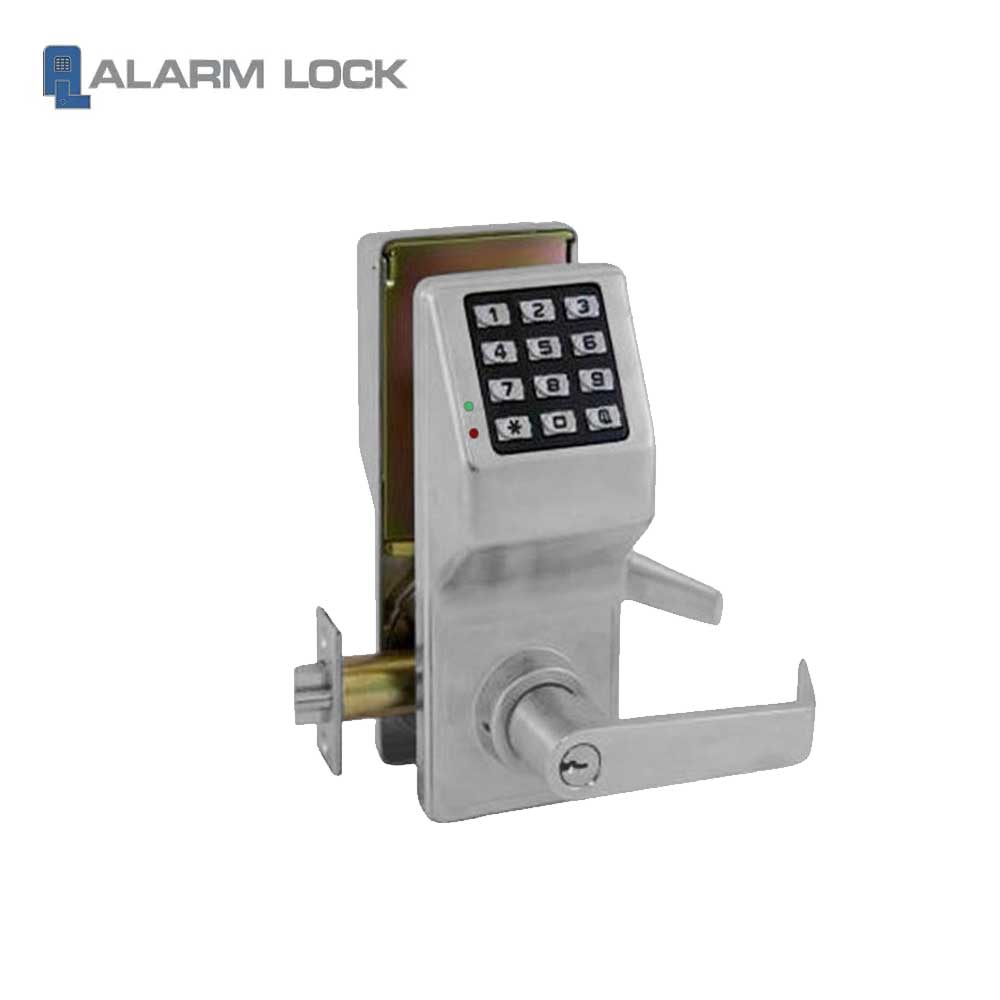

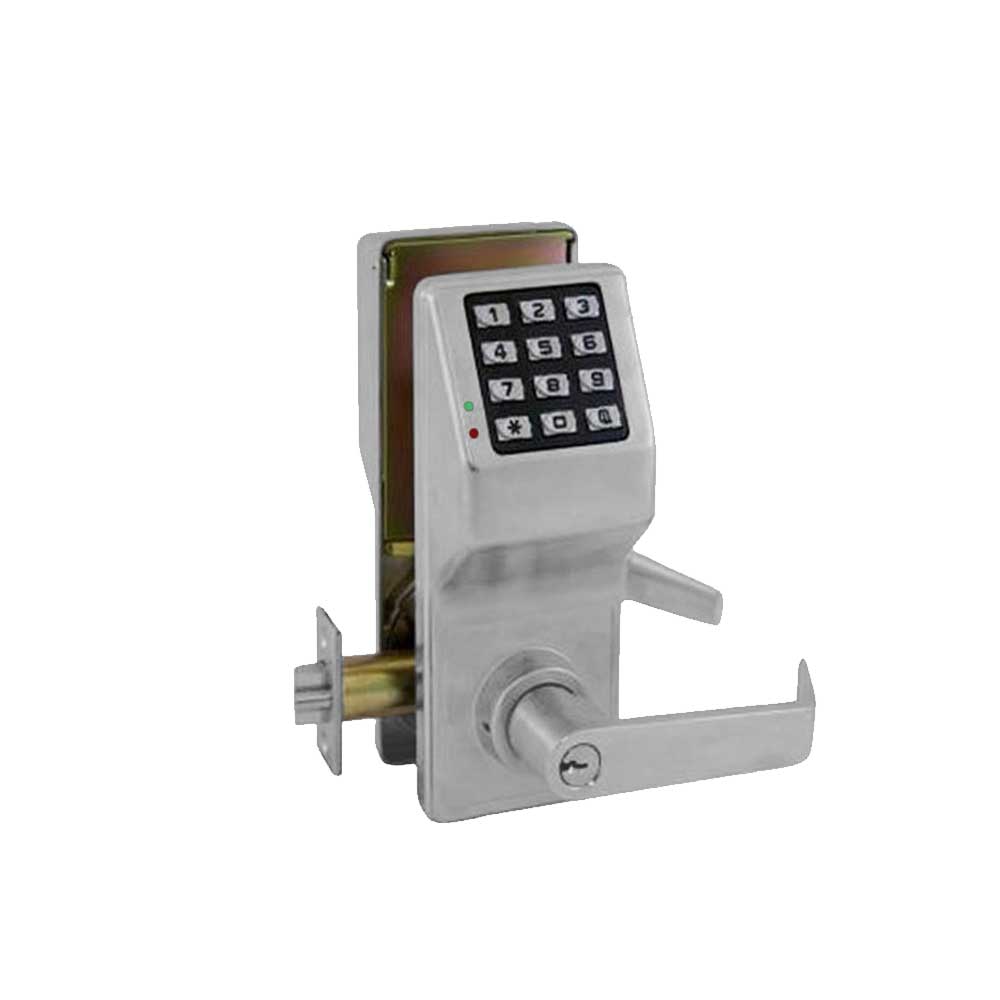

Alarm Lock - DL5300-US26D - Double Sided Trilogy Push Button Cylindrical Door Lock - PIN-Code Access Digital Cylindrical - Weatherproof - Straight Lever - Satin Chrome (US26D)
The Trilogy DL5300 Series is Alarm Lock's one of the most popular pushbutton cylindrical lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. It has outside lever free turning in locked position. While entering the access code, key bypass or remote bypass allows the lever to retract latch. Its inside lever always instant egress. It is found ideal for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms plus psych and Alzheimer areas.
Feature:
- 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs (prox model PDL5300)
- Direction-specific access assignable per user programmable access for each user for one or both sides of the door
- Up to 40,000 event audit trail log, time-stamped by day, date, time and user (PC or data module reportable)
- 500 scheduled events, including 4 quick schedules
- Data port for programming lock and querying audit trail is on primary side of door, along with functioning mechanical key override
- 4 programming levels, 4 user groups
- 5AA battery operated; 60,000 cycles, typica
Product Specification:
| Vendor | Napco Security Technnologies |
| Manufacturer | Alarm Lock |
| SKU | DL5300 US26D |
| UID | ALA100DL5300US26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 2 Years |
| Fire Rated | 3 Hours {A} |
Technical Specification:
| Series Name | Trilogy |
| Lock Platform | Cylindrical Lock |
| Reader Technology | Keypad Only |
| Keypad Type | Electronic |
| # Users | 2000 |
| Cylinder Type | Conventional Cylinder |
| Door Thickness | 1-5/8 In. to 1-7/8 In. |
| Latch Backset Dimension | 2-3/4 In. |
| Strike Type | T-Standard and ASA |
| Power | Battery Pack |
| Programmer | Optional |
| Software | Optional |
| Product Type | Cylindrical Locks with Keypad Trim |
