Altronix - 6062 - Multi-Function Timer - Snap Track Compatible
$2851
$3421
Unit price
/
Unavailable
Description
Description

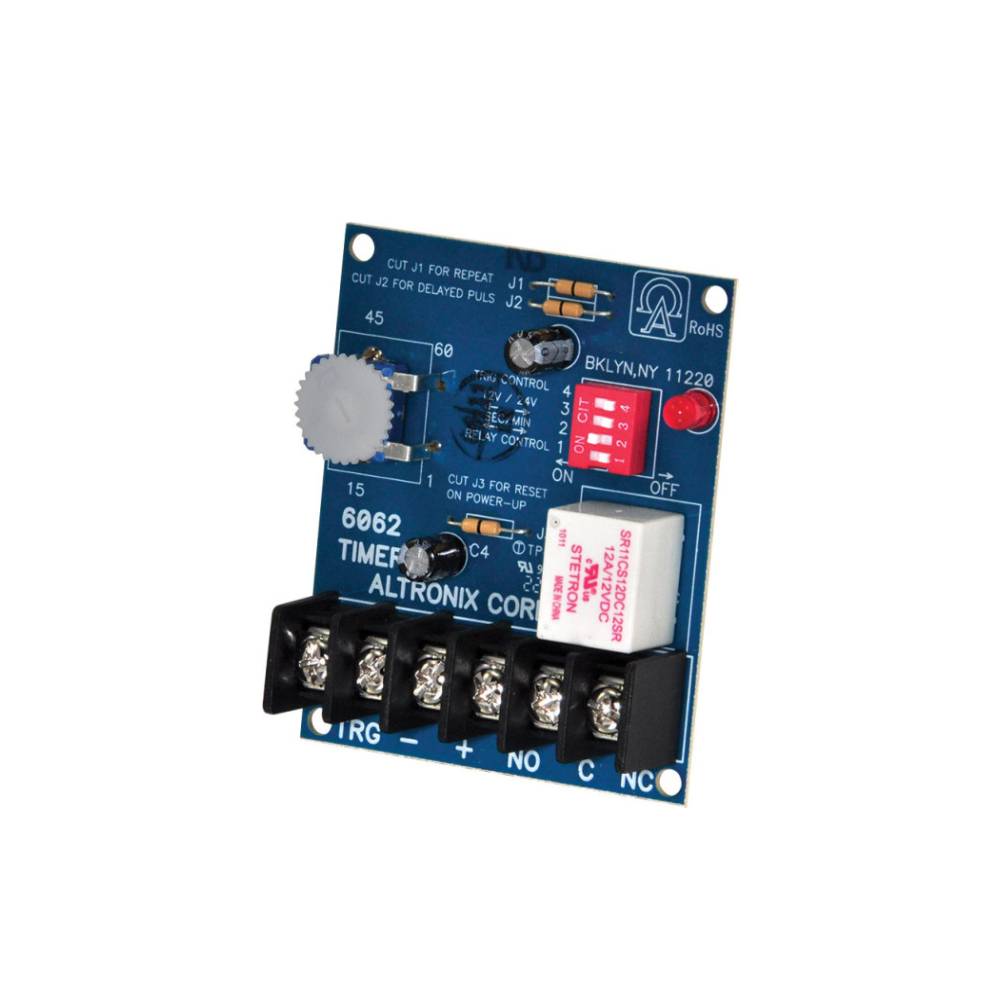

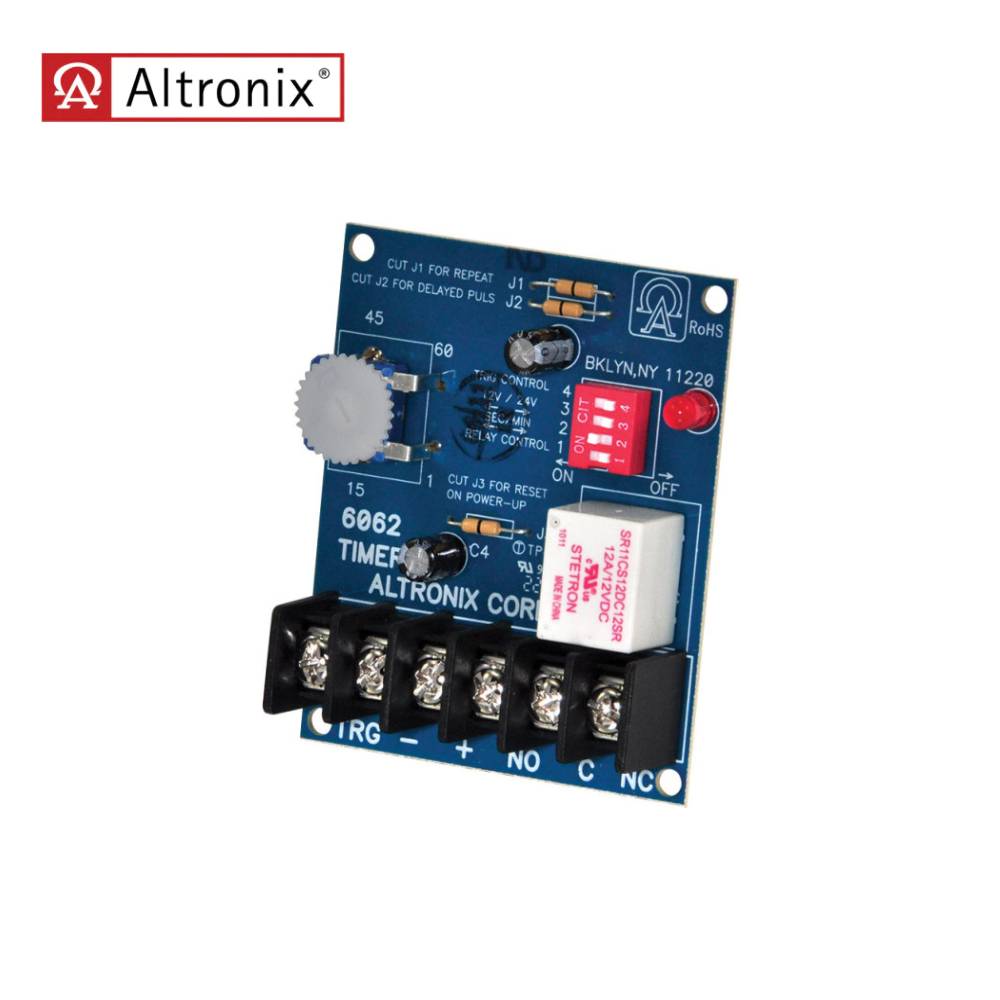

Altronix - 6062 - Multi-Function Timer - Snap Track Compatible
Features:
- Multi-function timer.
- 12VDC or 24VDC operation.
- Form "C" relay contacts are 8 amp at 120VAC/28VDC.
- Current draw: stand-by 3mA, relay energized 40mA.
- Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
- Selectable relay activation at the start or end of the timing cycle.
- One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
- Built-in reset feature which cancels timing cycle.
- Applications include: access control, siren/bell cut off, dialer delay, guard tour supervisory, door ajar, etc.
- Snap Track compatible (order part# ST3).
- DIN rail mountable version available (order model# DTMR1).
Product Specifications:
| Vendor | Altronix |
| Manufacturer | Altronix |
| SKU | 6062 12/24 |
| UID | ALT10060621224 |
| Installation | Commercial |
| Operating Voltages | 12/24 VDC |
| Relay Action | Multi Function |
| Relay Type | Form C |
| Product Type | Timers and Timing Modules |
Download:
