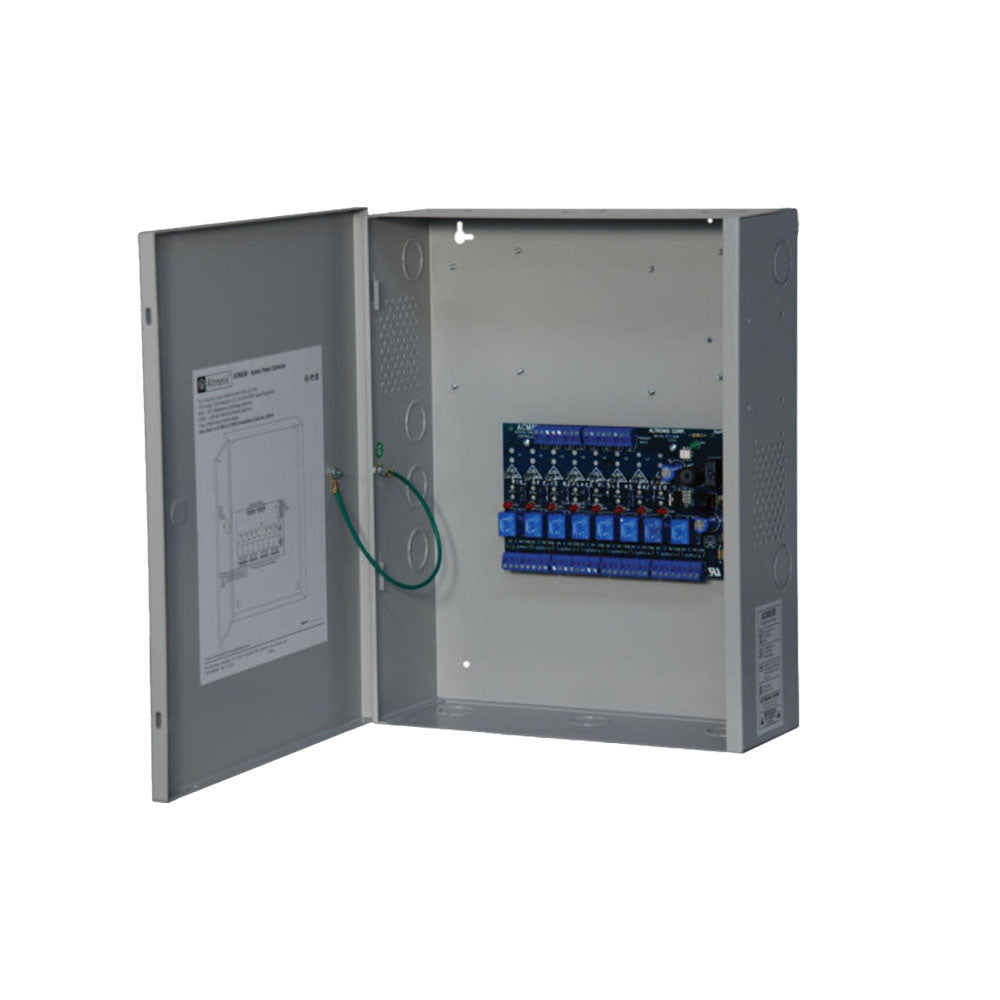

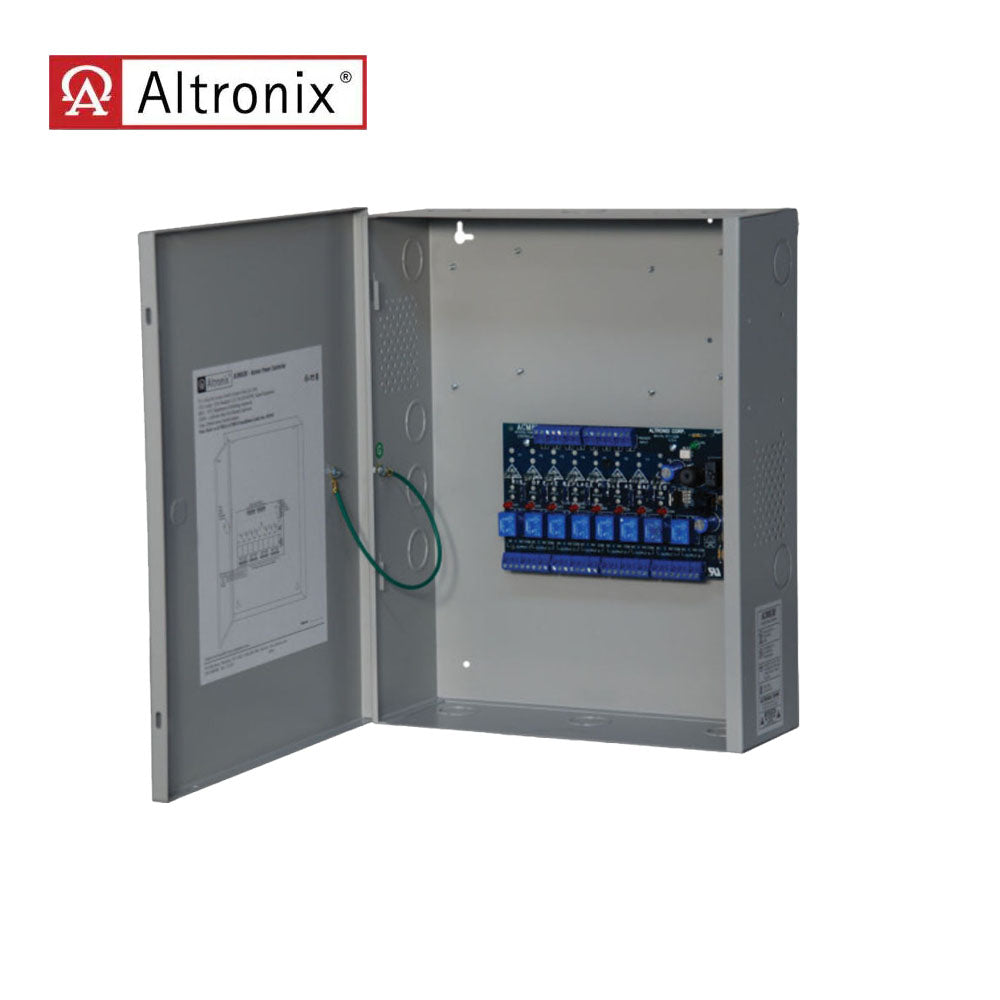

Altronix - ACM8CBE - Access Power Controller - 8 PTC Class 2 Relay Outputs with BC400 Enclosure
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Altronix - ACM8CBE - Access Power Controller - 8 PTC Class 2 Relay ...
Description
Description
Altronix - ACM8CBE - Access Power Controller - 8 PTC Class 2 Relay Outputs with BC400 Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Product Specifications:
| Manufacturer | Altronix |
| SKU | ACM8CBE |
| UID | ALT100ACM8CBE |
| Installation | Commercial |
| Unit of Measure | Each |
| Purpose | Access Control |
| Type | Hardwired |
| Product Type | Power Supplies |
Technical Specifications:
| Input | a)12 to 24 volt AC or DC operation (setting not required), (0.6A @ 12volt, 0.3A @ 24 volt current consumption with all relays energized) b)AC applications not evaluated by UL c)Main fuse is rated at 10A/250V Power supply input options: a) One (1) common power input (board and lock power). b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power). Eight (8) Access Control System Trigger Inputs: a) Eight (8) normally open (NO) inputs b)Eight (8) open collector sink inputs c) Any combination of the above. |
| Output |
Eight (8) independently controlled 2.5A outputs: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs. b) Eight (8) dry form "C" 5A rated relay outputs c) Any combination of the above Eight (8) auxiliary power outputs (unswitched) Output ratings: PTCs are rated 2.5A each Total output current is determined by the power supply, not to exceed a maximum of 10A. total |
Download:
