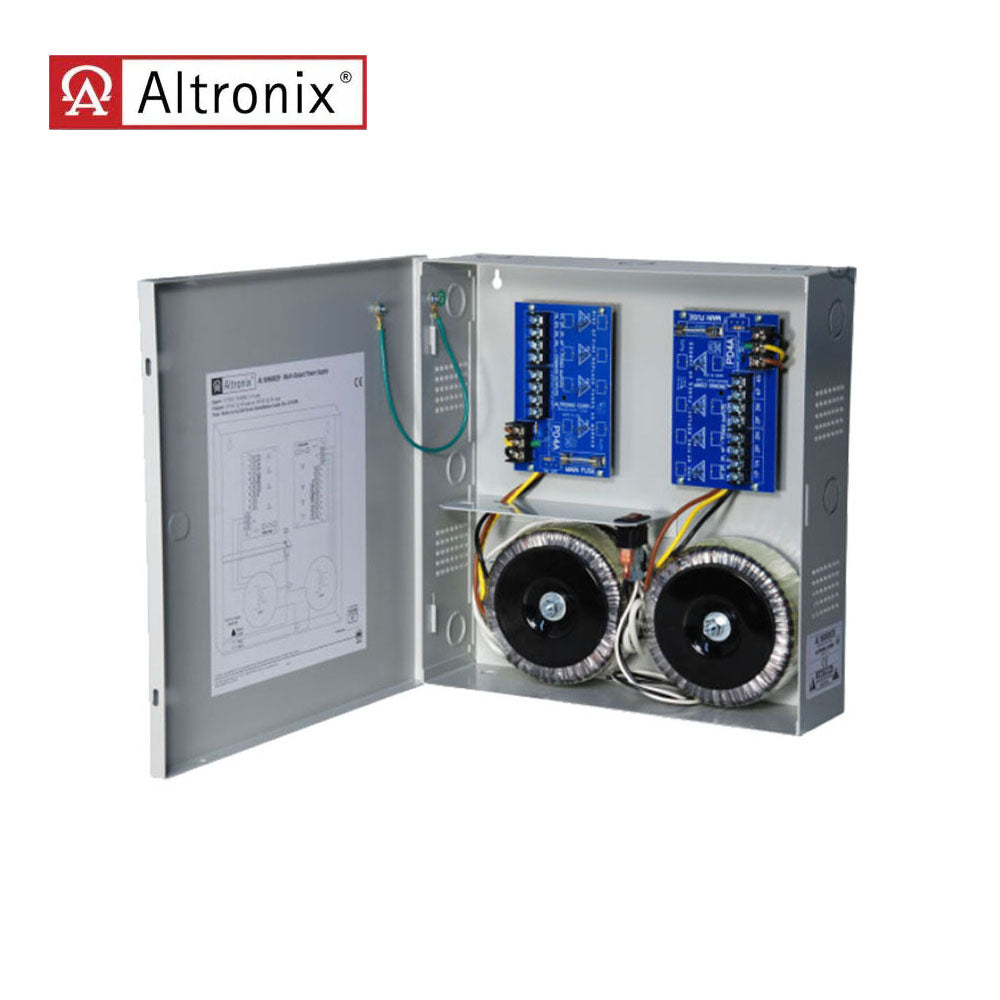

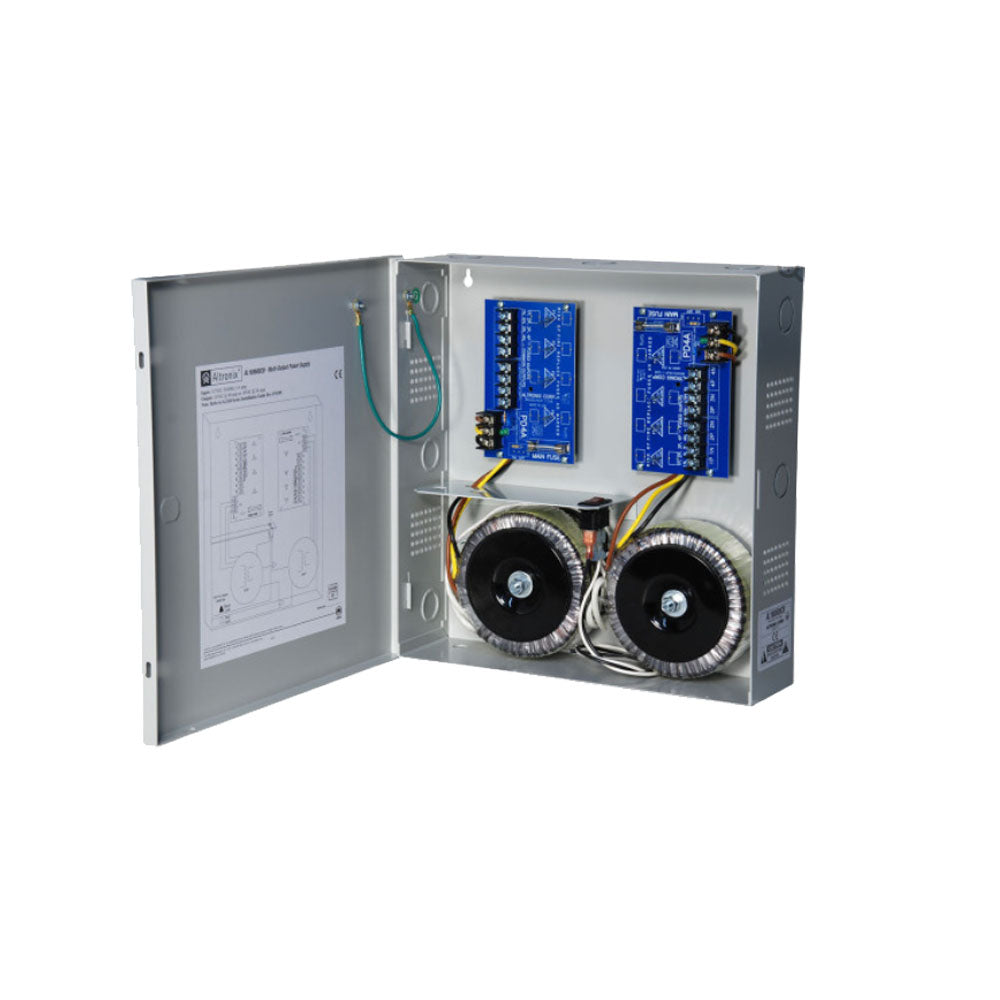

Altronix - AL168600CB - Power Supply with 8 PTC Outputs

Altronix - AL168600CB - Power Supply with 8 PTC Outputs

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Illuminated master power disconnect circuit breaker with manual reset.

Input:

• Input 115VAC, 50/60Hz, 5.4A

Output:

• Eight (8) auto-resettable PTC protected outputs
• 16VAC or 18VAC output
• 16VAC @ 40A (600VA) supply current (5A per device, 6A max.) or 18VAC @ 36A (600VA) supply current (4.5A per device, 6A max.).
• Outputs are rated @ 6A.
• Two (2) main fuse rated @ 15A/32V.
• Surge suppression

Visual Indicators:

• AC power LED indicators

Temperature:

• Operating 0° C to 49° C (32° F to 120° F)
• Storage: - 20° C to 70ºC ( - 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 16VAC: 328 BTU/Hr and 18VAC: 332 BTU/Hr.
• System AC input VA requirement: 621VA

Enclosure:

• Wall mount enclosure for indoor use
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
• 1/2" and 3/4" combination knockouts

Download:

• Installation Instruction
