Altronix - AL168CB - Power Supply with 8 PTC Outputs and Enclosure
Description
Description

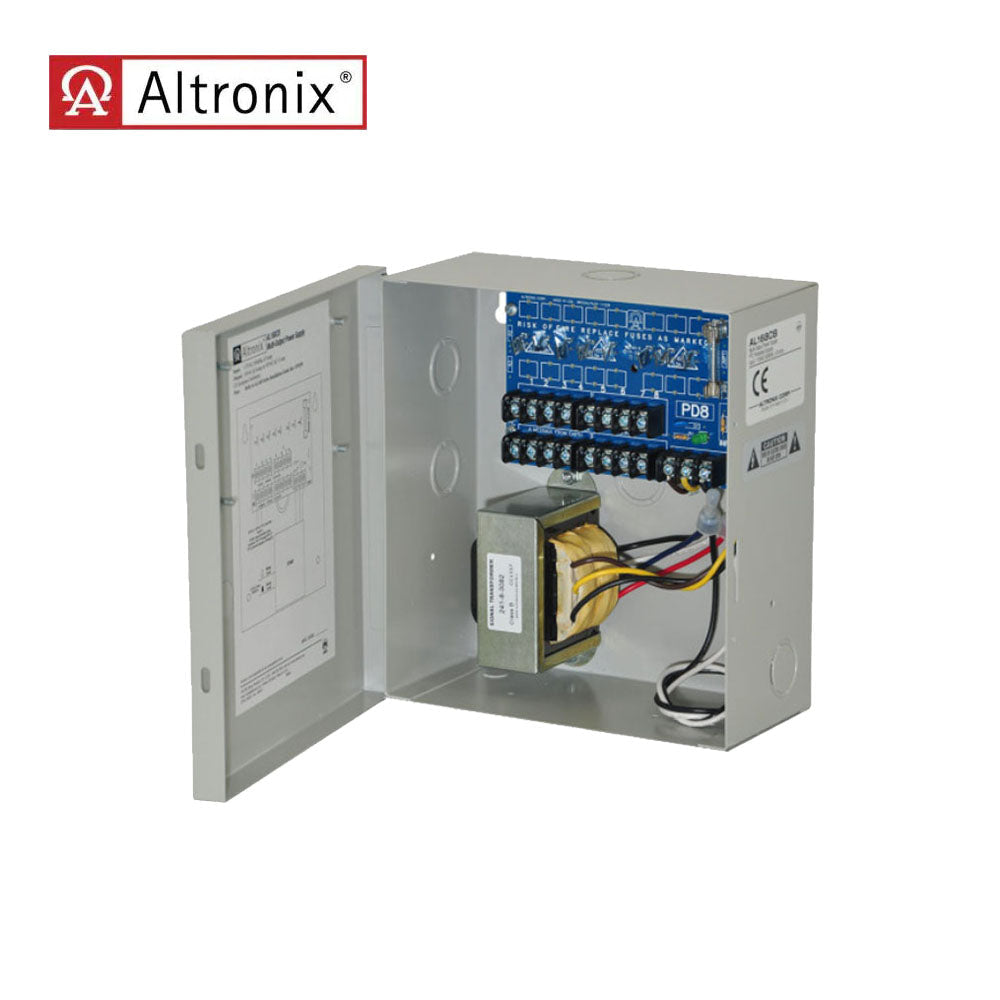

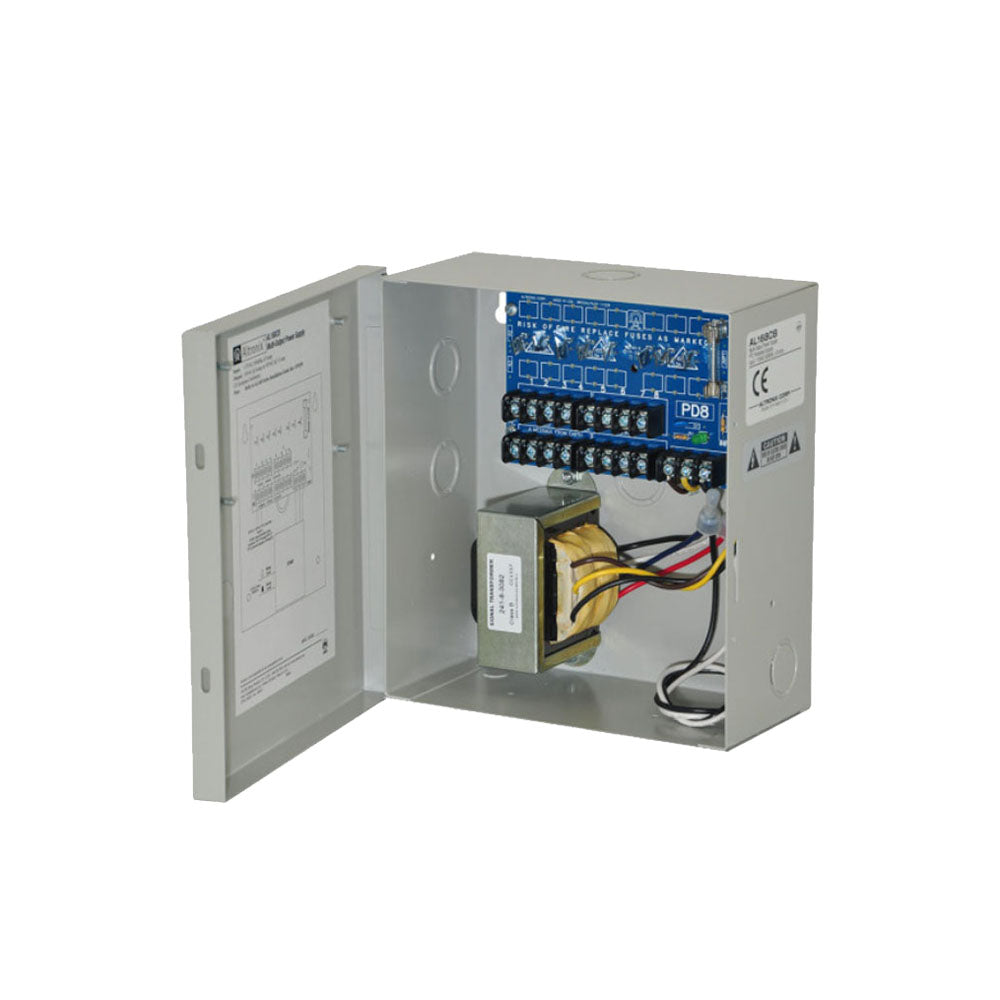

Altronix - AL168CB - Power Supply with 8 PTC Outputs and Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Features:
- Illuminated master power disconnect circuit breaker with manual reset.
Input:
- Input 115VAC, 50/60Hz, 0.9A
Output:
- Eight (8) auto-resettable PTC protected outputs
- 16VAC or 18VAC output
- 16VAC @ 6A (100VA) supply current (0.75A per device, 2.5A max.) or 18VAC @ 5.5A (100VA) supply current (0.6875A per device, 2.5A max.)
- Outputs are rated @ 2.5A
- Main fuse rated @ 10A/250V
- Surge suppression
Visual Indicators:
- AC power LED indicators
Temperature:
- Operating 0° C to 49° C (32° F to 120° F)
- Storage: - 20° C to 70ºC ( - 4° F to 158° F)
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.): 16VAC: 49 BTU/Hr and 18VAC: 51 BTU/Hr.
- System AC input VA requirement: 103.5VA
Enclosure:
- Wall mount enclosure for indoor use
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D)
- 1/2" and 3/4" combination knockouts
Download:
