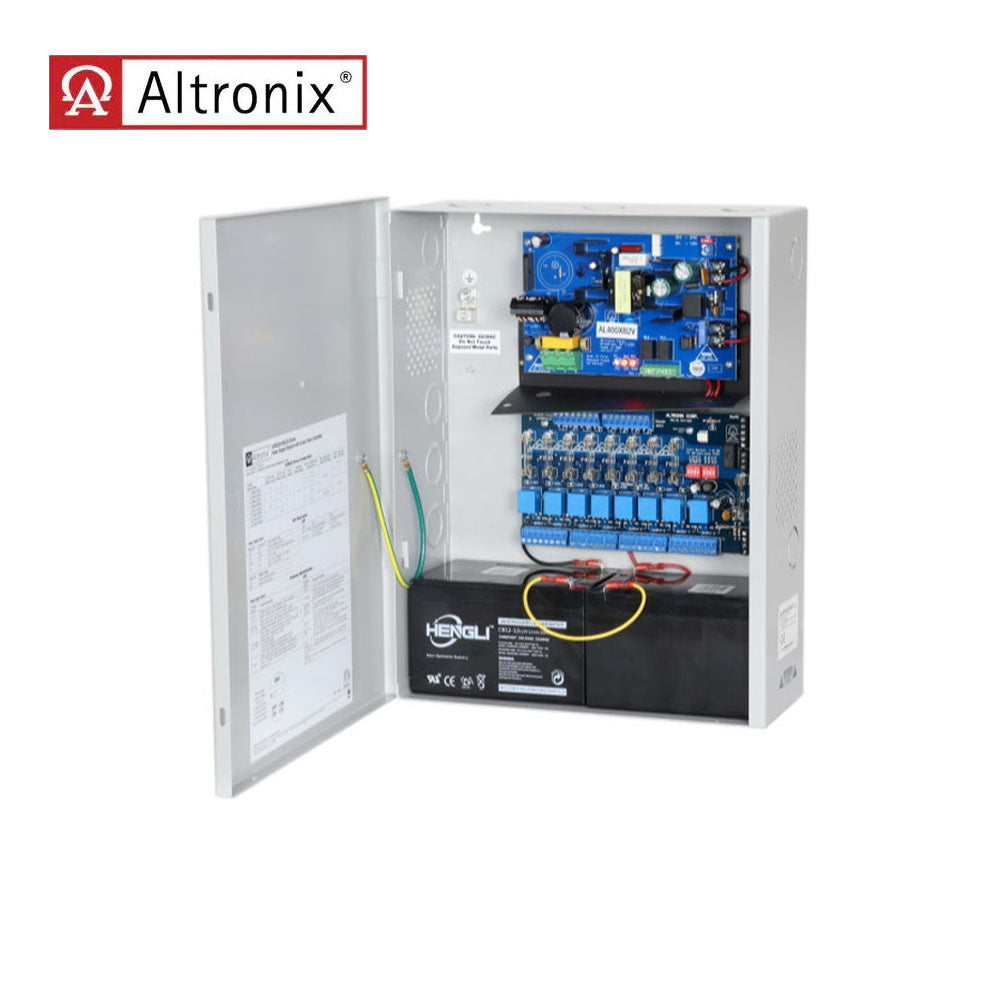

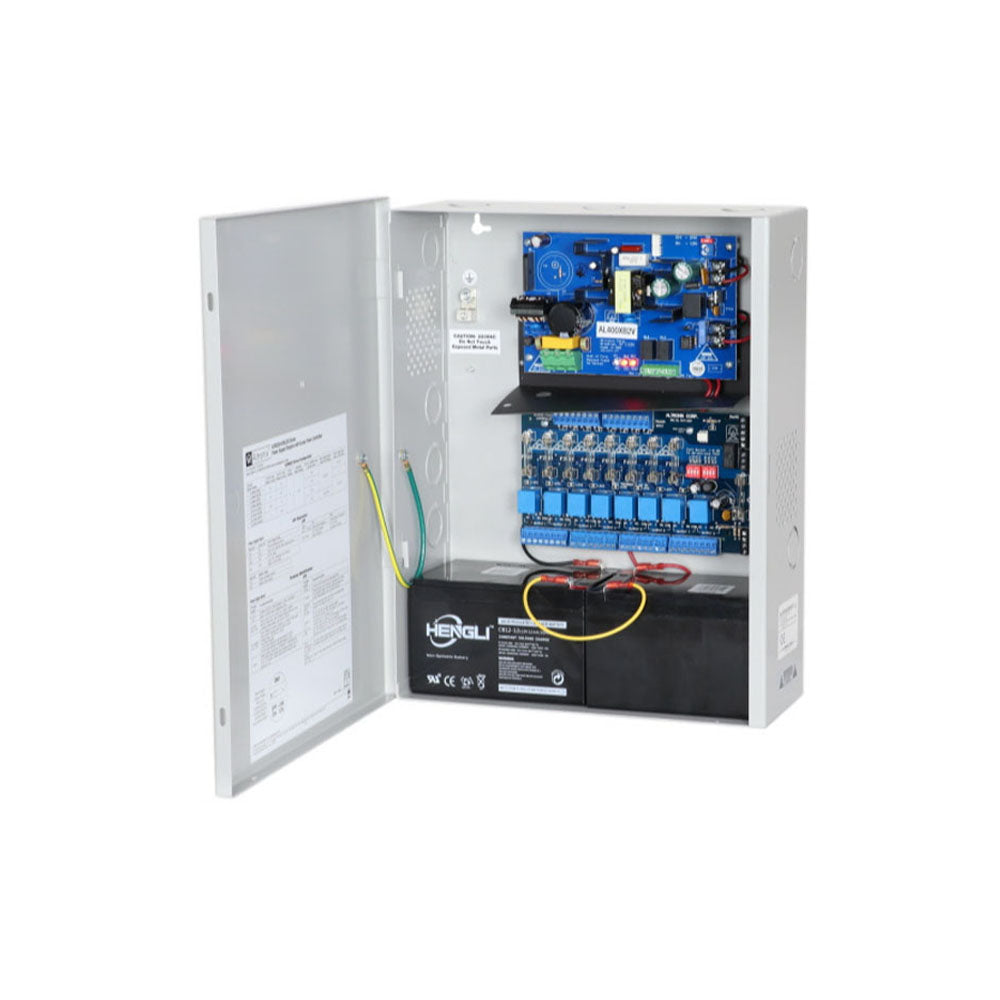

Altronix - AL400ACM220 - Power Supply with Power Controller

Altronix - AL400ACM220 - Power Supply with Power Controller

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Normally open (NO) or normally closed (NC) dry contact input
• Low battery supervision (form "C" contacts).
• Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).
• Short circuit and thermal overload protection.

Input:

• Nominal 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 0.8A
• a) One (1) common power input for ACM8/ACM8CB and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1)to power the ACM8/ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10A total)
• Eight (8) Access Control System trigger inputs.
• Eight (8) normally open (NO) inputs
• Eight (8) open collector inputs
• Any combination of the above.

Output:

• 12VDC or 24VDC outputs
• 12VDC @ 4A supply current or 24VDC @ 3A supply current.
• Power-limited outputs
• Eight (8) independently controlled outputs.
• Eight (8) Fail-Safe and/or Fail-Secure power outputs
• Eight (8) form "C" 5A rated relay outputs
• Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched)
• Fuses are rated @ 3.5A
• Filtered and electronically regulated outputs (built-in power supply)
• ACM8 board main fuse is rated at 10A

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.
• AC input and DC output LED indicators.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
• Battery fail and battery presence supervision (form "C" contact).

Visual Indicators:

• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators

Temperature:

• Operating 0° C to 49° C (32° F to 120° F)
• Storage: - 20° C to 70ºC ( - 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 12VDC: 25 BTU/Hr and 24VAC: 37 BTU/Hr

Enclosure:

• Wall mount enclosure for indoor use
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D)
• 1.125" and 1.375" combination knockouts

Download:

• Installation Instruction
