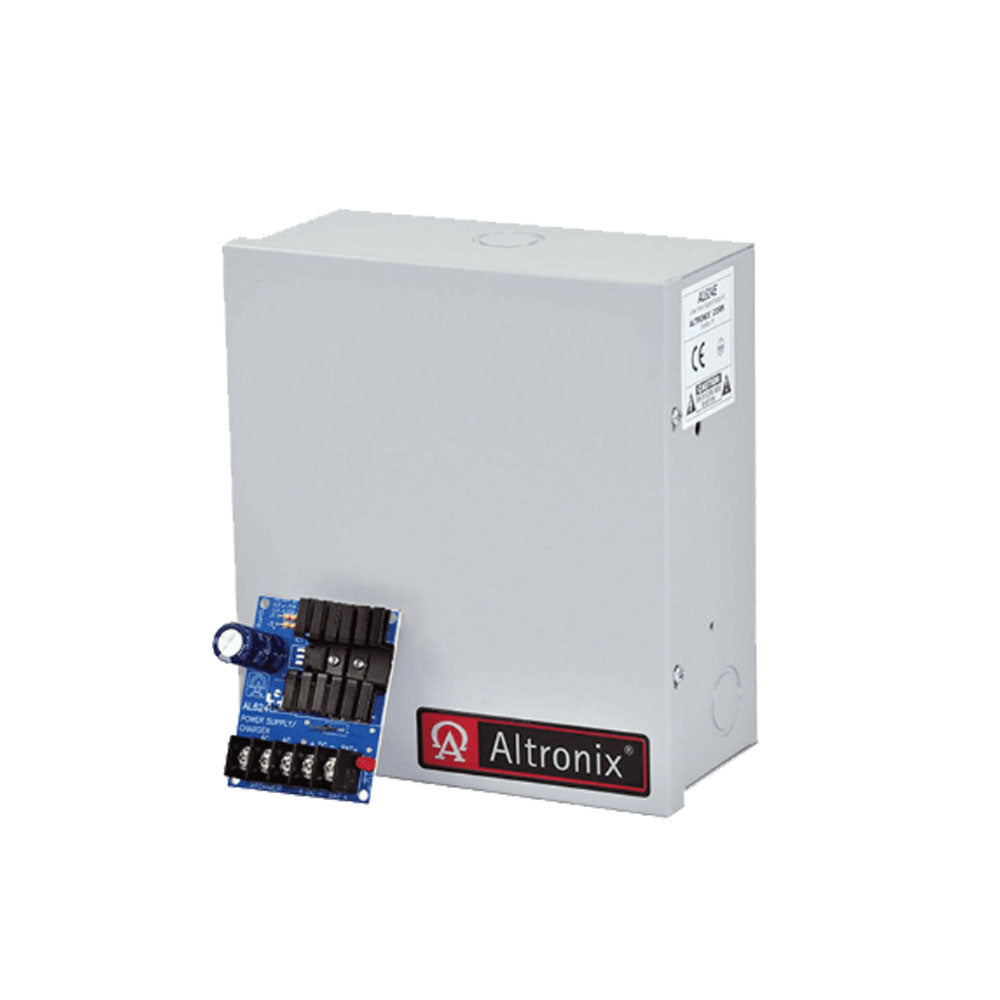

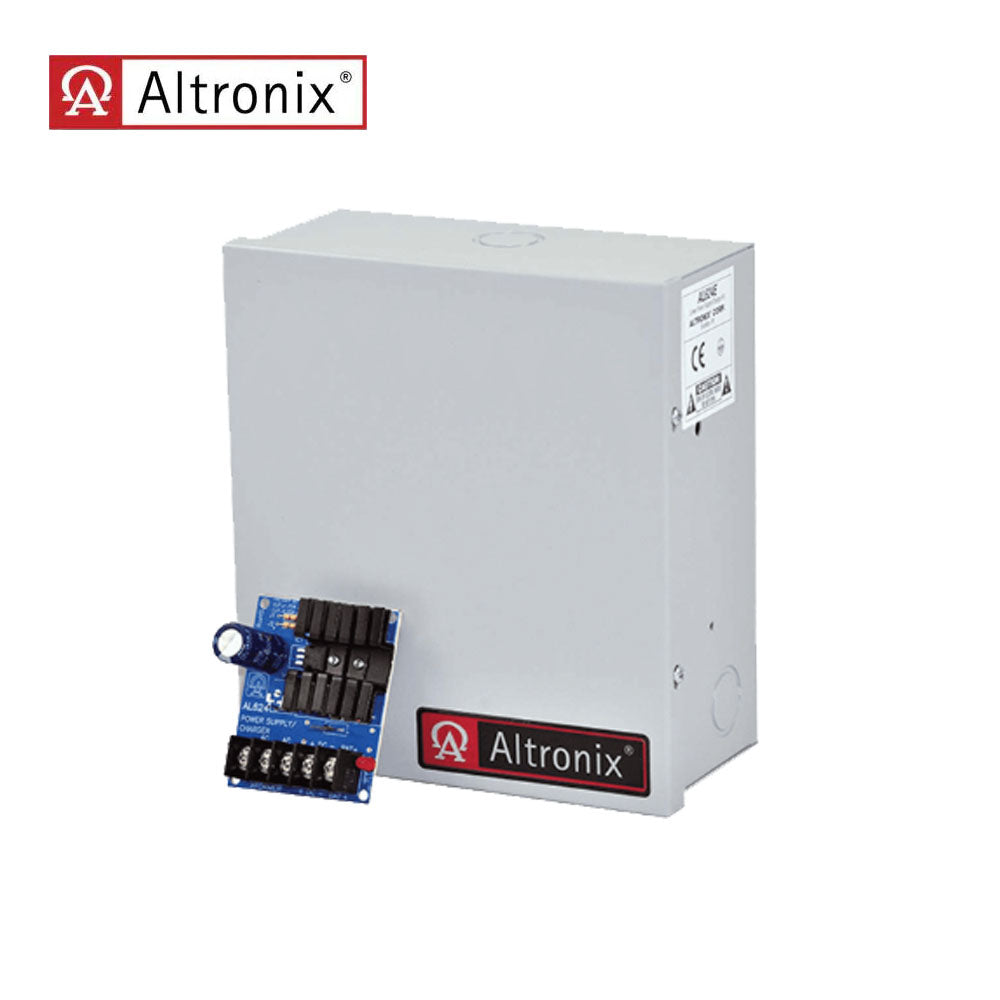

Altronix - AL624E - Linear Power Supply Charger with Single Selectable Output - Grey Enclosure

Altronix - AL624E - Linear Power Supply Charger with Single Selectable Output - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Power supply/charger with enclosure.
• Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.

Input:

• 16VAC to 24VAC, 20VA to 40VA.

Output:

• Switch selectable 6VDC-12VDC-24VDC.
• 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.
• PTC battery protection

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F)
• Storage: - 20° C to 70ºC ( - 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.):
  6VDC: 4 BTU/Hr.
  12VDC: 7 BTU/Hr.
  24VDC: 9 BTU/Hr.
• System AC input VA requirement:
  16.5VAC/20VA: 138.
  16.5VAC/40VA: 276.
  24VAC/20VA: 92.
  24VAC/40VA: 192.05.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
