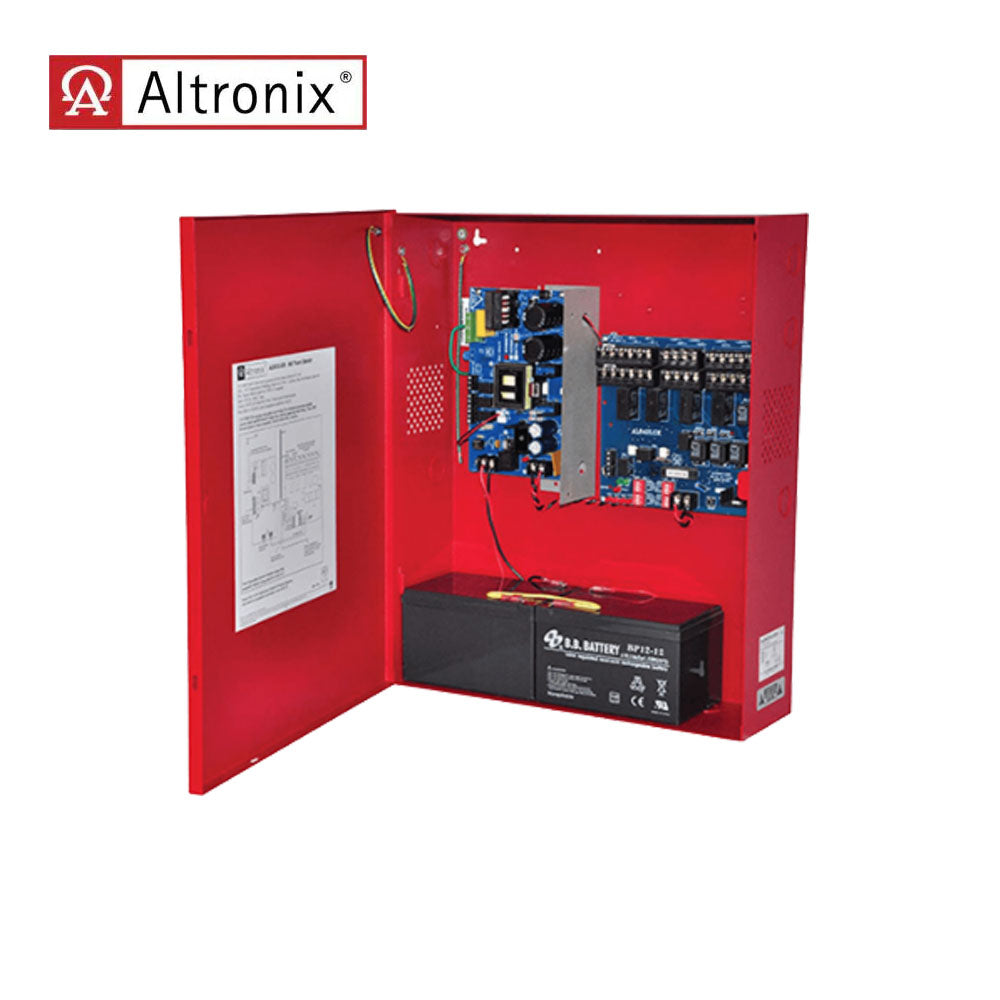

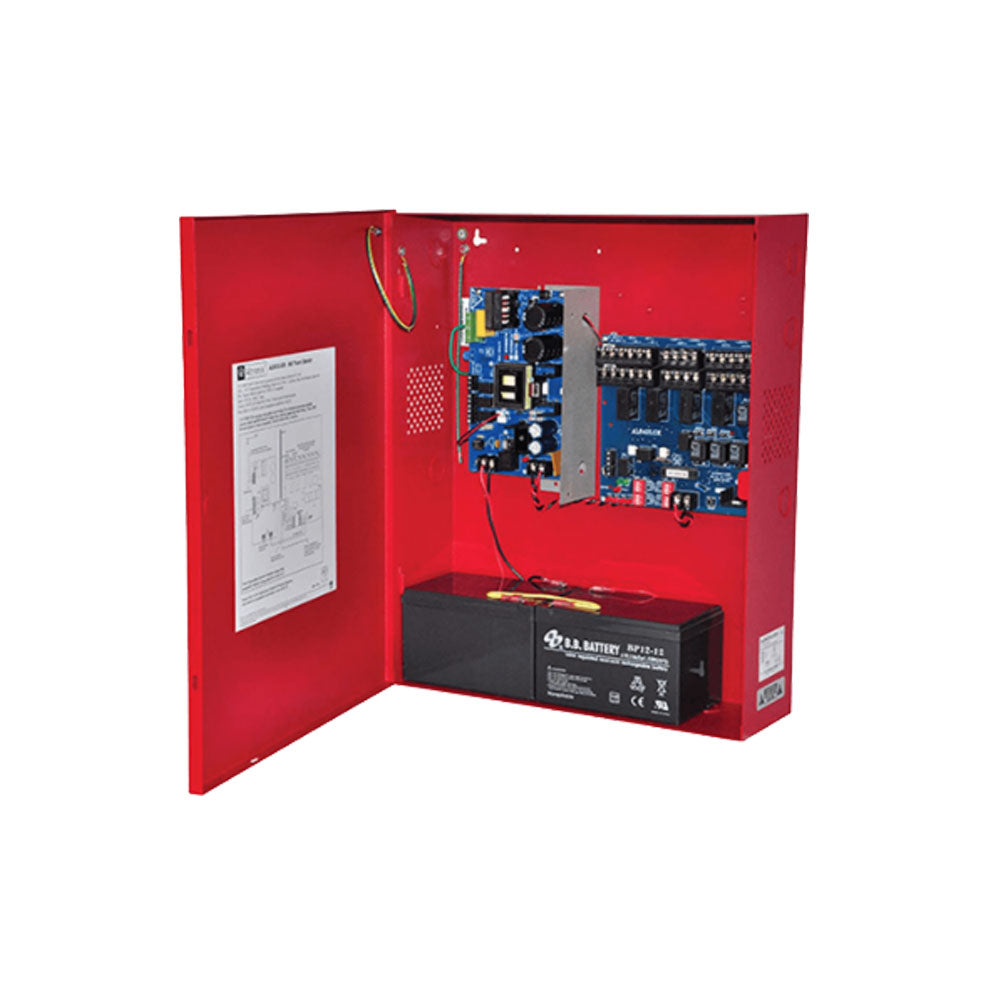

Altronix - AL842ULADA - NAC Power Extender with Power Limited Outputs - Red Enclosure

Altronix - AL842ULADA - NAC Power Extender with Power Limited Outputs - Red Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• 2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time.
• Sync protocols include Potter/Amseco, Gentex, System Sensor, and Cooper Wheelock
• Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit).
• Compatible with 24VDC fire panels.
• Output loop supervision steered to Input 1 or Input 2.
• Signal circuit trouble memory (helps identify intermittent loop problems).
• Common trouble input and output for external trouble signals tie-in.
• Ground fault detection.

Input:

Voltage:

• 120VAC, 60Hz, 5A.
• Two (2) Class A or two (2) Class B inputs.
• Two (2) NC dry contact trigger inputs.

Input Ratings (INP1 and INP2):

• 8-30VDC 6.5mA max from FACP.
• 12V 6.5mA, 24V 6.5mA from FACP.

Output:

Voltage:

• 24VDC power-limited outputs.

Current:

• 8A max. total alarm current.
• 2.5A max. current per output.

Auxiliary:

• Two auxiliary outputs rated at 1A each (1A continuous, 1A AC disconnect).

Other:

• Thermal and short circuit protection with auto reset.
• Filtered and regulated outputs.

Programmable Supervised Indicating Circuit Outputs:

• Four (4) Class B, or Four (4) Class A, or
• Two (2) and Two (2) Class B.

Supervision:

• AC failure: form "C" contacts.
• Battery: form "C" contact).

Indicators (LED):

• AC Power (Green): Input voltage is present.
• DC Output (Red): Powered.
• Logic Board (Red and Green): Output status.

Battery Backup:

• Zero voltage drop when switching over to battery backup.
• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.
• (Batteries are sold separately).

Temperature:

• Operating 0° C to 49° C (32° F to 120° F)
• Storage: - 20° C to 70ºC ( - 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 31 BTU/Hr.

Enclosure:

• Wall mount enclosure for indoor use
• Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
