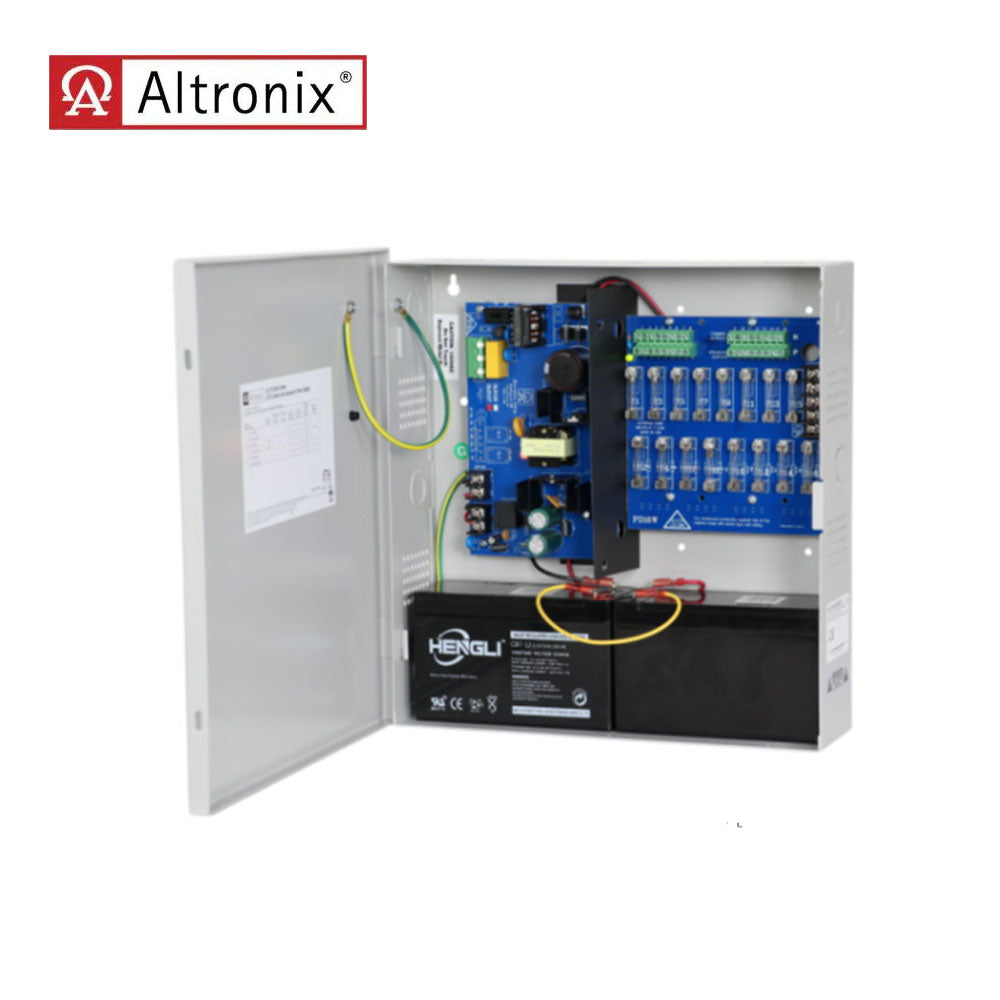

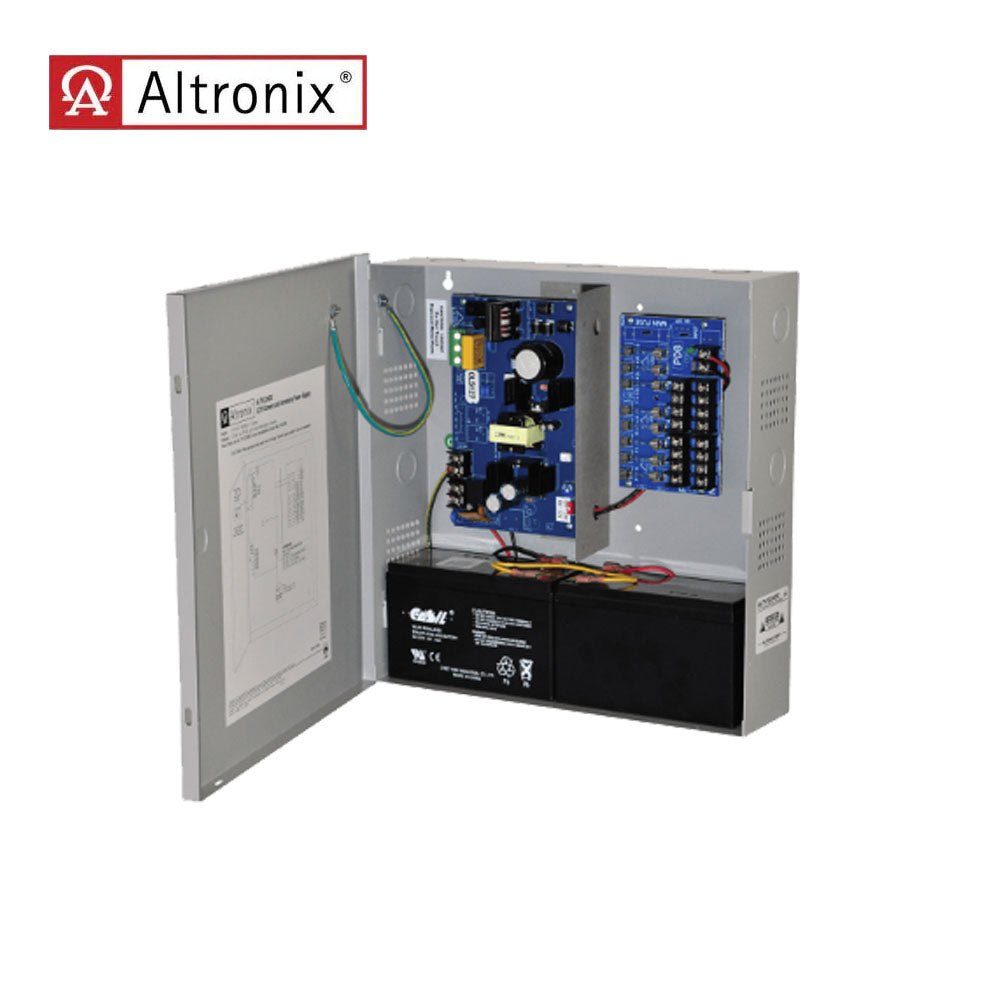

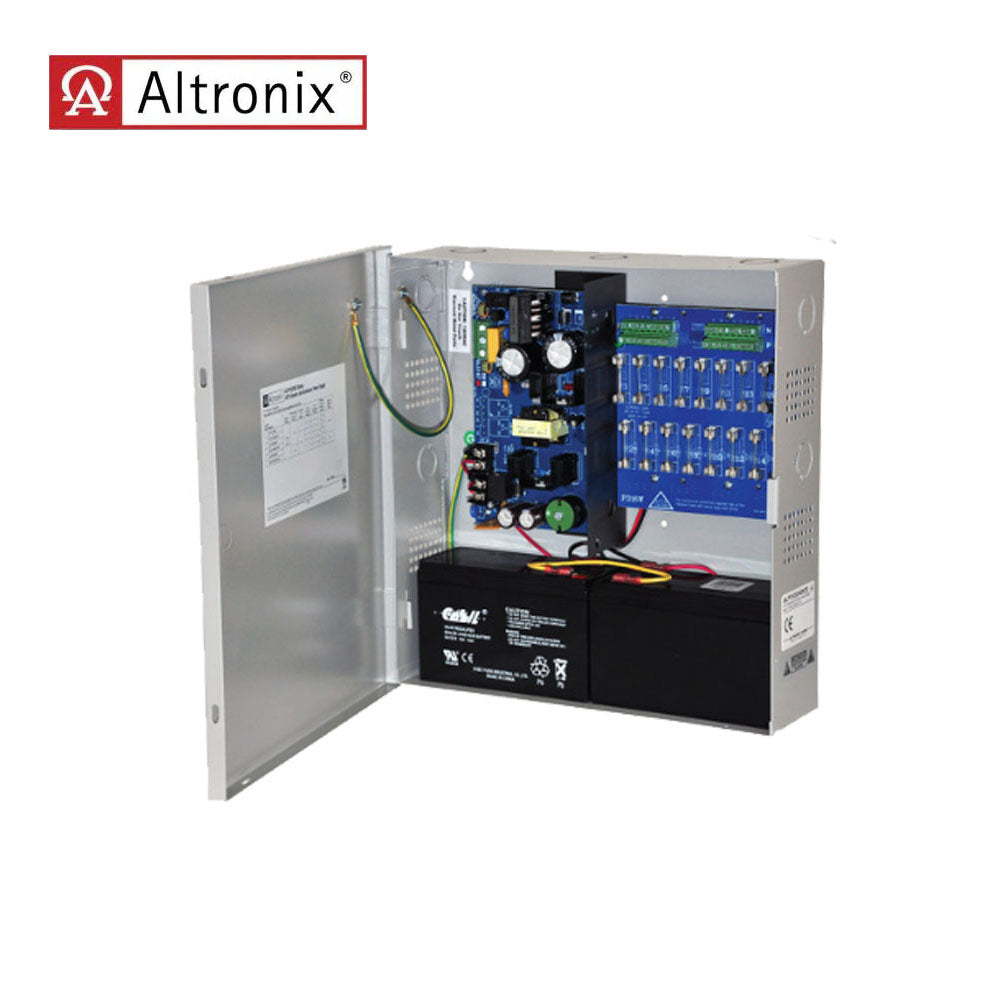

Altronix - ALTV1224DC Series - CCTV Camera and Accessory Power Supply - Grey Enclosure

Altronix - ALTV1224DC Series - CCTV Camera and Accessory Power Supply - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• AC input and DC output LED indicators.
• Power ON/OFF switch.
• Unit maintains camera synchronization(Except ALTV1224DC)
• Ease of installation saves time and eliminates costly labor.

Input:

• Input 115VAC, 50/60 Hz, 1.45A.
• Input 115VAC, 50/60 Hz, 2.55A(For DC2 and DC2CB)

Output:

• Eight (8), Sixteen (16) fuse protected outputs.
• Sixteen (16) PTC protected outputs auto-resettable.(For ALTV1224DC2CB)
• 4A total continuous supply current- 0.5A per device, 3.5A max. (For ALTV1224DC)
• 4A total continuous supply current- 0.25A per device, 3.5A max.(For ALTV1224DC1)
• 6A total continuous supply current- 0.375A per device, 3.5A max.(For ALTV1224DC2 and ALTV1224DC2CB)
• 12VDC or 24VDC field adjustable
• Outputs are rated @ 3.5A.
• Filtered and electronically regulated outputs.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F)
• Storage: - 20° C to 70ºC ( - 4° F to 158° F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
  12VDC: 25 BTU/Hr. and 24VDC: 49 BTU/Hr.(For ALTV1224DC and ALTV1224DC1)
  12VDC: 37 BTU/Hr. and 24VDC: 75 BTU/Hr.(For ALTV1224DC2 and ALTV1224DC2CB)
• System AC input VA requirement:
  166.75VA.(For ALTV1224DC and ALTV1224DC1)
  293.25VA.(For ALTV1224DC2 and ALTV1224DC2CB)

Enclosure:

• Wall mount enclosure for indoor use
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
