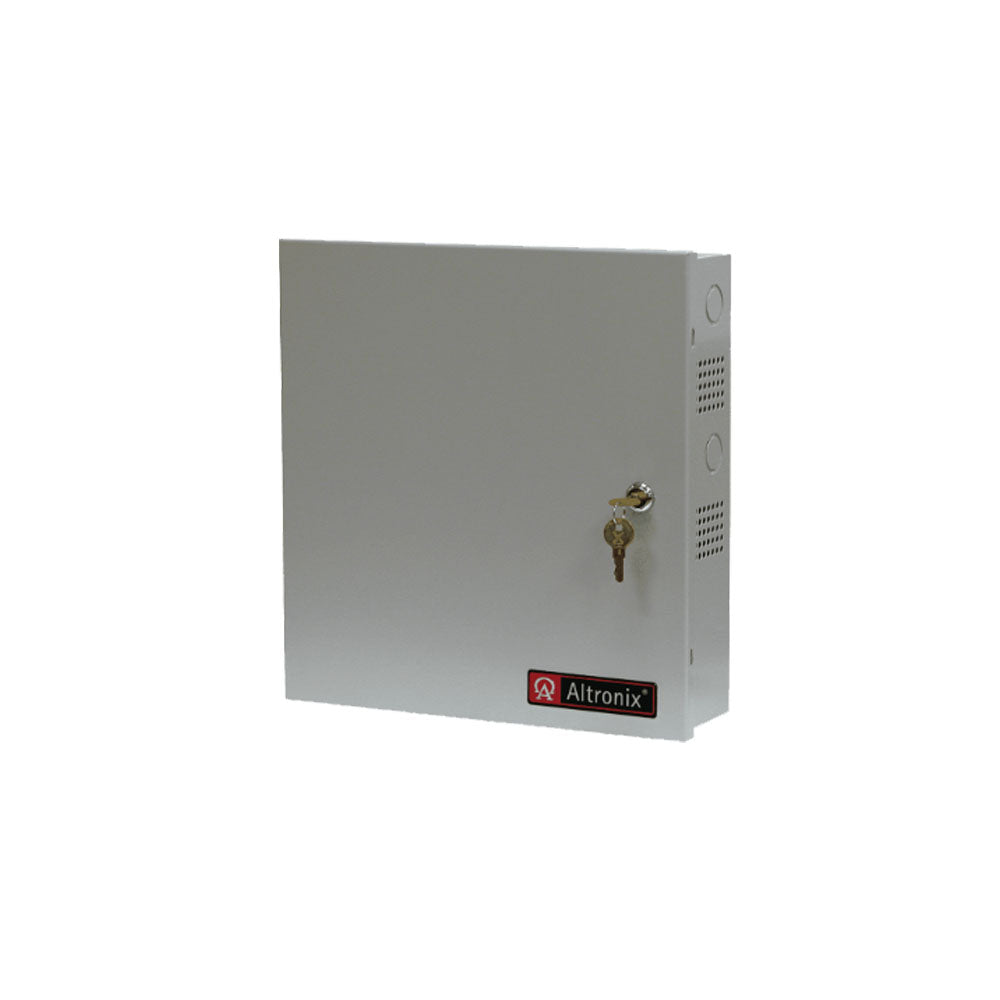

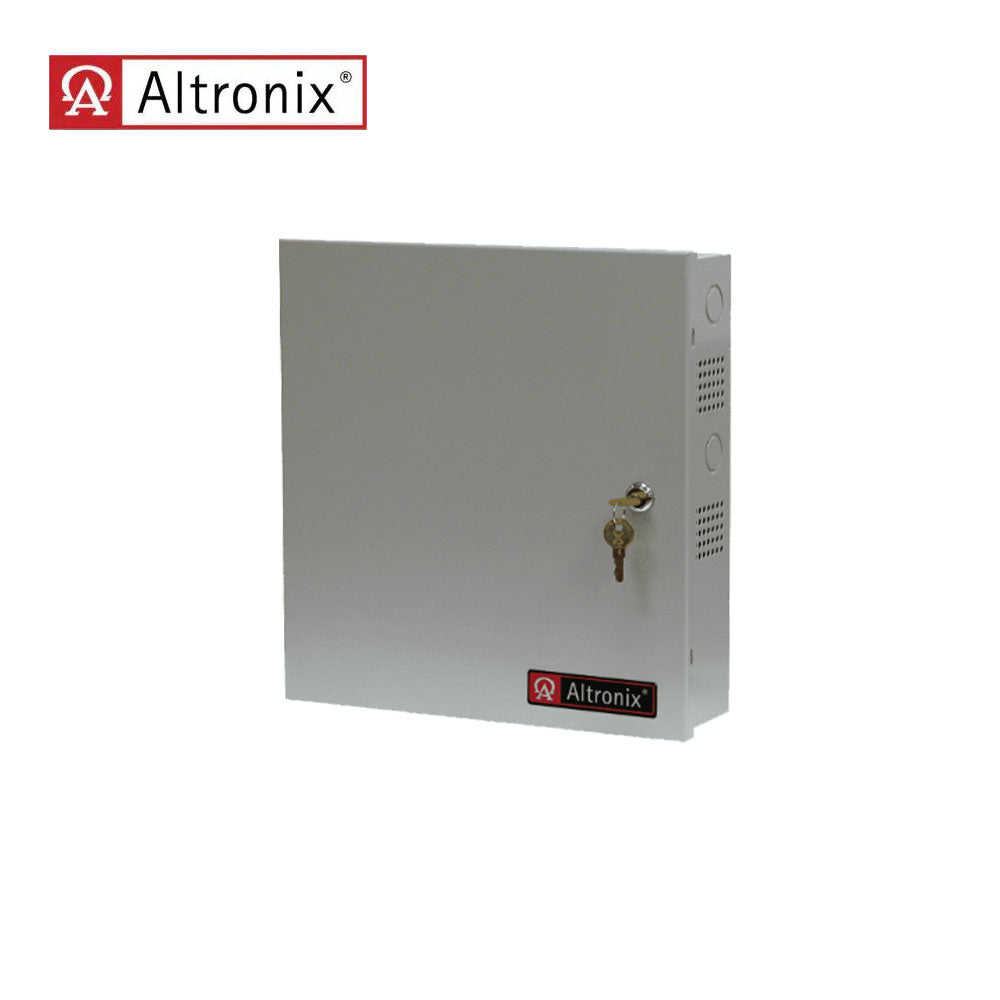

Altronix - ALTV2416300ULCB - CCTV Power Supply with PTC Protected Outputs - Grey Enclosure

Altronix - ALTV2416300ULCB - CCTV Power Supply with PTC Protected Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 50/60Hz, 2.7A.

Output:

• Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
• 24VAC @ 12.5A (300VA) supply current (0.781A per device, 2.5A max.) or 28VAC @ 10A (280VA) supply current (0.625A per device, 2.5A max.).
• Outputs are rated @ 2.5A.
• Surge suppression.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.

• BTU/Hr (approx.):

  • 24VAC: 154 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
• System AC input VA requirement: 310.5VA.

Features:

• Secondary fuse rated @ 10A/250V.
• AC power LED.
• Power ON/OFF switch.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 13"W X 13.5"H X 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
