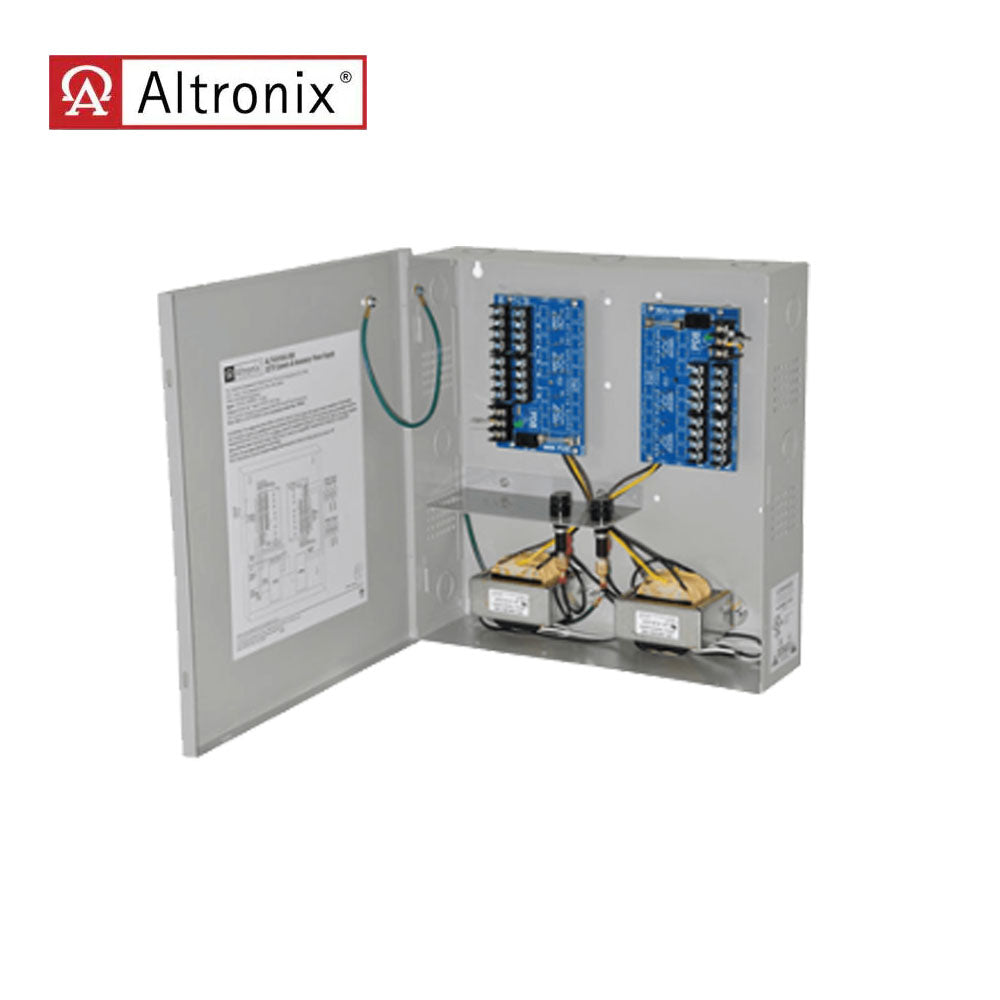

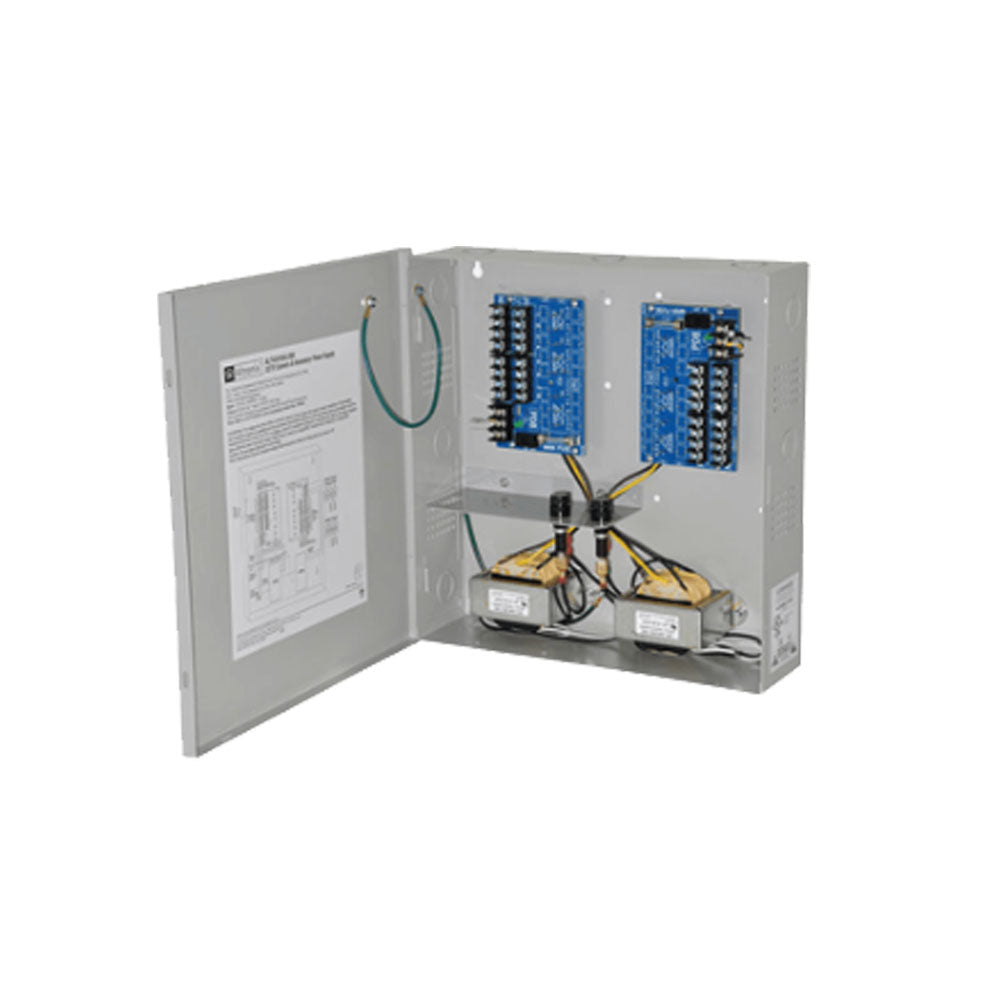

Altronix - ALTV2416CBX220 - CCTV Power Supply with 16 PTC Protected Outputs - Grey Enclosure

Altronix - ALTV2416CBX220 - CCTV Power Supply with 16 PTC Protected Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Secondary fuse rated @ 5A/250V.
• AC power LED.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Input:

• 220VAC, 50/60Hz, 0.5A.

Output:

• Sixteen (16) PTC protected outputs.
• 24VAC @ 7A (170VA) or 28VAC @ 6A (170VA) supply current.
• Outputs are rated @ 2.5A.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 101 BTU/Hr.
• System AC input VA requirement: 110VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
