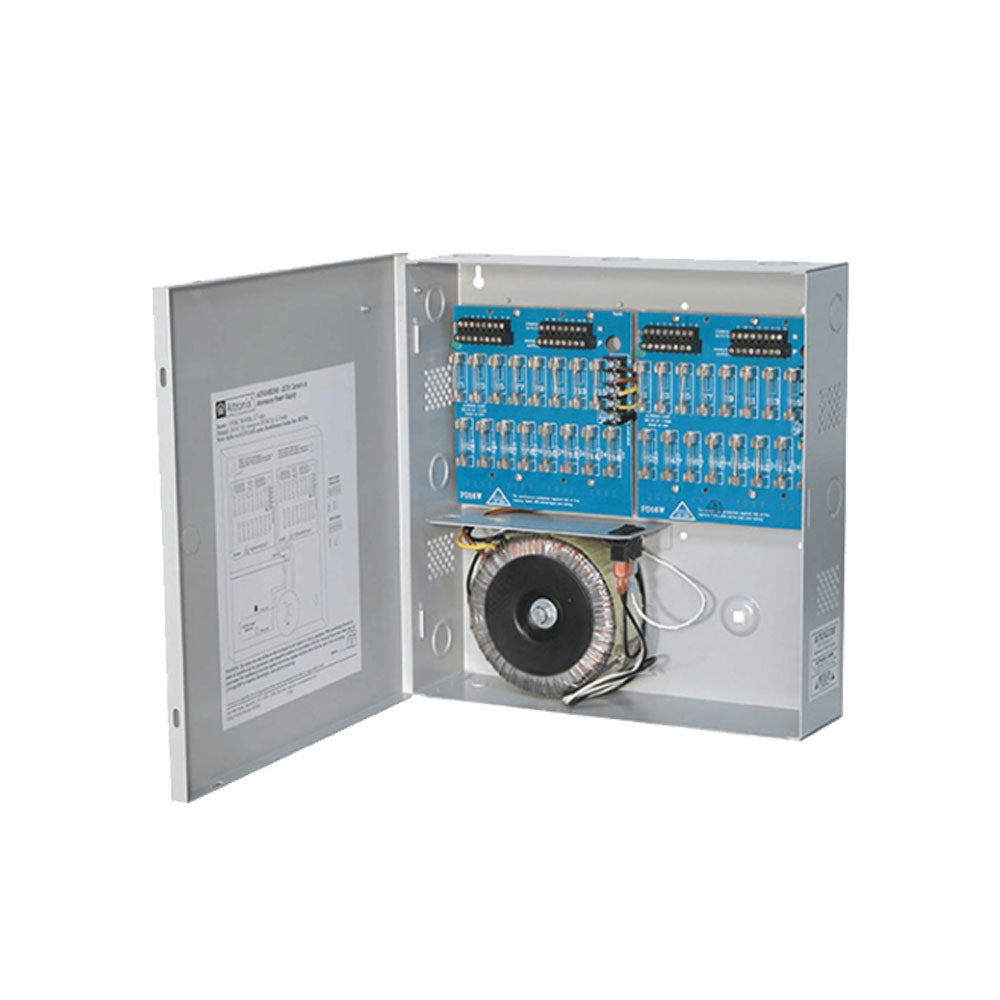

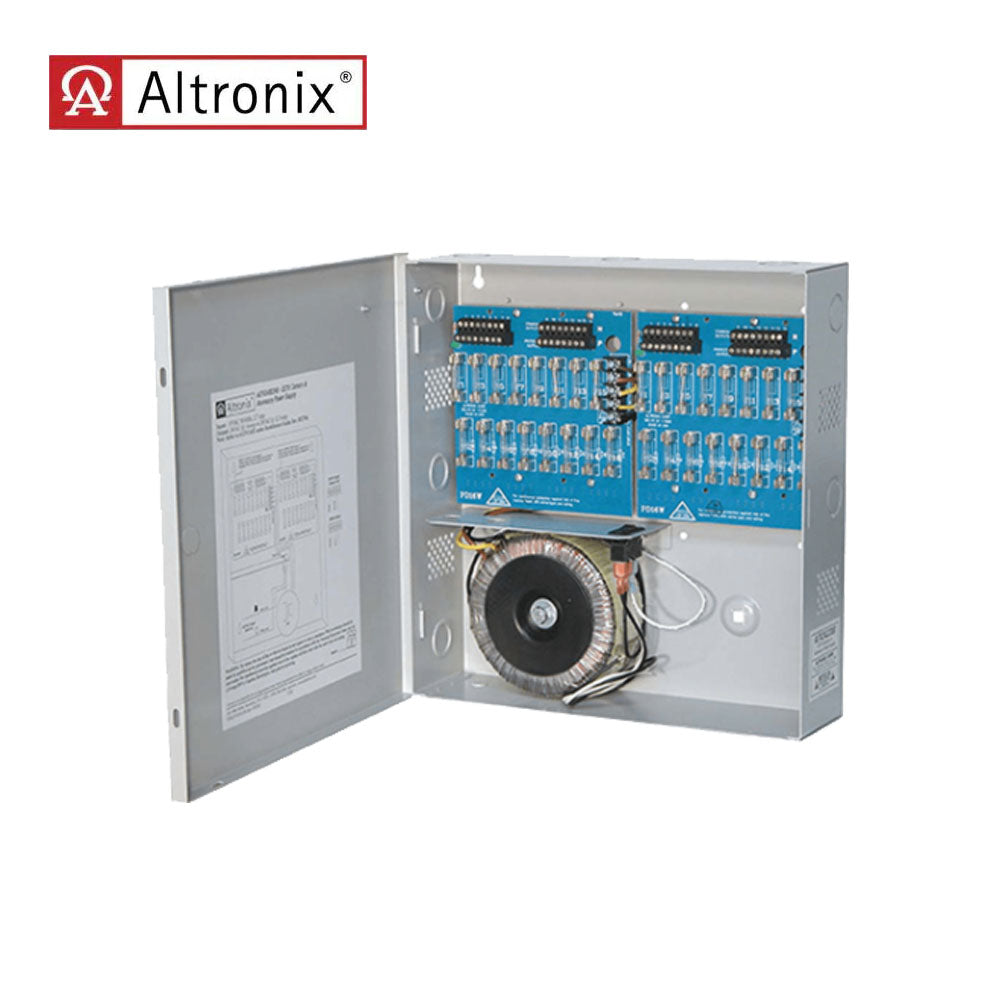

Altronix - ALTV2432 Series - CCTV Power Supply with Grey Enclosure

Altronix - ALTV2432 Series - CCTV Power Supply with Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Secondary fuse rated @ 10A/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).(For ALTV2432350)

Input:

• 115VAC, 50/60Hz, 2.7A.

Output:

• Thirty-Two (32) fuse protected outputs.
• Thirty-Two (32) Class 2 Rated PTC protected power limited outputs-auto-resettable(For ALTV2432350CB).
• 24VAC @ 14A (350VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.391A per device, 3.5A max.).
• Outputs are rated @ 3.5A.
• Surge suppression.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 24VAC: 172 BTU/Hr.and 28VAC: 179 BTU/Hr.
• System AC input VA requirement: 310.5VA

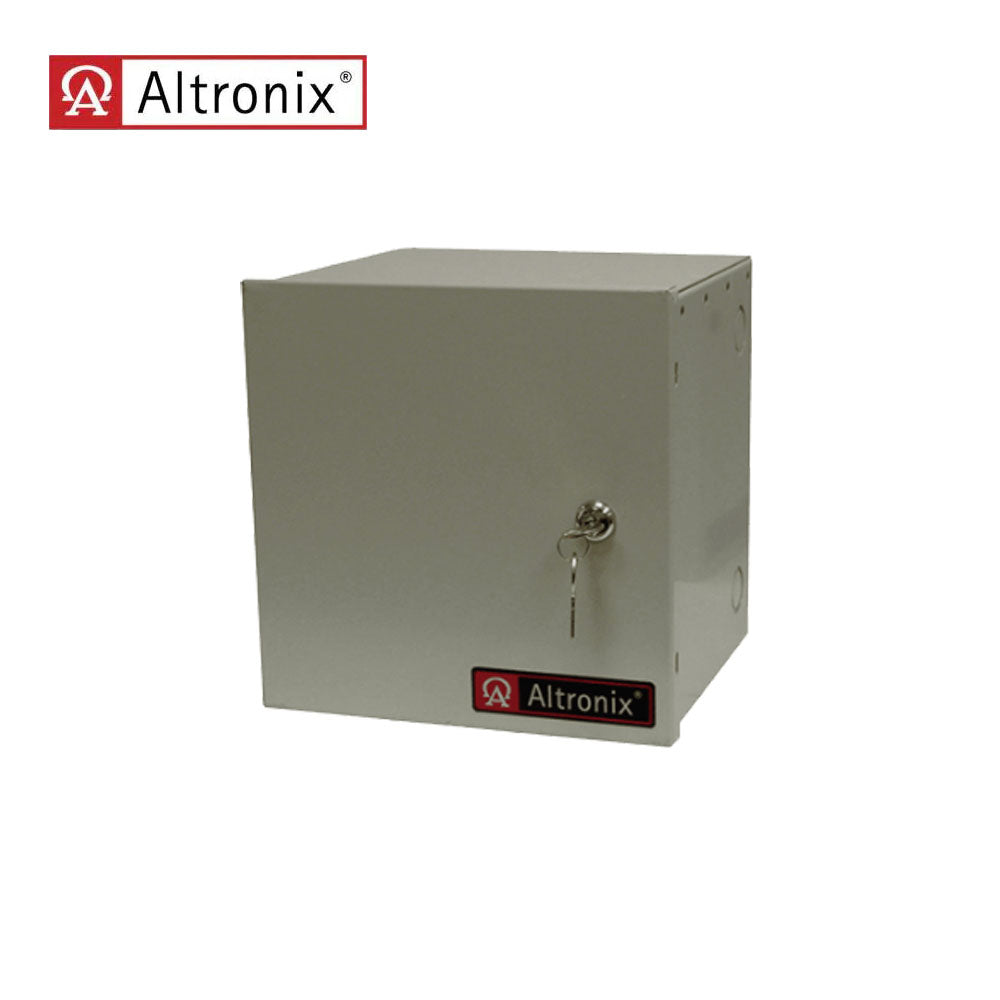

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
