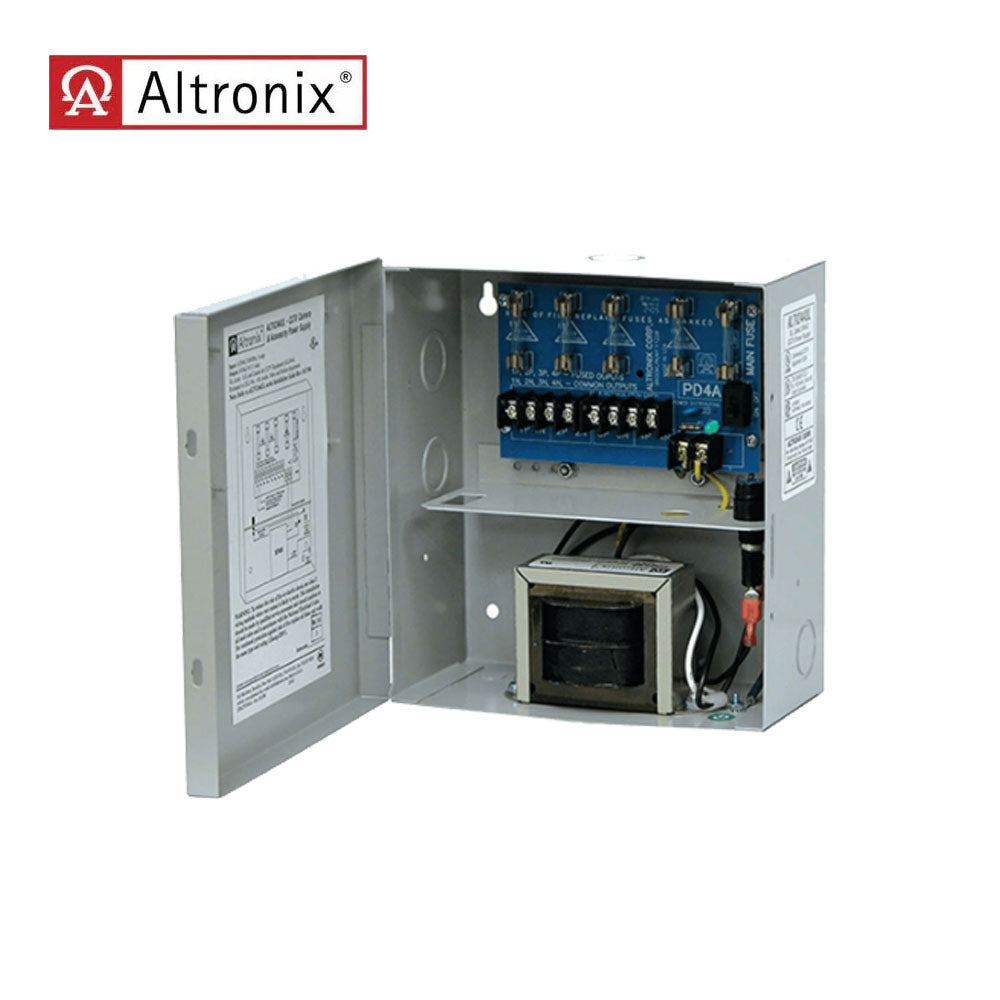

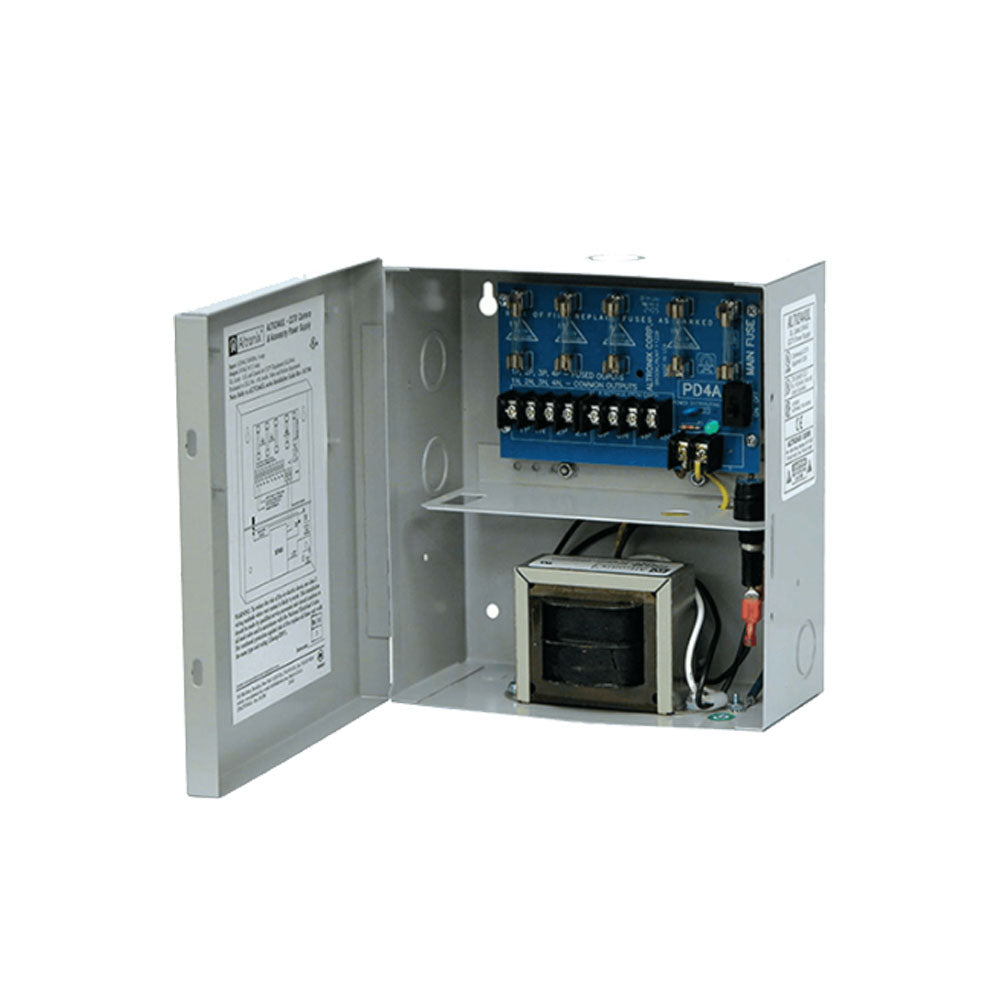

Altronix - ALTV244UL - CCTV Power Supply with 4 Protected Outputs - Grey Enclosure

Altronix - ALTV244UL - CCTV Power Supply with 4 Protected Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Secondary fuse rated @ 5A/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided.

Input:

• 115VAC, 50/60Hz, 0.9A.

Output:

• Four (4) fuse protected outputs.(ALTV244UL)
• Four (4) PTC protected auto-resettable outputs.(ALTV244ULCB)
• ALTV244UL: 24VAC @ 3.5A (85VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.75A per device, 3.5A max.).
• ALTV244ULCB: 24VAC @ 3.5A (85VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 3A (85VA) supply current (0.75A per device, 2.5A max.).
• Outputs are rated @ 3.5A.
• Outputs are rated @ 2.5A.
• Surge suppression.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  ALTV244UL: 24VAC: 49 BTU/Hr. and 28VAC: 50 BTU/Hr.
  ALTV244ULCB:43 BTU/Hr.
• System AC input VA requirement: 103.5VA.

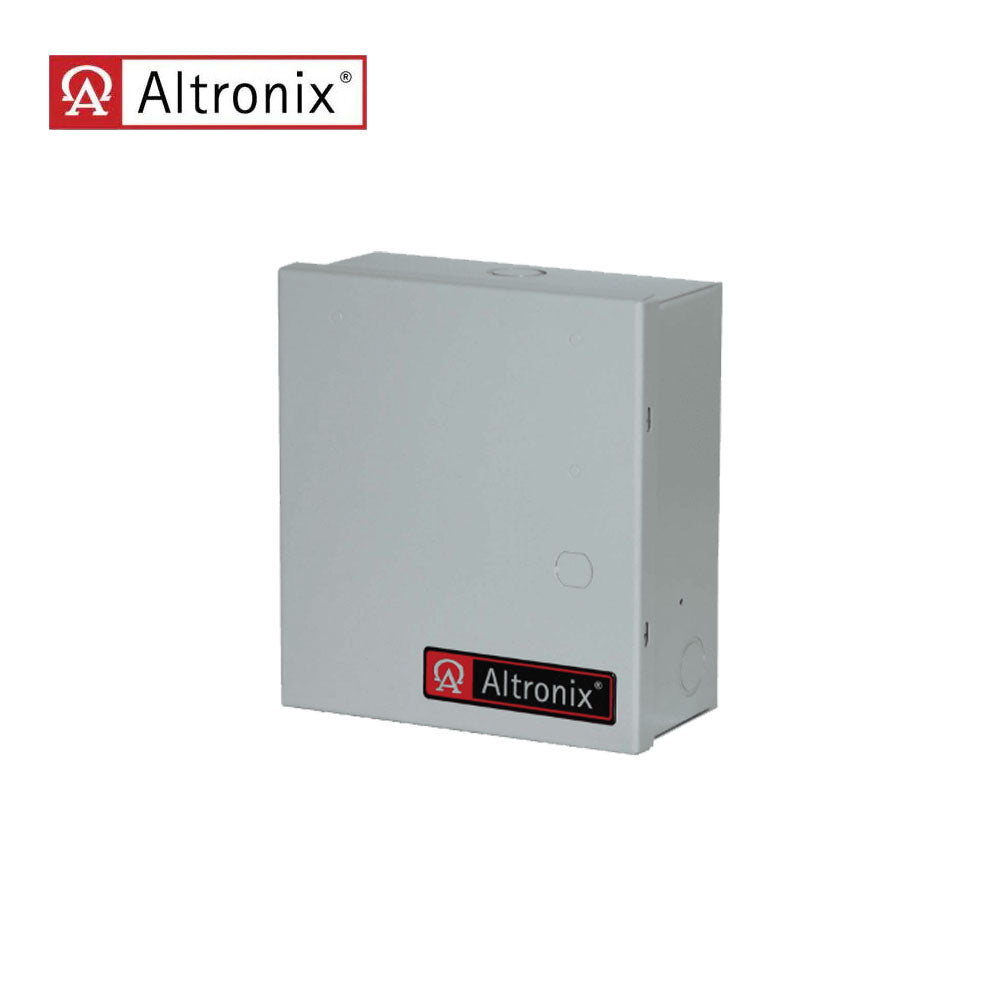

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
