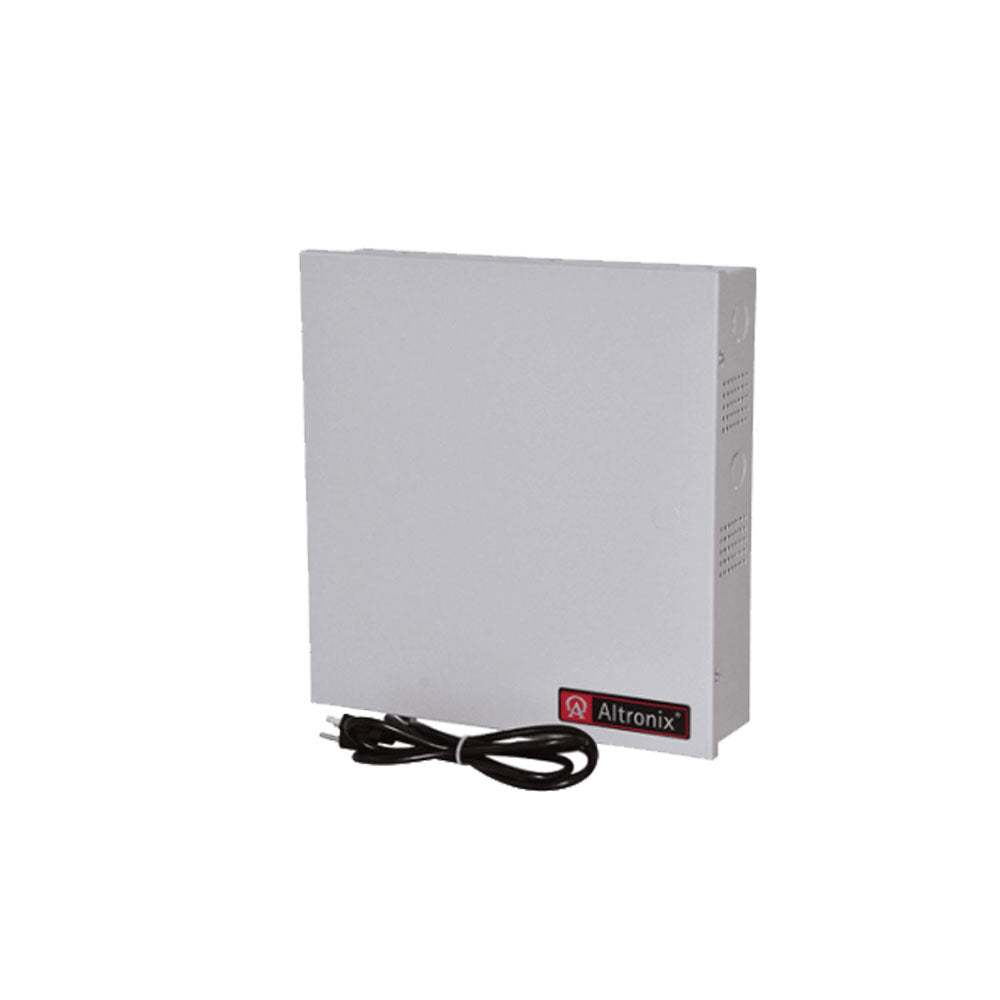

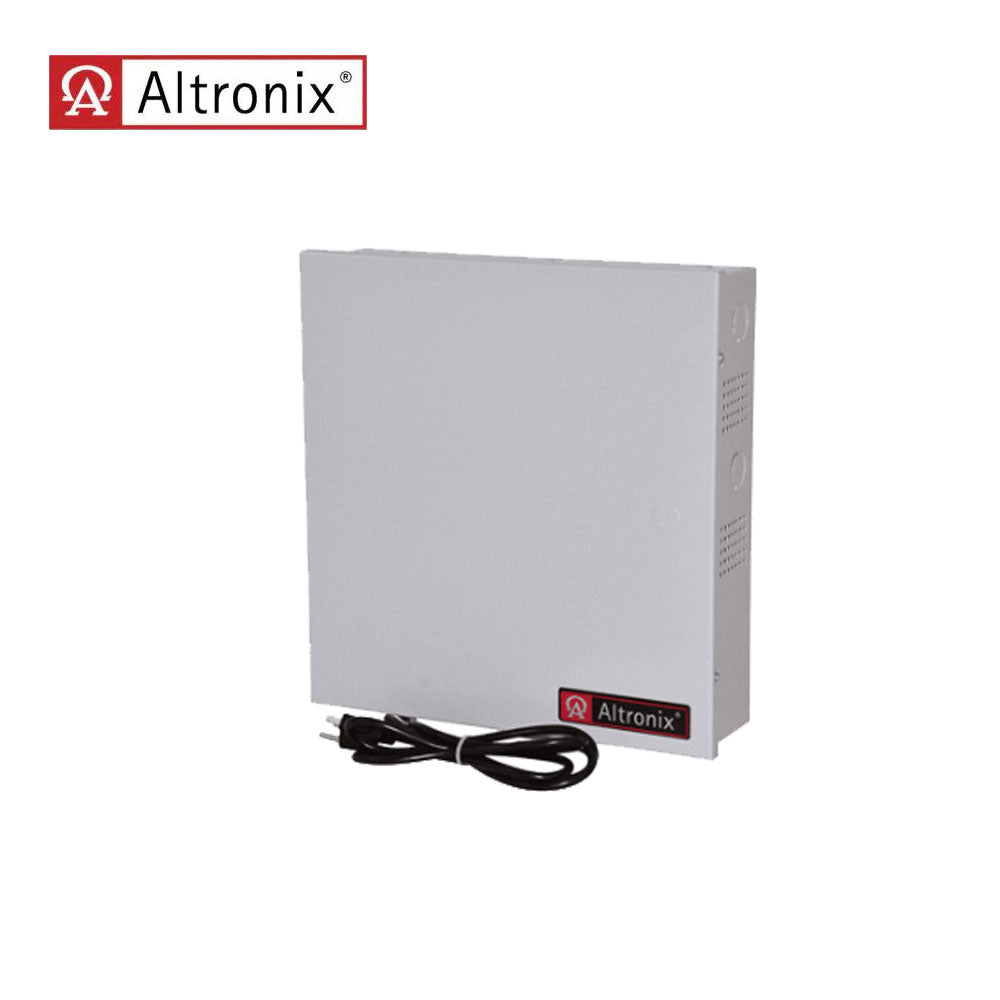

Altronix - ALTV615DC8UL3 - CCTV Power Supply - 8 Fuse Protected Outputs Class 2 - Grey Enclosure

Altronix - ALTV615DC8UL3 - CCTV Power Supply - 8 Fuse Protected Outputs Class 2 - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• AC input and DC output LED indicators.
• Factory installed 3-wire line cord.
• Power ON/OFF switch.
• Spare fuse(s) provided.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Input:

• Input 115VAC, 50/60 Hz, 0.9A.

Output:

• Eight (8) Class 2 Rated fuse protected power limited outputs.
• 6VDC to 15VDC field adjustable.
• 4A total continuous supply current (0.50A per device, 3.5A max.).
• Output fuses are rated @ 3.5A/250VAC.
• Filtered and electronically regulated outputs.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• BTU/Hr.: 12-31 BTU/Hr., depending on output.
• System AC input VA requirement: 103.5VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
