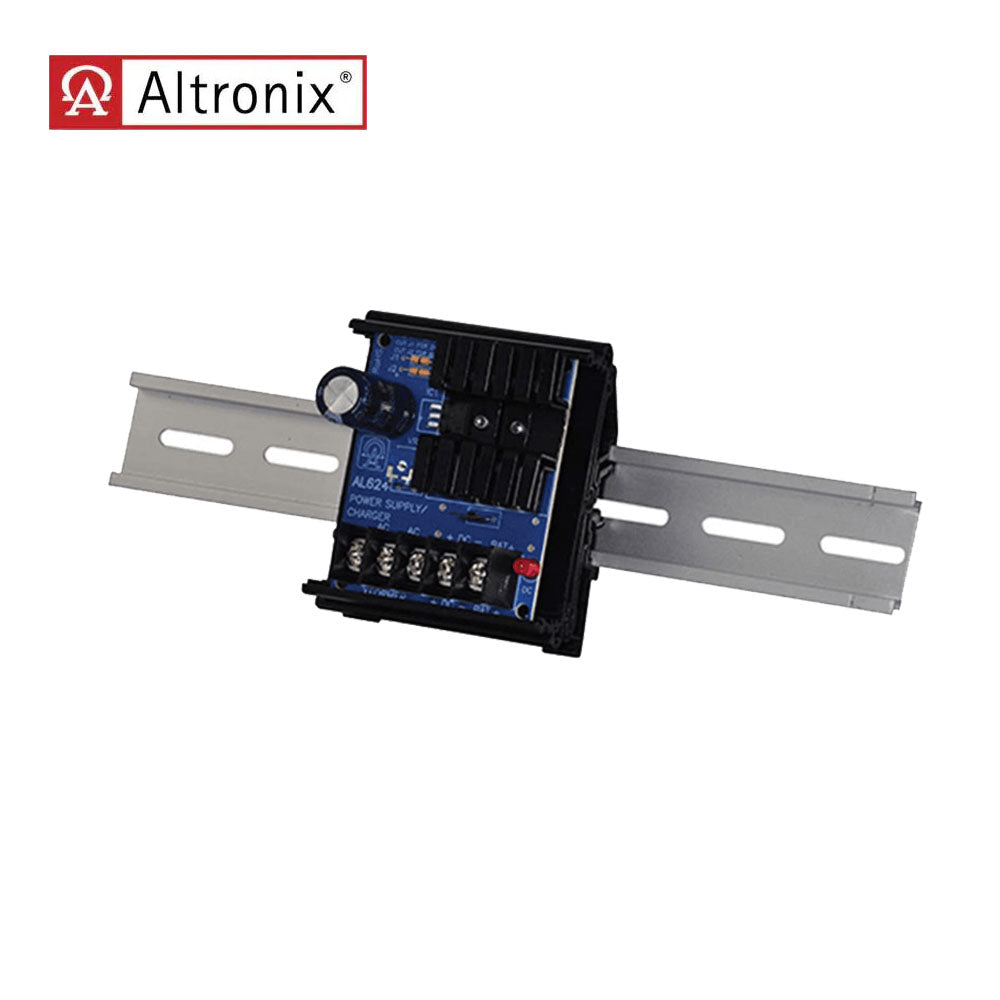

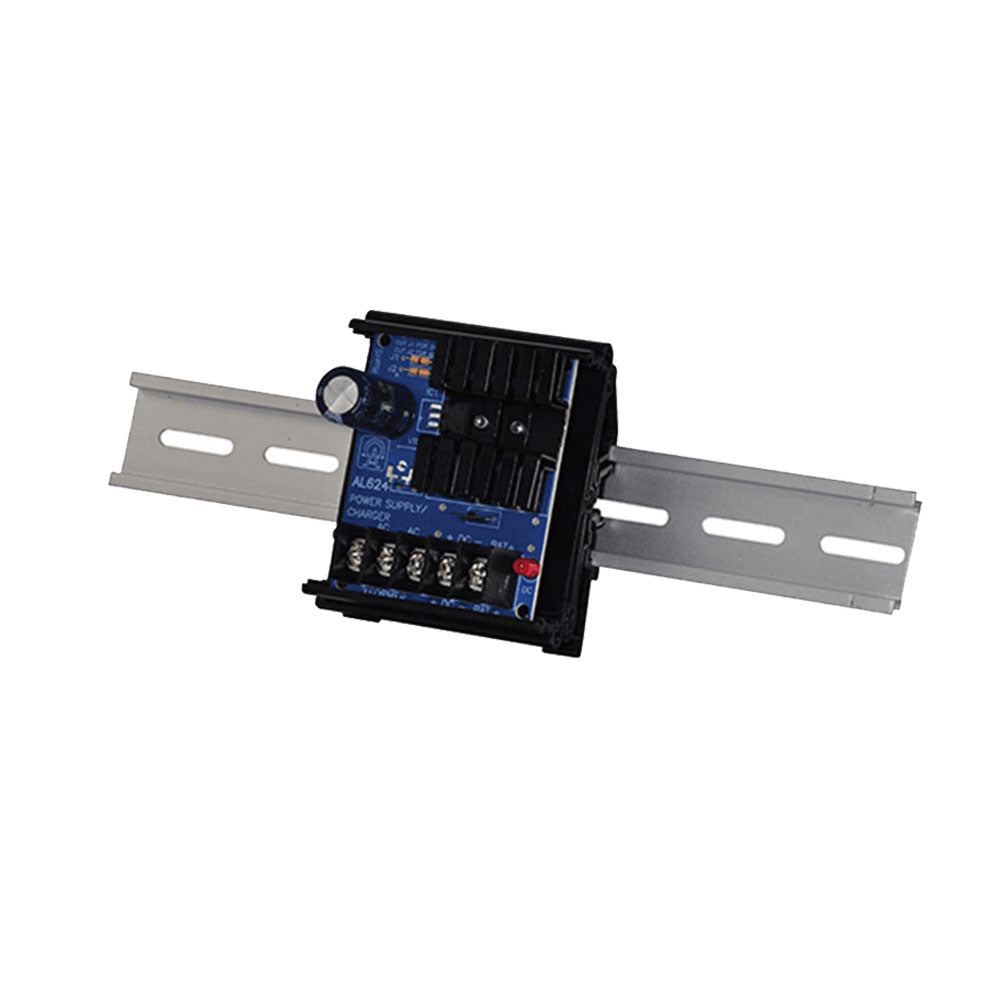

Altronix - DPS1 - DIN Rail Linear Power Supply Charger with 1.2A Single Output Class 2

Altronix - DPS1 - DIN Rail Linear Power Supply Charger with 1.2A Single Output Class 2

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Extremely compact design.
• Includes battery leads.
• Snap Track compatible (order Altronix model number ST3).

Input:

• 6VDC or 12VDC output use TP1640 or 24VDC output use T2428100.

Output:

• 6VDC, 12VDC or 24VDC selectable output.
• 1.2A continuous supply current at 6VDC-12VDC. 750mA continuous supply current at 24VDC.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Battery short circuit protection (circuit breaker).

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.

• BTU/Hr. (approx.):

  • 6VDC: 4 BTU/Hr.
  • 12VDC: 7 BTU/Hr.
  • 24VDC: 9 BTU/Hr.
• System AC input VA requirement: 6VDC: 220VA; 12VDC: 330VA; 24VDC: 960VA.

Dimensions (approximate):

• 2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H).

Download:

• Installation Instruction
