Altronix - EBRIDGE-4PCRM - IP and POE Over Coax Receiver Passes POE / POE+ Powered Midspan or Endspan

Altronix - EBRIDGE-4PCRM - IP and POE Over Coax Receiver Passes POE / POE+ Powered Midspan or Endspan

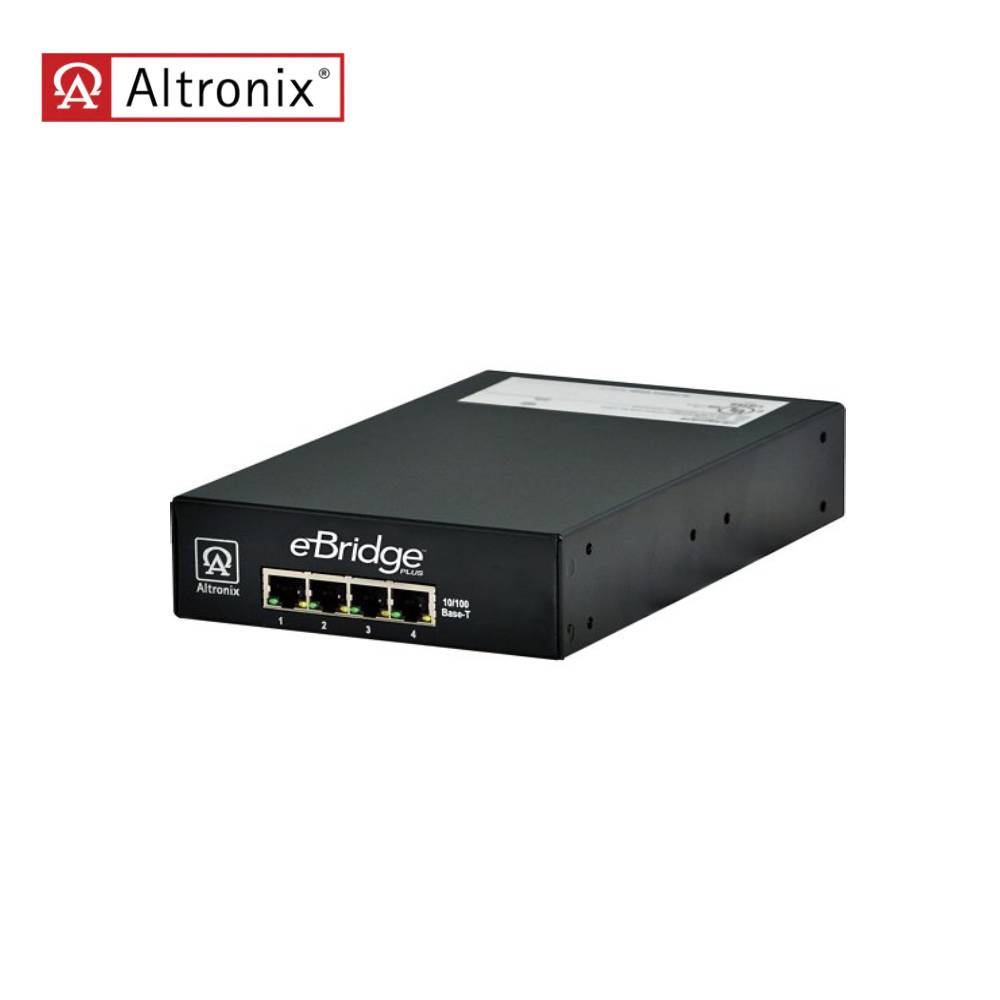

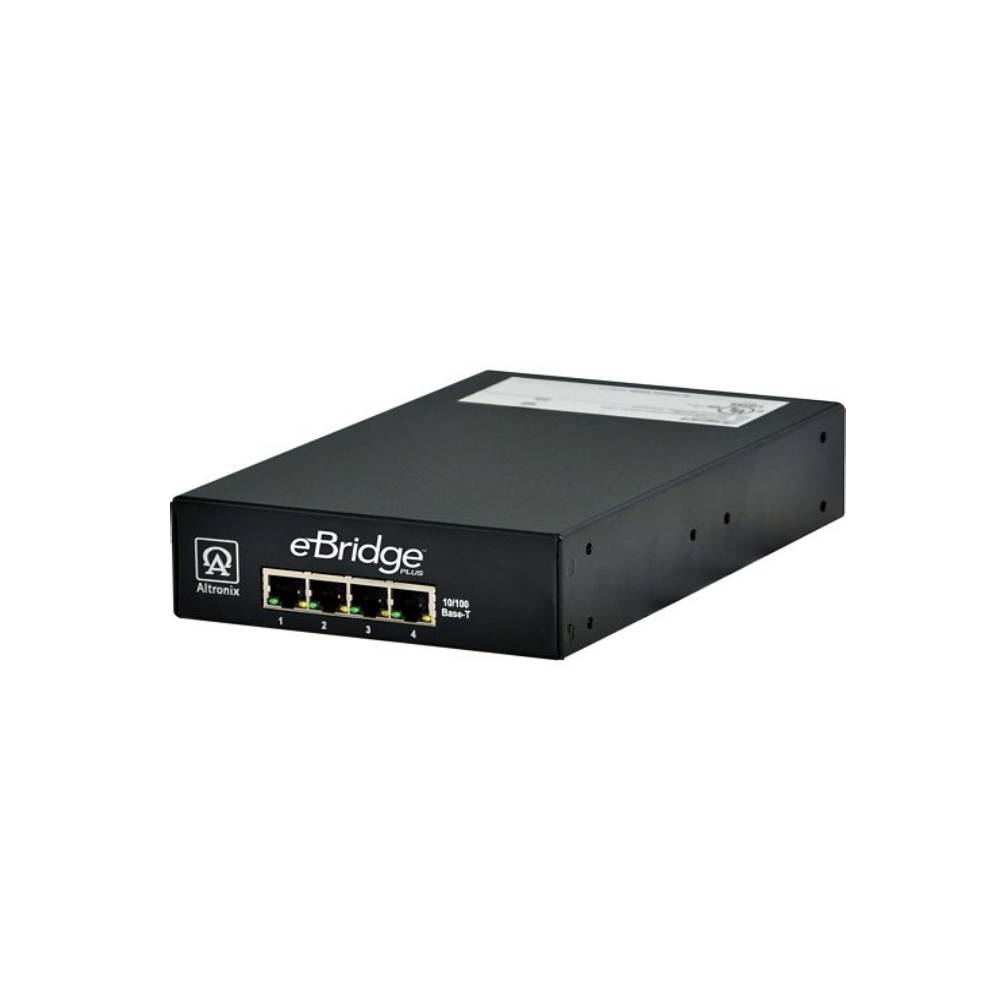

Altronix eBridge4PCRM is an four (4) port table top EoC Receiver that transmits data and power over coax cable in a PoE compliant format. It is powered by a UL Listed limited power source such as a midspan or endspan. Unit passes PoE or PoE+ up the coax to an eBridge1PCT/eBridge1PCTX transceiver. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e).

Features:

• Powered by a UL Listed limited power source, PoE midspan or endspan.
• Connectivity: four (4) RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
• Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
• Blue LED - Coax link connection. Green - PoE ON. Green - Power ON. RJ45 LEDs: Yellow - IP Link status, Green - 10/100Base-T/active
• Auto detection and protection of legacy non-PoE cameras/devices.

Product Specifications:

Download:

• Installation Instructions
