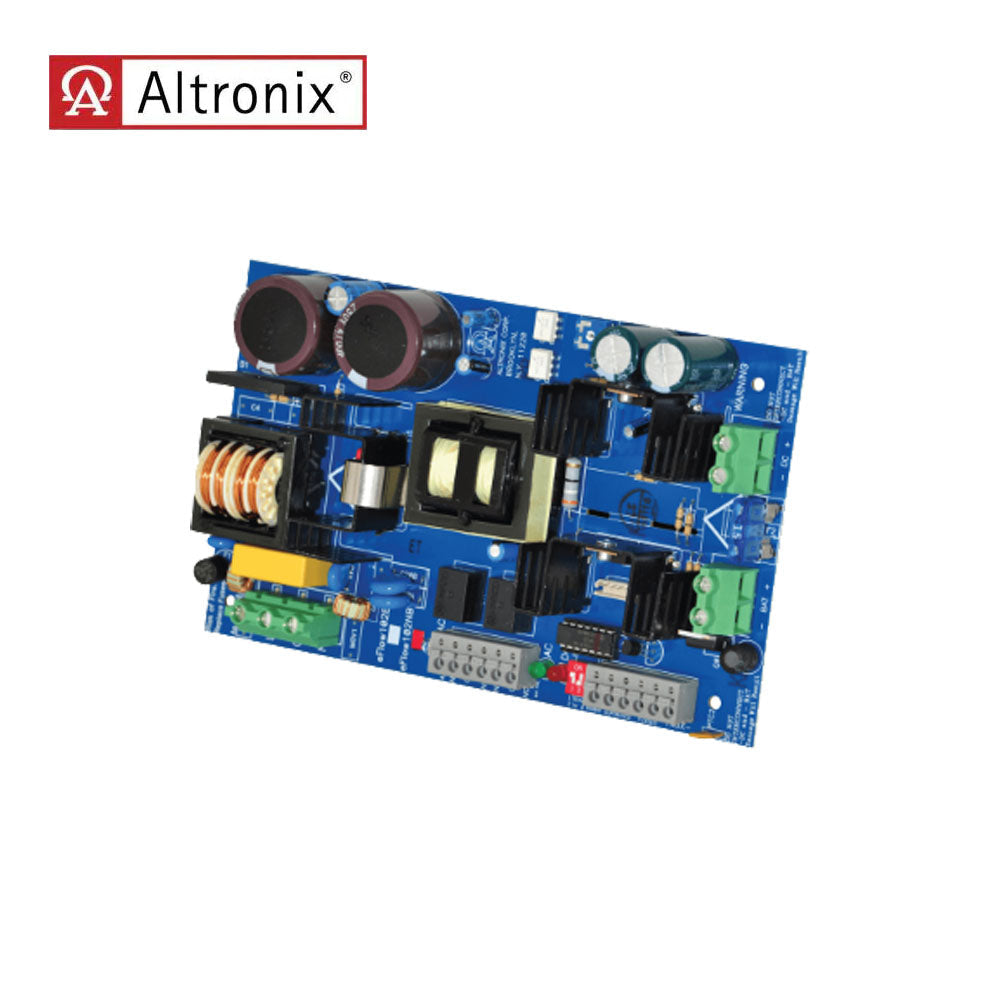

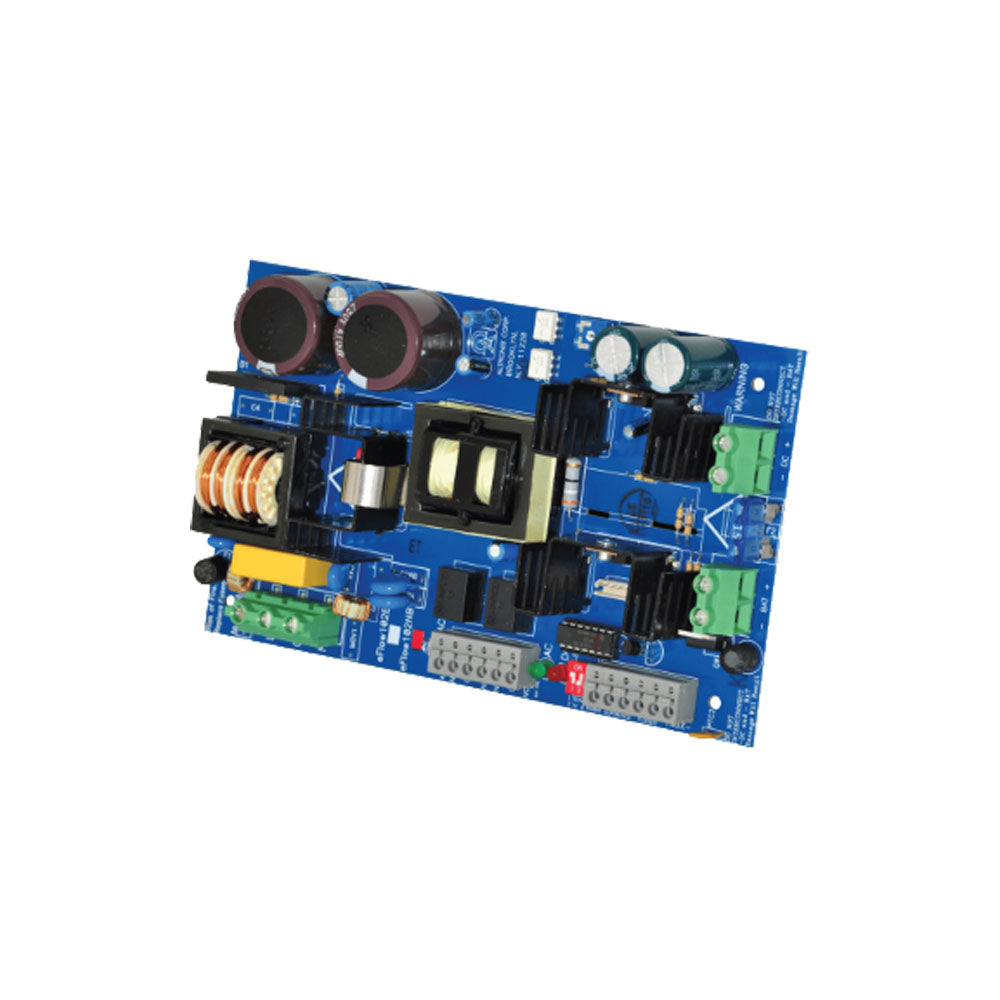

Altronix - EFLOW102NB - Power Supply Charger Board with Single Output

Altronix - EFLOW102NB - Power Supply Charger Board with Single Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 120VAC 60Hz, 3.5A.

Output:

• 12VDC output.
• 10A continuous supply current.
• Aux. power-limited output rated @ 1A (unswitched).
• Over Voltage Protection.
• Filtered and electronically regulated outputs.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail and presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.

Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Additional Features:

• Short circuit and overload protection.

Temperature:

• Operating 0ºC to 49ºC (32ºF to 120ºF).
• Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 61 BTU/Hr.
• System AC input VA requirement: 420VA.

Dimensions (approximate):

• 4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).
